ZOELLER M3098 Sump Pump 1/2 Hp 1-1/2 Inch Npt 21ft Max Ci | AD9BEC 4P023

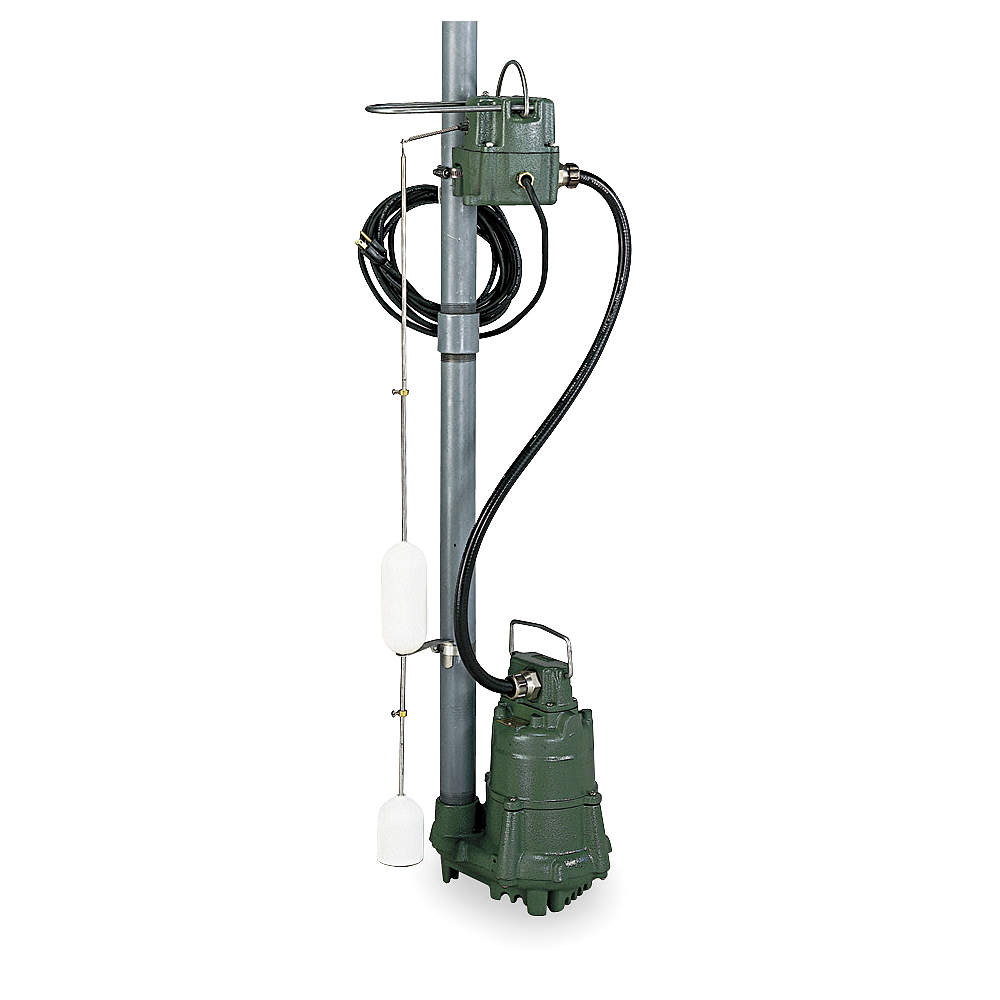

ZOELLER M3098 Sump Pump 1/2 Hp 1-1/2 Inch Npt 21ft Max Ci

Item: AD9BECModel: M3098Cross Ref: 4P023
Check Availability
In Stock

Get it by Wednesday, Dec 24

€1,306.95
10.00% off
€1,176.26 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Submersible Sump Pump
Alarm Included No
Amps 9.4A
Base Material Cast Iron
Body Dia. 11"
Body Material Cast Iron
Cord Length 15 ft.
Cord Length - Pumps 15 ft.
Dia. 11"
Diameter 11"
Discharge Dia. 1 1/2"
Discharge Gender Female
Discharge Npt 1-1/2"
Discharge Size 1 1/2"
Discharge Type FNPT
Duty Cycle Continuous
Flow Rate @ 10 Ft. 56 GPM
Flow Rate @ 10 Ft. Of Head 56 GPM
Flow Rate @ 15 Ft. Of Head 41 GPM
Flow Rate @ 20 Ft. 23 GPM
Flow Rate @ 20 Ft. Of Head 23 GPM
Flow Rate @ 5 Ft. 66 GPM
Flow Rate @ 5 Ft. Of Head 66 GPM
Frequency 60 Hz
Gauge 16 AWG
Housing Material Cast Iron
Hp 1/2 hp
Impeller Material Cast Iron
Impeller Material - Pumps Cast Iron
Includes Check Valve
Manufacturers Warranty Length 1 yr.
Max. Flow Rate @ 15 Ft. 41 GPM
Max. Head 21 ft.
Max. Head - Pumps 21 ft.
Max. Liquid Temp. 200°F
Max. Solid Dia. 1/2"
Min. Sump Pit Dia. 18"
Motor Type Permanent Split Capacitor
Nec Cord Designation SOW
No. Of Conductors 4
Off Point 3"
On Point 12"
Outlet 1 1/2" Fnpt
Overall Height 13 1/2"
Pump Body Material Cast Iron
Rated Voltage 115V
Shaft Grade Grade 303
Shaft Material Viton
Shaft Seal Material Viton
Shaft Seal Material - Pumps Viton
Switch Actuation Vertical Float
Switch Electrical Connection Integral
Switch Type Mechanical
Switch Type - Pumps Float
Thermal Protection Yes
Top Material Cast Iron
Voltage 115V AC
Voltage - Pumps 120V AC

Shipping Info:

Ship weight (kg) 25.36
Ship height (cm)34.29
Ship length (cm)41.66
Ship width (cm)34.29
HS code8413702004
Country of OriginUS

Product Variants

ProductModelHpBody MaterialVoltageSwitch ActuationBase MaterialCord LengthMax. HeadImpeller MaterialPrice
ZOELLER BN140 Sump Pump 1hp 1-1/2 Inch Npt 50ft Max Pp | AA8THZ 19T426 BN1401 hpCast Iron115V ACTether FloatCast Iron20 ft.50 ft.Thermoplastic€1,061.00
DAYTON 1APP1 Sump Pump 1/3 Hp 1-1/2 Npt 20 Feet | AA8XWD 1APP11/3 hpStainless Steel120V ACDual Micro ReedCast Iron13 ft.30 ft.Polycarbonate€490.05
DAYTON 1APP2 Sump Pump 1/2 Hp 2 Npt 33ft Max Ss | AA8XWE 1APP21/2 hpStainless Steel120V ACDual Micro ReedCast Iron13 ft.33 ft.Polycarbonate€589.44
DAYTON 1XHV6 Sump Pump 1/3 Hp 1-1/2 Npt 10 Feet | AB4ETB 1XHV61/3 hpAluminum120V ACNo Switch IncludedCast Iron13 ft.29 ft.Engineered Polymer€178.54
DAYTON 1XHV7 Sump Pump 1/2 Hp 2 Npt 36ft Max Al | AB4ETC 1XHV71/2 hpAluminum120V ACNo Switch IncludedCast Iron10 ft.32 ft.Engineered Polymer€365.53
ZOELLER M53 Sump Pump 3/10hp 1-1/2 Inch Npt 19ft Max Ci | AC2YNP 2P547 M533/10 hpCast Iron115V ACVertical FloatPolypropylene9 ft.19 ft.Plastic With Metal Insert€405.32
ZOELLER M55 Sump Pump 3/10 Hp 1-1/2 Inch 19ft Max Brz | AC2YNQ 2P548 M553/10 hpCast Bronze115V ACVertical FloatPolypropylene9 ft.19 ft.Bronze€2,320.03
