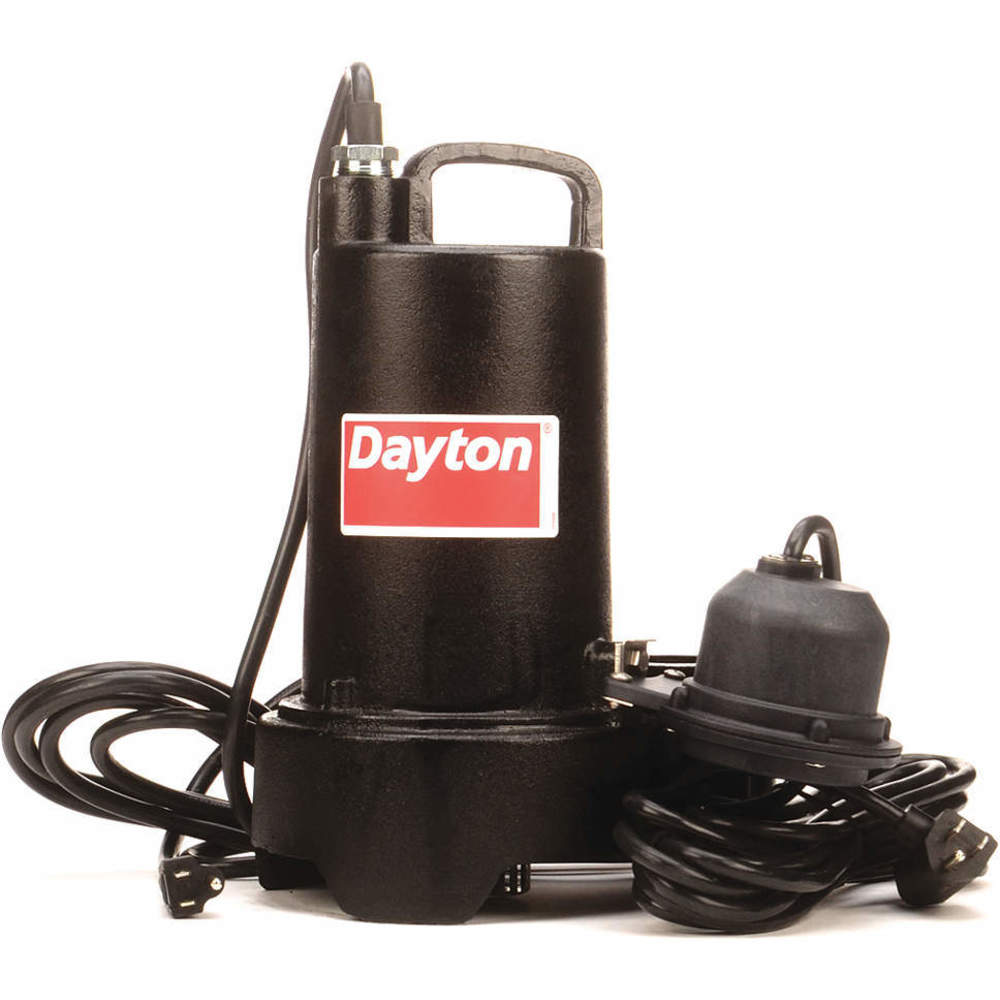

DAYTON 3BB80 Sump Pump 3/4 Hp 1-1/2 Npt 15 Feet
Get it by Tuesday, Dec 23
10.00% off
€799.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Submersible Sump Pump |
| Alarm Included | No |
| Amps | 10.5A |
| Base Material | Cast Iron |
| Bearing Type | Lower Ball, Upper Ball |
| Body Dia. | 10" |
| Body Material | Cast Iron |
| Cord Length | 15 ft. |
| Cord Length - Pumps | 15 ft. |
| Dia. | 10" |
| Diameter | 10" |
| Discharge Dia. | 1 1/2" |
| Discharge Gender | Female |
| Discharge Npt | 1-1/2" |
| Discharge Size | 1 1/2" |
| Discharge Type | FNPT |
| Duty | Intermittent |
| Duty Cycle | Intermittent |
| Flow Rate @ 10 Ft. | 101 GPM |
| Flow Rate @ 10 Ft. Of Head | 101 GPM |
| Flow Rate @ 15 Ft. Of Head | 92 GPM |
| Flow Rate @ 20 Ft. | 80 GPM |
| Flow Rate @ 20 Ft. Of Head | 80 GPM |
| Flow Rate @ 25 Ft. | 63 GPM |
| Flow Rate @ 30 Ft. | 43 GPM |
| Flow Rate @ 5 Ft. | 113 GPM |
| Flow Rate @ 5 Ft. Of Head | 113 GPM |
| Frequency | 60 Hz |
| Gauge | 16 AWG |
| Housing Material | Cast Iron |
| Hp | 3/4 hp |
| Impeller Material | Cast Iron |
| Impeller Material - Pumps | Cast Iron |
| Includes | Diaphragm Switch |
| Max Head - Pumps | 37 ft. |
| Max. Flow Rate @ 15 Ft. | 92 GPM |
| Max. Head | 37 ft. |
| Max. Head - Pumps | 37 ft. |
| Max. Liquid Temp. | 104°F |
| Max. Solid Dia. | 1/2" |
| Mechanical Seal Material | SIC |
| Motor Type | Oil Cooled |
| Nec Cord Designation | SJTOW |
| No. Of Conductors | 3 |
| Off Point | 5" |
| On Point | 14 1/2" |
| Outlet | 1 1/2" Fnpt |
| Overall Height | 13" |
| Pump Body Material | Cast Iron |
| Shaft Material | Carbon Ceramic |
| Shaft Seal Material | Carbon Ceramic |
| Shaft Seal Material - Pumps | Carbon Ceramic |
| Switch Actuation | Diaphragm |
| Switch Electrical Connection | Piggyback |
| Switch Type | Diaphragm |
| Switch Type - Pumps | Diaphragm |
| Top Material | Cast Iron |
| Voltage | 120V AC |
| Voltage - Pumps | 120V AC |
Shipping Info:
| Ship weight (kg) | 19.82 |
| Ship height (cm) | 39.88 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 26.16 |
| HS code | 8413702004 |
| Country of Origin | CN |
Product Variants
| Product | Model | Hp | Body Material | Voltage | Switch Actuation | Base Material | Cord Length | Max. Head | Impeller Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BN140 | 1 hp | Cast Iron | 115V AC | Tether Float | Cast Iron | 20 ft. | 50 ft. | Thermoplastic | €1,061.00 | |
 |
1APP1 | 1/3 hp | Stainless Steel | 120V AC | Dual Micro Reed | Cast Iron | 13 ft. | 30 ft. | Polycarbonate | €490.05 | |
|
1APP2 | 1/2 hp | Stainless Steel | 120V AC | Dual Micro Reed | Cast Iron | 13 ft. | 33 ft. | Polycarbonate | €589.44 | |
 |
1XHV6 | 1/3 hp | Aluminum | 120V AC | No Switch Included | Cast Iron | 13 ft. | 29 ft. | Engineered Polymer | €178.54 | |
 |
1XHV7 | 1/2 hp | Aluminum | 120V AC | No Switch Included | Cast Iron | 10 ft. | 32 ft. | Engineered Polymer | €365.53 | |
 |
M53 | 3/10 hp | Cast Iron | 115V AC | Vertical Float | Polypropylene | 9 ft. | 19 ft. | Plastic With Metal Insert | €405.32 | |
 |
M55 | 3/10 hp | Cast Bronze | 115V AC | Vertical Float | Polypropylene | 9 ft. | 19 ft. | Bronze | €2,320.03 |
