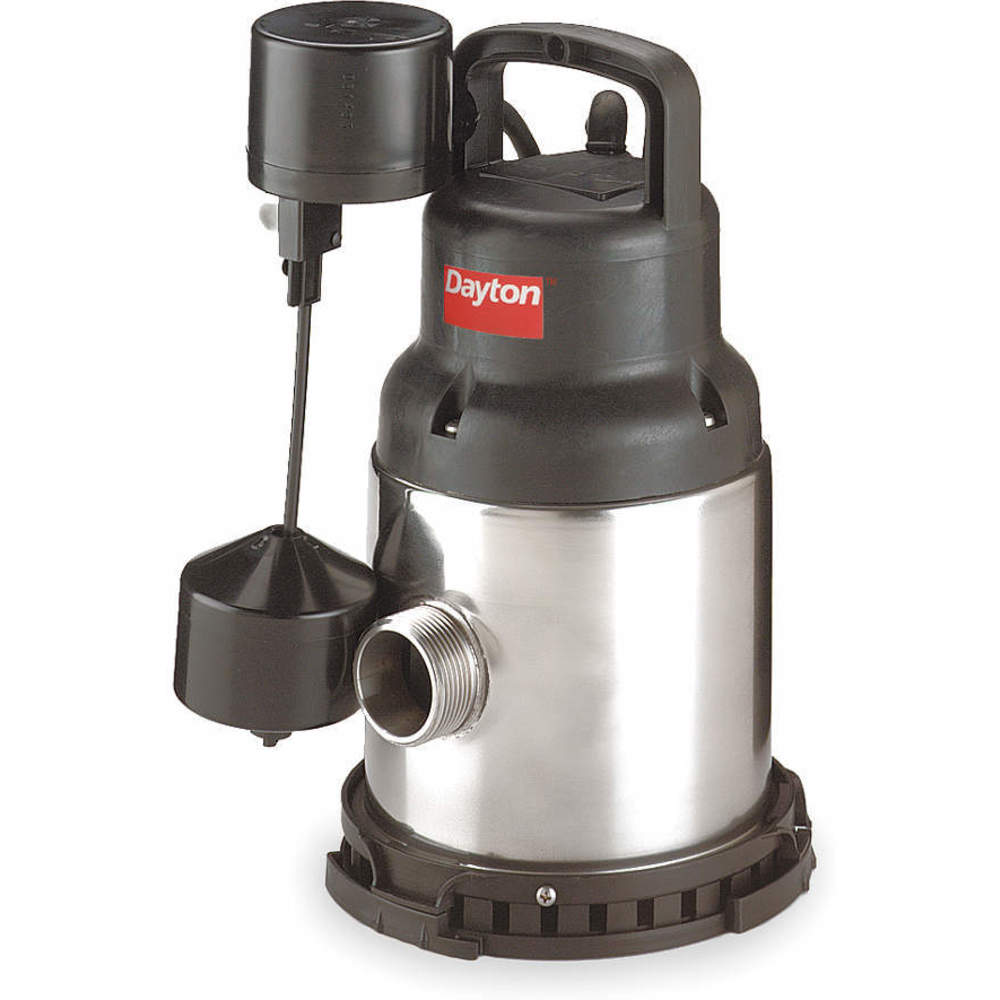

DAYTON 3YU73 Sump Pump 1/2 Hp 1-1/4 Npt 10 Feet
Item: AD3FJXModel: 3YU73
7 In Stock
Ships within 2 days via
10.00% off
€487.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Submersible Sump Pump |
| Alarm Included | No |
| Amps | 2.9A |
| Base Material | Polypropylene |
| Bearing Type | Lubricated Ball |
| Body Dia. | 9" |
| Body Material | Stainless Steel |
| Cord Length | 10 ft. |
| Cord Length - Pumps | 10 ft. |
| Dia. | 9" |
| Diameter | 9" |
| Discharge Dia. | 1 1/4" |
| Discharge Gender | Male |
| Discharge Npt | 1-1/4" |
| Discharge Size | 1 1/4" |
| Discharge Type | MNPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 35 GPM |
| Flow Rate @ 10 Ft. Of Head | 35 GPM |
| Flow Rate @ 15 Ft. Of Head | 25 GPM |
| Flow Rate @ 20 Ft. | 12 GPM |
| Flow Rate @ 20 Ft. Of Head | 12 GPM |
| Flow Rate @ 5 Ft. | 42 GPM |
| Flow Rate @ 5 Ft. Of Head | 42 GPM |
| Frequency | 60 Hz |
| Gauge | 18 AWG |
| Gauge/conductor | 18/3 |
| Housing Material | Stainless Steel |
| Hp | 1/2 hp |
| Impeller Material | Polyamide |
| Impeller Material - Pumps | Polyamide |
| Max. Flow Rate @ 15 Ft. | 25 GPM |
| Max. Head | 25 ft. |
| Max. Head - Pumps | 25 ft. |
| Max. Liquid Temp. | 104°F |
| Max. Solid Dia. | 1/4" |
| Mechanical Seal | Buna N |
| Mechanical Seal Material | Buna N |
| Min. Sump Pit Dia. | 12" |
| Nec Cord Designation | SJTW |
| No. Of Conductors | 3 |
| Off Point | 2 9/16" |
| On Point | 6 13/64" |
| Outlet | 1 1/4" Mnpt |
| Overall Height | 12 7/8" |
| Pump Body Material | Stainless Steel |
| Rated Voltage | 115V |
| Shaft Material | Buna N |
| Shaft Seal Material | Buna N |
| Shaft Seal Material - Pumps | Buna N |
| Switch Actuation | Vertical Float |
| Switch Electrical Connection | Piggyback |
| Switch Type | Vertical |
| Switch Type - Pumps | Vertical |
| Top Material | Polypropylene |
| Voltage | 115V AC |
| Voltage - Pumps | 120V AC |
Shipping Info:
| Ship weight (kg) | 4.97 |
| Ship height (cm) | 39.37 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.1 |
| HS code | 8413702004 |
| Country of Origin | CN |
Product Variants
| Product | Model | Hp | Body Material | Voltage | Switch Actuation | Base Material | Cord Length | Max. Head | Impeller Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BN140 | 1 hp | Cast Iron | 115V AC | Tether Float | Cast Iron | 20 ft. | 50 ft. | Thermoplastic | €1,061.00 | |
 |
1APP1 | 1/3 hp | Stainless Steel | 120V AC | Dual Micro Reed | Cast Iron | 13 ft. | 30 ft. | Polycarbonate | €490.05 | |
|
1APP2 | 1/2 hp | Stainless Steel | 120V AC | Dual Micro Reed | Cast Iron | 13 ft. | 33 ft. | Polycarbonate | €589.44 | |
 |
1XHV6 | 1/3 hp | Aluminum | 120V AC | No Switch Included | Cast Iron | 13 ft. | 29 ft. | Engineered Polymer | €178.54 | |
 |
1XHV7 | 1/2 hp | Aluminum | 120V AC | No Switch Included | Cast Iron | 10 ft. | 32 ft. | Engineered Polymer | €365.53 | |
 |
M53 | 3/10 hp | Cast Iron | 115V AC | Vertical Float | Polypropylene | 9 ft. | 19 ft. | Plastic With Metal Insert | €405.32 | |
 |
M55 | 3/10 hp | Cast Bronze | 115V AC | Vertical Float | Polypropylene | 9 ft. | 19 ft. | Bronze | €2,320.03 |
