Smc Valves Solenoid Air Control Valves

SMC VALVES -

Solenoid Air Control Valve 4-Way, 3-Position

A

B

C

D

Style	Model	CFM	Coefficient of Volume	Overall Length	Overall Width	Price (ex. VAT)
A	SV1300-5FU	0.24	0.24	4"	1/2"	€213.41
B	SV2300-5FU	0.46	0.46	5"	3/4"	€236.11
C	SV3300-5FU	0.91	0.91	5"	7/8"	€269.09
D	SV4300-5FU	1.3	1.3	6.5"	1"	€286.68

SMC VALVES -

Solenoid Air Control Valve 5-Way, 2-Position

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Style	Model	Shifting Technology	Overall Length	Actuator/Return	Body Style	CFM	Coefficient of Volume	Electrical Connections	Overall Height	Price (ex. VAT)
A	VQ1201-31	Solenoid	3 11/16"	Solenoid/Solenoid	Base Mounted	7	0.25	Plug-In	1.875"	€173.55
B	VFR2210-3DZ	Solenoid	5 29/32"	Solenoid/Solenoid	Base Mounted	17.36	0.62	Lead Wire	2.625"	€220.58
C	SY3140-5LZ	Solenoid	3.5"	Solenoid/Spring	Manifold	0.29	0.26	Plug Connector with Lead Wire	3/4"	€110.22
C	SY3240-5LZ	Solenoid	4.5"	Solenoid/Solenoid	Manifold	0.29	0.26	Plug Connector with Lead Wire	3/4"	€144.82
D	SY7140-5LZ	Solenoid	4.5"	Solenoid/Spring	Manifold	1.4	0.58	Plug Connector with Lead Wire	1.25"	€113.95
E	VFS2210-5DZ	Solenoid	8"	Solenoid/Solenoid	Body Ported	0.78	0.58	Non Plug-In	1.5"	€254.27
F	VQZ1251-3LO1	Solenoid	3 15/16"	Solenoid/Solenoid	Base Mounted	7.28	0.26	Lead Wire	1.5"	€156.27
G	VQZ2251-3LO1	Solenoid	3 15/16"	Solenoid/Solenoid	Base Mounted	10.92	0.39	Lead Wire	1.5"	€181.01
H	VQZ3251-3LO1	Solenoid	3 15/16"	Solenoid/Solenoid	Base Mounted	22.12	0.79	Lead Wire	1.5"	€202.65
I	VFR2200-3FZ	Solenoid	5 29/32"	Solenoid/Solenoid	Base Mounted	17.36	0.62	Plug-In	2.625"	€200.89
B	VFR3210-3DZ	Solenoid	6 31/32"	Solenoid/Solenoid	Base Mounted	53.2	1.9	Lead Wire	3 21/32"	€303.48
J	VFS2200-3FZ	Solenoid	7.156"	Solenoid/Solenoid	Base Mounted	25.2	0.9	Plug-In	2.593	€211.23
K	VFS3200-3FZ	Solenoid	7 41/64"	Solenoid/Solenoid	Base Mounted	39.2	1.4	Plug-In	2.593	€265.06
L	SV2200-6FU	Solenoid	3.625"	Solenoid/Solenoid	Base Mounted	12.88	0.46	Plug-In	1 45/64"	€218.53
M	VQ1201-51	Solenoid	5"	Solenoid/Solenoid	Base Mounted	0.72	0.21	Plug-In	1/2"	€179.41
M	VQ2101-51	Solenoid	5"	Solenoid/Spring	Base Mounted	2.6	0.55	Plug-In	3/4"	€126.43
D	SY5140-5LZ	Solenoid	4"	Solenoid/Spring	Manifold	0.9	0.66	Plug Connector with Lead Wire	1"	€105.30
N	SY7120-5DZ-02T	Solenoid	5"	Solenoid/Spring	Manifold	1.4	0.81	DIN Terminal With Connector	1.25"	€160.41
M	VQ1101-51	Solenoid	5"	Solenoid/Spring	Base Mounted	0.72	0.21	Plug-In	1/2"	€117.67
K	VFR3200-3FZ	Solenoid	6 31/32"	Solenoid/Solenoid	Base Mounted	53.2	1.9	Plug-In	3 21/32"	€270.73
N	SY5120-5DZ-01T	Solenoid	4.5"	Solenoid/Spring	Manifold	0.9	0.61	DIN Terminal With Connector	1"	€135.03
O	VQ2201-31	Solenoid	4-23/32"	Solenoid/Solenoid	Base Mounted	22.4	0.8	Plug-In	2.875"	€185.15
N	SY5220-5DZ-01T	Solenoid	5.5"	Solenoid/Solenoid	Manifold	0.9	0.61	DIN Terminal With Connector	1"	€196.63
P	VFS2210-3DZ	Solenoid	7.156"	Solenoid/Solenoid	Base Mounted	25.2	0.9	Lead Wire	1 37/64"	€231.30
D	SY7240-5LZ	Solenoid	6"	Solenoid/Solenoid	Manifold	1.4	-	Plug Connector with Lead Wire	1.25"	€177.25

SMC VALVES -

Solenoid Air Control Valve 5-Way, 2-Position, 5-Port

A

B

C

D

E

F

G

H

Style	Model	Body Style	Overall Length	Actuator/Return	CFM	Coefficient of Volume	Electrical Connections	Overall Height	Ambient Temp. Range	Price (ex. VAT)
A	SV1100-5FU	Body Ported	3.5"	Solenoid/Spring	0.24	0.24	Plug-In	1.5"	14 Degrees to 122 Degrees F	€132.18
B	VFS2200-5FZ	Body Ported	6.5"	Solenoid/Solenoid	0.78	0.55	Plug-In	1.5"	14 Degrees to 140 Degrees F	€217.90
B	VFS5100-5FZ	Body Ported	8"	Solenoid/Spring	3.7	-	Plug-In	2.25"	14 Degrees to 140 Degrees F	€319.34
B	VFS3100-5FZ	Body Ported	6"	Solenoid/Spring	1.1	-	Plug-In	1.5"	14 Degrees to 140 Degrees F	€203.15
C	VQZ3151-5LO1	Body Ported	4"	Solenoid/Spring	3	1	Non Plug-In	3/4"	14 Degrees to 122 Degrees F	€135.28
C	VQZ1151-5LO1	Body Ported	4"	Solenoid/Spring	0.7	0.3	Non Plug-In	1/2"	14 Degrees to 122 Degrees F	€92.32
D	SV4100-5FU	Body Ported	6"	Solenoid/Spring	1.3	1.3	Plug-In	1.5"	14 Degrees to 122 Degrees F	€197.31
E	SV2100-5FU	Body Ported	4.5"	Solenoid/Spring	0.46	0.46	Plug-In	1.5"	14 Degrees to 122 Degrees F	€142.05
A	SV1200-5FU	Body Ported	4"	Solenoid/Solenoid	0.24	0.24	Plug-In	1.5"	14 Degrees to 122 Degrees F	€206.27
B	VFS3210-5DZ	Body Ported	7.5"	Solenoid/Solenoid	1.1	-	Non Plug-In	1.5"	14 Degrees to 140 Degrees F	€317.09
B	VFS3110-5DZ	Body Ported	5.5"	Solenoid/Spring	1.1	-	Non Plug-In	1.5"	14 Degrees to 140 Degrees F	€227.35
E	SV2200-5FU	Body Ported	5"	Solenoid/Solenoid	0.46	0.46	Plug-In	1.5"	14 Degrees to 122 Degrees F	€199.75
B	VFS3200-5FZ	Body Ported	8"	Solenoid/Solenoid	1.1	-	Plug-In	1.5"	14 Degrees to 140 Degrees F	€275.66
B	VFS5110-5DZ	Body Ported	8"	Solenoid/Spring	3.7	-	Plug-In	2.25"	14 Degrees to 140 Degrees F	€350.67
C	VQZ2251-5LO1	Body Ported	4"	Solenoid/Solenoid	1.9	0.51	Non Plug-In	1/2"	14 Degrees to 122 Degrees F	€158.81
C	VQZ2151-5LO1	Body Ported	4"	Solenoid/Spring	1.9	0.51	Non Plug-In	1/2"	14 Degrees to 122 Degrees F	€121.84
C	VQZ1251-5LO1	Body Ported	4"	Solenoid/Solenoid	0.7	0.3	Non Plug-In	1/2"	14 Degrees to 122 Degrees F	€142.17
B	VFS2110-5DZ	Body Ported	6"	Solenoid/Spring	0.78	0.58	Non Plug-In	1.5"	14 Degrees to 140 Degrees F	€153.22
F	VFS2100-5FZ	Body Ported	4.5"	Solenoid/Spring	0.78	0.55	Plug-In	1.5"	14 Degrees to 140 Degrees F	€147.63
C	VQZ3251-5LO1	Body Ported	4"	Solenoid/Solenoid	3	1	Non Plug-In	3/4"	14 Degrees to 122 Degrees F	€198.16
D	SV4200-5FU	Body Ported	6.5"	Solenoid/Solenoid	1.3	1.3	Plug-In	1.5"	14 Degrees to 122 Degrees F	€244.90
G	SV3100-5FU	Body Ported	4.5"	Solenoid/Spring	0.91	0.91	Plug-In	1.5"	14 Degrees to 122 Degrees F	€179.52
G	SV3200-5FU	Body Ported	5"	Solenoid/Solenoid	0.91	0.91	Plug-In	1.5"	14 Degrees to 122 Degrees F	€237.88
H	VFR3200-5FZ	Manifold	7"	Solenoid/Solenoid	1.9	1.9	Plug-In	1.5"	14 Degrees to 122 Degrees F	€273.76
H	VFR3210-5DZ	Manifold	7"	Solenoid/Solenoid	1.9	1.9	Non Plug-In	1.5"	14 Degrees to 122 Degrees F	€304.19

SMC VALVES -

Solenoid Air Control Valve 5-Way, 3-Position, 5-Port

A

B

C

D

Style	Model	CFM	Coefficient of Volume	Overall Length	Overall Width	Price (ex. VAT)
A	SV1500-5FU	0.24	0.24	4"	1/2"	€229.25
A	SV1400-5FU	0.24	0.24	4"	1/2"	€213.62
B	SV2400-5FU	0.46	0.46	5"	3/4"	€222.57
B	SV2500-5FU	0.46	0.46	5"	3/4"	€218.11
C	SV3500-5FU	0.91	0.91	5"	7/8"	€262.38
C	SV3400-5FU	0.91	0.91	5"	7/8"	€278.55
D	SV4500-5FU	1.3	1.3	6.5"	1"	€275.59
D	SV4400-5FU	1.3	1.3	6.5"	1"	€275.59

SMC VALVES -

Solenoid Air Control Valve 5-Way, 3-Position

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Style	Model	Electrical Connections	Pipe Size	Body Style	Overall Height	Overall Length	Overall Width	CFM	Power Consumption	Price (ex. VAT)
A	SV3300-6FU	Plug-In	-	Base Mounted	1 45/64"	4 9/16"	13/16"	25.48	0.6W	€264.42
B	SV1400-6FU	Plug-In	-	Base Mounted	1 45/64"	3.625"	25/64"	6.72	0.6W	€237.83
C	SV2500-6FU	Plug-In	-	Base Mounted	1 45/64"	3.625"	5/8"	12.88	0.6W	€242.39
D	SV3400-6FU	Plug-In	-	Base Mounted	1 45/64"	4 9/16"	13/16"	25.48	0.6W	€291.30
E	VQ2401-51	Plug-In	-	Base Mounted	3/4"	5"	2"	2.6	1.0W	€187.75
E	VQ2301-51	Plug-In	3/8"	Base Mounted	3/4"	5"	2"	2.6	1.0W	€202.64
F	SV2300-6FU	Plug-In	-	Base Mounted	1 45/64"	4 9/16"	13/16"	12.88	0.6W	€242.39
G	VQ2401-31	Plug-In	-	Base Mounted	2.875"	4-23/32"	5/8"	22.4	1.3VA	€195.33
H	SV4500-6FU	Plug-In	-	Base Mounted	1 45/64"	4 9/16"	13/16"	36.4	0.6W	€277.66
I	SV2400-6FU	Plug-In	-	Base Mounted	1 45/64"	3.625"	5/8"	12.88	0.6W	€242.39
J	SV1300-6FU	Plug-In	-	Base Mounted	1 45/64"	4 9/16"	13/16"	36.4	0.6W	€241.46
K	VQ2301-31	Plug-In	-	Base Mounted	2.875"	4-23/32"	5/8"	22.4	1.3VA	€197.83
L	SV3500-6FU	Plug-In	-	Base Mounted	1 45/64"	4 9/16"	13/16"	25.48	0.6W	€264.42
M	SV1500-6FU	Plug-In	-	Base Mounted	1 45/64"	3.625"	25/64"	6.72	0.6W	€237.83
N	SY3340-5LZ	Plug Connector with Lead Wire	-	Manifold	3/4"	5"	1.5"	0.29	0.4W	€189.72
O	SY5340-5LZ	Plug Connector with Lead Wire	1/8"	Manifold	1"	6"	1.5"	0.9	0.4W	€192.36
O	SY5440-5LZ	Plug Connector with Lead Wire	1/8"	Manifold	1"	6"	1.5"	0.9	0.4W	€183.34
O	SY5540-5LZ	Plug Connector with Lead Wire	-	Manifold	1"	6"	1.5"	0.9	0.4W	€183.34
P	SY3440-5LZ	Plug Connector with Lead Wire	1/8"	Manifold	3/4"	5"	1.5"	0.29	0.4W	€178.71
P	SY3540-5LZ	Plug Connector with Lead Wire	1/8"	Manifold	3/4"	5"	1.5"	0.29	0.4W	€188.13

SMC VALVES -

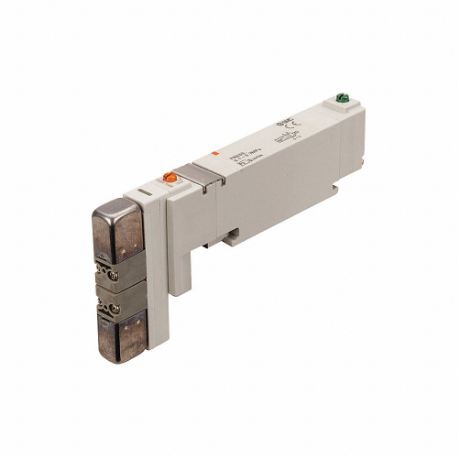

Solenoid 5 Port Valve, 2 Position, 12Vdc

Model	Item	Price (ex. VAT)
VQC2200-5B1	CU3ARU	€245.62
