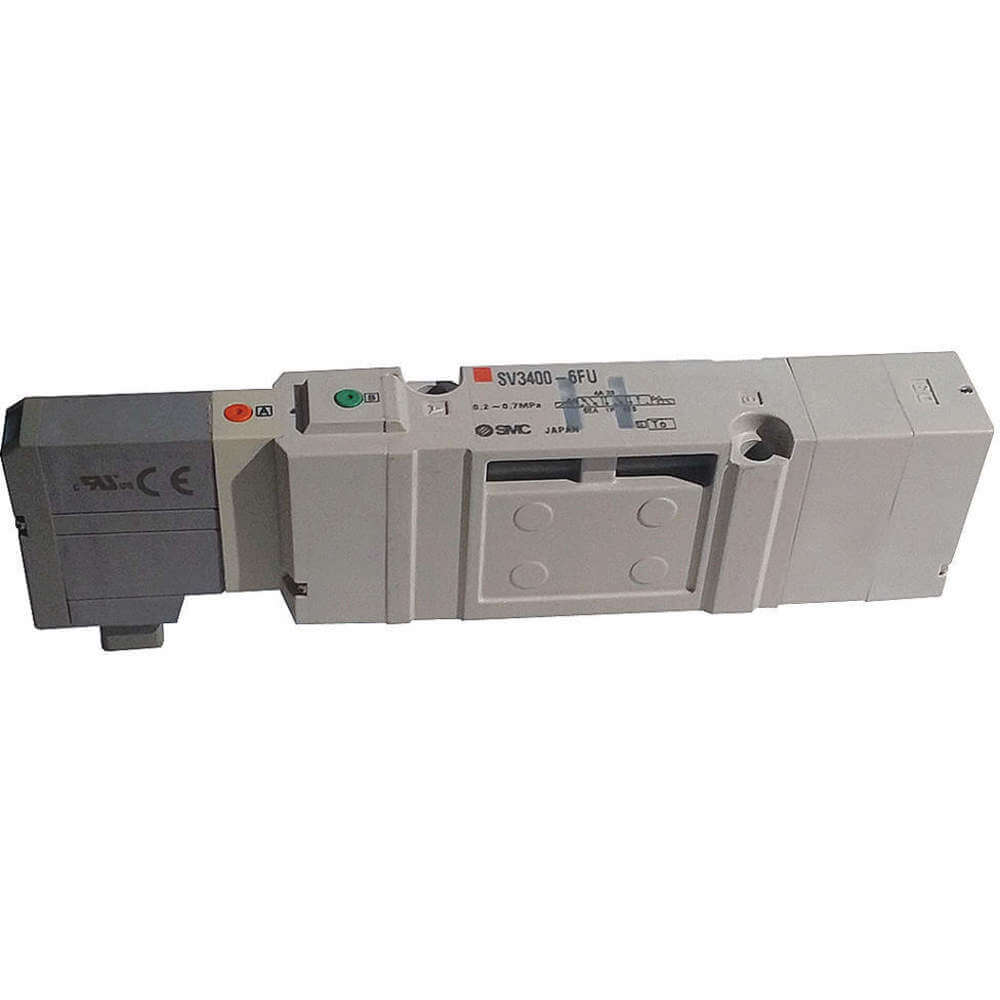

SMC VALVES SV3400-6FU Solenoid Valve 25.48 CFM 0.91
Item: AH6YNYModel: SV3400-6FUCross Ref: 36LU31
7 In Stock
Ships within 2 days via
10.00% off
€311.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Ambient Temp. Range | +14°F to +122°F |
| Body Material | Aluminum |
| Body Style | Base Mounted |
| Center Position | Exhaust |
| Center Position | Open |
| Cfm | 25.48 CFM |
| Coefficient Of Volume | 0.91 |
| Coefficient Of Volume (cv) | 0.71 |
| Electrical Connection | Plug In |
| Electrical Connection Type | Hardwired |
| Flow Rate - Maximum | 25.48 CFM |
| For Media | Air |
| Includes Solenoid Coil | Yes |
| Lubrication | Lubrication Not Required |
| Normally Open/normally Closed | Normally Open/Normally Closed |
| Number Of Ports | 5 |
| Number Of Positions | 3 |
| Number Of Ways | 5 |
| Operating Pressure - Maximum | 72 psi |
| Operating Pressure - Minimum | -14.5 psi |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 14°F |
| Overall Height | 5 1/16" |
| Overall Length | 16 5/8" |
| Overall Width | 3 1/4" |
| Override | Non-Locking Push |
| Override | Non-Locking |
| Pilot Pressure | 15 |
| Pilot Pressure | 15 psi |
| Pilot Type | Internal Pilot |
| Power Consumption | 0.6 W |
| Pressure | 15 psi to 105 psi |
| Pressure Rating | 15 psi to 105 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 32 ms |
| Return Action | Solenoid Return |
| Seal Material | Rubber |
| Series | SV3000 Series |
| Shifting Technology | Solenoid |
| Spool Material | Aluminum |
| Standards | Rohs Compliant |
| Valve Action | Normally Open/Normally Closed |
| Valve Type | Spool |
| Voltage | 12V DC |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 2.54 |
| Country of Origin | JP |
Product Variants
| Product | Model | Voltage | Coefficient Of Volume | Overall Height | Overall Width | Overall Length | Center Position | Pressure | Electrical Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VQ2301-51 | 24V DC | 0.6 | 3/4" | 2" | 5" | Closed | 30 psi to 100 psi | Plug In | €223.05 | |
|
VQ2401-51 | 24V DC | 0.49 | 3/4" | 2" | 5" | Open | 30 psi to 100 psi | Plug In | €219.44 | |
 |
SY3340-5LZ | 24V DC | 0.3 | 4 5/8" | 1 1/2" | 2 3/32" | Closed | 30 psi to 100 psi | Plug Connector With Lead Wire | €212.15 | |
 |
SY3440-5LZ | 24V DC | 0.3 | 4 5/8" | 1 1/2" | 2 3/32" | Exhaust | 30 psi to 100 psi | Plug Connector With Lead Wire | €209.39 | |
|
SY3540-5LZ | 24V DC | 0.3 | 4 5/8" | 1 1/2" | 2 3/32" | Pressure | 30 psi to 100 psi | Plug Connector With Lead Wire | €207.07 | |
 |
SY5340-5LZ | 24V DC | 0.47 | 5 1/2" | 1 1/2" | 2" | - | 30 psi to 100 psi | Plug Connector With Lead Wire | €187.80 | |
|
SY5440-5LZ | 24V DC | 0.72 | 5 1/2" | 1 1/2" | 2" | Exhaust | 30 psi to 100 psi | Plug Connector With Lead Wire | €217.74 |
