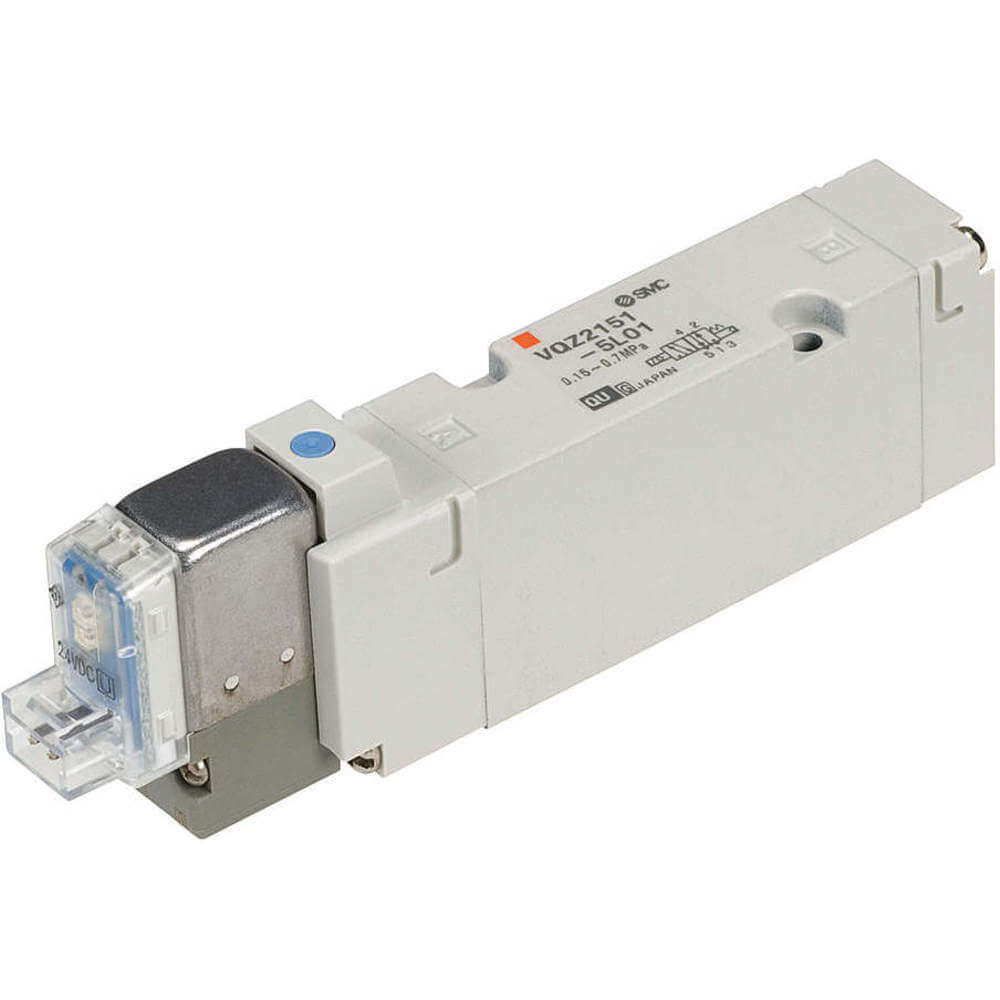

SMC VALVES VQZ3151-5LO1 Solenoid Air Control Valve 1/8 Inch 24vdc
Item: AF7RGCModel: VQZ3151-5LO1Cross Ref: 22KD33
7 In Stock
Ships within 2 days via
5.00% off
€133.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. | +14°F to +122°F |
| Body Style | Body Ported |
| Cfm | 3 CFM |
| Coefficient Of Volume(cv) | 1.2 |
| Duty Cycle | Continuous |
| Electrical Connection | Non Plug In |
| Electrical Connection Type | Plug In |
| For Media | Air, Inert Gas |
| Included Solenoid Coil | Yes |
| Inlet Port Connection Size | 1/8" |
| Lubrication | Lubrication Not Required |
| Max. Flow Rate | 3 CFM |
| Max. Operating Pressure | 101 psi |
| Max. Operating Temp. | 122°F |
| Min. Operating Pressure | 15 psi |
| Min. Operating Temp. | 14°F |
| No. Of Ports | 5 |
| No. Of Positions | 3 |
| No. Of Ways | 5 |
| Overall Height | 2 1/4" |
| Overall Length | 4 1/8" |
| Overall Width | 1 1/2" |
| Override | Non Locking |
| Pilot Pressure | 22 |
| Pilot Pressure | 22 psi |
| Pilot Type | Internal Pilot |
| Pipe Size | 1/8" |
| Power Consumption | 0.35 W |
| Pressure | 22 psi to 100 psi |
| Pressure Rating | 22 psi to 100 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 33 ms |
| Return Action | Spring Return |
| Seal Material | Rubber |
| Series | VQZ3000 Series |
| Shifting Technology | Solenoid |
| Spool Material | Aluminum |
| Vacuum | Not Vacuum Operable |
| Valve Type | Spool |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 1.91 |
| HS code | 8481200060 |
Product Variants
| Product | Model | Voltage | Pressure Rating | Pressure | Overall Width | Electrical Connection | Max. Operating Pressure | Max. Flow Rate | Min. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SV1100-5FU | 24V DC | 22 psi to 100 psi | 22 psi to 100 psi | 2 15/32" | Plug In | 101 psi | 6.72 CFM | -14.5 psi | €133.28 | |
|
SV1200-5FU | 24V DC | 15 psi to 100 psi | 15 psi to 100 psi | 2 15/32" | Plug In | 101 psi | 0.24 CFM | -14.5 psi | €193.91 | |
 |
SV2100-5FU | 24V DC | 22 psi to 100 psi | 22 psi to 100 psi | 2 13/16" | Plug In | 101 psi | 12.88 CFM | -14.5 psi | €141.41 | |
|
SV2200-5FU | 24V DC | 15 psi to 100 psi | 15 psi to 100 psi | 2 13/16" | Plug In | 101 psi | 12.88 CFM | -14.5 psi | €200.94 | |
 |
SV3100-5FU | 24V DC | 22 psi to 100 psi | 22 psi to 100 psi | 3 1/4" | Plug In | 72 psi | 0.91 CFM | -14.5 psi | €179.18 | |
|
SV3200-5FU | 24V DC | 15 psi to 100 psi | 15 psi to 100 psi | 3 1/4" | Plug In | 72 psi | 25.48 CFM | -14.5 psi | €265.69 | |
 |
SV4100-5FU | 24V DC | 22 psi to 100 psi | 22 psi to 100 psi | 3 3/8" | Plug In | 72 psi | 1.3 CFM | -14.5 psi | €218.90 |
