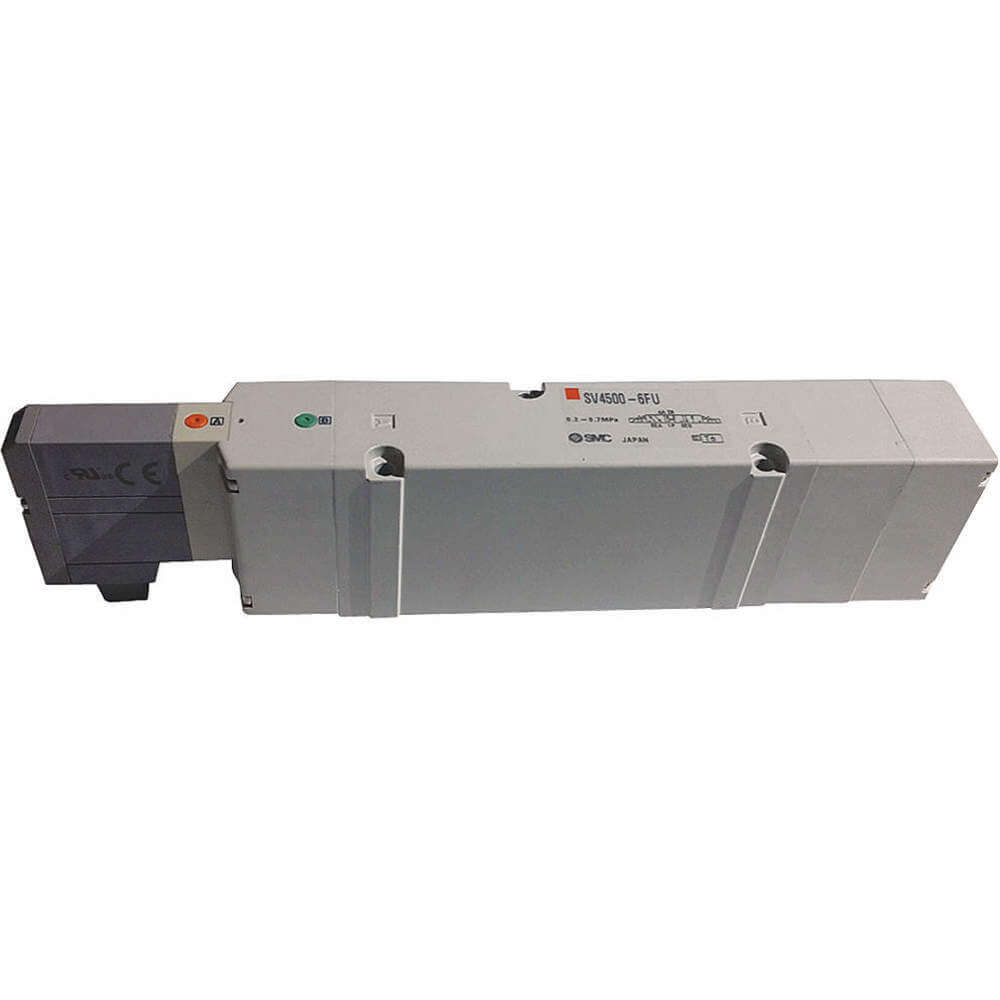

SMC VALVES SV4500-6FU Solenoid Valve 36.4 CFM 1.3 0.6 Watt
Item: AH6YPCModel: SV4500-6FUCross Ref: 36LU35
7 In Stock
Ships within 2 days via
5.00% off
€313.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Ambient Temp. | +14°F to +122°F |
| Body Material | Aluminum |
| Body Style | Base Mounted |
| Center Position | Pressure |
| Cfm | 36.4 CFM |
| Coefficient Of Volume | 1.3 |
| Coefficient Of Volume(cv) | 2.8 |
| Electrical Connection | Plug In |
| Electrical Connection Type | Hardwired |
| For Media | Air |
| Included Solenoid Coil | Yes |
| Lubrication | Lubrication Not Required |
| Max. Flow Rate | 36.4 CFM |
| Max. Operating Pressure | 72 psi |
| Max. Operating Temp. | 122°F |
| Min. Operating Pressure | -14.5 psi |
| Min. Operating Temp. | 14°F |
| No. Of Ports | 5 |
| No. Of Positions | 3 |
| No. Of Ways | 5 |
| Normally Open/normally Closed | Normally Open/Normally Closed |
| Overall Height | 6 15/32" |
| Overall Length | 18 31/32" |
| Overall Width | 3 3/8" |
| Override | Non Locking |
| Override | Non-Locking Push |
| Pilot Pressure | 15 |
| Pilot Pressure | 15 psi |
| Pilot Type | Internal Pilot |
| Power Consumption | 0.6 W |
| Pressure | 15 psi to 105 psi |
| Pressure Rating | 15 psi to 105 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 82 ms |
| Return Action | Solenoid Return |
| Seal Material | Rubber |
| Series | SV4000 Series |
| Shifting Technology | Solenoid |
| Spool Material | Aluminum |
| Valve Action | Normally Open/Normally Closed |
| Valve Type | Spool |
| Voltage | 12V DC |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 2.54 |
| Country of Origin | JP |
Product Variants
| Product | Model | Max. Operating Pressure | Overall Width | Overall Height | Max. Flow Rate | For Media | Voltage | Min. Operating Pressure | Electrical Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VQ2301-51 | 101 psi | 2" | 3/4" | 2.6 CFM | Air, Inert Gas | 24V DC | 15 psi | Plug In | €223.05 | |
|
VQ2401-51 | 101 psi | 2" | 3/4" | 2.6 CFM | Air, Inert Gas | 24V DC | 15 psi | Plug In | €219.44 | |
 |
SY3340-5LZ | 101 psi | 1 1/2" | 4 5/8" | 0.29 CFM | Air | 24V DC | 15 psi | Plug In | €212.15 | |
 |
SY3440-5LZ | 101 psi | 1 1/2" | 4 5/8" | 0.29 CFM | Air | 24V DC | 15 psi | Plug In | €209.39 | |
|
SY3540-5LZ | 101 psi | 1 1/2" | 4 5/8" | 0.29 CFM | Air | 24V DC | 15 psi | Plug In | €207.07 | |
 |
SY5340-5LZ | 101 psi | 1 1/2" | 5 1/2" | 0.9 CFM | Air | 24V DC | 15 psi | Plug In | €187.80 | |
|
SY5440-5LZ | 101 psi | 1 1/2" | 5 1/2" | 0.9 CFM | Air | 24V DC | 15 psi | Plug In | €217.74 |
