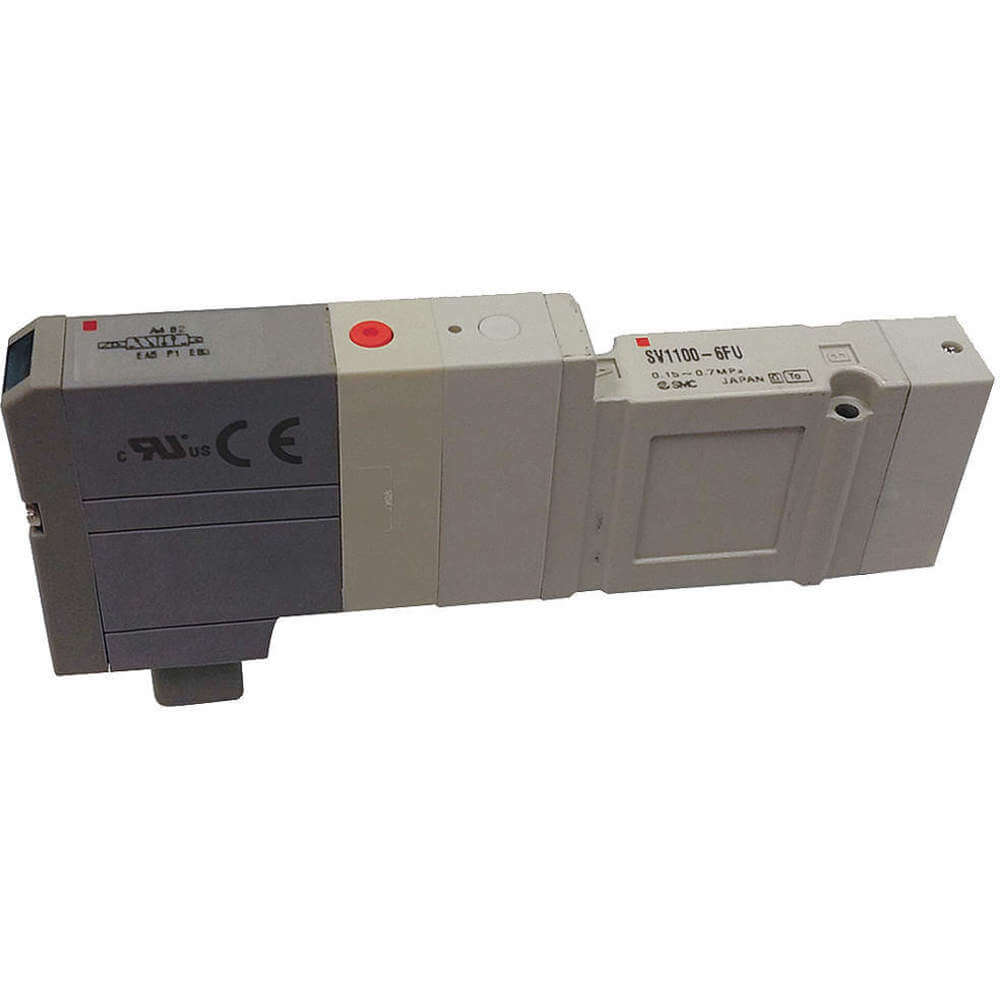

SMC VALVES SV1100-6FU Solenoid Air Control Valve 6.72 CFM 0.6 Watt
Item: AH6YNNModel: SV1100-6FUCross Ref: 36LU22
7 In Stock
Ships within 2 days via
5.00% off
€162.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. | +14°F to +122°F |
| Body Material | Aluminum |
| Body Style | Base Mounted |
| Center Position | Open |
| Cfm | 6.72 CFM |
| Coefficient Of Volume | 0.24 |
| Electrical Connection | Plug In |
| Electrical Connection Type | Hardwired |
| For Media | Air |
| Included Solenoid Coil | Yes |
| Lubrication | Lubrication Not Required |
| Max. Flow Rate | 6.72 CFM |
| Max. Operating Pressure | 101 psi |
| Max. Operating Temp. | 122°F |
| Min. Operating Pressure | -14.5 psi |
| Min. Operating Temp. | 14°F |
| No. Of Ports | 5 |
| No. Of Positions | 2 |
| No. Of Ways | 5 |
| Normally Open/normally Closed | Normally Open/Normally Closed |
| Overall Height | 3 3/4" |
| Overall Length | 9 31/32" |
| Overall Width | 2 15/32" |
| Override | Non-Locking Push |
| Override | Non Locking |
| Pilot Pressure | 15 |
| Pilot Pressure | 15 psi |
| Pilot Type | Internal Pilot |
| Power Consumption | 0.6 W |
| Pressure | 15 psi to 105 psi |
| Pressure Rating | 15 psi to 105 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 11 ms |
| Return Action | Spring Return |
| Seal Material | Rubber |
| Series | SV1000 Series |
| Shifting Technology | Solenoid, Spring |
| Spool Material | Aluminum |
| Valve Action | Normally Open/Normally Closed |
| Valve Type | Spool |
| Voltage | 12V DC |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| Country of Origin | JP |
Product Variants
| Product | Model | Voltage | Pressure Rating | Pressure | Electrical Connection | Overall Width | Max. Operating Pressure | Overall Height | Max. Flow Rate | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VQ1101-51 | 24V DC | 22 psi to 100 psi | 22 psi to 100 psi | Plug In | 1 1/2" | 101 psi | 1/2" | 0.72 CFM | €118.66 | |
|
VQ1201-51 | 24V DC | 15 psi to 100 psi | 15 psi to 100 psi | Plug In | 2" | 101 psi | - | 0.72 CFM | €206.06 | |
|
VQ2101-51 | 24V DC | 22 psi to 100 psi | 22 psi to 100 psi | Plug In | 1 1/2" | 101 psi | 3/4" | 2.6 CFM | €155.53 | |
|
VQ2201-51 | 24V DC | 15 psi to 100 psi | 15 psi to 100 psi | Plug In | 2" | 101 psi | 3/4" | 2.6 CFM | €207.93 | |
 |
SY3140-5LZ | 24V DC | 22 psi to 100 psi | 22 psi to 100 psi | Plug Connector With Lead Wire | 1 1/2" | 101 psi | 3 1/32" | 0.29 CFM | €99.03 | |
|
SY3240-5LZ | 24V DC | 15 psi to 100 psi | 15 psi to 100 psi | Plug Connector With Lead Wire | 1 1/2" | 101 psi | 4 9/32" | 0.29 CFM | €168.98 | |
 |
SY5140-5LZ | 24V DC | 22 psi to 100 psi | 22 psi to 100 psi | Plug Connector With Lead Wire | 1 1/2" | 101 psi | 3 25/32" | 42.9 CFM | €105.03 |
