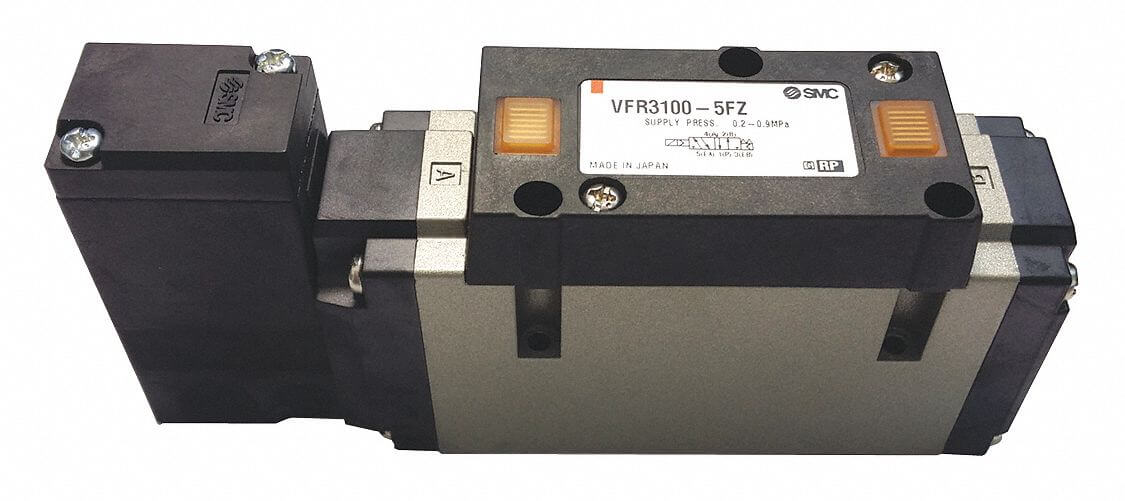

SMC VALVES VFR3100-5FZ Solenoid Air Control Valve 24vdc
Item: AF7RHRModel: VFR3100-5FZCross Ref: 22KD69
7 In Stock
Ships within 2 days via
5.00% off
€183.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. | +14°F to +122°F |
| Body Material | Aluminum |
| Body Style | Base Mounted |
| Cfm | 1.9 CFM |
| Coefficient Of Volume | 1.9 |
| Electrical Connection | Plug In |
| Electrical Connection Type | Plug In |
| For Media | Air |
| Included Solenoid Coil | Yes |
| Lubrication | Lubrication Not Required |
| Max. Flow Rate | 1.9 CFM |
| Max. Operating Pressure | 130 psi |
| Max. Operating Temp. | 122°F |
| Min. Operating Pressure | 29 psi |
| Min. Operating Temp. | 14°F |
| No. Of Ports | 5 |
| No. Of Positions | 2 |
| No. Of Ways | 5 |
| Overall Height | 4 1/16" |
| Overall Length | 5 11/32" |
| Overall Width | 1 31/32" |
| Override | Non-Locking Push |
| Override | Non Locking |
| Pilot Port Connection Size | 1/2" |
| Pilot Port Connection Type | NPT |
| Pilot Port Size | 1/4" x 3/8" |
| Pilot Port Size | 1/4" x 3/8" NPT |
| Pilot Pressure | 30 |
| Pilot Pressure | 30 psi |
| Pilot Type | Internal Pilot |
| Power Consumption | 2.04 W |
| Pressure | 30 psi to 130 psi |
| Pressure Rating | 30 psi to 130 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 30 ms |
| Return Action | Spring Return |
| Seal Material | Rubber |
| Series | VFR3000 Series |
| Shifting Technology | Solenoid |
| Spool Material | Aluminum |
| Vacuum | Not Vacuum Operable |
| Valve Type | Spool |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 3.81 |
| HS code | 8481200060 |
Product Variants
| Product | Model | Voltage | Pressure Rating | Pressure | Overall Width | Electrical Connection | Max. Operating Pressure | Max. Flow Rate | Min. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SV1100-5FU | 24V DC | 22 psi to 100 psi | 22 psi to 100 psi | 2 15/32" | Plug In | 101 psi | 6.72 CFM | -14.5 psi | €133.28 | |
|
SV1200-5FU | 24V DC | 15 psi to 100 psi | 15 psi to 100 psi | 2 15/32" | Plug In | 101 psi | 0.24 CFM | -14.5 psi | €193.91 | |
 |
SV2100-5FU | 24V DC | 22 psi to 100 psi | 22 psi to 100 psi | 2 13/16" | Plug In | 101 psi | 12.88 CFM | -14.5 psi | €141.41 | |
|
SV2200-5FU | 24V DC | 15 psi to 100 psi | 15 psi to 100 psi | 2 13/16" | Plug In | 101 psi | 12.88 CFM | -14.5 psi | €200.94 | |
 |
SV3100-5FU | 24V DC | 22 psi to 100 psi | 22 psi to 100 psi | 3 1/4" | Plug In | 72 psi | 0.91 CFM | -14.5 psi | €179.18 | |
|
SV3200-5FU | 24V DC | 15 psi to 100 psi | 15 psi to 100 psi | 3 1/4" | Plug In | 72 psi | 25.48 CFM | -14.5 psi | €265.69 | |
 |
SV4100-5FU | 24V DC | 22 psi to 100 psi | 22 psi to 100 psi | 3 3/8" | Plug In | 72 psi | 1.3 CFM | -14.5 psi | €218.90 |
