SMC VALVES SV4100-5FU Solenoid Air Control Valve 24vdc
Item: AF7RFLModel: SV4100-5FUCross Ref: 22KD18
7 In Stock
Ships within 2 days via
10.00% off
€197.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. Range | +14°F to +122°F |
| Body Material | Aluminum |
| Body Style | Base Mounted |
| Cfm | 1.3 CFM |
| Coefficient Of Volume | 2 |
| Electrical Connection | Plug In |
| Electrical Connection Type | Hardwired |
| Flow Rate - Maximum | 1.3 CFM |
| For Media | Air |
| Includes Solenoid Coil | Yes |
| Lubrication | Lubrication Not Required |
| Nema Classification | NEMA 6 |
| Nema Rating | NEMA 6 |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 5 |
| Operating Pressure - Maximum | 72 psi |
| Operating Pressure - Minimum | -14.5 psi |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 14°F |
| Overall Height | 6 15/32" |
| Overall Length | 18 31/32" |
| Overall Width | 3 3/8" |
| Override | Non-Locking |
| Pilot Pressure | 22 |
| Pilot Pressure | 22 psi |
| Pilot Type | Internal Pilot |
| Power Consumption | 0.6 W |
| Pressure | 22 psi to 100 psi |
| Pressure Rating | 22 psi to 100 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 40 ms |
| Return Action | Spring Return |
| Seal Material | Rubber |
| Series | SV4000 Series |
| Shifting Technology | Solenoid |
| Spool Material | Aluminum |
| Standards | Rohs Compliant |
| Vacuum Rating | Not Vacuum Operable |
| Valve Type | Spool |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 3.81 |
| HS code | 8481200060 |
Product Variants
| Product | Model | Voltage | Body Style | Overall Length | Overall Width | Overall Height | Coefficient Of Volume | Pilot Port Size | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SV1100-5FU | 24V DC | Base Mounted | 9 31/32" | 2 15/32" | 3 3/4" | 0.24 | - | - | €133.28 | |
|
SV1200-5FU | 24V DC | Base Mounted | 9 31/32" | 2 15/32" | 3 3/4" | 0.24 | - | - | €193.91 | |
 |

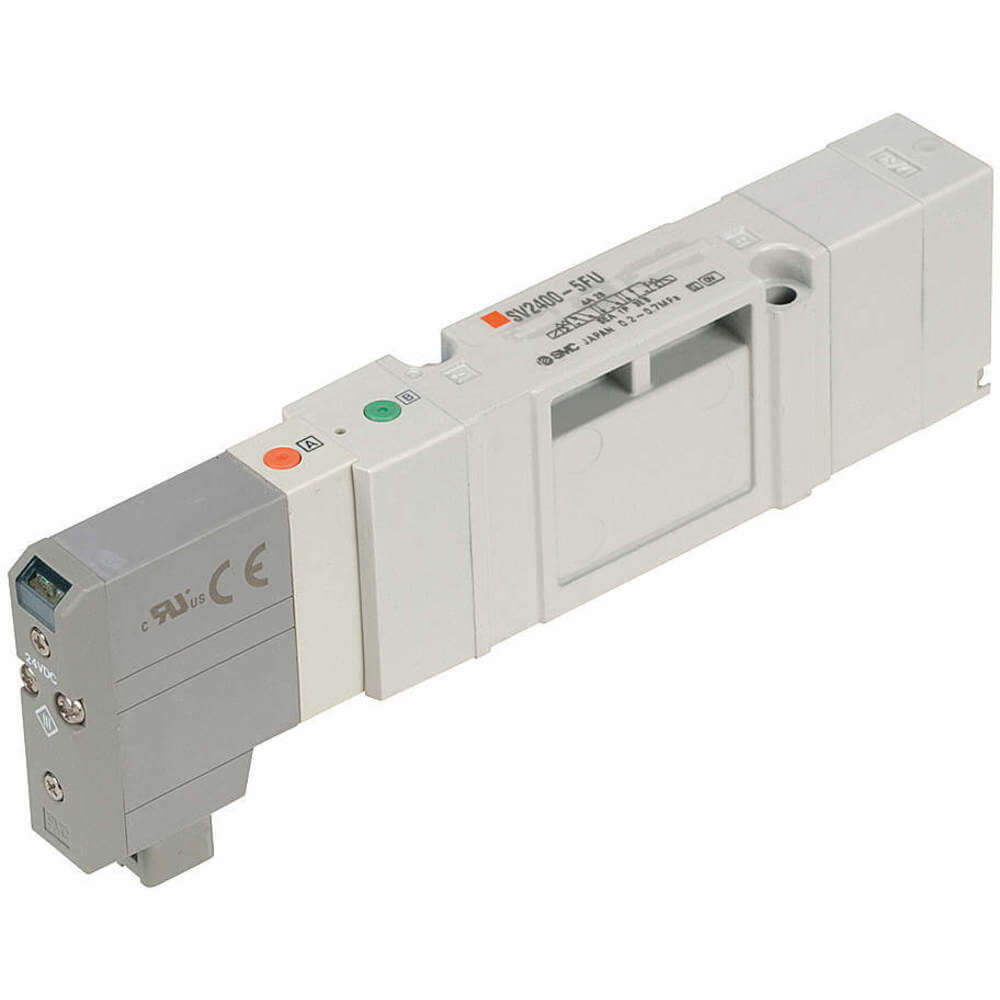

SV2100-5FU | 24V DC | Base Mounted | 13 21/32" | 2 13/16" | 4 15/32" | 0.64 | - | - | €141.41 | |
|
SV2200-5FU | 24V DC | Base Mounted | 13 21/32" | 2 13/16" | 4 15/32" | 0.64 | - | - | €200.94 | |
 |

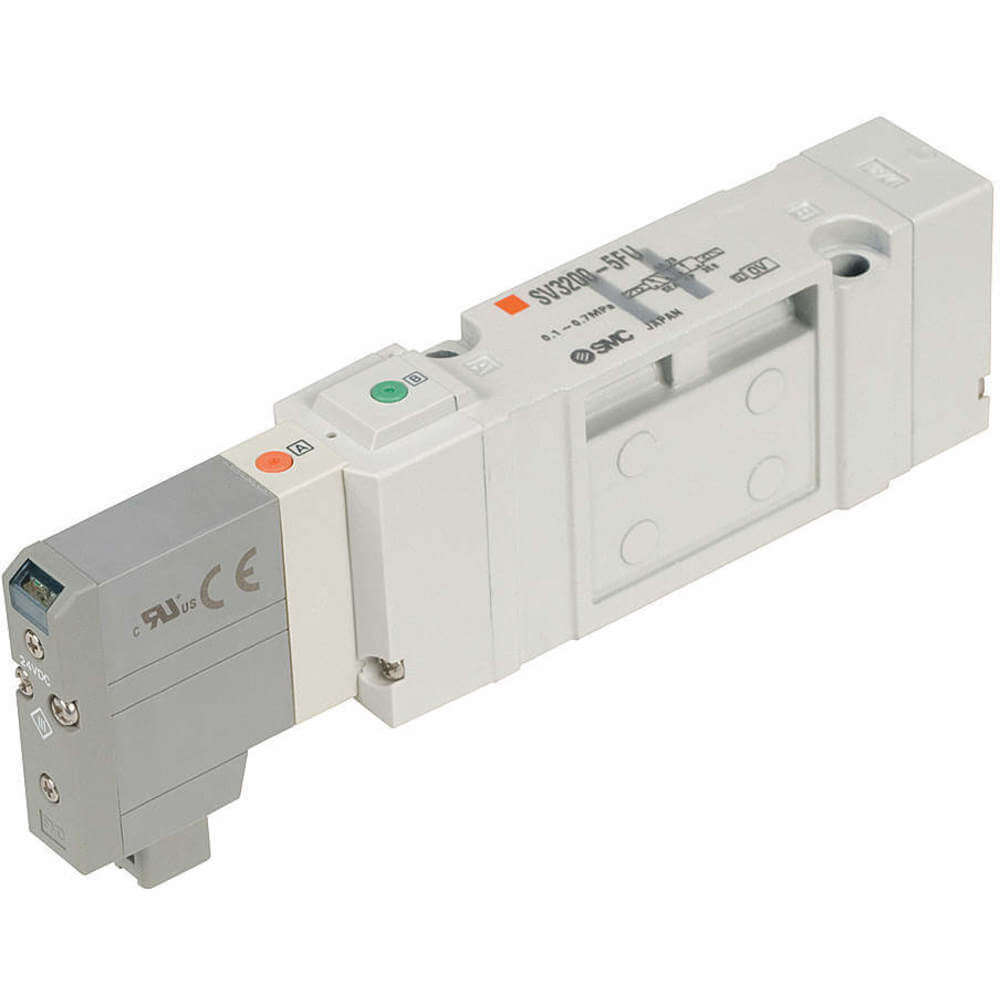

SV3100-5FU | 24V DC | Base Mounted | 16 5/8" | 3 1/4" | 5 1/16" | 0.91 | - | - | €179.18 | |
|
SV3200-5FU | 24V DC | Base Mounted | 16 5/8" | 3 1/4" | 5 1/16" | 0.91 | - | - | €265.69 | |
|
SV4200-5FU | 24V DC | Base Mounted | 18 31/32" | 3 3/8" | 6 15/32" | 2 | - | - | €280.80 |
