Harting Rectangular Connectors

HARTING -

Han 1A Series Connnectors

A

B

C

D

E

F

G

H

I

J

K

L

Style	Model	Current Rating	Wire Size	Connector Gender	Connection Type	Includes Poles	Number Of Poles	Voltage Rating	Application
A	09100123001	6.5A	0.09 sq. mm to 0.52 sq. mm	Male	Crimp	No	12	30/50V	Industrial Connectors	RFQ
B	09100123101	6.5A	0.09 sq. mm to 0.52 sq. mm	Female	Crimp	No	12	30/50V	Industrial Connectors	RFQ
C	09100053001	10A	0.14 sq. mm to 2.5 sq. mm	Male	Crimp	No	5	400/600V	Industrial Connectors	RFQ
D	09100032706	10A	0.75 sq. mm to 1.5 sq. mm	Female	Screw	Yes	3	230/250/400V	Industrial Connectors	RFQ
E	09100033106	10A	0.14 sq. mm to 2.5 sq. mm	Female	Crimp	No	3	400/600V	Industrial Connectors	RFQ
F	09100033101	10A	0.14 sq. mm to 2.5 sq. mm	Female	Crimp	No	3	400/600V	Industrial Connectors	RFQ
G	09100053006	10A	0.14 sq. mm to 2.5 sq. mm	Male	Crimp	No	5	400/600V	Industrial Connectors	RFQ
H	09100033006	10A	0.14 sq. mm to 2.5 sq. mm	Male	Crimp	No	3	400/600V	Industrial Connectors	RFQ
I	09100032701	10A	0.75 sq. mm to 1.5 sq. mm	Female	Screw	Yes	3	230/250/400V	Industrial Connectors	RFQ
J	09100022701	10A	0.75 sq. mm to 1.5 sq. mm	Female	Screw	Yes	2	230/250/400V	Industrial Connectors	RFQ
K	09100032606	10A	0.75 sq. mm to 1.5 sq. mm	Male	Screw	Yes	3	230/250/400V	Industrial Connectors	RFQ
L	09100033201	16A	0.14 sq. mm to 4 sq. mm	Male	Crimp	No	3	400/600V	Industrial Connectors	RFQ

HARTING -

Housings

A

B

C

D

E

F

G

H

Style	Model	Ip Rating	Size Designation	Lock Type	Housing/hood Material	Seal Material	Housing Color	Mounting Type	Height	Price
A	19200031250	IP44, IP65, IP67	3 A	Single Lever	Zinc Die Cast	Nbr	Gray	Surface	27.2 mm	€25.25
B	19200031150	IP44, IP65, IP67	-	Single Lever	Zinc Die Cast	Nbr	Gray	Screw	48 mm	€26.15
C	19200031120	IP44, IP65, IP67	3 A	Single Lever	Zinc Die Cast	Nbr	Gray	Panel Feedthrough	-	-	RFQ

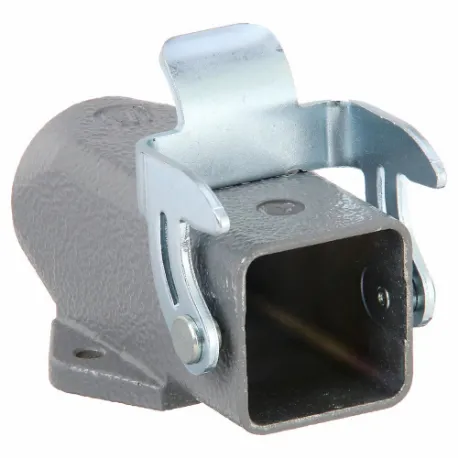

D	19200031252	IP44, IP65, IP67	3 A	Single Lever	Zinc Die Cast	Nbr	Gray	Surface	24.1 mm	€25.38
E	19200031750	IP44, IP65, IP67	3 A	Single Lever	Zinc Die Cast	Nbr	Gray	Cable To Cable	57 mm	€21.35
F	19200320232	IP65	32 A	Dual Lever	Aluminum Die Cast	Nbr	Gray	Surface	81.8 mm	€96.76
G	19200160251	IP65	16 A	Single Lever	Aluminum Die Cast	Nbr	Gray	Surface	57 mm	€59.63
H	09370030301	IP65, IP67	3 A	Single Lever	Zinc Die Cast	FPM	Black	Bulkhead	25 mm	-	RFQ

HARTING -

Connectors

A

B

C

D

E

F

G

H

I

J

K

L

M

Style	Model	Size Designation	Ip Rating	Height	Housing Color	Entry Location	Housing/hood Material	Cable Entry Thread Size	Max. Operating Temp.	Price
A	19200031443	3 A	IP44, IP65, IP67	60 mm	Gray	Top	Zinc Die Cast	M20	125°C	-	RFQ
B	19200030420	3 A	IP44, IP65, IP67	60 mm	Gray	Top	-	M20	125°C	-	RFQ
C	19200031440	3 A	IP44, IP65, IP67	60 mm	Gray	Top	Zinc Die Cast	M20	125°C	€14.68
D	19200031445	3 A	IP44, IP65, IP67	59.8 mm	Gray	Top	Zinc Die Cast	M25	125°C	€19.00
E	19200031421	3 A	IP44, IP65, IP67	66.5 mm	Gray	Top	Zinc Die Cast	-	125°C	-	RFQ
F	19200030410	3 A	IP44, IP65, IP67	65 mm	Gray	Top	Polycarbonate	-	125°C	-	RFQ
G	19200101440	10 A	IP65	58.7 mm	Gray	Top	Aluminum Die Cast	M20	125°C	-	RFQ
H	19200100446	10 A	IP65	66.7 mm	Gray	Top	Aluminum Die Cast	M25	125°C	€47.15
I	19200101540	10 A	IP65	61.2 mm	Gray	Side	Aluminum Die Cast	M20	125°C	€30.82
J	19200161540	16 A	IP65	61.2 mm	Gray	Side	Aluminum Die Cast	M20	125°C	€31.61
K	19200161440	16 A	IP65	59.6 mm	Gray	Top	Aluminum Die Cast	M20	125°C	-	RFQ
L	19200160446	16 A	IP65	70 mm	Gray	Top	Aluminum Die Cast	M25	125°C	-	RFQ
M	19120080501	Han-Compact	IP65	59.5 mm	Black	Side	Zinc Die Cast	M25	125°C	-	RFQ

HARTING -

Han Q Quick Lock Connectors

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

Style	Model	Current Rating	Number Of Contacts	Voltage Rating	Connector Gender	Number Of Poles	Connection Type	Includes Poles	Height	Price
A	09127080301	-	-	-	-	-	-	-	18.5 mm	-	RFQ
B	09120080327	-	-	-	-	-	-	-	19.5 mm	-	RFQ
C	09120123001	10A	-	400V	Male	12	Crimp	No	-	€24.92
D	09120073001	10A	7	400/600V	Male	7	Crimp	No	-	-	RFQ
E	09120173001	10A	17	160/250V	Male	17	Crimp	No	-	-	RFQ
F	09120123101	10A	-	400V	Female	12	Crimp	No	-	€26.21
G	09120052633	16A	5	230/400/600V	Male	5	Spring Clamp	Yes	-	€35.05
H	09120052634	16A	-	230/400/600V	Male	5	Spring Clamp	Yes	-	-	RFQ
I	09120082633	16A	-	500/600V	Male	8	Spring Clamp	Yes	-	-	RFQ
J	09120082733	16A	-	-	Female	8	Spring Clamp	Yes	-	-	RFQ
K	09120053001	16A	5	230/400/600V	Male	-	Crimp	-	-	€15.64
L	09120053004	16A	-	230/400V	Male	5	Crimp	No	-	-	RFQ
M	09120053101	16A	-	230/400/600V	Female	5	Crimp	No	-	€17.71
N	09120083001	16A	8	500/600V	Male	8	-	No	-	€30.40
O	09120053104	16A	-	230/400V	Female	5	Crimp	No	-	€17.99
P	09120052733	16A	-	230/400/600V	Female	5	Spring Clamp	Yes	-	€38.71
Q	09120083101	16A	8	500/600V	-	-	-	-	-	€30.10
R	09120033151	40A	-	400/600V	Female	3	Crimp	No	-	-	RFQ
S	09120022753	40A	-	400V	Female	2	Screw	Yes	-	-	RFQ
T	09120063041	40A	-	250/400/600/690V	Male	6	Crimp	No	-	€34.38
U	09120023051	40A	-	400/600V	Male	2	Crimp	No	-	-	RFQ
V	09120023151	40A	2	400/600V	-	2	-	-	-	-	RFQ

HARTING -

Han-Modular Heavy Duty Power Connectors

A

B

C

Style	Model	Size Designation	Height	Housing/hood Material	Cable Entry Thread Size	Max. Operating Temp.	Ip Rating	Min. Operating Temp.	Lock Type
A	19140010402	Modular Compact	46.5 mm	Zinc Die Cast	M32	125°C	IP65	-40°C	Single Lever	RFQ
B	19140020401	Modular Twin	41 mm	Aluminum Die Cast	M25	125°C	IP65	-40°C	Single Lever	RFQ
C	19140020402	Modular Twin	41 mm	Aluminum Die Cast	M32	125°C	IP65	-40°C	Single Lever	RFQ

HARTING -

Han A Heavy Duty Power Connectors

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Style	Model	Size Designation	Ip Rating	Current Rating	Number Of Contacts	Lock Type	Wire Size	Connector Gender	Connection Type	Price
A	09200162813	-	-	16A	-	-	0.75 sq. mm to 2.5 sq. mm	Female	Screw	€53.47
B	09200103001	-	-	16A	-	-	0.14 sq. mm to 4 sq. mm	Male	Crimp	-	RFQ
C	09200032711	-	-	10A	3	-	0.75 sq. mm to 1.5 sq. mm	Female	Screw	€21.25
D	09200163001	-	-	16A	-	-	0.14 sq. mm to 4 sq. mm	Male	Crimp	-	RFQ
E	09200032734	-	-	10A	-	-	0.25 sq. mm to 1.5 sq. mm	Female	Spring Clamp	€25.77
F	09200042734	-	-	10A	-	-	0.25 sq. mm to 1.5 sq. mm	Female	Spring Clamp	€31.62
G	09200042634	-	-	10A	-	-	0.25 sq. mm to 1.5 sq. mm	Male	Spring Clamp	€30.01
H	09200162612	-	-	16A	-	-	0.75 sq. mm to 2.5 sq. mm	Male	Screw	€41.09
I	09200032611	-	-	10A	3	-	0.75 sq. mm to 1.5 sq. mm	Male	Screw	€18.77
J	09200042611	-	-	10A	4	-	0.75 sq. mm to 1.5 sq. mm	Male	Screw	€20.11
K	09200162814	-	-	16A	-	-	0.75 sq. mm to 2.5 sq. mm	Female	Screw	-	RFQ
L	09200042711	-	-	10A	-	-	0.75 sq. mm to 1.5 sq. mm	Female	Screw	€22.40
M	09200102612	-	-	16A	-	-	0.75 sq. mm to 2.5 sq. mm	Male	Screw	€31.78
N	09200103101	-	-	16A	-	-	0.14 sq. mm to 4 sq. mm	Female	Crimp	-	RFQ
O	09200032634	-	-	10A	-	-	0.25 sq. mm to 1.5 sq. mm	Male	Spring Clamp	€24.13
P	09200032633	-	-	10A	3	-	0.5 sq. mm to 2.5 sq. mm	Male	Spring Clamp	-	RFQ
Q	09200102812	-	-	16A	10	-	0.75 sq. mm to 2.5 sq. mm	Female	Screw	€36.24
R	09200162614	-	-	16A	-	-	0.75 sq. mm to 2.5 sq. mm	Male	Screw	€51.14
S	09200162613	-	-	16A	-	-	0.75 sq. mm to 2.5 sq. mm	Male	Screw	€41.92
T	09200042733	-	-	10A	4	-	0.5 sq. mm to 2.5 sq. mm	Female	Spring Clamp	-	RFQ
U	09200032733	-	-	10A	-	-	0.5 sq. mm to 2.5 sq. mm	Female	Spring Clamp	€26.27
V	09200035408	3 A	IP44, IP65, IP67	-	-	Single Lever	-	-	-	-	RFQ
W	09200030810	3 A	IP44, IP65, IP67	-	-	Single Lever	-	-	-	-	RFQ
X	19200030220	3 A	IP44, IP65, IP67	-	-	Single Lever	-	-	-	-	RFQ
Y	09200030305	3 A	IP44, IP65, IP67	-	-	Single Lever	-	-	-	€51.47

HARTING -

Han D Connectors, Crimp Contact

A

B

C

Style	Model	Application	Connector Gender	Wire Size	Current Rating	Max. Operating Temp.	Ip Rating	Minimum Mating Cycles	Connection Type	Price
A	09150006201	Industrial Connectors	Female	16 AWG	10A	-	-	500	Crimp	€2.21
B	09150006101	Industrial Connectors	Male	16 AWG	10A	-	-	500	Crimp	€2.21
B	09150006104	Industrial Connectors	Male	26 AWG to 22 AWG	10A	-	-	500	Crimp	€2.01
B	09150006102	Industrial Connectors	Male	18 AWG	10A	-	-	500	Crimp	€1.98
A	09150006203	Industrial Connectors	Female	-	10A	-	-	500	Crimp	€1.89
A	09150006204	Industrial Connectors	Female	26 AWG to 22 AWG	10A	-	-	500	Crimp	€1.98
A	09150006202	Industrial Connectors	Female	-	10A	-	-	500	Crimp	€1.98
B	09150006103	Industrial Connectors	Male	20 AWG	10A	-	-	500	Crimp	€1.89
B	09150006105	Industrial Connectors	Male	18 AWG	10A	-	-	500	Crimp	€2.07
C	09151000402	Signal	-	-	-	125°C	IP67, IP69, IPX9K	-	-	-	RFQ

HARTING -

Han-Eco Heavy Duty Power Connectors

A

B

C

D

E

Style	Model	Size Designation	Height	Entry Location	Seal Material	Cable Entry Thread Size	Mounting Type	Max. Operating Temp.	Ip Rating
A	19411060422	6 B	112.5 mm	Top	Nbr	M32	-	125°C	IP65	RFQ
B	19410060301	6 B	34.2 mm	Top	Nbr	-	Bulkhead	125°C	IP65	RFQ
C	19410060522	6 B	68.4 mm	Side	-	M32	-	125°C	IP65	RFQ
D	19411160523	16 B	75.9 mm	Side	Nbr	M40	-	125°C	IP65	RFQ
E	19411160723	16 B	138.3 mm	Top	FPM	M40	Cable To Cable	125°C	IP65	RFQ

HARTING -

Han M Heavy Duty Power Connectors

A

B

Style	Model	Height	Size Designation	Max. Operating Temp.	Ip Rating	Min. Operating Temp.	Lock Type	Housing/hood Material	Seal Material	Price
A	19370031750	57 mm	3 A	125°C	IP65, IP67	-40°C	Single Lever	Zinc Die Cast	FPM	-	RFQ
B	19370031440	60 mm	3 A	125°C	IP65, IP67	-40°C	Single Lever	Zinc Die Cast	FPM	€58.52

HARTING -

Han B Heavy Duty Power Connectors

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

Style	Model	Ip Rating	Size Designation	Lock Type	Entry Location	Number Of Entries	Cable Entry Thread Size	Height	Mounting Type	Price
A	19300061750	IP65	6 B	Single Lever	Top	1	M20	55.9 mm	Cable To Cable	-	RFQ
B	19300240738	IP65	24 B	Dual Lever	Top	1	M40	77.4 mm	Cable To Cable	€94.83
C	19300160737	IP65	16 B	Dual Lever	Top	1	M32	78 mm	Cable To Cable	€84.81
D	19300100272	IP65	10 B	Dual Lever	Side	2	M32	80.8 mm	Surface	-	RFQ
E	19300060291	IP65	6 B	Single Lever	Side	2	M25	73.5 mm	Surface	€70.06
F	19300161231	IP65	16 B	Dual Lever	Side	1	M25	58.5 mm	Surface	€70.88
G	19300061295	IP65	6 B	Single Lever	Side	2	M20	51.5 mm	Surface	€63.52
H	19300240273	IP65	24 B	Dual Lever	Side	2	M40	80.8 mm	Surface	-	RFQ
I	19300240737	IP65	24 B	Dual Lever	Top	1	M32	77.9 mm	Cable To Cable	-	RFQ
J	19300060757	IP65	6 B	Single Lever	Top	1	M32	74 mm	Cable To Cable	-	RFQ
D	19300241231	IP65	24 B	Dual Lever	Side	1	M25	55.8 mm	Surface	-	RFQ
K	19300060756	IP65	6 B	Single Lever	Top	1	M25	74 mm	Cable To Cable	€70.70
L	19300241251	IP65	24 B	Single Lever	Side	1	M25	55.8 mm	Surface	-	RFQ
D	19300240232	IP65	24 B	Dual Lever	Side	1	M32	80.8 mm	Surface	€99.00
D	19300161251	IP65	16 B	Single Lever	Side	1	M25	55.8 mm	Surface	€57.21
D	19300101231	IP65	10 B	Dual Lever	Side	1	M25	53.8 mm	Surface	-	RFQ
M	19300160232	IP65	16 B	Dual Lever	Side	1	M32	80.8 mm	Surface	-	RFQ
N	19300161542	IP65, IP66, IP67	16 B	Single Lever	Side	1	M32	62.5 mm	-	-	RFQ
O	19300101520	IP65, IP66, IP67	10 B	Dual Lever	Side	1	M20	57 mm	-	€30.50
D	19300160447	IP65, IP66, IP67	16 B	Single Lever	Top	1	M32	75.6 mm	-	-	RFQ
P	19300240427	IP65, IP66, IP67	24 B	Dual Lever	Top	1	M32	75.5 mm	-	-	RFQ
Q	19300160429	IP65, IP66, IP67	16 B	Dual Lever	Top	1	M50	109.5 mm	-	-	RFQ
R	19300240548	IP65, IP66, IP67	24 B	Single Lever	Side	1	M40	76 mm	-	-	RFQ
S	19300240528	IP65, IP66, IP67	24 B	Dual Lever	Side	1	M40	76 mm	-	-	RFQ
T	19300160428	IP65, IP66, IP67	16 B	Dual Lever	Top	1	M40	75.6 mm	-	€52.07

HARTING -

Han-Com Connectors

A

B

Style	Model	Connector Gender	Application	Current Rating	Max. Operating Temp.	Min. Operating Temp.	Minimum Mating Cycles	Connection Type	Insert Material	Price
A	09380062701	Female	Industrial Connectors	80A	125°C	-40°C	500	Screw	Polycarbonate	€207.99
B	09380062601	Male	Industrial Connectors	80A	125°C	-40°C	500	Screw	Polycarbonate	€156.38

HARTING -

Han E Connectors, Crimp Contact

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

Style	Model	Number Of Contacts	Connector Gender	Connection Type	Includes Poles	Number Of Poles	Application	Current Rating	Max. Operating Temp.	Price
A	09330006104	-	Male	Crimp	-	-	Industrial Connectors	16A	-	€0.96

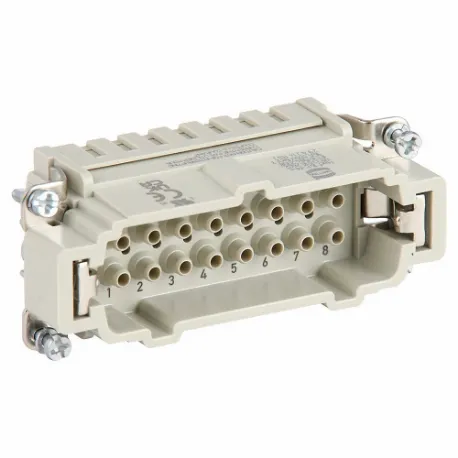

B	09330162602	-	Male	Crimp	No	16	Industrial Connectors	16A	125°C	-	RFQ
C	09330062616	-	Male	Spring Clamp	Yes	6	Industrial Connectors	16A	125°C	-	RFQ
D	09330242616	-	Male	Spring Clamp	Yes	24	Industrial Connectors	16A	125°C	-	RFQ
E	09330162616	-	Male	Spring Clamp	Yes	16	Industrial Connectors	16A	125°C	€53.53
F	09330242716	-	Female	Spring Clamp	Yes	24	Industrial Connectors	16A	125°C	-	RFQ
G	09330102748	-	Female	Spring Clamp	Yes	10	Industrial Connectors	16A	125°C	-	RFQ
H	09330242748	-	Female	Spring Clamp	Yes	24	Industrial Connectors	16A	125°C	€66.29
I	09330242601	-	Male	Screw	Yes	24	Industrial Connectors	16A	125°C	€49.53
J	09330102701	-	Female	Screw	Yes	10	Industrial Connectors	16A	125°C	€28.27
K	09330062701	-	Female	Screw	Yes	6	Industrial Connectors	16A	125°C	€22.41
L	09330162701	-	Female	Screw	Yes	16	Industrial Connectors	-	125°C	€36.92
M	09330062602	-	Male	Crimp	No	6	Industrial Connectors	16A	125°C	€20.85
N	09330102702	-	Female	Crimp	No	10	Industrial Connectors	16A	125°C	-	RFQ
O	09330242702	-	Female	Crimp	No	-	Industrial Connectors	16A	125°C	-	RFQ
P	09330062702	-	Female	Crimp	No	6	Industrial Connectors	16A	125°C	€20.99
Q	09330062716	-	Female	Spring Clamp	Yes	6	Industrial Connectors	16A	125°C	€36.08
R	09330006202	-	Female	Crimp	-	-	Industrial Connectors	16A	-	€1.00
S	09330242648	-	Male	Spring Clamp	Yes	24	Industrial Connectors	16A	125°C	€63.05
A	09330006105	-	Male	Crimp	-	-	Industrial Connectors	16A	-	€1.05
R	09330006204	-	Female	Crimp	-	-	Industrial Connectors	16A	-	€1.03
A	09330006102	-	Male	Crimp	-	-	Industrial Connectors	16A	-	€1.03
T	09330062601	6	Male	Screw	Yes	6	Industrial Connectors	16A	125°C	€21.41
U	09330102601	10	Male	Screw	Yes	10	Industrial Connectors	16A	125°C	€25.85
V	09330102716	10	Female	-	Yes	-	-	16A	125°C	-	RFQ

HARTING -

Han C Connectors, Crimp Contact

A

B

C

D

E

F

G

H

I

Style	Model	Current Rating	Connector Gender	Number Of Poles	Voltage Rating	Application	Max. Operating Temp.	Number Of Contacts	Minimum Mating Cycles	Price
A	09320323101	16A	Female	32	500/600V	Industrial Connectors	125°C	32	500	-	RFQ
B	09320463101	16A	Female	46	-	Industrial Connectors	125°C	-	500	€70.70
C	09320103001	16A	Male	10	500/600V	Industrial Connectors	125°C	-	500	€36.66
D	09320183101	16A	Female	18	500/600V	Industrial Connectors	125°C	-	500	-	RFQ
E	09320463001	16A	Male	46	500/600V	Industrial Connectors	125°C	-	500	-	RFQ
F	09320643101	16A	Female	64	500V	Industrial Connectors	125°C	-	500	-	RFQ
G	09320103101	16A	Female	10	500/600V	Industrial Connectors	125°C	-	500	€39.76
H	09320006208	40A	Female	-	-	Industrial Connectors	-	-	500	€7.33
H	09320006207	40A	Female	-	-	Industrial Connectors	-	-	500	€7.29
I	09320006107	40A	Male	-	-	-	-	-	500	€5.29
I	09320006108	40A	Male	-	-	Industrial Connectors	-	-	500	€5.32

HARTING -

Han HsB Connectors

A

B

Style	Model	Connector Gender	Application	Current Rating	Max. Operating Temp.	Min. Operating Temp.	Minimum Mating Cycles	Wire Size	Connection Type	Price
A	09310062701	Female	Industrial Connectors	35A	125°C	-40°C	500	1.5 sq. mm to 6 sq. mm	Screw	€19.33
B	09310062601	Male	Industrial Connectors	35A	125°C	-40°C	500	1.5 sq. mm to 6 sq. mm	Screw	€56.42

HARTING -

Han B Connectors, Bulkhead Mounted

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Style	Model	Size Designation	Ip Rating	Lock Type	Height	Entry Location	Cable Entry Thread Size	Max. Operating Temp.	Nema Rating	Price
A	09300061540	6 B	IP65, IP66, IP67	Single Lever	51.2 mm	Side	pg13.5	125°C	-	€32.38
B	09300061308	6 B	IP65, IP67	Single Lever	31.3 mm	-	-	125°C	-	€57.55
C	09300061440	6 B	IP65, IP66, IP67	Single Lever	53.5 mm	Top	pg13.5	125°C	-	€32.43
D	09300065423	6 B	IP65	Single Lever	-	-	-	125°C	NEMA 12, NEMA 4, NEMA 4X	-	RFQ
E	09300060301	6 B	IP65	Single Lever	28.9 mm	-	-	125°C	-	€29.67
F	09300160307ML	6 B	IP65	Single Lever	28.9 mm	-	-	125°C	-	-	RFQ
G	09300060442	6 B	IP65, IP66, IP67	Single Lever	86.6 mm	Top	pg21	125°C	-	€47.56
H	09300060318	6 B	IP65	Single Lever	28.9 mm	-	-	125°C	-	€75.43
I	09300060801	6 B	IP65, IP66, IP67	Single Lever	72 mm	-	-	125°C	-	-	RFQ
J	09300061441	6 B	IP65, IP66, IP67	Single Lever	53.5 mm	Top	pg16	125°C	-	-	RFQ
K	09300060542	6 B	IP65, IP66, IP67	Single Lever	72 mm	Side	pg21	125°C	-	-	RFQ
L	09300105425	10 B	IP65	Dual Lever	-	-	-	125°C	NEMA 12, NEMA 4, NEMA 4X	-	RFQ
M	09300100318	10 B	IP65	Single Lever	28.9 mm	-	-	125°C	-	€89.17
N	09300100301	10 B	IP65	Dual Lever	28.9 mm	-	-	125°C	-	€45.21
O	09300101521	10 B	IP65, IP66, IP67	Dual Lever	57 mm	Side	pg16	125°C	-	€30.76
P	09300100522	10 B	IP65, IP66, IP67	Dual Lever	72 mm	Side	pg21	-	-	-	RFQ
Q	09300101301	10 B	IP65, IP67	Dual Lever	30.2 mm	-	-	125°C	-	-	RFQ
R	09300100543	10 B	IP65, IP66, IP67	Single Lever	72 mm	Side	pg29	125°C	-	-	RFQ
S	09300101421	10 B	IP65, IP66, IP67	Dual Lever	58.5 mm	Top	pg16	125°C	-	€31.77
T	09300101441	10 B	IP65, IP66, IP67	Single Lever	58.5 mm	Top	pg16	125°C	-	-	RFQ
U	09300105423	10 B	IP65	Dual Lever	-	-	-	125°C	NEMA 12, NEMA 4, NEMA 4X	€63.49
V	09300105407	10 B	-	Dual Lever	-	-	-	125°C	NEMA 12, NEMA 4, NEMA 4X	-	RFQ
W	09300105427	10 B	IP65	Dual Lever	-	-	-	125°C	NEMA 12, NEMA 4, NEMA 4X	-	RFQ
X	09300100305	10 B	IP65	Single Lever	28.9 mm	-	-	125°C	-	€56.13
Y	09300100303	10 B	IP65	Single Lever	28.9 mm	-	-	125°C	-	€60.50

HARTING -

Han D Quick Lock Connectors

A

B

C

D

E

F

G

H

I

J

K

L

Style	Model	Number Of Contacts	Wire Size	Connector Gender	Connection Type	Insert Material	Includes Poles	Number Of Poles	Voltage Rating	Price
A	09210253101	-	0.14 sq. mm to 2.5 sq. mm	Female	Crimp	Polycarbonate	No	25	250/600V	€32.08
B	09210153001	-	0.14 sq. mm to 2.5 sq. mm	Male	Crimp	Polycarbonate	No	15	250/600V	€28.67
C	09210153101	-	0.14 sq. mm to 2.5 sq. mm	Female	Crimp	Polycarbonate	No	15	250/600V	€25.34
D	09210643101	-	0.14 sq. mm to 2.5 sq. mm	Female	Crimp	Polycarbonate	No	64	250/600V	€38.68
E	09210643001	-	0.14 sq. mm to 2.5 sq. mm	Male	Crimp	Polycarbonate	No	64	250/600V	-	RFQ
F	09210073031	-	0.14 sq. mm to 2.5 sq. mm	Male	Crimp	Polyamide	No	7	250/600V	-	RFQ
G	09360082732	-	0.25 sq. mm to 1.5 sq. mm	Female	Spring Clamp	Polycarbonate	Yes	8	120V DC/50V/50V AC	€32.54
H	09210072632	-	0.25 sq. mm to 1.5 sq. mm	Male	Spring Clamp	Polycarbonate	Yes	7	250/600V	€37.13
I	09360082632	-	0.25 sq. mm to 1.5 sq. mm	Male	Spring Clamp	Polycarbonate	Yes	8	120V DC/50V/50V AC	€32.56
J	09210253001	-	0.14 sq. mm to 2.5 sq. mm	Male	Crimp	Polycarbonate	No	25	250/600V	-	RFQ
K	09210072732	7	0.25 sq. mm to 1.5 sq. mm	Female	Spring Clamp	Polycarbonate	Yes	7	250/600V	€37.13
L	09360083101	8	0.14 sq. mm to 2.5 sq. mm	Female	Crimp	Polyamide	No	8	120V DC/50V/50V AC	-	RFQ

HARTING -

Han Modular Compact Connectors, Bulkhead Mounted

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Style	Model	Max. Operating Temp.	Current Rating	Number Of Contacts	Size Designation	Connector Gender	Voltage Rating	Wire Size	Includes Poles	Price
A	09140014623	-	-	-	-	Male	-	-	No	€13.28
B	09140013111	85°C	-	-	-	Female	-	-	No	€16.25
C	09140013011	85°C	-	-	-	Male	-	-	-	-	RFQ
D	09140203001	125°C	16A	-	-	Male	500/600V	0.14 sq. mm to 4 sq. mm	No	-	RFQ
E	09140022641	125°C	70A	2	-	Male	1000V	6 sq. mm to 16 sq. mm	Yes	€64.93
F	09140122632	125°C	10A	12	-	Male	250/600V	0.25 sq. mm to 1.5 sq. mm	-	€48.61
G	09140082633	125°C	16A	-	-	Male	400/600V	0.5 sq. mm to 2.5 sq. mm	Yes	-	RFQ
H	09140082733	125°C	16A	8	-	Female	400/600V	0.5 sq. mm to 2.5 sq. mm	Yes	€40.50
I	09140012663	125°C	200A	-	-	Male	1000/600V	25 sq. mm to 40 sq. mm	Yes	-	RFQ
J	09140033001	125°C	40A	3	-	Male	600/690V	1.5 sq. mm to 6 sq. mm	-	-	RFQ
K	09140093101	125°C	5A	-	-	Female	30/50V	0.08 sq. mm to 0.52 sq. mm	No	-	RFQ
L	09140083001	125°C	16A	-	-	Male	400/600V	0.14 sq. mm to 4 sq. mm	No	€15.53
M	09140022601	125°C	40A	2	-	Male	1000/600V	2.5 sq. mm to 8 sq. mm	Yes	€34.74
N	09140025401	125°C	-	-	Modular Twin	-	-	-	-	-	RFQ
O	09140010311	125°C	-	-	Modular Compact	-	-	-	-	-	RFQ
P	09140013101	125°C	200A	-	-	Female	600/800V	25 sq. mm to 70 sq. mm	No	-	RFQ
Q	09140043141	125°C	40A	-	-	Female	600/830V	-	No	-	RFQ
R	09140033101	125°C	40A	3	-	Female	600/690V	1.5 sq. mm to 6 sq. mm	-	-	RFQ
S	09140032601	125°C	40A	3	-	Male	600/690V	2.5 sq. mm to 8 sq. mm	Yes	-	RFQ
T	09140022602	125°C	40A	2	-	Male	1000/600V	6 sq. mm to 10 sq. mm	Yes	€36.47
U	09140010301	125°C	-	-	Modular Compact	-	-	-	-	-	RFQ
V	09140073001	125°C	40A	3	-	Male	600/830V	0.14 sq. mm to 6 sq. mm	No	-	RFQ
W	09140023151	125°C	100A	-	-	Female	1000/600V	10 sq. mm to 35 sq. mm	No	-	RFQ
X	09140083101	125°C	16A	8	-	Female	400/600V	0.14 sq. mm to 4 sq. mm	No	-	RFQ
Y	09140253101	125°C	4A	25	-	Female	30/50V	0.09 sq. mm to 0.52 sq. mm	No	€16.57

HARTING -

Industrial Rectangular Connector Insert, Crimp, Female, 10 A Current Rating, Gray

Model	Item	Price (ex. VAT)
09160243101	CR3TGU	-	RFQ

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

HARTING Rectangular Connectors

Han 1A Series Connnectors

Housings

Connectors

Han Q Quick Lock Connectors

Han-Modular Heavy Duty Power Connectors

Han A Heavy Duty Power Connectors

Han D Connectors, Crimp Contact

Han-Eco Heavy Duty Power Connectors

Han M Heavy Duty Power Connectors

Han B Heavy Duty Power Connectors

Han-Com Connectors

Han E Connectors, Crimp Contact

Han C Connectors, Crimp Contact

Han HsB Connectors

Han B Connectors, Bulkhead Mounted

Han D Quick Lock Connectors

Han Modular Compact Connectors, Bulkhead Mounted

Industrial Rectangular Connector Insert, Crimp, Female, 10 A Current Rating, Gray

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

HARTING Rectangular Connectors

Industrial Rectangular Connector Insert, Crimp, Female, 10 A Current Rating, Gray

Popular Search Queries

Explore More
