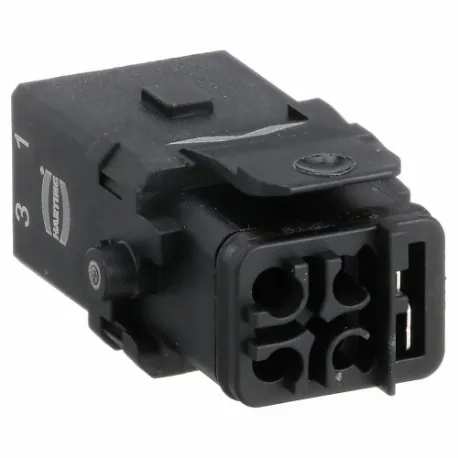

HARTING 09100033101 Industrial Rectangular Connector Insert, 1A, Crimp, Female, 10 A Current Rating
Get it by Monday, Aug 17
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Insert |
| Amps | 10A |
| Application | Industrial Connectors |
| Connection Type | Crimp |
| Connector Gender | Female |
| Included Poles | No |
| Insert Color | Black |
| Insert Material | Polyamide |
| Ip Rating | IP20 |
| Max. Operating Temp. | 90°C |
| Mfr. Series | HAN 1A Series |
| Min. Insulation Resistance | 1 x 10^8 ohms |
| Min. Mating Cycles | 100 |
| Min. Operating Temp. | -30°C |
| No. Of Poles | 3 |
| Voltage | 400/600V |
| Wire Size | 0.14 sq. mm to 2.5 sq. mm |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Amps | Wire Size | Voltage | No. Of Poles | Connector Gender | Included Poles | Insert Color | Insert Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

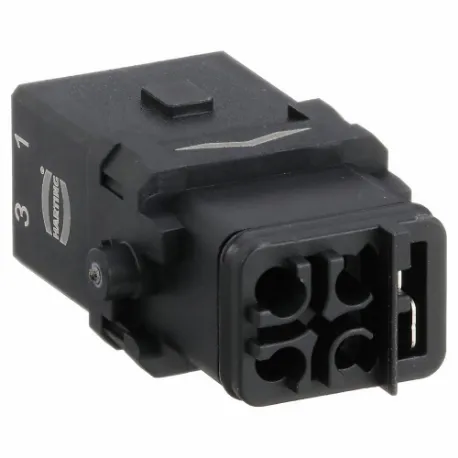

09100033106 | 10A | 0.14 sq. mm to 2.5 sq. mm | 400/600V | 3 | Female | No | Black | Polyamide | - | RFQ
|
 |

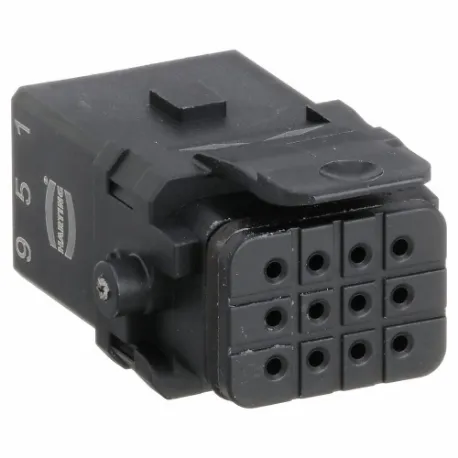

09100123101 | 6.5A | 0.09 sq. mm to 0.52 sq. mm | 30/50V | 12 | Female | No | Black | Polyamide | - | RFQ
|
 |

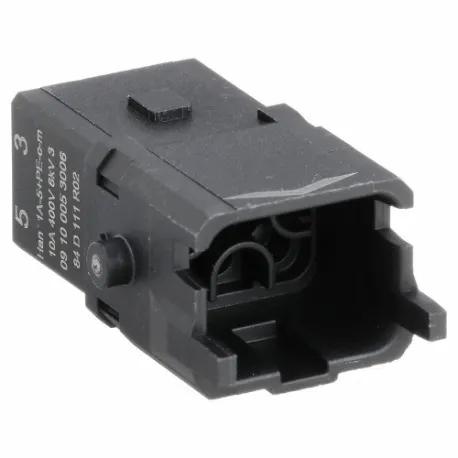

09100053006 | 10A | 0.14 sq. mm to 2.5 sq. mm | 400/600V | 5 | Male | No | Black | Polyamide | - | RFQ
|
 |

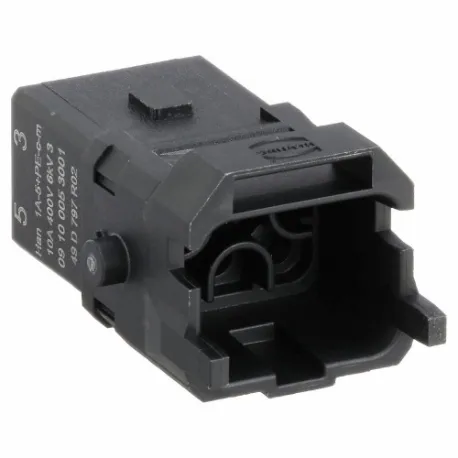

09100053001 | 10A | 0.14 sq. mm to 2.5 sq. mm | 400/600V | 5 | Male | No | Black | Polyamide | - | RFQ
|
 |

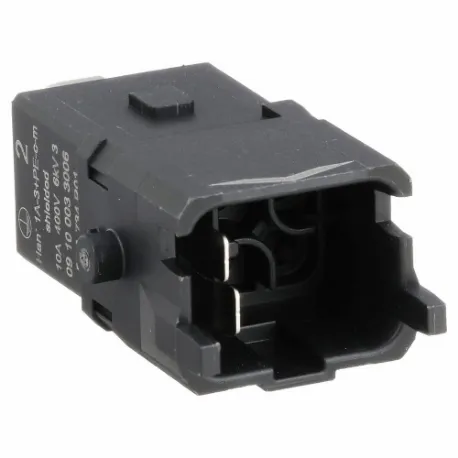

09100033006 | 10A | 0.14 sq. mm to 2.5 sq. mm | 400/600V | 3 | Male | No | Black | Polyamide | - | RFQ
|
 |

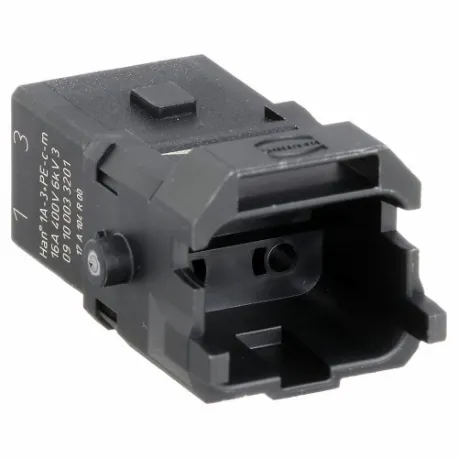

09100033201 | 16A | 0.14 sq. mm to 4 sq. mm | 400/600V | 3 | Male | No | Black | Polyamide | - | RFQ
|
 |
09100123001 | 6.5A | 0.09 sq. mm to 0.52 sq. mm | 30/50V | 12 | Male | No | Black | Polyamide | - | RFQ
|
