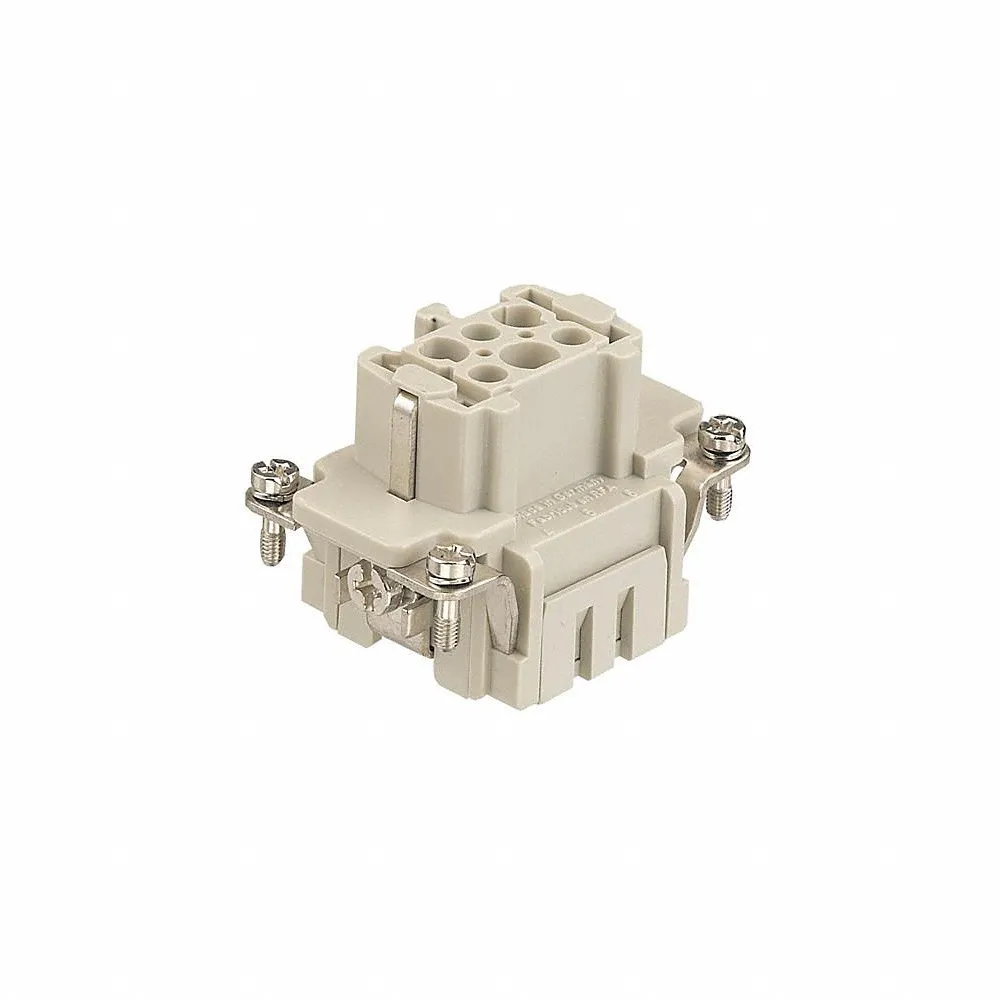

HARTING 09330062716 Industrial Rectangular Connector Insert, ES, Spring-Clamp, Female
Item: CR3TNWModel: 09330062716Cross Ref: 793XE6
7 In Stock
Ships within 2 days via
10.00% off
€32.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert |
| Application | Industrial Connectors |
| Connection Type | Spring Clamp |
| Connector Gender | Female |
| Current Rating | 16A |
| Includes Poles | Yes |
| Insert Color | Gray |
| Insert Material | Polycarbonate |
| Max. Operating Temp. | 125°C |
| Maximum Contact Resistance | 3 M ohms |
| Mfr. Series | HAN ES Series |
| Min. Operating Temp. | -40°C |
| Minimum Insulation Resistance | 1 x 10^10 ohms |
| Minimum Mating Cycles | 500 |
| Number Of Poles | 6 |
| Pole Finish | Silver Plated |
| Pole Material | Copper Alloy |
| Voltage Rating | 500/600V |
| Wire Size | 0.14 sq. mm to 2.5 sq. mm, 26 AWG to 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Number Of Contacts | Connector Gender | Connection Type | Includes Poles | Number Of Poles | Application | Current Rating | Max. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
09330006102 | - | Male | Crimp | - | - | Industrial Connectors | 16A | - | €1.03 | |
|
09330006104 | - | Male | Crimp | - | - | Industrial Connectors | 16A | - | €0.96 | |
|
09330006105 | - | Male | Crimp | - | - | Industrial Connectors | 16A | - | €1.05 | |
 |
09330006202 | - | Female | Crimp | - | - | Industrial Connectors | 16A | - | €1.00 | |
|
09330006204 | - | Female | Crimp | - | - | Industrial Connectors | 16A | - | €1.03 | |
 |
09330062601 | 6 | Male | Screw | Yes | 6 | Industrial Connectors | 16A | 125°C | €21.41 | |
 |
09330062602 | - | Male | Crimp | No | 6 | Industrial Connectors | 16A | 125°C | €20.85 |
