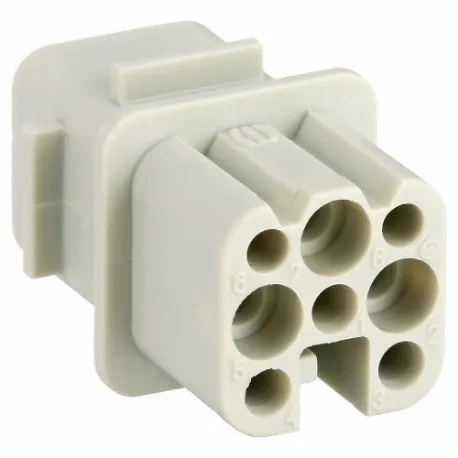

HARTING 09360083101 Industrial Rectangular Connector Insert, D, Crimp, Female, 10 A Current Rating, Gray
Get it by Tuesday, Dec 23
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Insert |
| Application | Industrial Connectors |
| Approximate Amperage Rating - Grounding Braid | 10A |
| Color | Gray |
| Connection Type | Crimp |
| Connector Gender | Female |
| Current Rating | 10A |
| Includes Poles | No |
| Insert Color | Gray |
| Insert Material | Polyamide |
| Max. Operating Temp. | 125°C |
| Mfr. Series | HAN D |
| Min. Operating Temp. | -40°C |
| Minimum Insulation Resistance | 1 x 10^10 ohms |
| Minimum Mating Cycles | 500 |
| Number Of Contacts | 8 |
| Number Of Poles | 8 |
| Series | HAN D Series |
| Voltage Rating | 120V DC/50V/50V AC |
| Wire Size | 0.14 sq. mm to 2.5 sq. mm |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Number Of Contacts | Wire Size | Connector Gender | Connection Type | Insert Material | Includes Poles | Number Of Poles | Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
09210153101 | - | 0.14 sq. mm to 2.5 sq. mm | Female | Crimp | Polycarbonate | No | 15 | 250/600V | €25.34 | |
 |

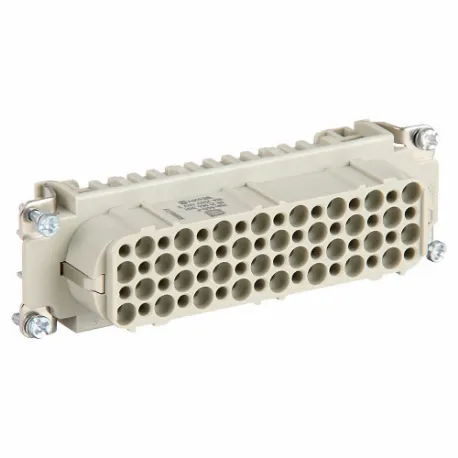

09210643101 | - | 0.14 sq. mm to 2.5 sq. mm | Female | Crimp | Polycarbonate | No | 64 | 250/600V | €38.68 | |
 |

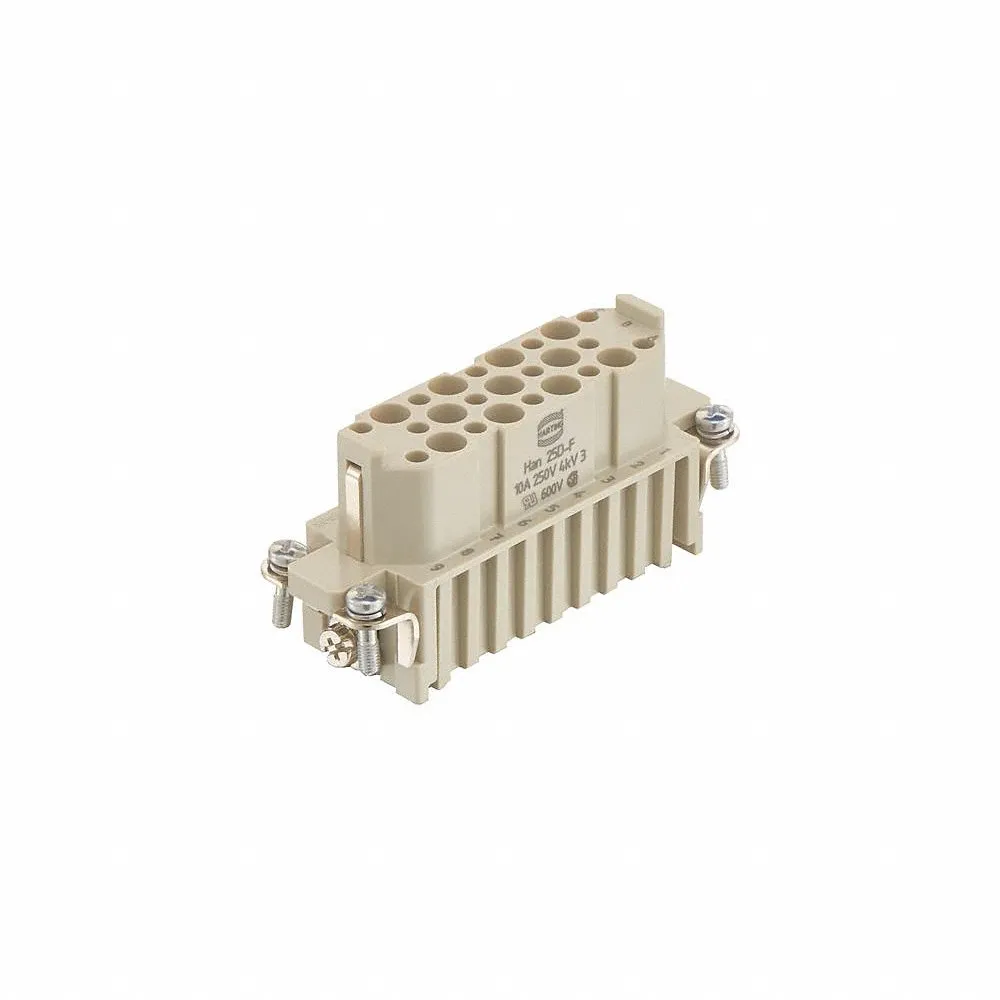

09210253101 | - | 0.14 sq. mm to 2.5 sq. mm | Female | Crimp | Polycarbonate | No | 25 | 250/600V | €32.08 | |
 |
09210643001 | - | 0.14 sq. mm to 2.5 sq. mm | Male | Crimp | Polycarbonate | No | 64 | 250/600V | - | RFQ
|
 |

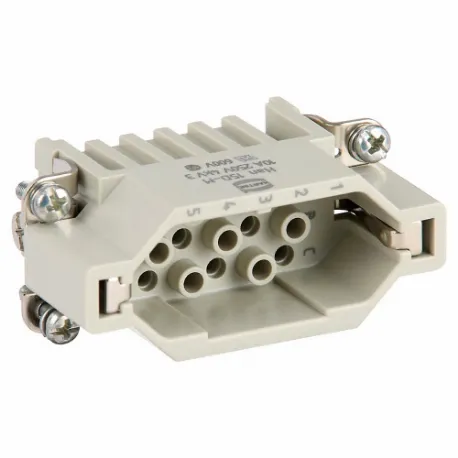

09210153001 | - | 0.14 sq. mm to 2.5 sq. mm | Male | Crimp | Polycarbonate | No | 15 | 250/600V | €28.67 | |
 |

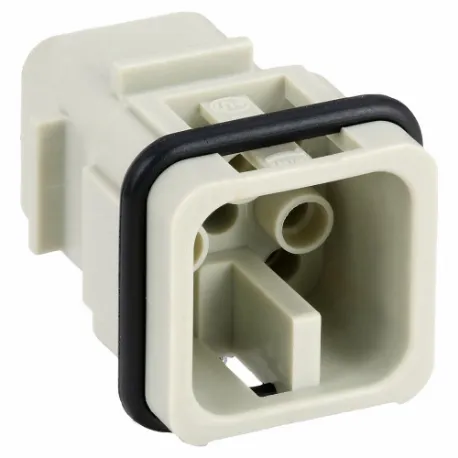

09210073031 | - | 0.14 sq. mm to 2.5 sq. mm | Male | Crimp | Polyamide | No | 7 | 250/600V | - | RFQ
|
 |

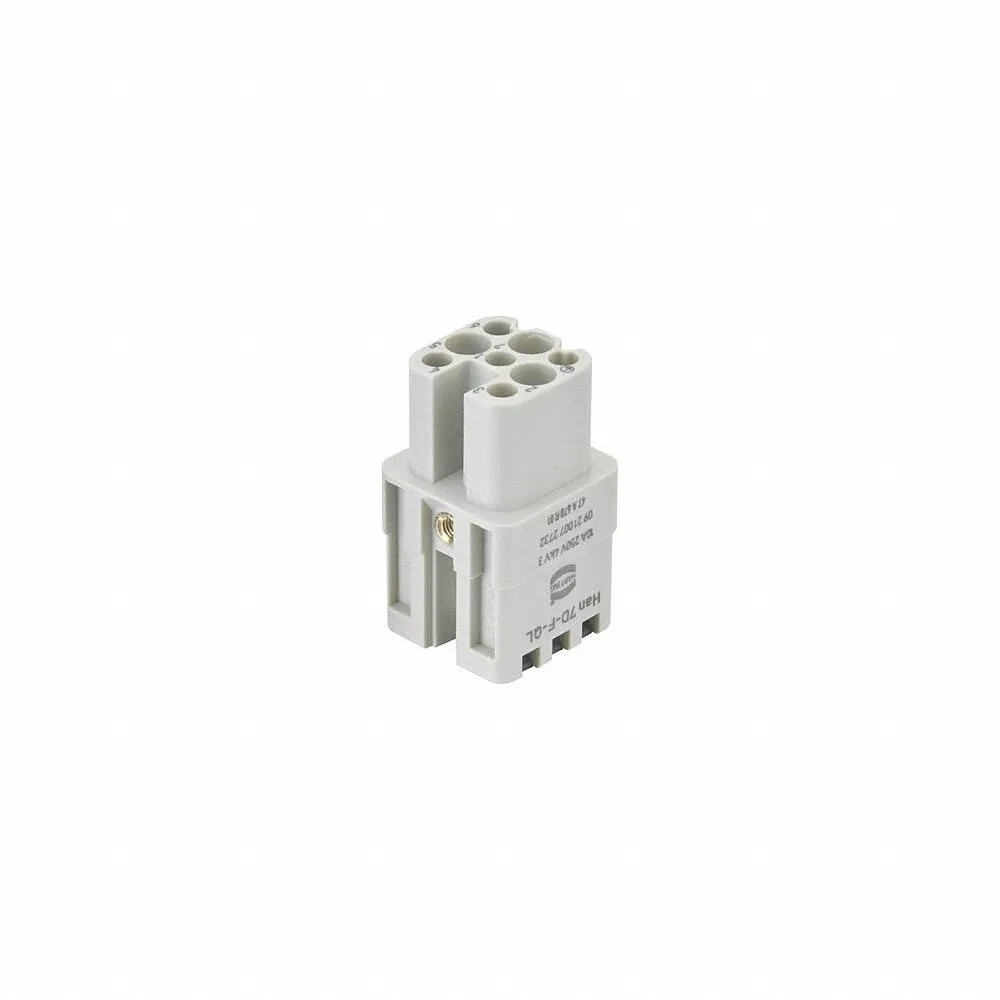

09210072732 | 7 | 0.25 sq. mm to 1.5 sq. mm | Female | Spring Clamp | Polycarbonate | Yes | 7 | 250/600V | €37.13 |
