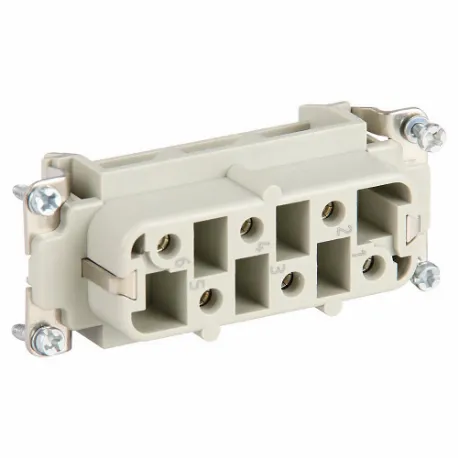

HARTING 09310062701 Industrial Rectangular Connector Insert, HsB, Screw, Female, 35 A Current Rating
Item: CR3TMCModel: 09310062701Cross Ref: 793XC9
7 In Stock
Ships within 2 days via
10.00% off
€17.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert |
| Application | Industrial Connectors |
| Connection Type | Screw |
| Connector Gender | Female |
| Current Rating | 35A |
| Includes Poles | Yes |
| Insert Color | Gray |
| Insert Material | Polycarbonate |
| Max. Operating Temp. | 125°C |
| Maximum Contact Resistance | 1 M ohms |
| Mfr. Series | HAN HSB |
| Min. Operating Temp. | -40°C |
| Minimum Insulation Resistance | 1 x 10^10 ohms |
| Minimum Mating Cycles | 500 |
| Number Of Poles | 6 |
| Pole Finish | Silver Plated |
| Pole Material | Copper Alloy |
| Voltage Rating | 400/600/690V |
| Wire Size | 1.5 sq. mm to 6 sq. mm |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Connector Gender | Application | Current Rating | Max. Operating Temp. | Min. Operating Temp. | Minimum Mating Cycles | Wire Size | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

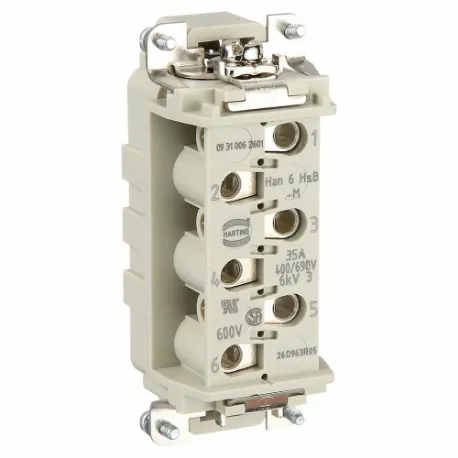

09310062601 | Male | Industrial Connectors | 35A | 125°C | -40°C | 500 | 1.5 sq. mm to 6 sq. mm | Screw | €56.42 |
