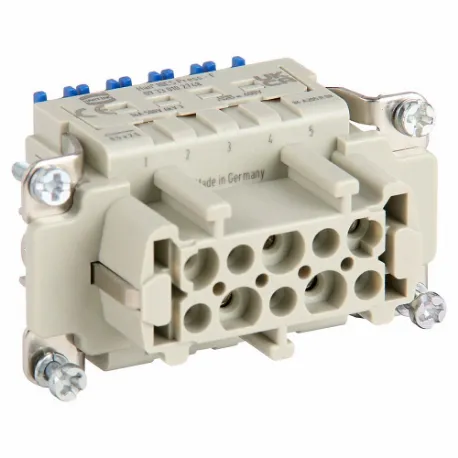

HARTING 09330102748 Industrial Rectangular Connector Insert, ES Press, Spring-Clamp, Female, Gray
Get it by Tuesday, Jun 30
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Insert |
| Amps | 16A |
| Application | Industrial Connectors |
| Connection Type | Spring Clamp |
| Connector Gender | Female |
| Included Poles | Yes |
| Insert Color | Gray |
| Insert Material | Polycarbonate |
| Max. Contact Resistance | 3 M ohms |
| Max. Operating Temp. | 125°C |
| Mfr. Series | HAN ES Press Series |
| Min. Insulation Resistance | 1 x 10^10 ohms |
| Min. Mating Cycles | 500 |
| Min. Operating Temp. | -40°C |
| No. Of Poles | 10 |
| Pole Finish | Silver Plated |
| Pole Material | Copper Alloy |
| Series | HAN ES PRESS Series |
| Voltage | 500/600V |
| Wire Size | 0.14 sq. mm to 2.5 sq. mm, 26 AWG to 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Connector Gender | Connection Type | Application | Max. Operating Temp. | Insert Color | Pole Finish | Pole Material | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
09330062702 | Female | Crimp | Industrial Connectors | 125°C | Gray | - | - | -40°C | €20.99 | |
 |
09330242702 | Female | Crimp | Industrial Connectors | 125°C | Gray | - | - | -40°C | - | RFQ
|
 |
09330102702 | Female | Crimp | Industrial Connectors | 125°C | Gray | - | - | -40°C | - | RFQ
|
 |
09330062602 | Male | Crimp | Industrial Connectors | 125°C | Gray | - | - | -40°C | €20.85 | |
 |
09330162602 | Male | Crimp | Industrial Connectors | 125°C | Gray | - | - | -40°C | - | RFQ
|
 |
09330062701 | Female | Screw | Industrial Connectors | 125°C | Gray | Silver Plated | Copper Alloy | -40°C | €22.41 | |
 |
09330162701 | Female | Screw | Industrial Connectors | 125°C | Gray | Silver Plated | Copper Alloy | -40°C | €36.92 |
