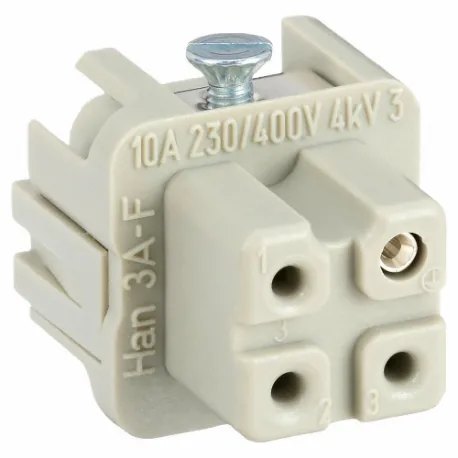

HARTING 09200032711 Industrial Rectangular Connector Insert, Screw, Female, 10 A Current Rating, Gray
Item: CR3TFZModel: 09200032711Cross Ref: 793X78
7 In Stock
Ships within 2 days via
10.00% off
€19.12 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert |
| Application | Industrial Connectors |
| Approximate Amperage Rating - Grounding Braid | 10A |
| Color | Gray |
| Connection Type | Screw |
| Connector Gender | Female |
| Current Rating | 10A |
| Flammability Rating | Ul 94 V-0 |
| Includes Poles | Yes |
| Insert Color | Gray |
| Insert Material | Polycarbonate |
| Max. Operating Temp. | 125°C |
| Mfr. Series | HAN A Series |
| Min. Operating Temp. | -40°C |
| Minimum Insulation Resistance | 1 x 10^10 ohms |
| Minimum Mating Cycles | 500 |
| Number Of Contacts | 3 |
| Number Of Poles | 3 |
| Pole Finish | Silver Plated |
| Pole Material | Copper Alloy |
| Voltage Rating | 230/400/600V |
| Wire Size | 0.75 sq. mm to 1.5 sq. mm |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Size Designation | Ip Rating | Current Rating | Number Of Contacts | Lock Type | Wire Size | Connector Gender | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
09200030301 | 3 A | IP44, IP65, IP67 | - | - | Single Lever | - | - | - | €14.99 | |
 |
09200030305 | 3 A | IP44, IP65, IP67 | - | - | Single Lever | - | - | - | €51.47 | |
 |
09200030306 | 3 A | IP44, IP65, IP67 | - | - | Single Lever | - | - | - | €54.65 | |
 |
09200030320 | 3 A | IP44, IP65, IP67 | - | - | Single Lever | - | - | - | €9.94 | |
 |
09200030420 | 3 A | IP44, IP65, IP67 | - | - | Single Lever | - | - | - | €8.82 | |
 |
09200030427 | 3 A | IP44, IP65, IP67 | - | - | Single Lever | - | - | - | €9.17 | |
 |
09200030801 | 3 A | IP44, IP65, IP67 | - | - | Single Lever | - | - | - | - | RFQ
|
