HAMILTON Plate Casters

Suitable for installation on dumpsters, die carts and trailer frames in waste management, production and transportation applications. Selected models feature kingpins for securely joining caster mounting plate to the frame, ensuring long-term operation. Available in 2, 2.5 and 3 inch wheel widths

Filter

HAMILTON -

Swivel Plate Caster w/ Drctnl Lok & Brke

StyleModelInside Bolt Hole SpacingOutside Bolt Hole SpacingWheel Bearing TypeCaster Load Rating RangeLoad RatingWheel WidthMounting Plate Bolt Hole PatternWheel/tread MaterialPrice
AS-WH-6NYB-4SL-FB2 5/8" x 3 5/8"3" x 3"Precision Ball1000 lbs. to 2999 lbs.2000 lbs.2"BNylon€507.98

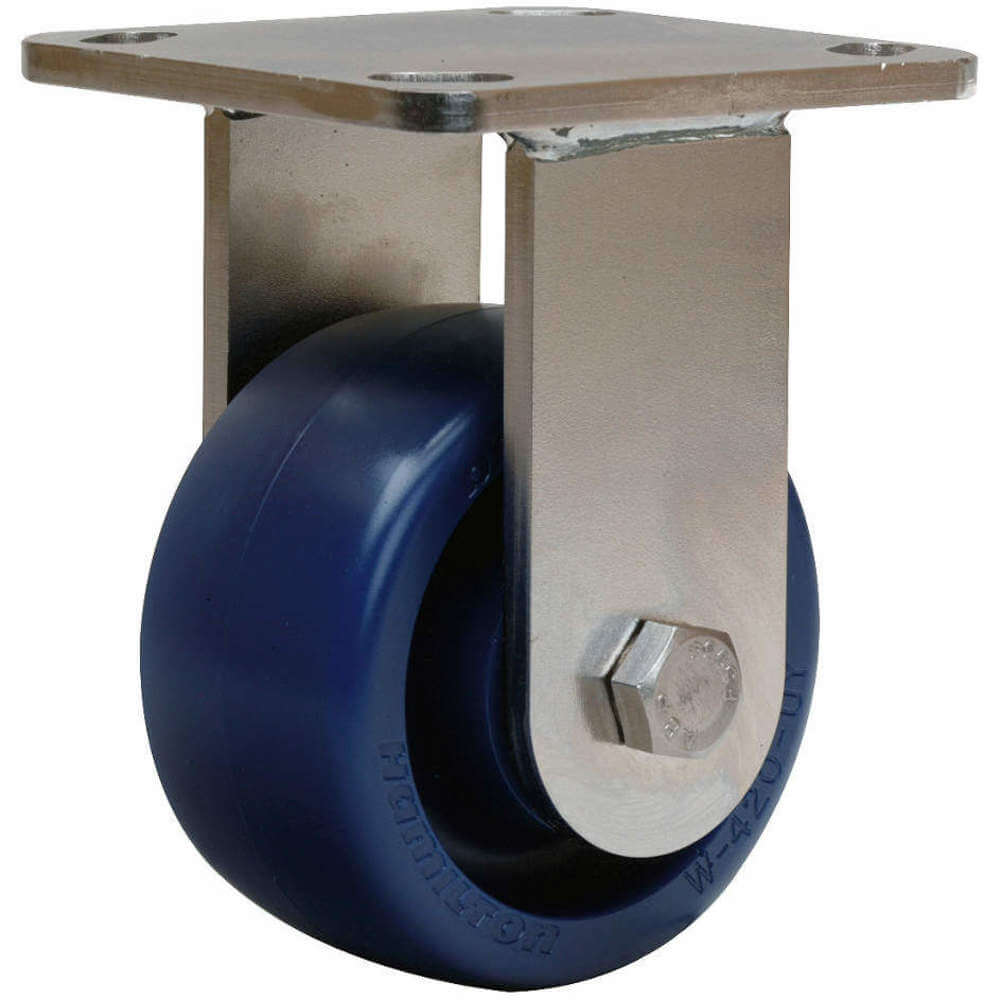

BS-WHS-4UYSB-4SL-SZB2 5/8" x 3 5/8"3" x 3"Precision Ball--2"BPolyurethane€1,023.19
CS-WH-4NYB-4SL-FB2 5/8" x 3 5/8"3" x 3"Precision Ball1000 lbs. to 2999 lbs.2000 lbs.2"BNylon€361.79
DS-WH-6P-4SL-IB2 5/8" x 3 5/8"3" x 3"Roller1000 lbs. to 2999 lbs.1200 lbs.2"BPhenolic€226.75
ES-WH-4P-4SL-FB2 5/8" x 3 5/8"3" x 3"Roller300 lbs. to 999 lbs.800 lbs.2"BPhenolic€260.22
FS-WH-8SPB-4SL-IB2 5/8" x 3 5/8"3" x 3"Precision Ball1000 lbs. to 2999 lbs.1200 lbs.2"BPolyurethane€365.98
FS-WH-6SPB-4SL-FB2 5/8" x 3 5/8"3" x 3"Precision Ball300 lbs. to 999 lbs.960 lbs.2"BPolyurethane€365.72

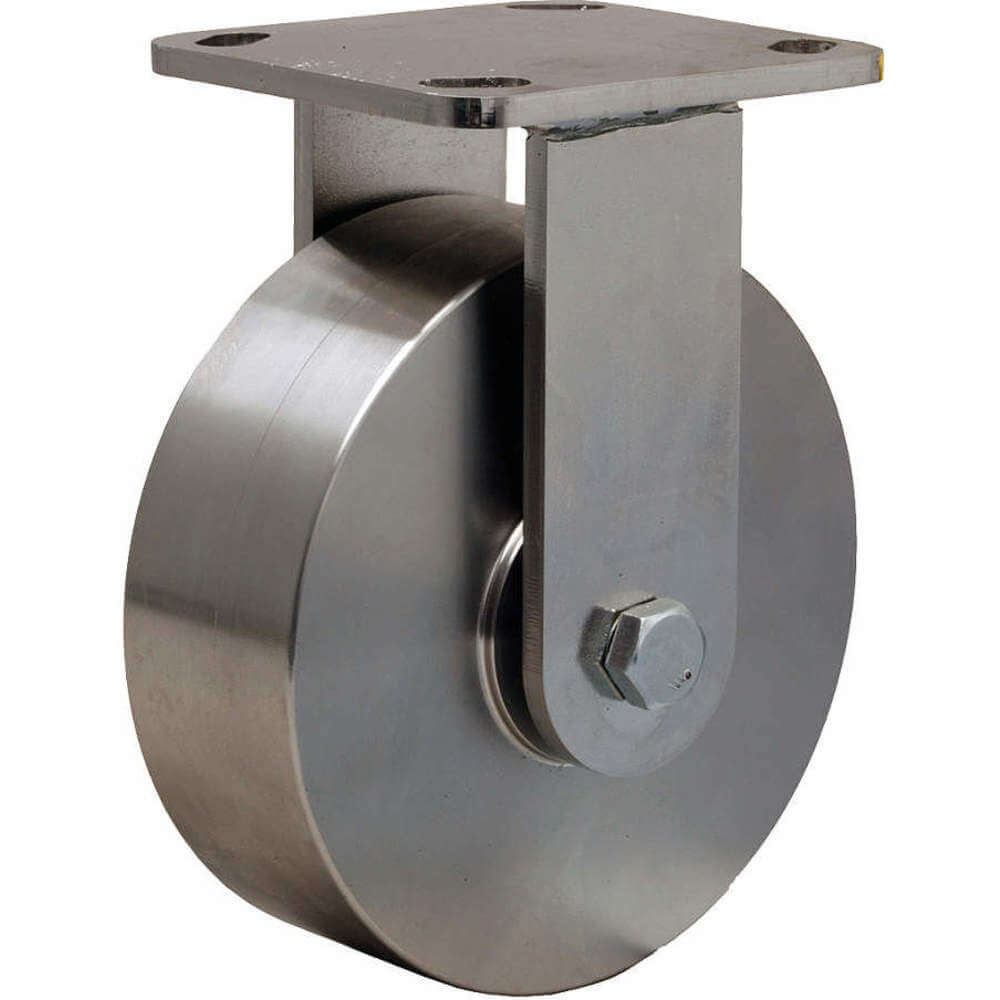

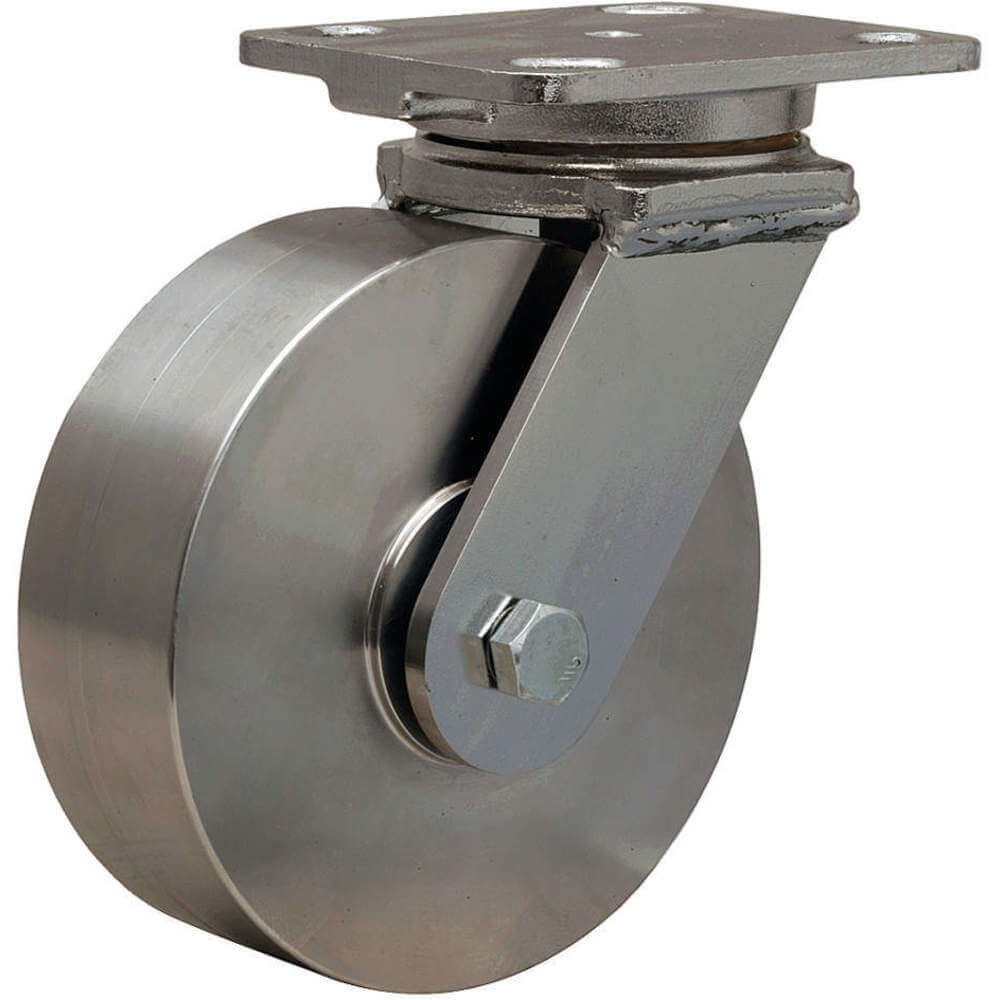

GS-WHS-6SB-4SL-SZB2 5/8" x 3 5/8"3" x 3"Precision Ball1000 lbs. to 2999 lbs.1200 lbs.2"BStainless Steel€1,495.93

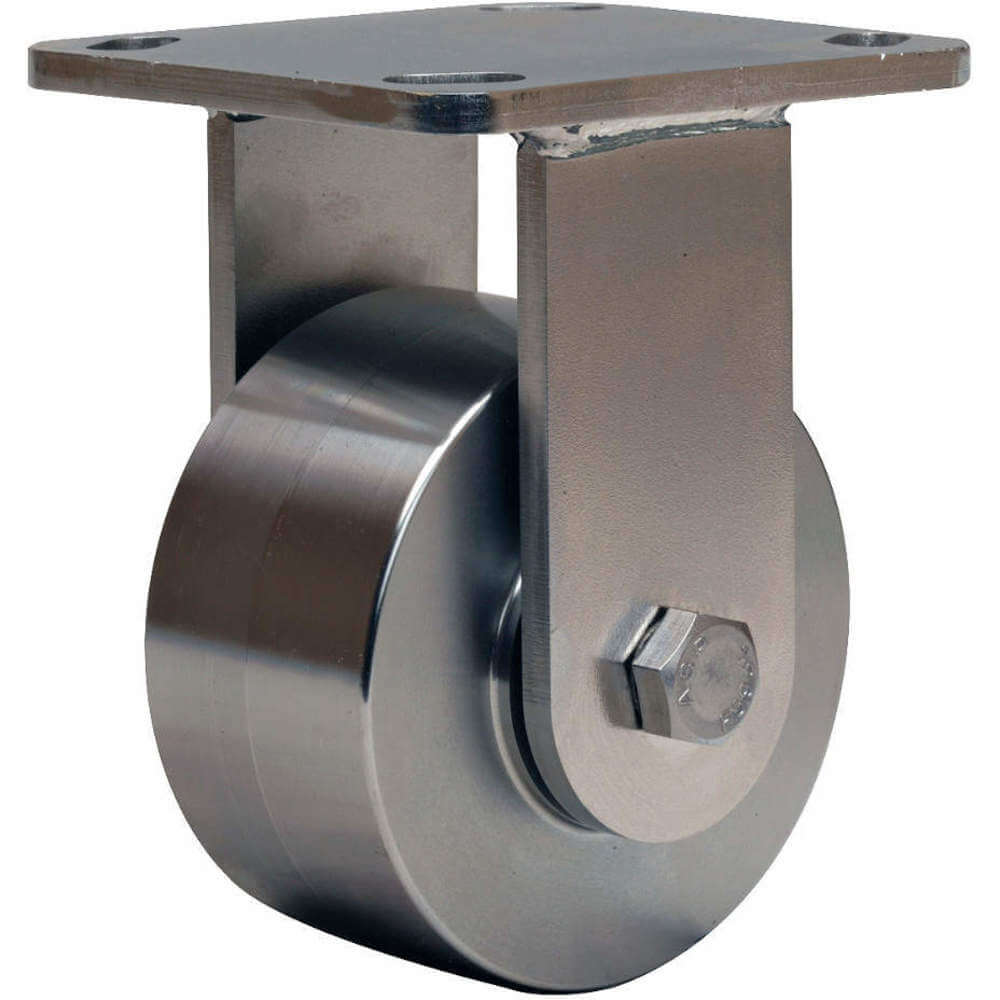

HS-WHS-4SB-4SL-SZB2 5/8" x 3 5/8"3" x 3"Precision Ball300 lbs. to 999 lbs.-2"BStainless Steel€1,118.77

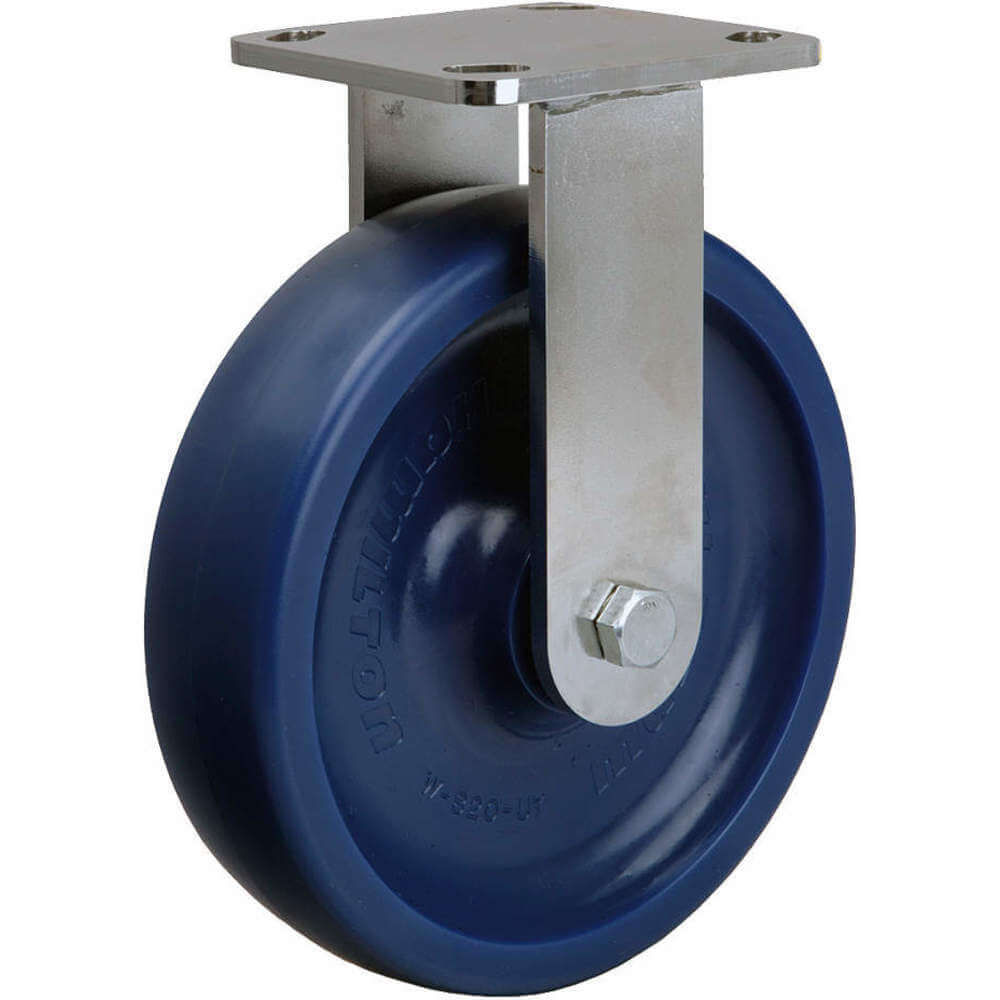

IS-WHS-8UYSB-4SL-SZB2 5/8" x 3 5/8"3" x 3"Precision Ball1000 lbs. to 2999 lbs.-2"BPolyurethane€1,079.93

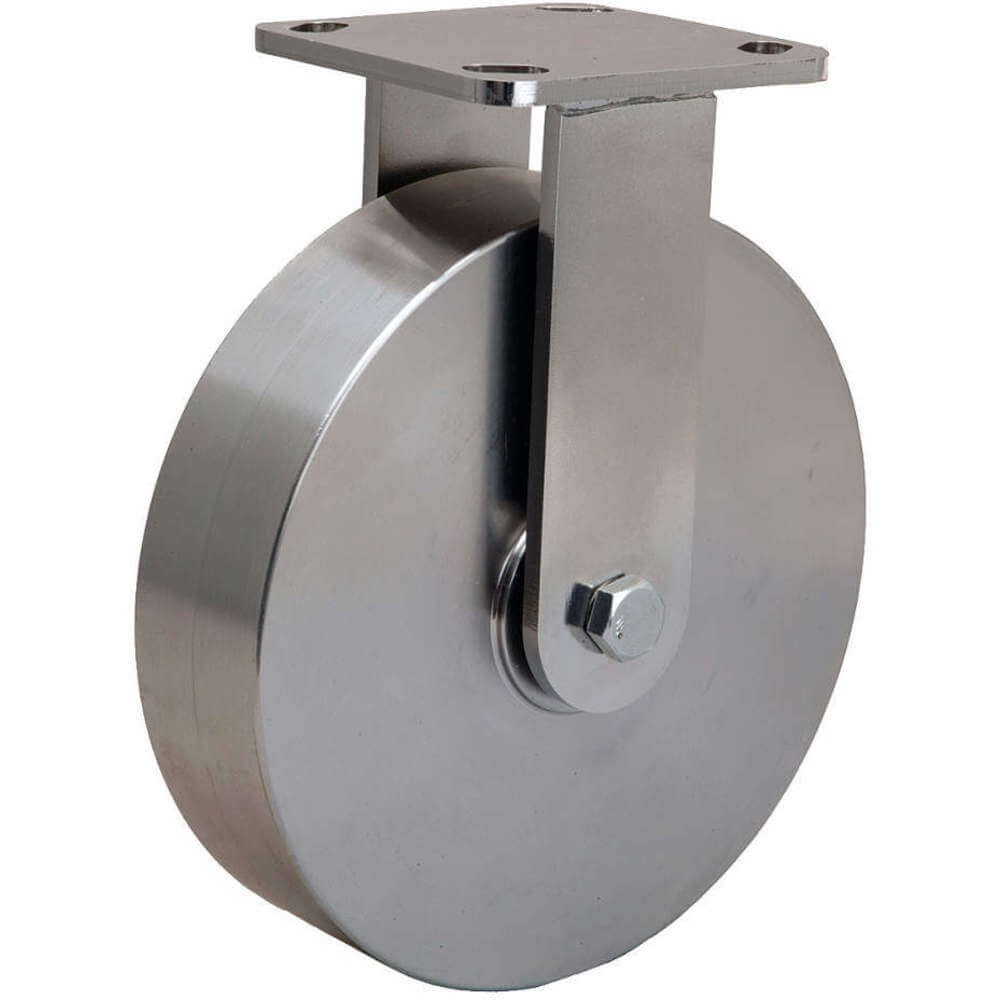

JS-WHS-8SB-4SL-SZB2 5/8" x 3 5/8"3" x 3"Precision Ball1000 lbs. to 2999 lbs.1500 lbs.2"BStainless Steel€1,900.36
KS-FM-10RB-4SL-IB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Precision Ball300 lbs. to 999 lbs.790 lbs.2 1/2"ARubber€485.18
LS-FM-8DB-4SL-IB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Precision Ball1000 lbs. to 2999 lbs.2000 lbs.2 1/2"APolyurethane€553.39
MS-HS-4MB-4SL-FB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Precision Ball1000 lbs. to 2999 lbs.1000 lbs.2"AIron€319.58
NS-HS-4DB-4SL-FB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Precision Ball-750 lbs.2"APolyurethane€309.03
OS-FM-6DB-4SL-FB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Precision Ball1000 lbs. to 2999 lbs.1600 lbs.2 1/2"--€490.00
NS-HS-6DB-4SL-FB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Precision Ball1000 lbs. to 2999 lbs.1200 lbs.2"APolyurethane€376.11
PS-FM-6RB-4SL-FB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Precision Ball300 lbs. to 999 lbs.540 lbs.2 1/2"--€399.61
QS-FM-10DB-4SL-FB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Precision Ball1000 lbs. to 2999 lbs.2200 lbs.2 1/2"APolyurethane€782.18
RS-FM-8RB-4SL-FB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Precision Ball300 lbs. to 999 lbs.670 lbs.2 1/2"ARubber€460.84
NS-HS-8DB-4SL-FB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Precision Ball1000 lbs. to 2999 lbs.1500 lbs.2"APolyurethane€393.66
SS-HS-6FSB-4SL-FB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Precision BallGreater Than 6000 lbs.2000 lbs.2"ASteel€353.58
MS-HS-6MB-4SL-FB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Precision Ball1000 lbs. to 2999 lbs.1400 lbs.2"AIron€300.36
NS-HS-6P-4SL-FB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Roller1000 lbs. to 2999 lbs.1200 lbs.---€296.45
TS-HS-8SPB-4SL-FB2 7/16" x 4 15/16"3 3/8" x 5 1/4"Precision Ball1000 lbs. to 2999 lbs.1200 lbs.2"APolyurethane€383.15
HAMILTON -

Kingpinless Caster

StyleModelInside Bolt Hole SpacingOutside Bolt Hole SpacingWheel Bearing TypeCaster Load Rating RangeLoad RatingWheel/tread MaterialMounting HeightFrame FinishPrice
AS-SEC-63DB3 3/8" x 5 1/4"4 1/8" x 6 1/8"Precision Ball1000 lbs. to 2999 lbs.2200 lbs.--Gray Enamel€563.47
BS-SEC-63FSB4 1/8" x 6 1/8"3 3/8" x 5 1/4"Precision BallGreater Than 6000 lbs.6000 lbs.Steel8"Enamel€786.01
CS-SEC-83DB4 1/8" x 6 1/8"3 3/8" x 5 1/4"Precision Ball1000 lbs. to 2999 lbs.2500 lbs.Polyurethane10 1/2"Enamel€625.96
DS-SEC-83FSB4 1/8" x 6 1/8"3 3/8" x 5 1/4"Precision BallGreater Than 6000 lbs.6000 lbs.Steel10 1/2"Enamel€692.72
ES-SEC-13DB4 1/8" x 6 1/8"3 3/8" x 5 1/4"Precision Ball3000 lbs. to 5999 lbs.3000 lbs.Polyurethane12 1/2"Enamel€672.48
FS-SEC-13FSB4 1/8" x 6 1/8"3 3/8" x 5 1/4"Precision BallGreater Than 6000 lbs.6000 lbs.Steel12 1/2"Enamel€854.68
GS-SEC-13PH4 1/8" x 6 1/8"3 3/8" x 5 1/4"Roller1000 lbs. to 2999 lbs.2900 lbs.Phenolic12 1/2"Enamel€507.91
HS-SEC-83NYB4 1/8" x 6 1/8"3 3/8" x 5 1/4"Precision BallGreater Than 6000 lbs.6000 lbs.Nylon10 1/2"Enamel€934.51
HAMILTON -

Single-Flanged Caster

StyleModelInside Bolt Hole SpacingWheel Dia.Wheel WidthWheel/tread MaterialCaster Load Rating RangeLoad RatingMounting HeightCore ColorPrice
AR-EHD-FT45H3 3/8" x 5 1/4"4 1/2"2 1/2"Steel3000 lbs. to 5999 lbs.3000 lbs.7 1/4"Gray€468.31
BR-EHD-FT6H4 1/8" x 6 1/8"6 1/8"2"Iron1000 lbs. to 2999 lbs.2000 lbs.8"Red€351.24
HAMILTON -

Medium Duty Medium Service Casters

StyleModelWheel Dia.Caster Sub-typeWheel Bearing TypeMounting HeightWheel Core MaterialOverall HeightBearing TypeWheel TypePrice
AR-MS-8SPB--------€128.88
BR-MS-6R--------€70.07
CR-MS-5SPB--------€106.42
DR-MS-5TE--------€53.65
ER-MS-8TE--------€66.06
FR-MS-62EMB--------€84.90
GR-MS-6DB--------€95.84
HR-MS-6MB--------€77.52
IR-MS-6NF--------€60.97
JR-MS-6P--------€53.27
KR-MS-6SPB--------€110.17
LR-MS-5P--------€51.10
MR-MS-6TE--------€56.07
NR-MS-6WNB--------€66.77
FR-MS-82EMB--------€120.10
OR-MS-8DB--------€117.67
PR-MS-8MB--------€91.14
QR-MS-8NF--------€66.32
RR-MS-8P--------€59.25
SR-MS-8WNB--------€86.81
TR-MS-5R--------€77.52
UR-MS-5WNB--------€64.79
VR-MS-5NF--------€57.97
WR-MS-5DB--------€94.63
XS-MS-8R-SwivelRoller9 1/2"Cast Iron9 1/2"Straight RollerMoldon Rubber€148.64
HAMILTON -

Medium Duty General Service Casters

StyleModelWheel Dia.Wheel Core MaterialOverall HeightBearing TypeWheel TypeLoad CapacityMounting PlatePrice
AR-GS-3D-------€80.06
BR-GS-82EMB-------€128.81
CR-GS-6NF-------€60.65
DR-GS-6P-------€52.96
ER-GS-6R-------€69.69
FR-GS-6SPB-------€107.49
GR-GS-6TE-------€55.75
HR-GS-6WNB-------€66.51
IR-GS-8DB-------€119.21
JR-GS-6DB-------€95.59
KR-GS-8MB-------€92.72
LR-GS-8NF-------€66.64
MR-GS-8P-------€60.90
NR-GS-8R-------€84.33
OR-GS-8SPB-------€130.53
PR-GS-8TE-------€66.38
QR-GS-6MB-------€77.07
BR-GS-62EMB-------€80.82
RR-GS-3P-------€50.21
SR-GS-4TE-------€50.98
TR-GS-4DB-------€92.22
UR-GS-4MB-------€69.24
VR-GS-4NF-------€53.27
WR-GS-4P-------€50.15
XR-GS-4R-------€73.38
HAMILTON -

Medium Duty Casters, Stainless Steel

StyleModelWheel Dia.Wheel Core MaterialOverall HeightBearing TypeWheel TypeLoad CapacityMounting PlatePrice
AR-STA-5PZ-------€133.08
BR-STA-8S-------€692.44
CR-STA-6S-------€360.41
DR-STA-6PZ-------€142.62
ER-STA-5WNZ-------€142.95
FR-STA-5NFZ-------€137.15
GR-STA-5AZ-------€136.07
HR-STA-5S-------€306.63
IR-STA-8WNZ-------€168.97
JR-STA-8UYZ-------€199.33
KR-STA-8TEZ-------€162.80
BR-STA-8SZ-------€725.53
CR-STA-6SZ-------€379.69
LR-STA-8PZ-------€145.81
MR-STA-6TEZ-------€143.77
NR-STA-8AZ-------€150.19
OR-STA-6WNZ-------€151.47
PR-STA-6UYZ-------€168.66
HR-STA-5SZ-------€303.77
QR-STA-5TEZ-------€134.99
RR-STA-5UYZ-------€151.79
SR-STA-6AZ-------€144.21
TR-STA-6NFZ-------€147.20
UR-STA-8NFZ-------€156.76
VS-STA-5UYZ5"Polyurethane6 1/2"DelrinUnilast800 lbs.4" x 4 1/2"€213.27
HAMILTON -

Light Duty Hi-Lo Casters

StyleModelWheel Dia.Wheel Core MaterialOverall HeightBearing TypeWheel TypeLoad CapacityCaster Sub-typeMounting Plate Bolt Hole PatternPrice
AR-HL-4A------RigidA€39.08
BR-HL-3EMB--------€84.14
CR-HL-4EMB--------€70.00
DR-HL-4M--------€56.00
ER-HL-4NF--------€36.40
FR-HL-4P--------€35.90
GR-HL-4TE--------€34.30

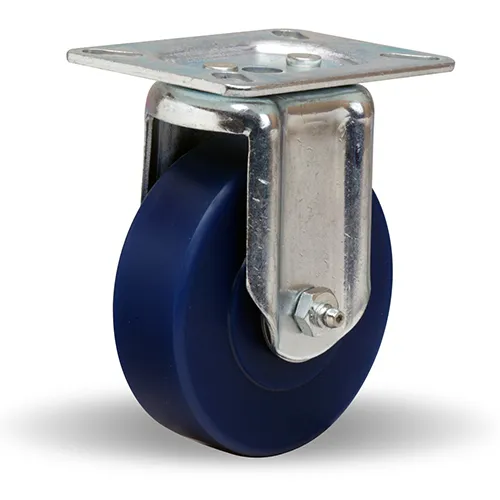

HR-HL-4UY--------€57.92

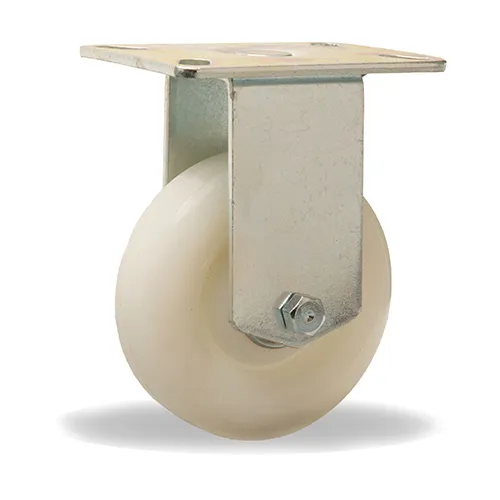

IR-HL-4WN--------€39.59

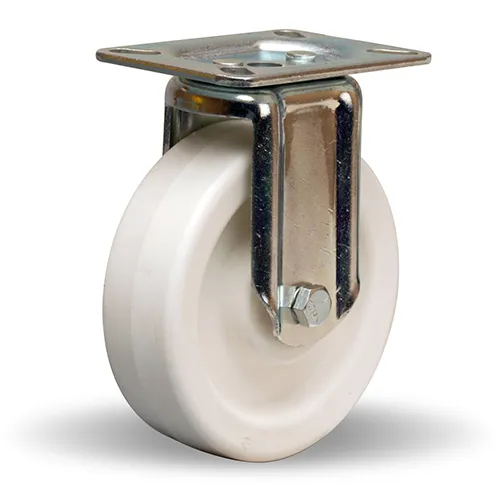

JR-HL-5A--------€29.09

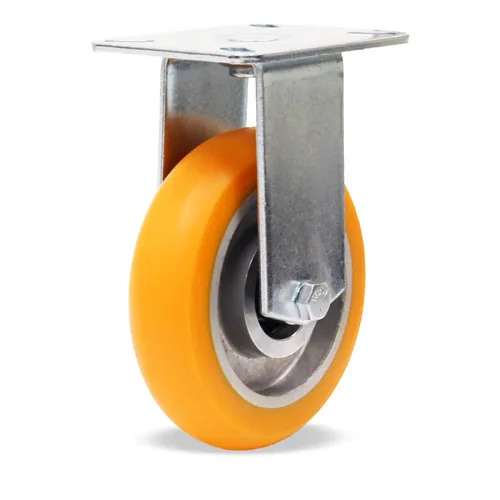

KR-HL-5EMB--------€71.22

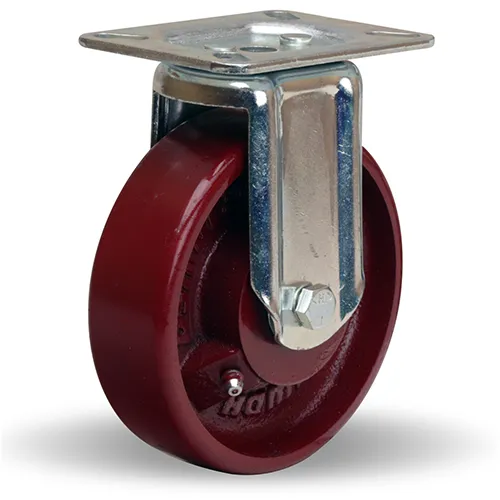

LR-HL-5M--------€63.65

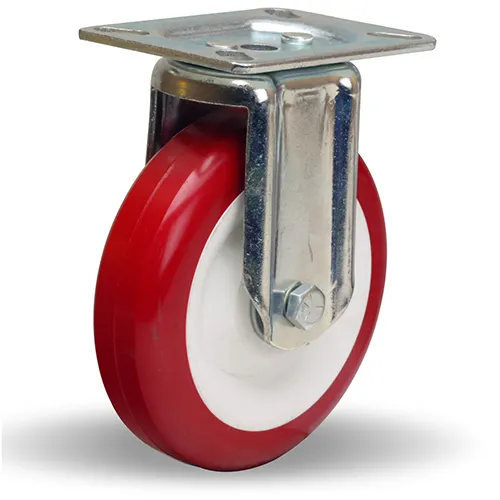

MR-HL-5NF--------€40.10

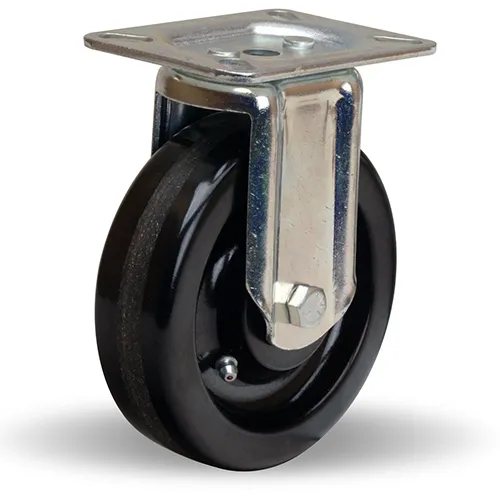

NR-HL-5P--------€40.15

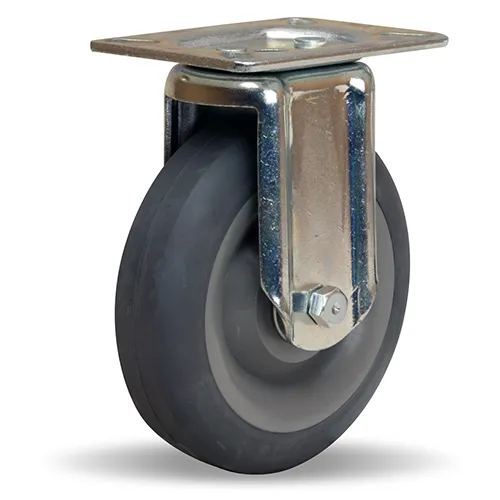

OR-HL-5TE--------€36.34

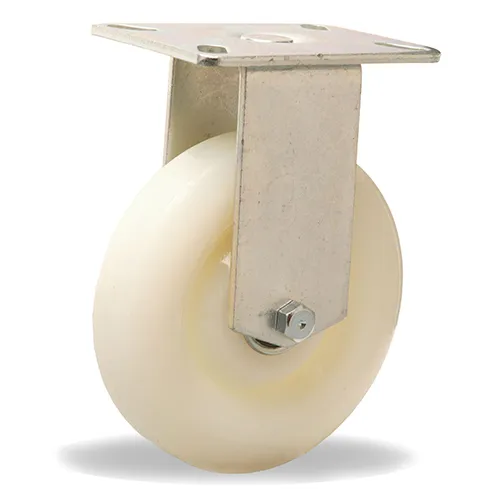

PR-HL-5WN--------€47.54
QS-HL-3EMB3"Aluminum4"Precision Sealed BallErgo-Tech400 lbs.--€79.04

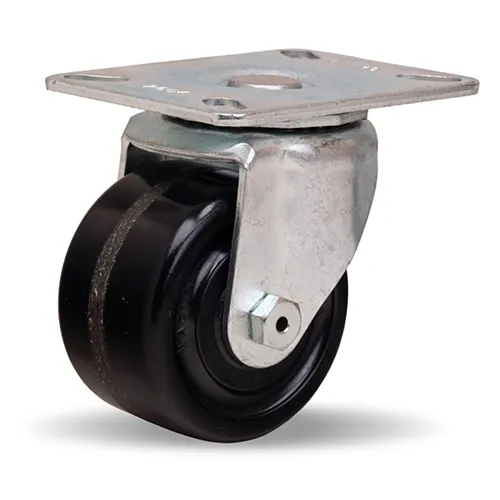

RS-HL-3P3"Phenolic4"Straight RollerPlastex450 lbs.--€31.31

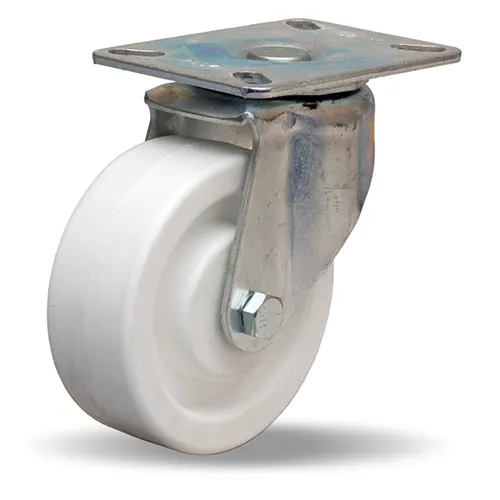

SS-HL-4A4"Polyolefin5 3/8"Plain Bore, No BearingAqualite400 lbs.--€32.26

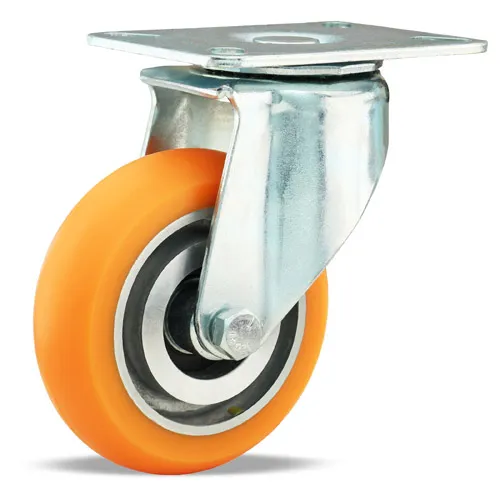

TS-HL-4EMB4"Aluminum5 3/8"Precision Sealed BallErgo-Tech400 lbs.--€76.63

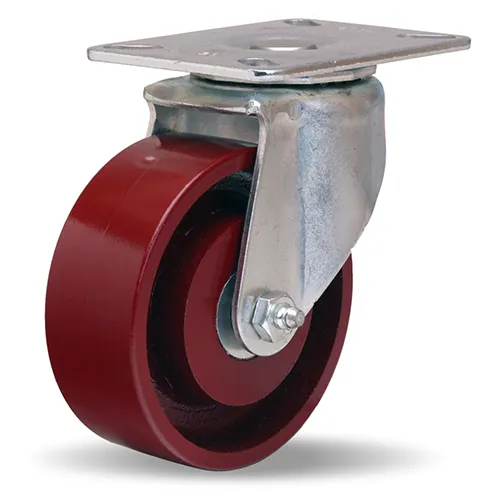

US-HL-4M4"Cast Iron5 3/8"Straight RollerMetal450 lbs.--€59.31

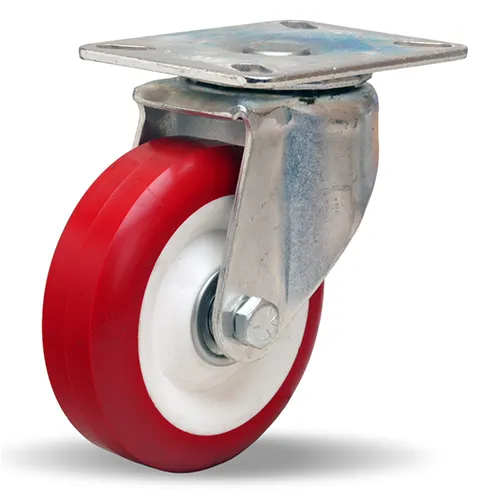

VS-HL-4NF4"Polyolefin5 3/8"Non-Precision BallPoly-Tech300 lbs.--€44.55

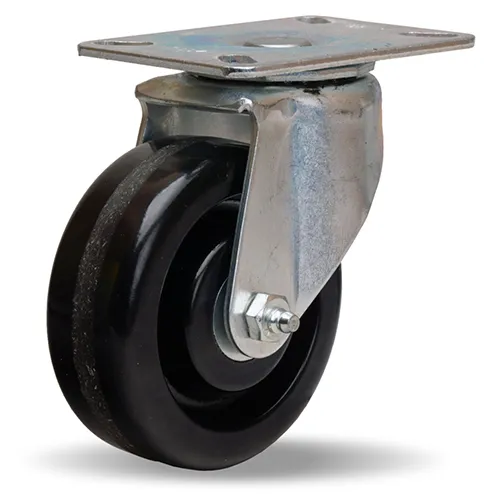

WS-HL-4P4"Phenolic5 3/8"Straight RollerPlastex450 lbs.--€43.79

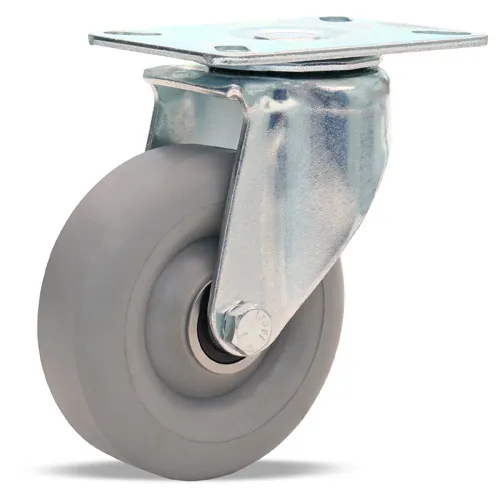

XS-HL-4TE4"Polyolefin5 3/8"Non-Precision BallVersa-Tech250 lbs.--€40.10

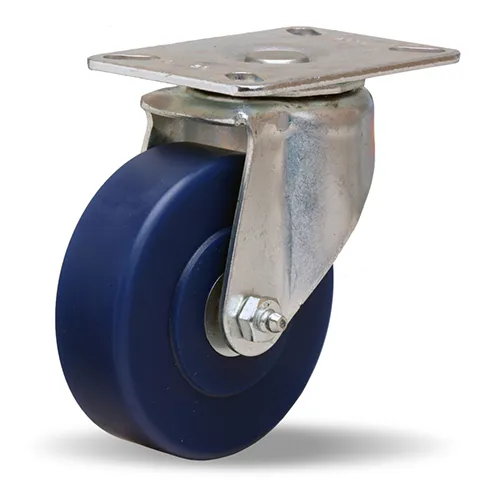

YS-HL-4UY4"Polyurethane5 3/8"Straight RollerUnilast450 lbs.--€61.09
HAMILTON -

Kingpinless ZFFM Series Heavy Duty Spinfinity Casters

StyleModelWheel Dia.Caster Sub-typeLoad RatingMounting HeightMounting Plate SizeWheel/tread MaterialOverall HeightWheel TypePrice

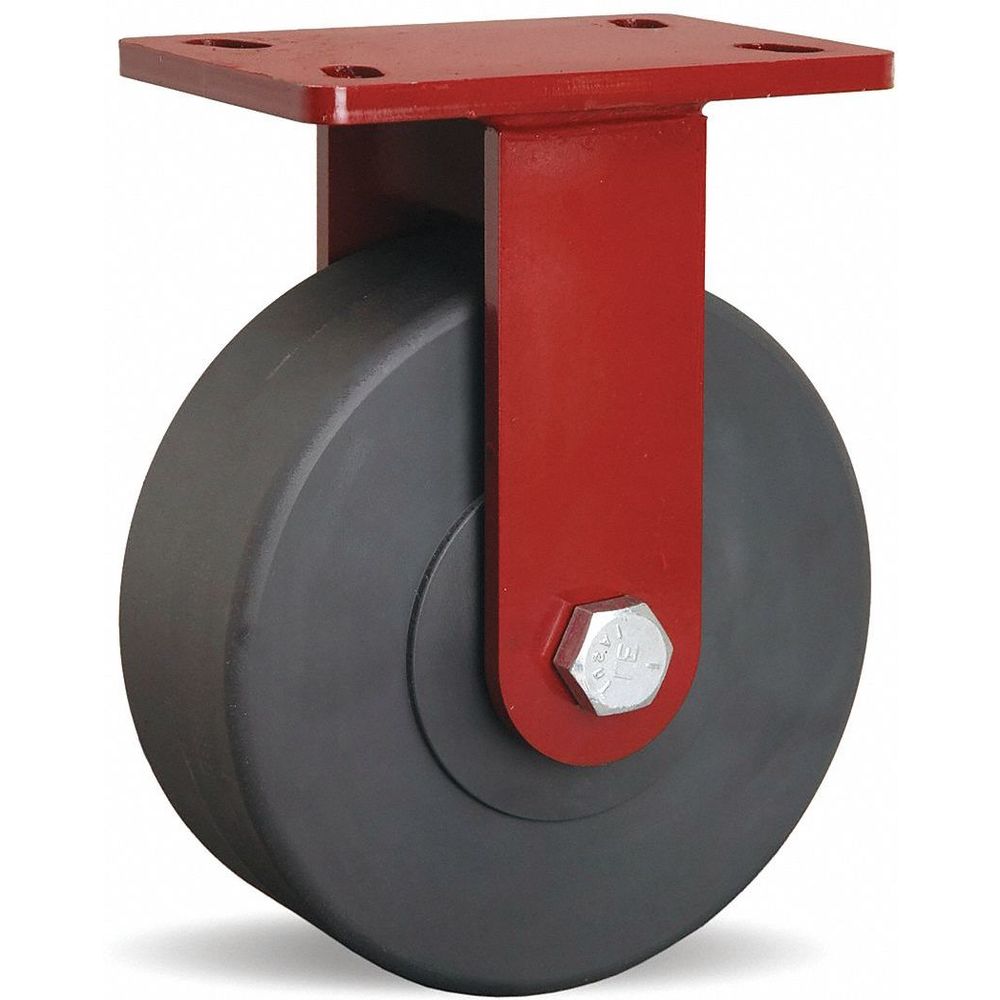

AR-FM-83NYB-Rigid3200 lbs.10 1/4"5" x 7"Nylon--€646.51

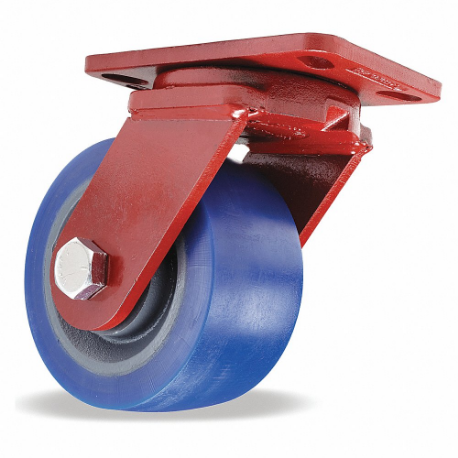

BS-ZFFM-63EGB-Swivel2450 lbs.7 1/2"4 1/2" x 6 1/2"-7 1/2"Ergo-Glide Xt€528.86

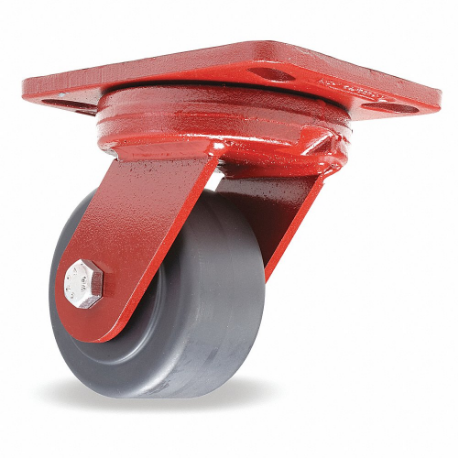

CS-ZFFM-83NYB-Swivel3200 lbs.10 1/4"4 1/2" x 6 1/2"-10 1/4"Nylast€751.21

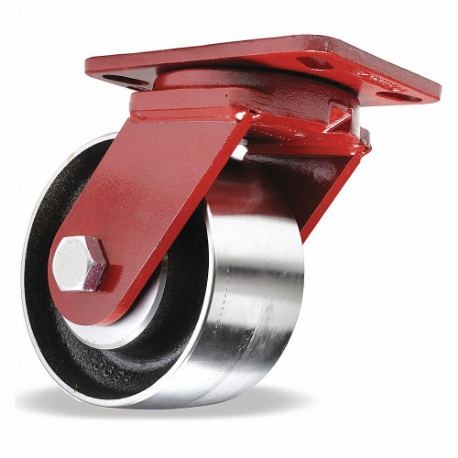

DS-ZFFM-63FSB-Swivel3200 lbs.7 1/2"4 1/2" x 6 1/2"Steel7 1/2"Forged Steel€598.20

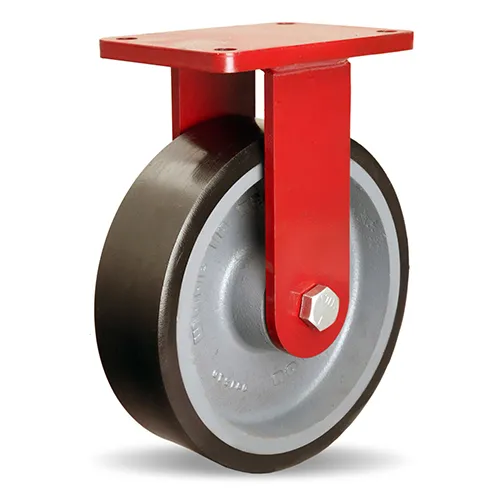

ER-FM-13DB70--------€295.24
RFQ
FR-FM-13EGB--------€337.88
RFQ

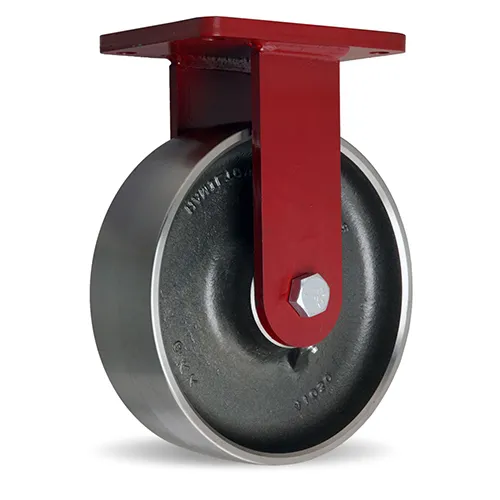

GR-FM-13FSB--------€374.72
RFQ
HR-FM-13NYB--------€498.83
RFQ
IR-FM-63MB--------€178.52
RFQ
JR-FM-83MB--------€173.75
RFQ

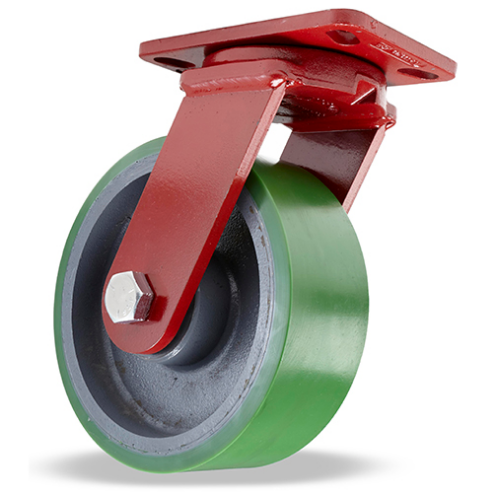

KS-ZFFM-83DB-Swivel2500 lbs.10 1/4"4 1/2" x 6 1/2"Polyurethane10 1/4"Duralast€486.25

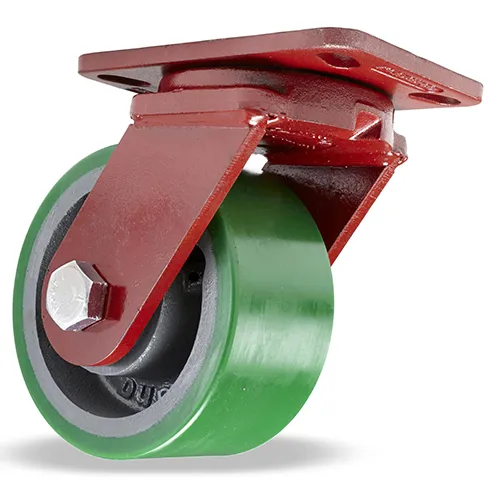

LS-ZFFM-63DB6"-----7 1/2"Duralast€287.92

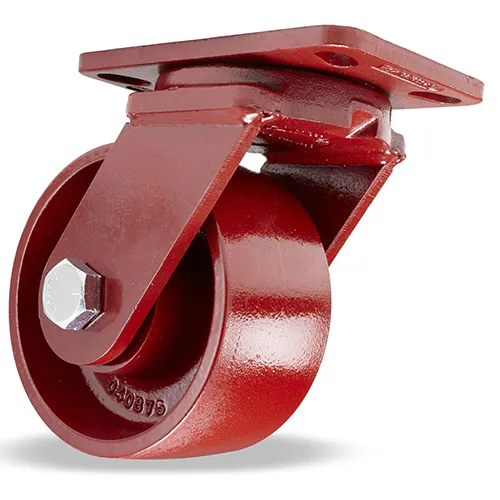

MS-ZFFM-63MB6"-----7 1/2"Metal€278.05

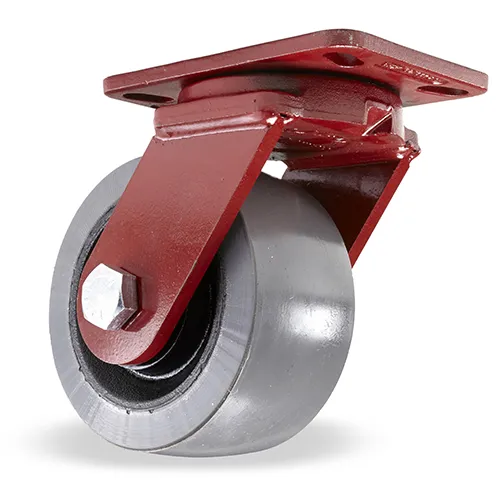

NS-ZFFM-63GB956"-----7 1/2"Duraglide€337.75

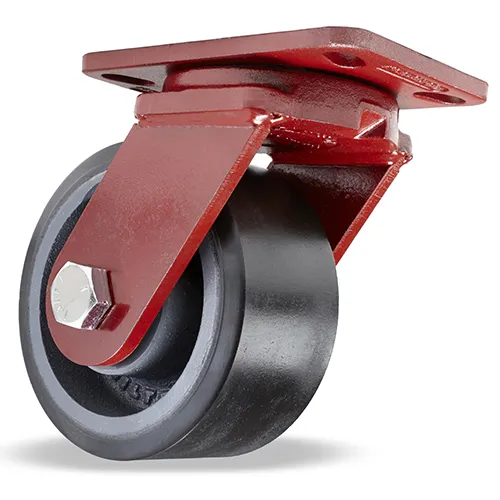

OS-ZFFM-63DB706"-----7 1/2"Duralast Xc€311.59

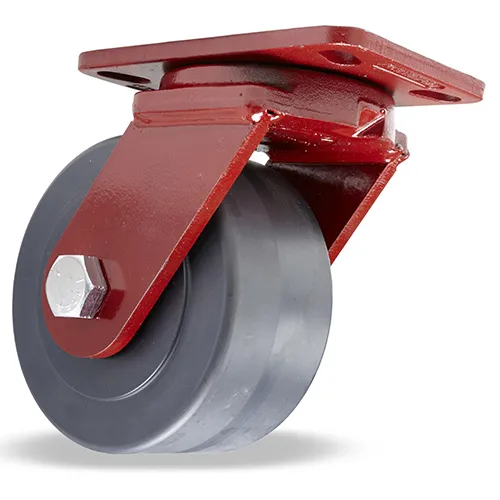

PS-ZFFM-63NYB6"-----7 1/2"Nylast€384.41

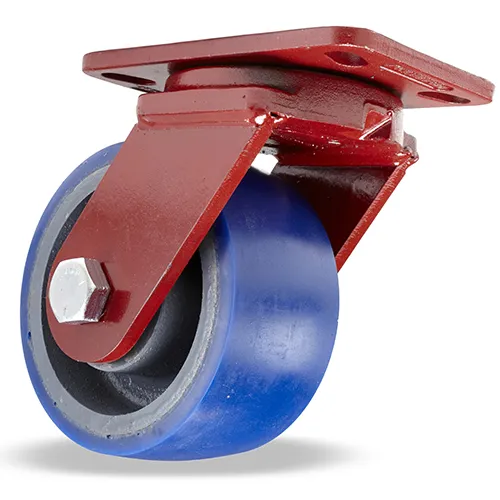

QS-ZFFM-63SPB6"-----7 1/2"Ergo-Glide€295.75

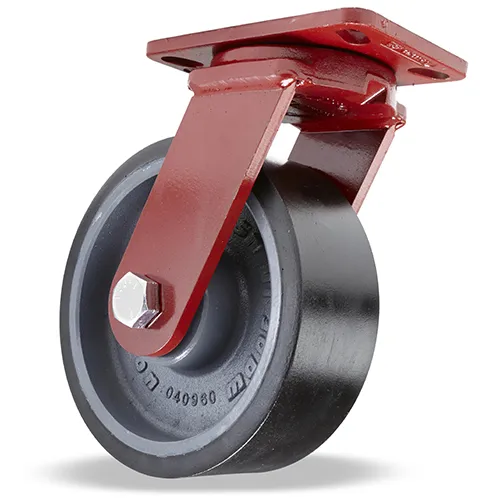

RS-ZFFM-83DB708"-----10 1/4"Duralast Xc€361.75
SS-ZFFM-83EGB8"-----10 1/4"Ergo-Glide Xt€403.37

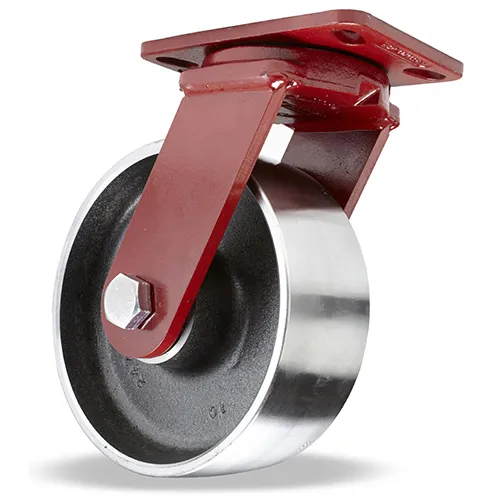

TS-ZFFM-83FSB8"-----10 1/4"Forged Steel€400.89

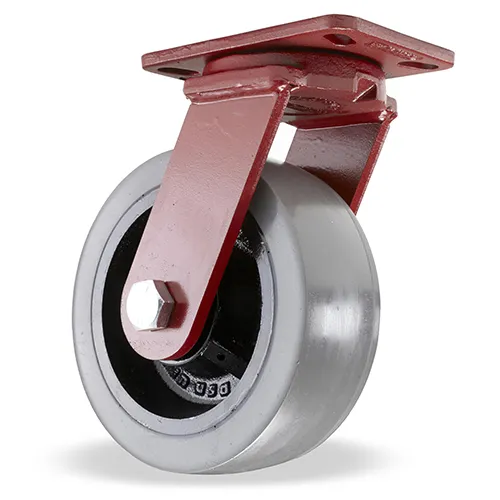

US-ZFFM-83GB958"-----10 1/4"Duraglide€398.41

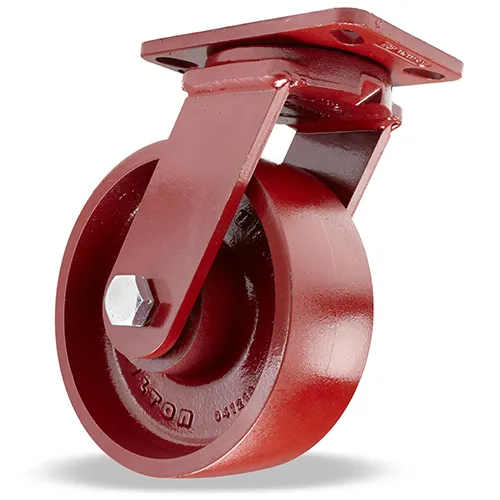

VS-ZFFM-83MB8"-----10 1/4"Metal€277.73

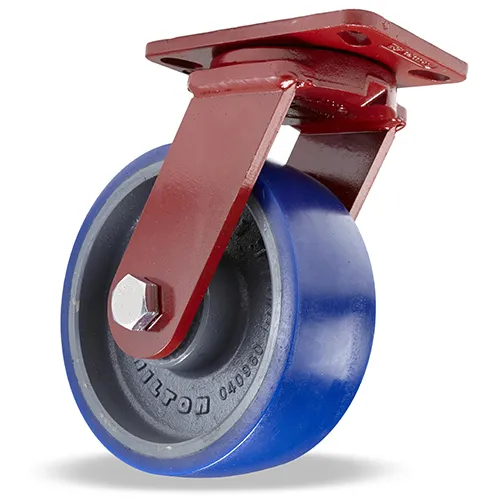

WS-ZFFM-83SPB8"-----10 1/4"Ergo-Glide€337.50

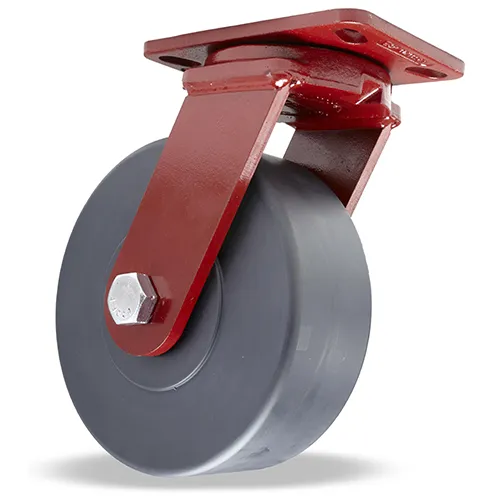

XS-ZFFM-13NYB10"-----11 1/2"Nylast€602.89
VS-ZFFM-13MB10"-----11 1/2"Metal€291.74
HAMILTON -

Swivel Plate Caster w/ 4-Position Directional Lock, Polyurethane

StyleModelLoad RatingMounting HeightOverall HeightCaster Brake IncludedCaster Sub-typeMounting Plate Bolt Hole PatternInside Bolt Hole SpacingOutside Bolt Hole SpacingPrice
AS-MD-83SYT-4SL3500 lbs.11"11"YesSwivelD7" x 7"7" x 7"€1,021.24
BS-MD-104SYT-4SL5000 lbs.13"13"NoSwivelD7" x 7"7" x 7"€1,301.64
CS-MD-124SYT-4SL6000 lbs.15 1/2"15 1/2"NoSwivelD7" x 7"7" x 7"€1,591.48
HAMILTON -

Swivel Plate Caster w/4-Position Directional Lock, Forged Steel

StyleModelWheel WidthWheel Bearing TypeLoad RatingMounting HeightFrame FinishNon-markingOverall HeightInside Bolt Hole SpacingPrice
AS-MD-103FST-4SL3"Tapered Roller16000 lbs.13"EnamelYes-7" x 7"€1,149.98
BS-MD-63FST-4SL3"Tapered Roller12000 lbs.10"EnamelYes10"7" x 7"€936.55
CS-MD-83FST-4SL3"Tapered Roller14000 lbs.11"EnamelYes11"7" x 7"€953.09
DS-MD-104FST-4SL4"Precision Tapered Roller18000 lbs.-Gray EnamelNo-7" x 7"€1,091.76
ES-MD-84FST-4SL4"Tapered Roller17000 lbs.11"EnamelYes11"7" x 7"€1,043.11
HAMILTON -

Kingpinless ZFWH Series Heavy Duty Casters

StyleModelCaster Sub-typeOutside Bolt Hole SpacingCaster Brake TypeWheel WidthWheel Bearing TypeLoad RatingMounting HeightMounting Plate SizePrice
AS-ZFWH-62EMB--------€204.61

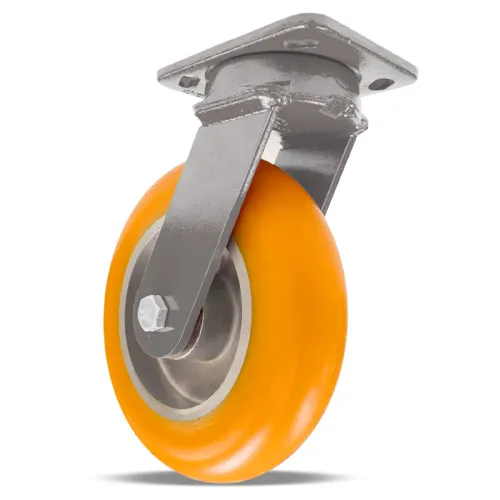

BS-ZFWH-82EMB--------€244.32

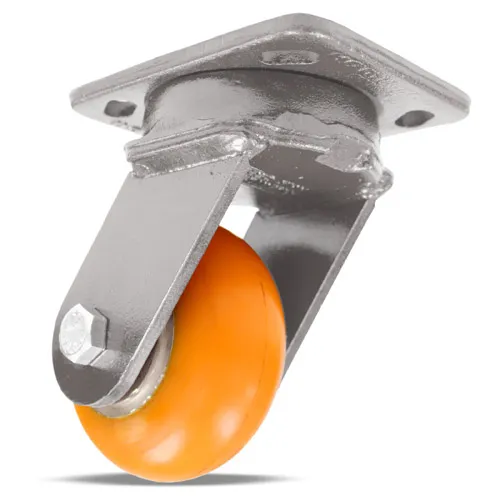

CS-ZFWH-42EMB--------€197.23

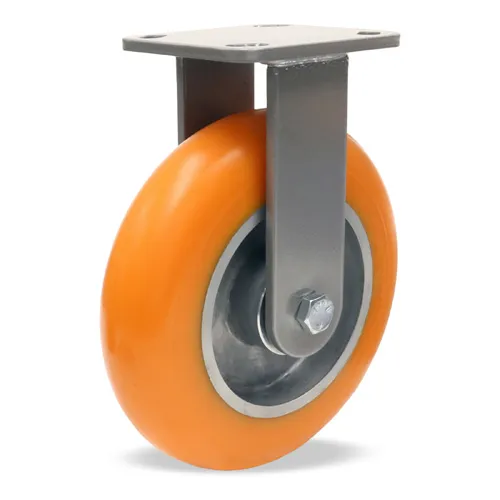

DR-ZFWH-82EMB--------€137.53
ER-ZFWH-62EMB--------€95.47
FR-ZFWH-5SPB--------€115.38
GR-ZFWH-42EMB--------€87.19
AS-ZFWH-5SPB--------€224.34

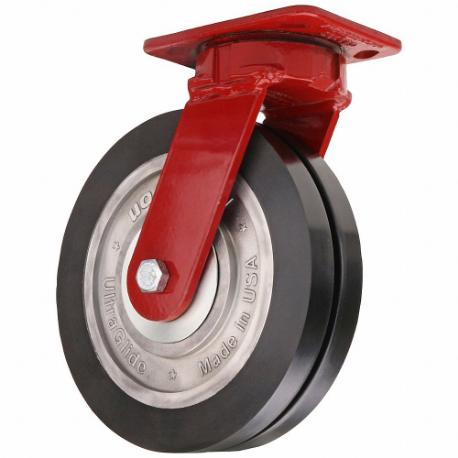

HS-ZFWH-8SWF70DKingpinless Swivel4" x 5"No Brake Included1"Precision Ball2800 lbs.9 1/2"4" x 5"€495.79

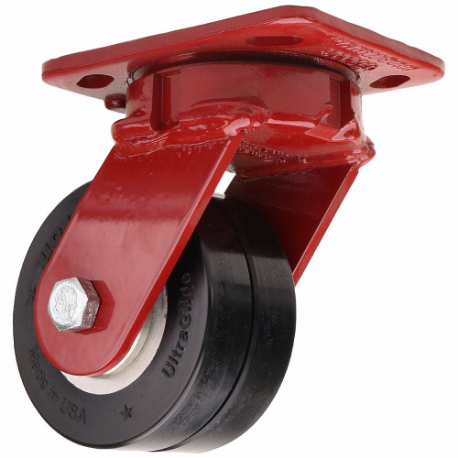

IS-ZFWH-4SWF70DKingpinless Swivel4" x 5"No Brake Included1"Precision Ball1200 lbs.5 5/8"4" x 5"€384.97

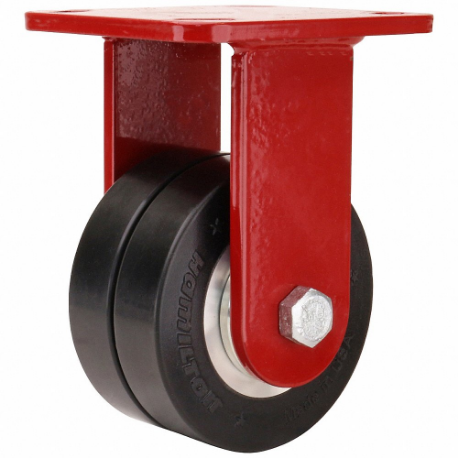

JR-ZFWH-4SWF70DRigid4" x 4 1/2"No Brake Included1"Precision Ball1200 lbs.5 5/8"4.5" x 4"€259.83

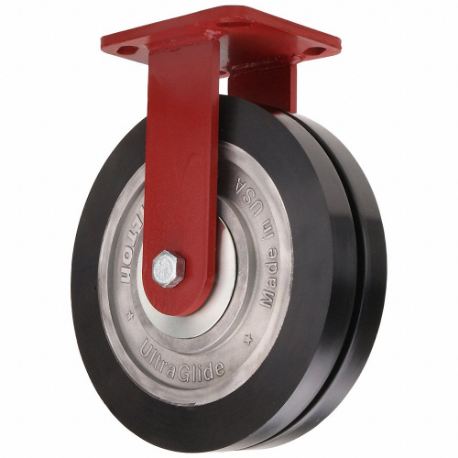

KR-ZFWH-8SWF70DRigid4" x 4 1/2"No Brake Included1"Precision Ball2500 lbs.9 1/2"4.5" x 4"€373.64

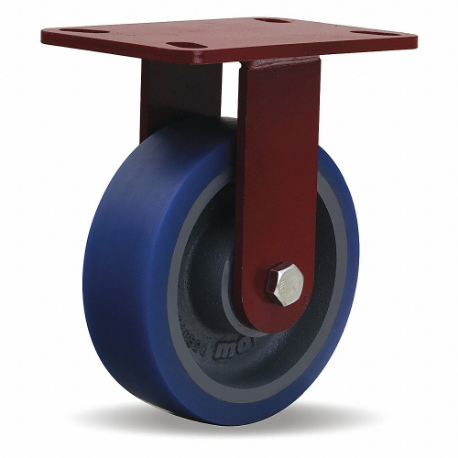

LR-ZFWH-6SPBRigid3" x 3"No Brake Included2"Precision Ball960 lbs.7 1/2"4.5" x 4"€189.45

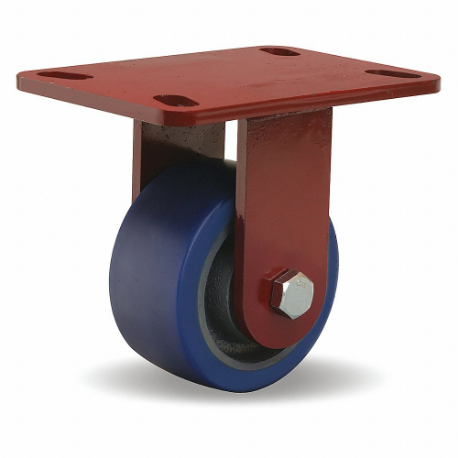

MR-ZFWH-4SPBRigid3" x 3"No Brake Included2"Precision Ball600 lbs.5 5/8"4.5" x 4"€173.33

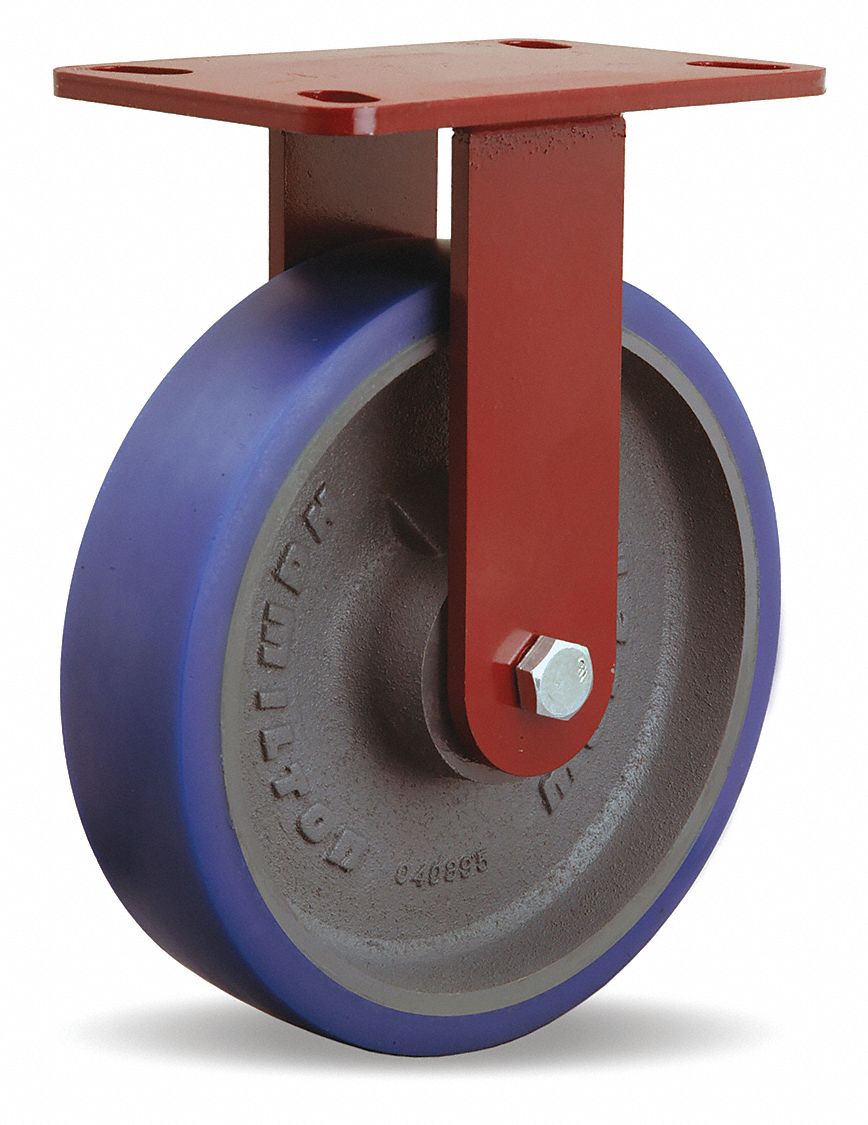

NR-ZFWH-8SPBRigid3" x 3"No Brake Included2"Precision Ball1200 lbs.9 1/2"4" x 4 1/2"€221.11

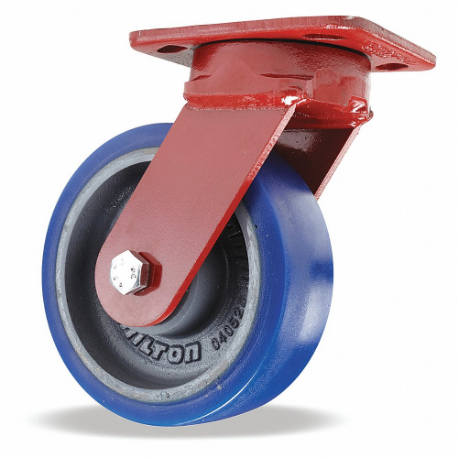

OS-ZFWH-6SPBSwivel3" x 3"No Brake2"Ball960 lbs.7 1/2"4" x 5"€345.31
PS-ZFWH-4SPBSwivel3" x 3"No Brake Included2"Precision Ball600 lbs.5 5/8"4" x 5"€330.94

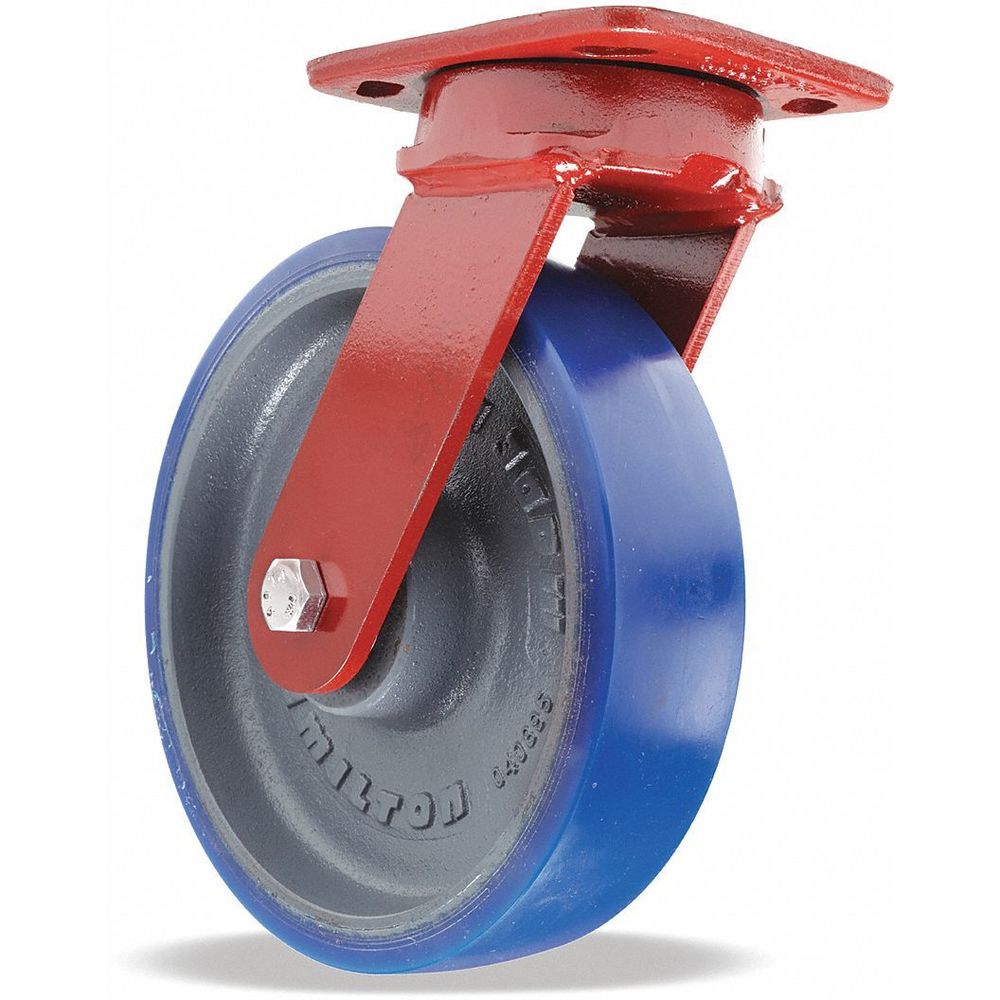

QS-ZFWH-8SPBSwivel3" x 3"No Brake Included2"Precision Ball1200 lbs.9 1/2"4" x 5"€365.60
HAMILTON -

Kingpinless ZFHS Series Heavy Duty Spinfinity Casters

StyleModelWheel Dia.Caster Sub-typeInside Bolt Hole SpacingOutside Bolt Hole SpacingWheel WidthLoad RatingMounting HeightWheel Core MaterialPrice

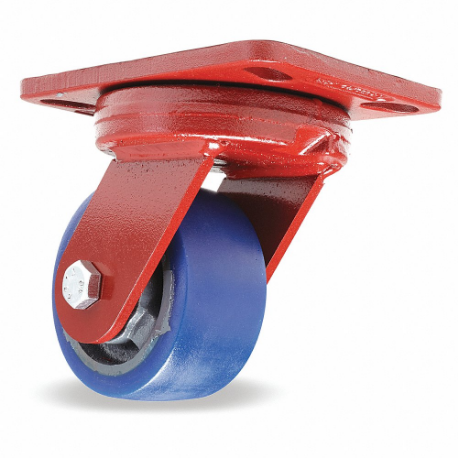

AS-ZFHS-4SPB-Swivel2 7/16" x 4 15/16"3 3/8" x 5 1/4"2"600 lbs.5 5/8"Cast Iron€356.68

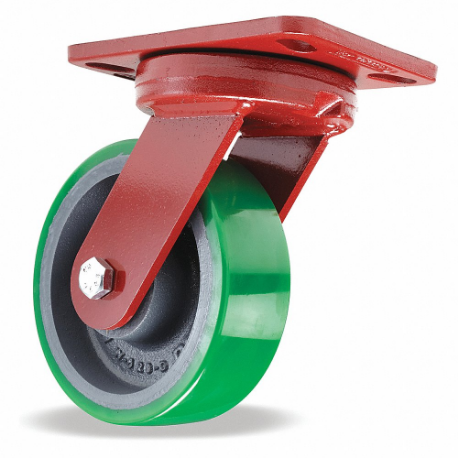

BS-ZFHS-6DB-Swivel2 7/16" x 4 15/16"3 3/8" x 5 1/4"2"1200 lbs.7 3/4"Cast Iron€335.97

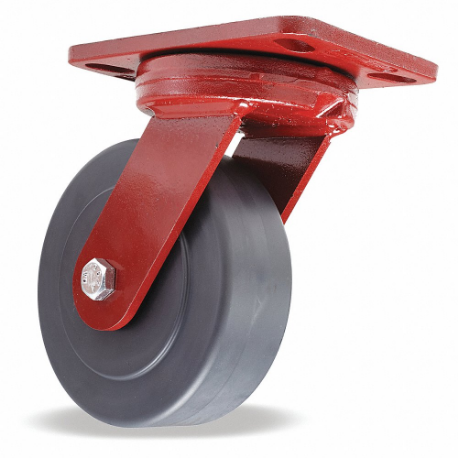

CS-ZFHS-6NYB-Swivel2 7/16" x 4 15/16"3 3/8" x 5 1/4"2"2000 lbs.7 3/4"Nylon€470.34

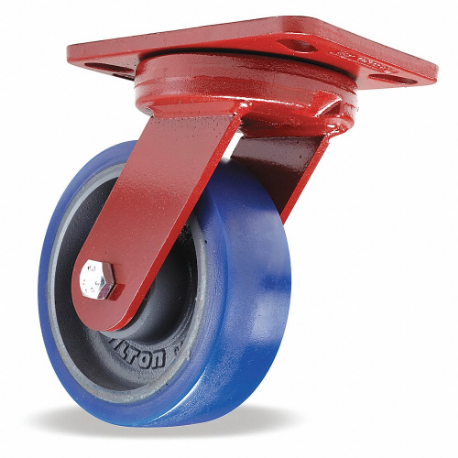

DS-ZFHS-6SPB-Swivel2 7/16" x 4 15/16"3 3/8" x 5 1/4"2"960 lbs.7 3/4"Cast Iron€365.16

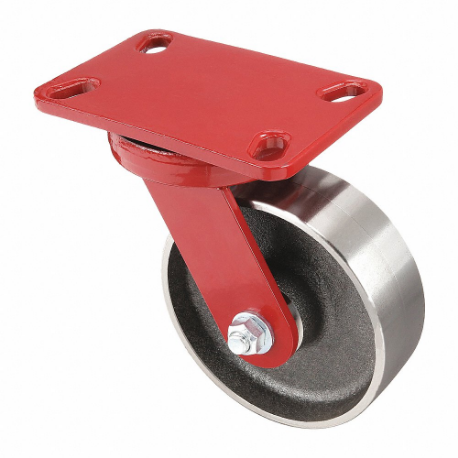

ES-ZFHS-6FSB-Swivel2 7/16" x 4 15/16"3 3/8" x 5 1/4"2"2500 lbs.7 3/4"Steel€345.67
FS-ZFHS-8SPB-Swivel2 7/16" x 4 15/16"3 3/8" x 5 1/4"2"1200 lbs.9 3/4"Cast Iron€383.66

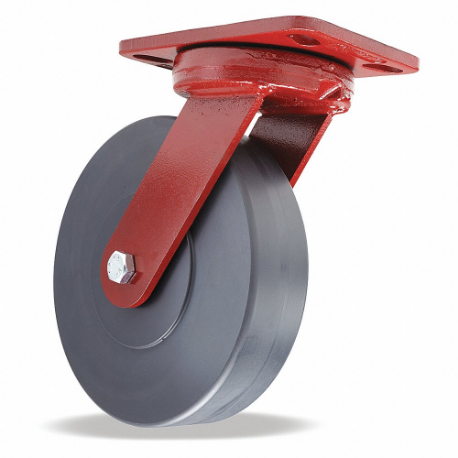

GS-ZFHS-8NYB-Swivel2 7/16" x 4 15/16"3 3/8" x 5 1/4"2"2500 lbs.9 3/4"Nylon€590.79

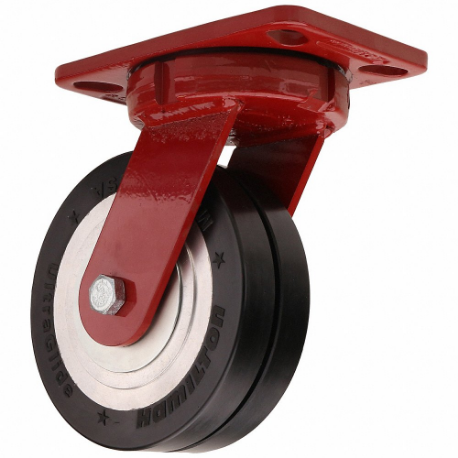

HS-ZFHS-8SWF70D-Kingpinless Swivel9/16"4 1/2" x 6 1/2"1"2800 lbs.9 3/4"Aluminum€510.65

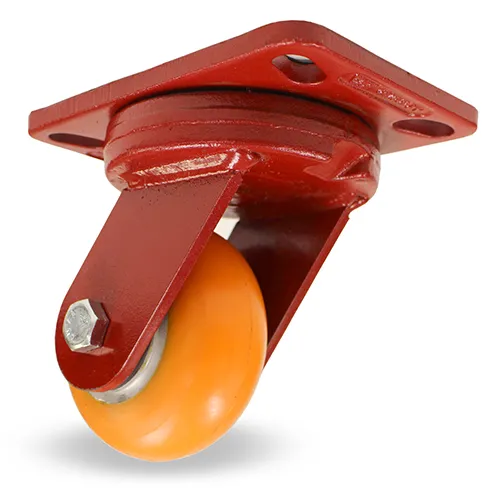

IS-ZFHS-42EMB4"------Aluminum€203.15
JS-ZFHS-4DB4"------Cast Iron€205.63
JS-ZFHS-4DB704"------Cast Iron€234.33
JS-ZFHS-4MB4"------Cast Iron€196.15
JS-ZFHS-4NYB4"------Nylon€264.82
JS-ZFHS-5SPB5"------Cast Iron€230.51
JS-ZFHS-5NYB5"------Nylon€281.50
JS-ZFHS-5FSB5"------Steel€245.28
JS-ZFHS-5MB5"------Cast Iron€197.49
JS-ZFHS-5DB705"------Cast Iron€232.55
JS-ZFHS-5DB5"------Cast Iron€212.06

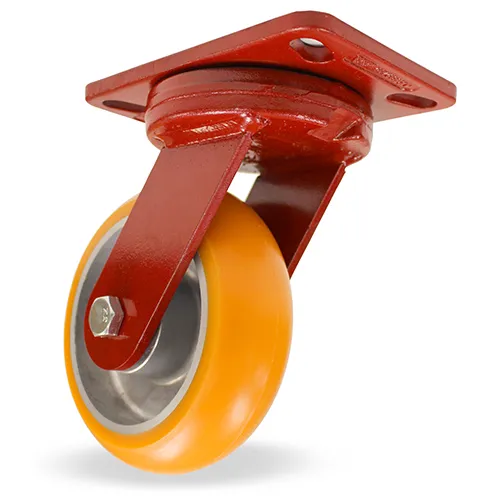

KS-ZFHS-62EMB6"------Aluminum€212.69
JS-ZFHS-6DB706"------Cast Iron€246.81
JS-ZFHS-6EGB6"------Cast Iron€245.66
JS-ZFHS-6GB956"------Cast Iron€257.05
JS-ZFHS-6MB6"------Cast Iron€213.84
LS-ZFHS-82EMB8"------Aluminum€238.28
HAMILTON -

V-Grooved Iron Track Rigid Casters

StyleModelWheel Dia.Wheel Core MaterialBearing TypeMounting PlateLoad CapacityOverall HeightWheel TypePrice

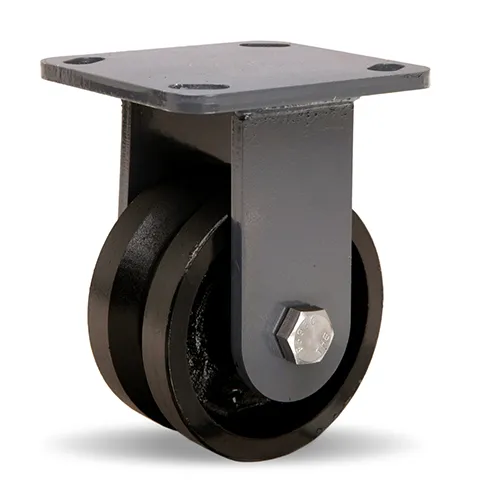

AR-WH-4V4"Cast IronStraight Roller4" x 4 1/2"800 lbs.5 5/8"V-Grooved€80.69
BR-WW-4V4"Cast IronStraight Roller4" x 4 1/2"550 lbs.5 5/8"V-Grooved€82.36
CR-524-V4"Cast IronStraight Roller4" x 4 1/2"800 lbs.5 5/8"V-Grooved€73.19
DR-525-V5"Cast IronStraight Roller4" x 4 1/2"800 lbs.6 1/2"V-Grooved€81.14
ER-526-V6"Cast IronStraight Roller4" x 4 1/2"900 lbs.7 1/2"V-Grooved€91.64
FR-HS-6V6"Cast IronStraight Roller4 1/2" x 6 1/2"1000 lbs.7 3/4"V-Grooved€101.32
GR-MD-63FVH6"SteelStraight Roller8 1/2" x 8 1/2"4500 lbs.10"V-Grooved€423.61
HR-EPSD-63FVT6"SteelTapered Roller6 1/2" x 7 1/2"10000 lbs.8 1/2"V-Grooved€424.24
ER-GS-6V6"Cast IronStraight Roller4 1/2" x 6 1/2"900 lbs.7 1/2"V-Grooved€95.59
IR-CH-6VT6"Cast IronTapered Roller5 1/4" x 7 1/4"2500 lbs.-V-Grooved€249.54
JR-WH-6V6"Cast IronStraight Roller4" x 4 1/2"1000 lbs.7 1/2"V-Grooved€99.35
GR-MD-63FVT6"SteelTapered Roller8 1/2" x 8 1/2"10000 lbs.10"V-Grooved€494.82
KR-EPSD-84FVH8"SteelStraight Roller6 1/2" x 7 1/2"6500 lbs.10 1/2"V-Grooved€448.43
LR-MD-84FVH8"SteelStraight Roller8 1/2" x 8 1/2"6500 lbs.11"V-Grooved€543.01
LR-MD-84FVT8"SteelTapered Roller8 1/2" x 8 1/2"15000 lbs.11"V-Grooved€645.34
MR-CH-83FVH8"SteelStraight Roller5 1/4" x 7 1/4"4000 lbs.10 1/2"V-Grooved€346.99
NR-CH-8VT8"Cast IronTapered Roller5 1/4" x 7 1/4"2500 lbs.10 1/2"V-Grooved€267.62
MR-CH-83FVT8"SteelTapered Roller5 1/4" x 7 1/4"4000 lbs.10 1/2"V-Grooved€403.56
KR-EPSD-83FVT8"SteelTapered Roller6 1/2" x 7 1/2"10000 lbs.10 1/2"V-Grooved€482.92
NR-CH-8VH8"Cast IronStraight Roller5 1/4" x 7 1/4"2500 lbs.10 1/2"V-Grooved€208.62
OR-EPSD-13FVH10"SteelStraight Roller6 1/2" x 7 1/2"4500 lbs.12 1/2"V-Grooved€473.25
PR-MD-104FVT10"SteelTapered Roller8 1/2" x 8 1/2"16000 lbs.13"V-Grooved€721.71
QR-CH-13FVT10"SteelTapered Roller5 1/4" x 7 1/4"4000 lbs.12 1/2"V-Grooved€453.39
RR-CH-10VH10"Cast IronStraight Roller5 1/4" x 7 1/4"3000 lbs.12 1/2"V-Grooved€370.27
RR-CH-10VT10"Cast IronTapered Roller5 1/4" x 7 1/4"3000 lbs.12 1/2"V-Grooved€412.28
HAMILTON -

WHS Series, Swivel Plate Caster

StyleModelInside Bolt Hole SpacingOutside Bolt Hole SpacingCaster Load Rating RangeWheel/tread MaterialLoad RatingMounting HeightCore ColorCore MaterialPrice
AS-WHS-4UYSB2 5/8" x 3 5/8"3" x 3"300 lbs. to 999 lbs.Polyurethane750 lbs.5 5/8"BluePolyurethane€637.07
BS-WHS-4SB2 5/8" x 3 5/8"3" x 3"300 lbs. to 999 lbs.Stainless Steel-5 5/8"SilverStainless Steel€850.71
CS-WHS-6SB2 5/8" x 3 5/8"3" x 3"1000 lbs. to 2999 lbs.Stainless Steel1200 lbs.7 1/2"SilverStainless Steel€1,113.12
DS-WHS-8SB2 5/8" x 3 5/8"3" x 3"1000 lbs. to 2999 lbs.Stainless Steel1500 lbs.9 1/2"SilverStainless Steel€1,480.46
ES-WHS-8UYSB3" x 3"2 5/8" x 3 5/8"1000 lbs. to 2999 lbs.-1500 lbs.-BluePolyurethane€710.24
HAMILTON -

CH Series, Rigid Plate Caster

StyleModelMounting HeightOverall HeightCaster Sub-typeMounting Plate Bolt Hole PatternInside Bolt Hole SpacingOutside Bolt Hole SpacingCaster Brake TypeWheel/tread MaterialPrice
AR-CH-83SWF10 1/2"10 1/2"RigidA4 1/8" x 6 1/8"3 3/8" x 5 1/4"No Brake IncludedPolyurethane€429.20
BR-CH-13SWF12 1/2"12 1/2"RigidA4 1/8" x 6 1/8"3 3/8" x 5 1/4"No Brake IncludedPolyurethane€626.50
HAMILTON -

WH Series, Rigid Plate Caster

StyleModelCaster Load Rating RangeLoad RatingMounting HeightCore ColorWheel/tread Hardness RatingWheel/tread HardnessWheel Core MaterialWheel/tread ColorPrice
AR-WH-4SWF300 lbs. to 999 lbs.700 lbs.5 5/8"SilverSoft82 Shore AAluminumRed€178.33
BR-WH-4WNB300 lbs. to 999 lbs.800 lbs.5 5/8"WhiteHard85 Shore DNylonWhite€109.95
CR-WH-4TRB300 lbs. to 999 lbs.900 lbs.5 5/8"GrayFirm94 Shore ACast IronRed€167.89
DR-WH-6SWF1000 lbs. to 2999 lbs.1400 lbs.7 1/2"SilverSoft82 Shore AAluminumRed€214.73
ER-WH-8SWF1000 lbs. to 2999 lbs.2300 lbs.9 1/2"SilverSoft82 Shore AAluminumRed€249.03
FR-WH-6WNB1000 lbs. to 2999 lbs.1000 lbs.7 1/2"WhiteHard85 Shore DNylonWhite€117.47
HAMILTON -

SEC Series, Rigid Plate Caster

StyleModelWheel/tread MaterialCaster Load Rating RangeLoad RatingMounting HeightCore ColorWheel/tread Hardness RatingWheel/tread HardnessWheel Core MaterialPrice
AR-SEC-83NYBNylonGreater Than 6000 lbs.6000 lbs.10 1/2"BlackHard85 Shore DNylon€534.22
BR-SEC-13DBPolyurethane3000 lbs. to 5999 lbs.3000 lbs.12 1/2"GrayFirm95 Shore ACast Iron€376.30
CR-SEC-63DBPolyurethane1000 lbs. to 2999 lbs.2200 lbs.8"GrayFirm95 Shore ACast Iron€270.56
DR-SEC-13FSBSteelGreater Than 6000 lbs.6000 lbs.12 1/2"SilverExtra Hard179 BHNForged Steel€496.74
ER-SEC-63FSBSteelGreater Than 6000 lbs.6000 lbs.8"SilverExtra Hard179 BHNForged Steel€450.39
FR-SEC-83FSBSteelGreater Than 6000 lbs.6000 lbs.10 1/2"SilverExtra Hard179 BHNForged Steel€394.20
HAMILTON -

FM Series, Rigid Plate Caster

StyleModelWheel/tread MaterialCaster Load Rating RangeLoad RatingMounting HeightMounting Plate SizeWheel Dia.Core ColorNon-markingPrice
AR-FM-6DBPolyurethane1000 lbs. to 2999 lbs.1600 lbs.7 1/2"5" x 7"6"GrayYes€280.25
BR-FM-8DBPolyurethane1000 lbs. to 2999 lbs.2000 lbs.10 1/4"5" x 7"-GrayYes€320.62
CR-FM-10DBPolyurethane1000 lbs. to 2999 lbs.2200 lbs.11 1/2"5" x 7"-GrayYes€358.99
DR-FM-6RBRubber300 lbs. to 999 lbs.540 lbs.7 1/2"4 1/2" x 6 1/2"-RedNo€221.41
ER-FM-8RBRubber300 lbs. to 999 lbs.670 lbs.10 1/4"4 1/2" x 6 1/2"-RedNo€232.35
FR-FM-10RBRubber300 lbs. to 999 lbs.790 lbs.11 1/2"4 1/2" x 6 1/2"10"RedNo€250.16
HAMILTON -

WHS Series, Rigid Plate Caster

StyleModelInside Bolt Hole SpacingOutside Bolt Hole SpacingWheel/tread MaterialCaster Load Rating RangeMounting HeightLoad RatingCore ColorNon-markingPrice
AR-WHS-4UYSB2 5/8" x 3 5/8"3" x 3"Polyurethane300 lbs. to 999 lbs.5 5/8"750 lbs.BlueYes€329.42
BR-WHS-4SB2 5/8" x 3 5/8"3" x 3"Stainless Steel-5 5/8"-SilverYes€506.99
CR-WHS-6SB2 5/8" x 3 5/8"3" x 3"Stainless Steel1000 lbs. to 2999 lbs.7 1/2"1200 lbs.SilverYes€780.30
DR-WHS-8UYSB2 5/8" x 3 5/8"3" x 3"Polyurethane1000 lbs. to 2999 lbs.9 1/2"-BlueYes€380.94
ER-WHS-8SB3" x 3"2 5/8" x 3 5/8"-1000 lbs. to 2999 lbs.-1600 lbs.SilverNo€1,253.69
HAMILTON -

CH Series, Swivel Plate Caster

StyleModelLoad RatingCore ColorWheel/tread Hardness RatingWheel/tread HardnessWheel Core MaterialWheel/tread ColorCore MaterialDurometerPrice
AS-CH-13TRB3600 lbs.GrayFirm94 Shore ACast IronRedCast Iron90 Shore A€628.92
BS-CH-13SWF4000 lbs.SilverHard75 Shore DAluminumBlackAluminum75 Shore D€721.08
HAMILTON -

WH Series, Swivel Plate Caster

StyleModelWheel/tread MaterialCaster Load Rating RangeLoad RatingMounting HeightCore ColorWheel/tread Hardness RatingWheel/tread HardnessWheel Core MaterialPrice
AS-WH-4WNBNylon300 lbs. to 999 lbs.800 lbs.5 5/8"WhiteHard85 Shore DNylon€232.92
BS-WH-6WNBNylon1000 lbs. to 2999 lbs.1000 lbs.7 1/2"WhiteHard85 Shore DNylon€237.62
CS-WH-4TRBPolyurethane300 lbs. to 999 lbs.900 lbs.5 5/8"GrayFirm94 Shore ACast Iron€246.94
DS-WH-8TRBPolyurethane1000 lbs. to 2999 lbs.1400 lbs.9 1/2"GrayFirm94 Shore ACast Iron€366.26
ES-WH-8SWFPolyurethane1000 lbs. to 2999 lbs.2000 lbs.9 1/2"SilverSoft82 Shore AAluminum€289.76
12...4647
