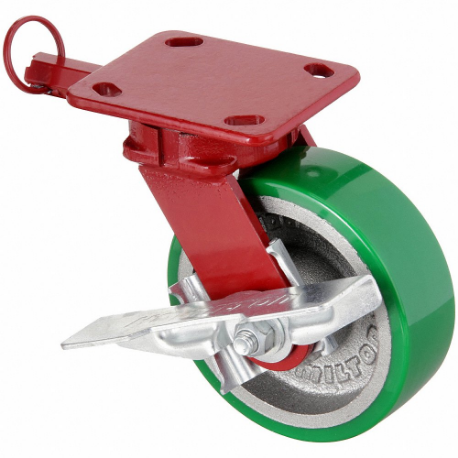

HAMILTON S-ZFWH-8DB-4SL-FB Kingpinless Plate Caster, 8 Inch Dia, 9 1/2 Inch Height
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€419.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial And Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Brake Type | Side Pedal Brake |
| Caster Brake Type | Swivel Lock With Side Pedal Brake |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Sub-type | Swivel |
| Core Color | Gray |
| Features | Sealed Swivel Bearing |
| Frame Finish | Enamel |
| Includes | Brake, Swivel Lock |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Rating | 1500 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 9 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 5" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 5" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Positions | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3" x 3" |
| Replacement Wheel | 4DU70 |
| Standards | Icwm |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | Directional Lock |
| Swivel Raceway Type | Single Ball |
| Tread Material, Wheel Material | Polyurethane |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Polyurethane |
| Wheel Diameter | 8" |
| Wheel Width | 2" |
| Wheel/tread Color | Green |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Wheel Bearing Type | Load Rating | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-WHK-4HFSB-H4SL-FB | Swivel | B | 2 5/8" x 3 5/8" | 3" x 3" | 2" | Precision Ball | 560 lbs. | 4" x 5" | €692.87 | |
 |
154N26 | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Roller | 1000 lbs. | 4 1/2" x 6 1/2" | €268.05 | |
 |
S-HSK-6HMB-H4SL-FB | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Precision Ball | 600 lbs. | 4 1/2" x 6 1/2" | €619.90 | |
|
S-HSK-6HNY-H4SL-FB | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Plain | 1000 lbs. | 4 1/2" x 6 1/2" | €465.09 | |
 |
154G40 | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Roller | 1000 lbs. | 4 1/2" x 6 1/2" | €176.22 | |
 |
S-SECK-63HMB-H4SL-FB | Swivel | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 3" | Precision Ball | 1000 lbs. | 5 1/4" x 7 1/4" | €1,178.28 | |
 |
S-SECK-63HFSB-H4SL-FB | Swivel | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 3" | Precision Ball | 2400 lbs. | 5 1/4" x 7 1/4" | €1,521.64 |
