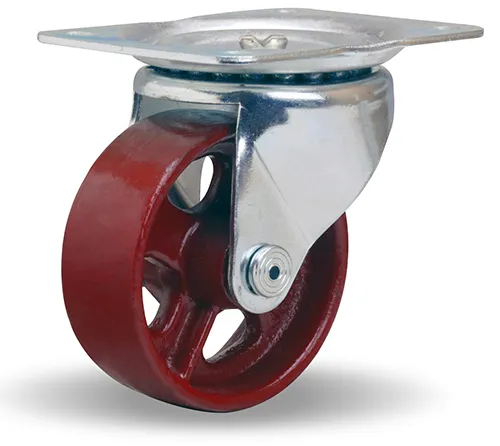

HAMILTON S-224-M Leader Swivel Caster, 4 X 1 1/2 Inch Size, Metal Wheel
Get it by Wednesday, Aug 19
€62.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistant | High |
| Bearing Type | Plain Bore, No Bearing |
| Bolt Hole 1 | 3" x 4" |
| Caster Color/finish | Bright Zinc Plated |
| Caster Rig Type | Cold Forged/Stamped |
| Chemical Resistant | Medium |
| Cushioning (resilience) | Low |
| High Temp. Range (f) | 320°F |
| Impact Resistance | Low |
| Load Capacity | 375 lbs. |
| Load Capacity @ 3 Mph | 375 lbs. |
| Low Temp. Range (f) | -40°F |
| Moisture Resistance | High |
| Mounting Bolt | 3/8" |
| Mounting Plate | 4" x 5 1/8" |
| Overall Height | 5" |
| Relative Capacity | High |
| Relative Cost | Low |
| Replacement Wheel | W-416-ML-7/16 |
| Swivel Offset | 1 1/8" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Crimson Red |
| Wheel Core Material | Cast Iron |
| Wheel Dia. | 4" |
| Wheel Face | 1 1/2" |
| Wheel Material @ Tread | Metal |
| Wheel Type | Metal |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Inside Bolt Hole Spacing | Wheel Width | Load Rating | Outside Bolt Hole Spacing | Bearing Type | Overall Height | Core Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

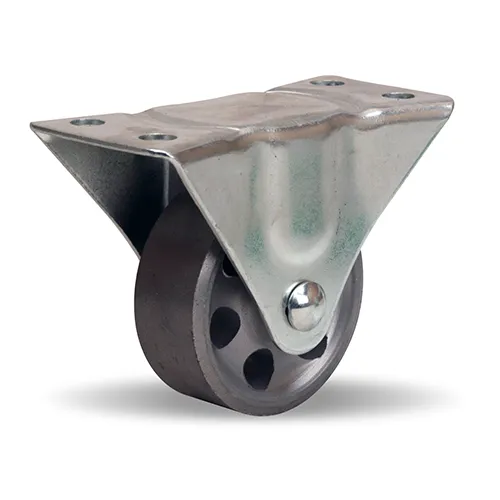

R-222-1/2-M | 0" to 3" | 1 1/16" x 3 1/2" | - | 200 | 2 1/4" x 4 1/2" | Plain | - | Red | €16.80 | |
 |
R-223-A | 3 | 1 3/16" x 4" | 1.375 | 230 | 2 1/2" x 5" | - | - | Black | €20.81 | |
 |

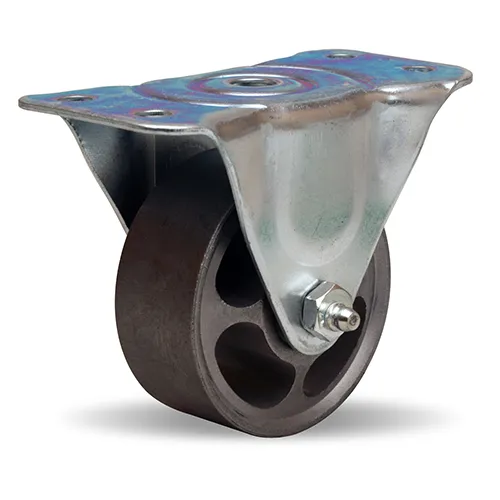

R-223-MH | 3 | 1 3/16" x 4" | 1.25 | 250 | 2 1/2" x 5" | - | - | Red | €40.54 | |
 |
R-224-A | 4 | 1 3/4" x 5" | 1.5 | 300 | - | - | - | White | €33.41 | |
 |
R-224-M | 4 | 1 3/4" x 5" | 1.5 | 375 | - | - | - | Red | €60.14 | |
 |

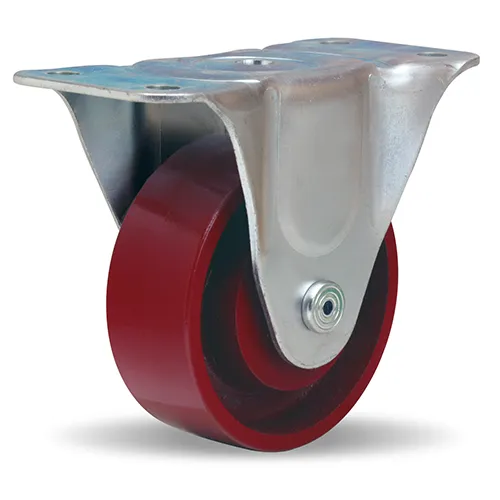

R-224-MH | 4 | 1 3/4" x 5" | 1.5 | 375 | - | - | - | Red | €60.53 | |
 |

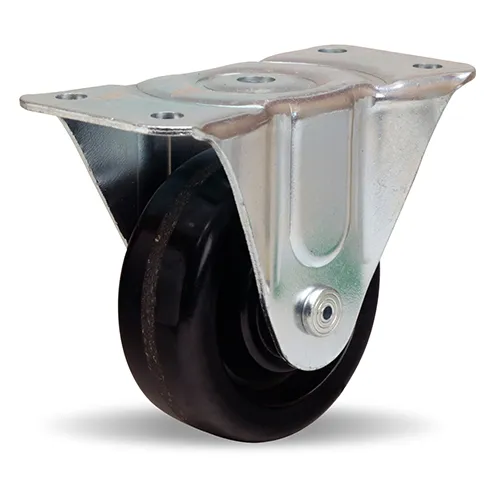

R-224-PH | 4 | 1 3/4" x 5" | 1.5 | - | - | Straight Roller | 5" | Black | €43.27 |
