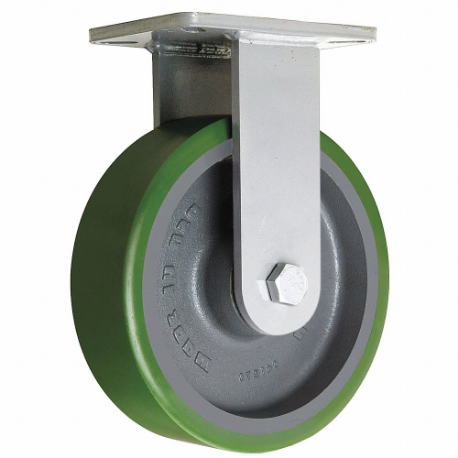

HAMILTON R-SECJ-13DH Kingpinless Plate Caster, 10 Inch Dia, 12 1/2 Inch Height, Rigid
Get it by Thursday, Dec 18
10.00% off
€230.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Commercial And Institutional, General, Industrial |
| Brake Type | No Brake Included |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Sub-type | Rigid |
| Core Color | Gray |
| Features | Corrosion Resistant |
| Frame Finish | Zinc |
| Includes | Spanner |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 4 1/8" x 6 1/8" |
| Load Rating | 2900 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 12 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 6 1/2" x 7 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 6 1/2" X 7 1/2" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Replacement Wheel | W-1030-D-1MC |
| Standards | Icwm |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Tread Material, Wheel Material | Polyurethane |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Core Material | Cast Iron |
| Wheel Diameter | 10" |
| Wheel Width | 3" |
| Wheel/tread Color | Green |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
Shipping Info:
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Wheel Bearing Type | Load Rating | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-WHK-4HFSB-H4SL-FB | Swivel | B | 2 5/8" x 3 5/8" | 3" x 3" | 2" | Precision Ball | 560 lbs. | 4" x 5" | €692.87 | |
 |
154N26 | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Roller | 1000 lbs. | 4 1/2" x 6 1/2" | €268.05 | |
 |
S-HSK-6HMB-H4SL-FB | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Precision Ball | 600 lbs. | 4 1/2" x 6 1/2" | €619.90 | |
|
S-HSK-6HNY-H4SL-FB | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Plain | 1000 lbs. | 4 1/2" x 6 1/2" | €465.09 | |
 |
154G40 | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Roller | 1000 lbs. | 4 1/2" x 6 1/2" | €176.22 | |
 |
S-SECK-63HMB-H4SL-FB | Swivel | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 3" | Precision Ball | 1000 lbs. | 5 1/4" x 7 1/4" | €1,178.28 | |
 |
S-SECK-63HFSB-H4SL-FB | Swivel | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 3" | Precision Ball | 2400 lbs. | 5 1/4" x 7 1/4" | €1,521.64 |
