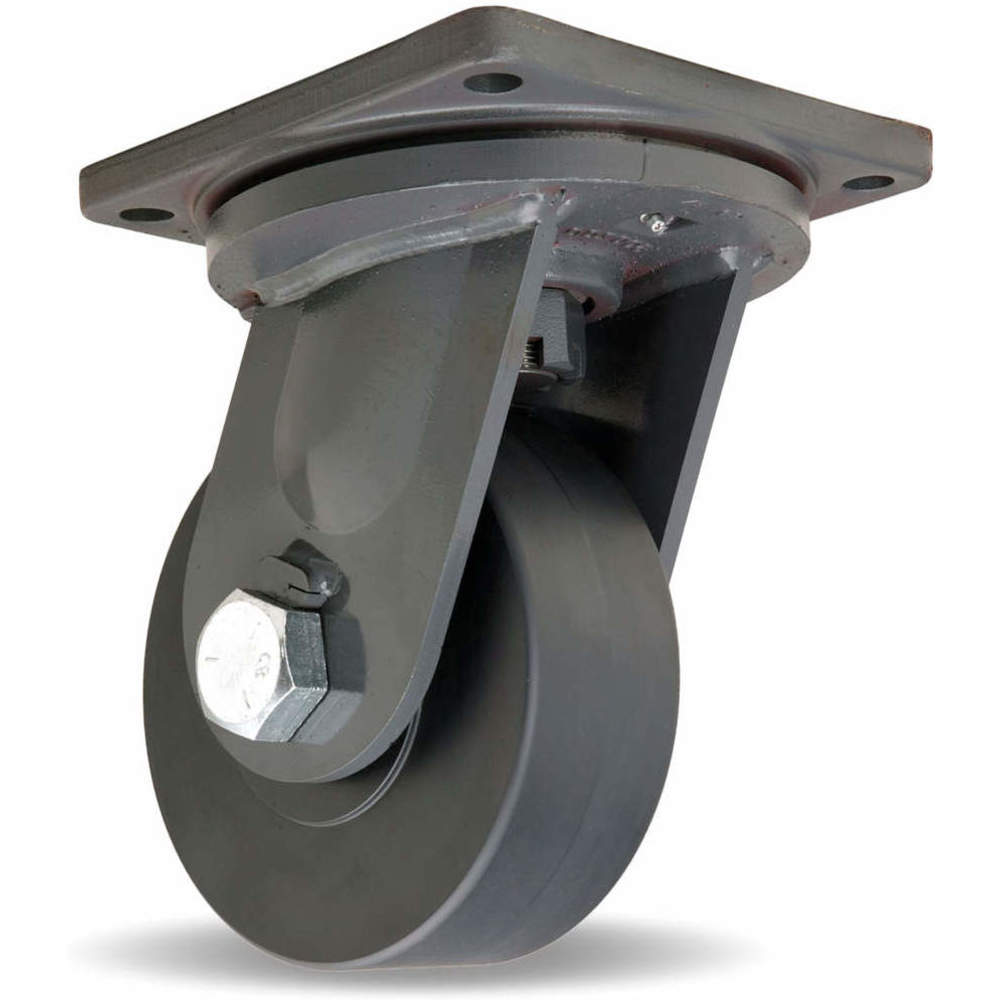

HAMILTON S-MD-83NYB Swivel Plate Caster 7200 Lb 8 In Dia
7200 lbs.
Swivel
3"
Get it by Friday, Dec 19
10.00% off
€1,083.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Abrasion Resistance | Medium |
| Bearing Type | Precision Sealed Ball |
| Bolt Holes | 7" x 7" |
| Caster Brake Included | No |
| Caster Color/finish | Platinum Powder |
| Caster Load Rating Range | Greater Than 6000 lbs. |
| Caster Material | Nylon |
| Caster Product Group | Swivel Caster |
| Caster Rig Type | Integral Forged Kingpin |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Nylon |
| Caster Wheel Shape | Standard |
| Chemical Resistant | High |
| Core Color | Black |
| Core Material | Nylon |
| Cushioning (resilience) | Low |
| Durometer | 85 Shore D |
| Extended Lead | No |
| Frame Finish | Gray Enamel |
| Frame Material | Steel |
| High Temp. Range (f) | 220°F |
| Hole Pattern | D |
| Impact Resistance | Medium |
| Inside Bolt Hole Spacing | 7" x 7" |
| Load Capacity | 7200 lbs. |
| Load Capacity @ 3 Mph | 7200 lbs. |
| Load Rating | 7200 lbs. |
| Lock Type | No Lock Included |
| Low Temp. Range (f) | -30°F |
| Moisture Resistance | High |
| Mounting Bolt | 5/8" |
| Mounting Bolt Dia. | 5/8" |
| Mounting Plate | 8 1/2" x 8 1/2" |
| Non-marking | Yes |
| Number Of Wheels | 1 |
| Operating Temp. Range | -30°F to +200°F |
| Outside Bolt Hole Spacing | 7" x 7" |
| Overall Height | 11" |
| Plate Caster Core Material | Nylon |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Nylon |
| Plate Size | 8 1/2" x 8 1/2" |
| Plate Thickness | 5/8" |
| Plate Type | D |
| Raceway Type | Hardened Precision Roller |
| Relative Capacity | High |
| Relative Cost | High |
| Replacement Wheel | W-830-NYB-1-1/4 |
| Swivel Offset | 2 1/2" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Black |
| Wheel Color/finish | Charcoal Gray |
| Wheel Diameter | 8" |
| Wheel Face | 3" |
| Wheel Material @ Tread | Nylon |
| Wheel Type | Nylast |
| Wheel Width | 3" |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 33.02 |
| HS code | 8716903000 |
Product Details:
- Plate Caster Brake (No)
- Thread Guard (No)
Product Variants
| Product | Model | Wheel Dia. | Wheel Bearing Type | Load Rating | Caster Load Rating Range | Caster Sub-type | Wheel/tread Material | Mounting Height | Wheel Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-MD-103FST | 10" | Tapered Roller | 16000 lbs. | Greater Than 6000 lbs. | Rigid | Steel | 13" | - | €773.31 | |
 |
R-MD-104FST | 10" | Tapered Roller | 18000 lbs. | Greater Than 6000 lbs. | Rigid | Steel | 13" | 4" | €843.14 | |
 |
R-MD-104SYT | 10" | Tapered Roller | 5000 lbs. | 3000 lbs. to 5999 lbs. | Rigid | Polyurethane | 13" | 4" | €1,017.41 | |
 |
R-MD-124SYT | - | Tapered Roller | 6000 lbs. | Greater Than 6000 lbs. | Rigid | Polyurethane | 15 1/2" | 4" | €1,168.10 | |
 |
R-MD-63FST | - | Precision Tapered Roller | 12000 lbs. | Greater Than 6000 lbs. | - | - | - | - | €659.59 | |
 |
R-MD-83FST | - | Tapered Roller | 14000 lbs. | Greater Than 6000 lbs. | Rigid | Steel | 11" | - | €686.57 | |
 |
R-MD-83SYT | - | Tapered Roller | 3500 lbs. | 3000 lbs. to 5999 lbs. | Rigid | Polyurethane | 11" | 3" | €737.64 |
