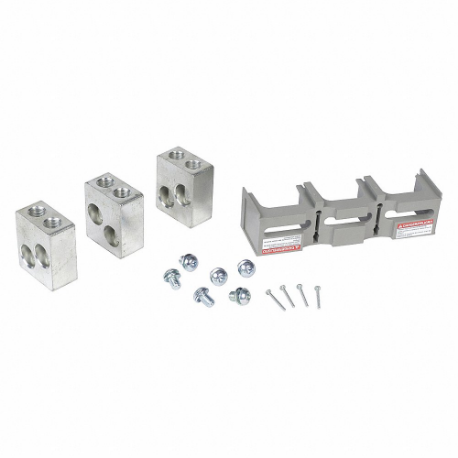

SQUARE D AL800P6K Circuit Breaker Mechanical Lug Kit
Item: CU4FAJModel: AL800P6KCross Ref: 48M190
7 In Stock
Ships within 2 days via
5.00% off
€599.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker Mechanical Lug Kit (3) |
| Accessory Type | Circuit Breaker Mechanical Lug Kit (3) |
| Amps | 800-1200A |
| Awg Gauge | 3/0 AWG to 600 kcmil |
| Body Material | Aluminum |
| Circuit Breaker Type | M Frame, P Frame |
| Comm Code Enhanced | 32900 |
| Component Type | Mechanical Lug |
| Conductor Material | Aluminum, Copper |
| Discount Schedule | 0DE2 |
| Environmental Disclosure | ENVPEP1407012EN |
| For Use With | PG, PJ, PL, MG And MJ Frame Circuit Breakers |
| Line Rated Amps | 800/1200A |
| Location Of Connection | Downstream |
| Material | Aluminum |
| Max. Breaker Amps Rating | 800A |
| Max. Conductor Size | 600 kcmil |
| Min. Conductor Size | 3/0 AWG |
| Mounting Mode | I Line, Unit Mount |
| Mounting Type | I Line, Unit |
| No. Of Conductor | 2 |
| Pole | 3 |
| Product Compatibility | PowerPact P PowerPact, PowerPact M PowerPact |
| Product Or Component Type | Mechanical Lug |
| Pvc Free | Yes |
| Quantity Per Set | Set of 2 |
| Range Of Product | Powerpact |
| Reach Regulation | Reference Contains Substances Of Very High Concern Above The Threshold |
| Returnability | Yes |
| Size | 600 kcmil |
| Sustainable Offer Status | Green Premium Product |
| Tightening Torque | 50 N-m |
| Voltage | 600V AC |
Shipping Info:
| Ship weight (kg) | 1.12 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 32.26 |
| Ship width (cm) | 14.22 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Conductor Size | No. Of Conductor | Tightening Torque | Max. Breaker Amps Rating | Component Type | Min. Conductor Size | Line Rated Amps | Mounting Mode | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

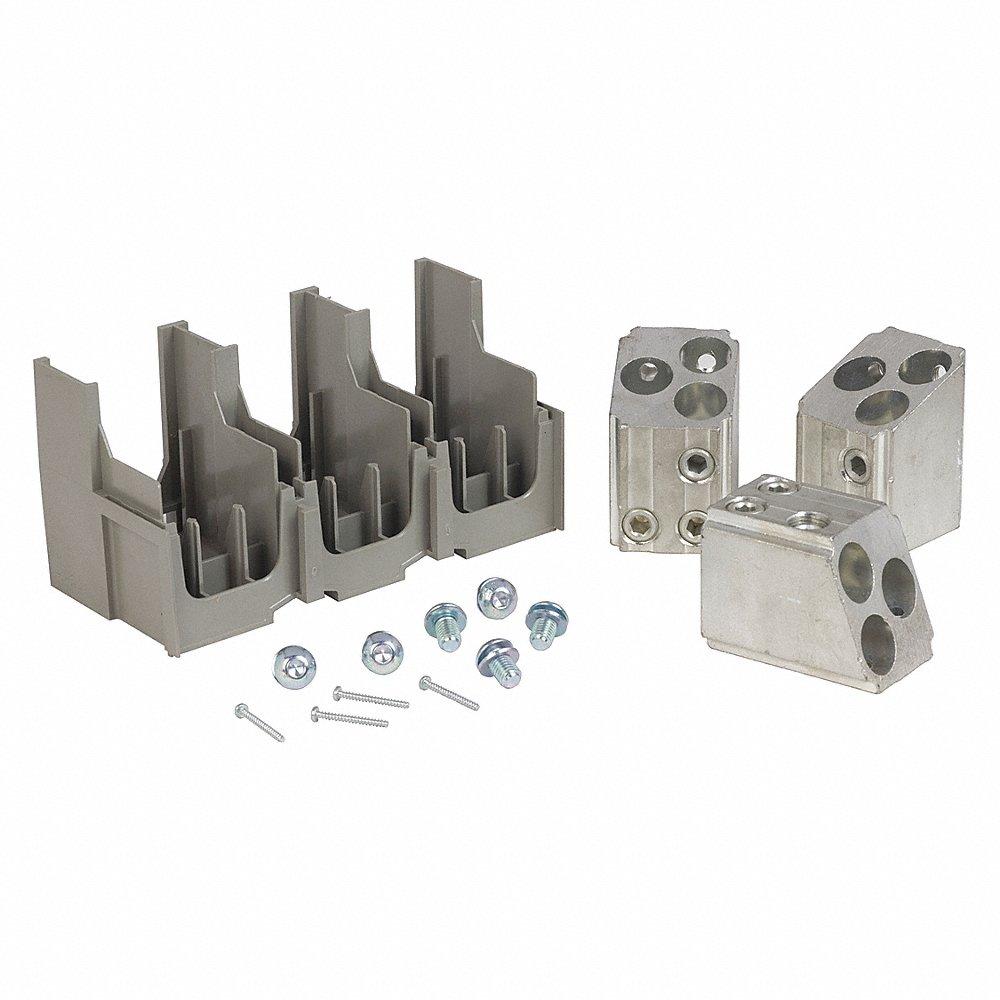

AL1200P6KU | 600 kcmil | 3 | 50 N-m | - | Mechanical Lug | 350 kcmil | 1200A | Wall Mounted | €977.03 | |
 |

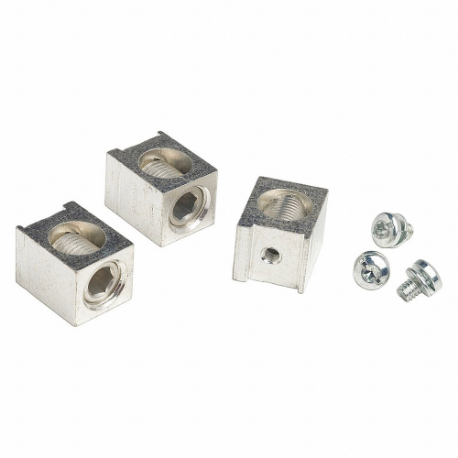

AL250KA | 350 kcmil | 1 | - | 250A | Lug Kit | - | - | - | €236.06 | |
 |

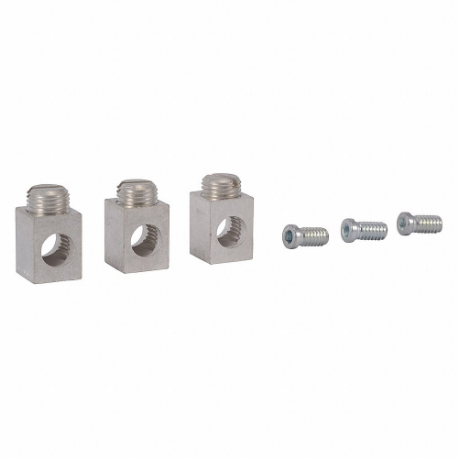

AL100FA | 1/0 AWG (Aluminum/Copper) | 1 | 5.6 N-m | 100A | - | - | - | - | €78.73 |
