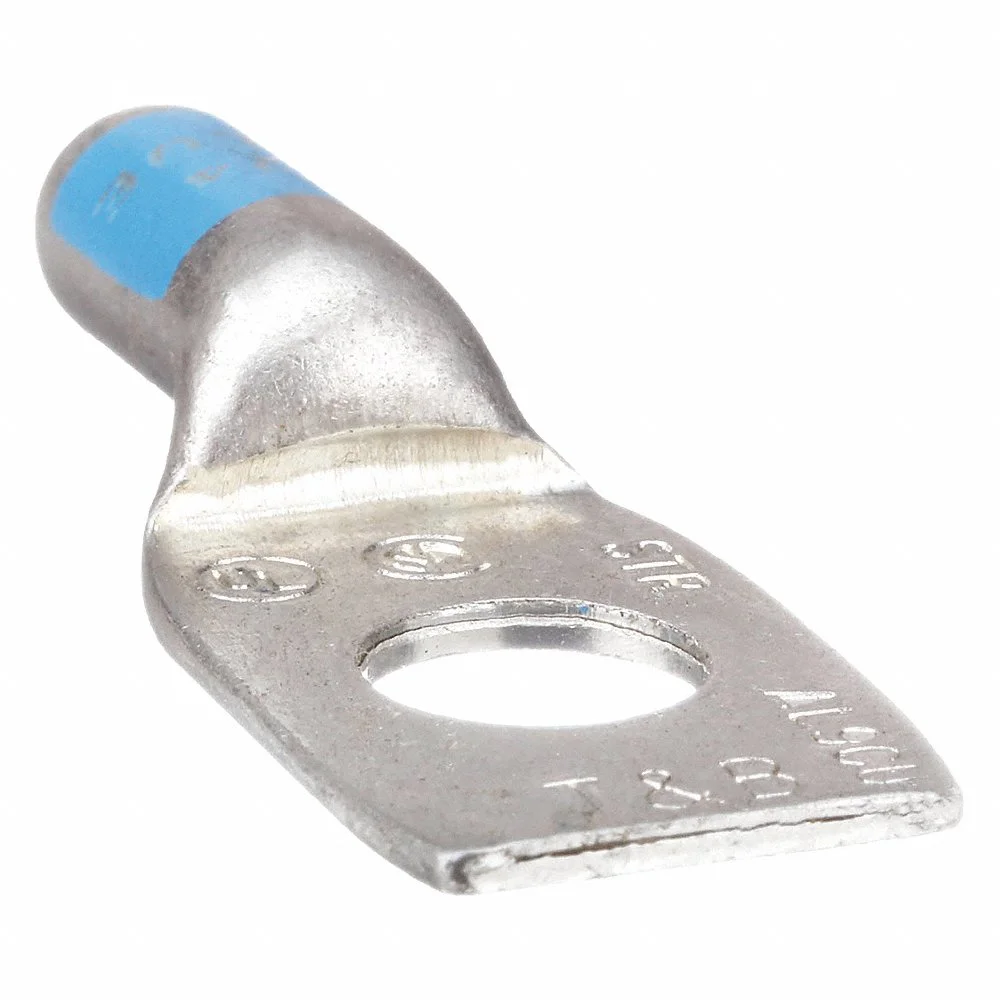

THOMAS & BETTS 60102 One-Hole Lug Compression Connector, 8 AWG Cable Size, Blue, 1.44 Inch Length
Item: CJ2YMXModel: 60102Cross Ref: 3LM78
7 In Stock
Ships within 2 days via
5.00% off
€9.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | One-Hole Lug Compression Connector |
| Barrel Outside Dia. | 7/25" |
| Barrel Size | Long |
| Color Code | Blue |
| Connection Orientation | Straight |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 24 |
| For Conductor Material | Aluminum, Copper |
| For Stranded Aluminum Wire Size-max. | 8 AWG |
| For Stud Size | 1/4" |
| For Wire Type | Solid, Stranded |
| Hole Center To End | 0.34" |
| Inspection Hole | No |
| Material | Aluminum |
| Max. Voltage | 35 kV AC |
| Max. Wire Size | 8 AWG |
| No. Of Holes | 1 |
| Overall Length | 1.38" |
| Overall Width | 11/25" |
| Stud Size | 1/4" |
| Termination Style | Crimp |
| Tongue Style | Standard |
| Tongue Width | 0.44" |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.51 |
| Ship width (cm) | 1.12 |
| Country of Origin | MX |
Product Variants
| Product | Model | Stud Size | Color Code | Tongue Width | Max. Wire Size | Hole Center To End | Barrel Outside Dia. | Overall Width | For Stranded Aluminum Wire Size-max. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60114 | 3/8" | Green | 0.66" | 4 AWG | 11/25" | 0.46" | 0.66" | 4 AWG | €22.48 | |
 |
60118 | 3/8" | Pink | 0.72" | 2 AWG | 11/25" | 0.51" | 18/25" | 2 AWG | €17.76 | |
 |
60109 | 3/8" | Gray | 0.63" | 6 AWG | 11/25" | 0.35" | 0.63" | 6 AWG | €17.10 | |
|
60107 | 1/4" | Gray | 0.47" | 6 AWG | 0.34" | 0.35" | 0.47" | 6 AWG | €19.50 | |
|
60113 | 5/16" | Green | 0.66" | 4 AWG | 11/25" | 0.46" | 0.66" | 4 AWG | €20.82 | |
|
60117 | 5/16" | Pink | 0.72" | 2 AWG | 11/25" | 0.51" | 18/25" | 2 AWG | €24.59 | |
|
60101 | #10 | Blue | 0.41" | 8 AWG | 0.22" | 7/25" | 0.41" | 8 AWG | €19.33 |
