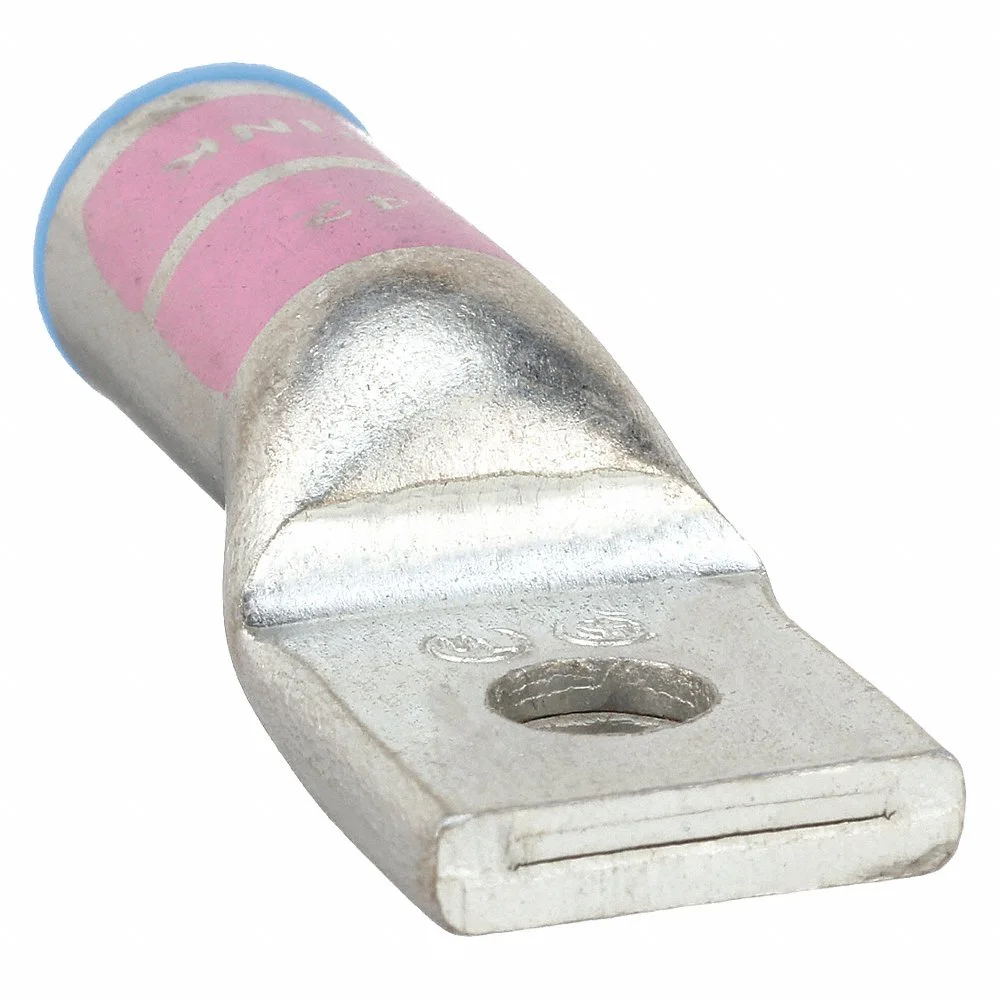

THOMAS & BETTS 60117 One-Hole Lug Compression Connector, 2 AWG Cable Size, Pink, 2.09 Inch Length
Item: CJ2YMTModel: 60117Cross Ref: 3LM85
7 In Stock
Ships within 2 days via
10.00% off
€22.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | One-Hole Lug Compression Connector |
| Barrel Od | 0.51" |
| Barrel Size | Long |
| Color Code | Pink |
| Connection Orientation | Straight |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 42 |
| For Conductor Material | Aluminum, Copper |
| For Stranded Aluminum Wire Size - Maximum | 2 AWG |
| For Stud Size | 5/16" |
| For Wire Type | Solid, Stranded |
| Hole Center To End | 11/25" |
| Inspection Hole | No |
| Material | Aluminum |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 2 AWG |
| Number Of Holes | 1 |
| Overall Length | 2.06" |
| Overall Width | 18/25" |
| Stud Size | 5/16" |
| Termination Style | Crimp |
| Tongue Style | Standard |
| Tongue Width | 0.72" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Model | Color Code | Stud Size | Hole Center To End | Overall Length | Connector Type | Material | Number Of Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|

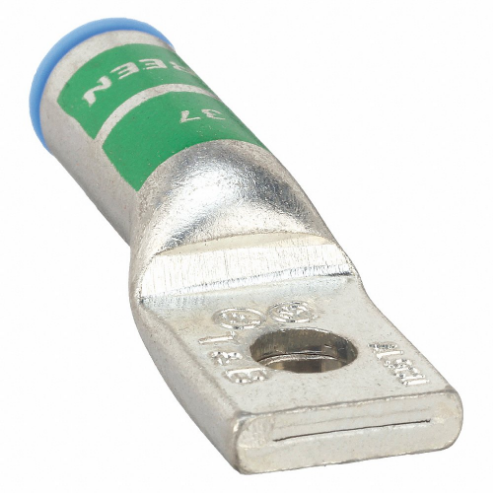

| 60114 | Green | 3/8" | 11/25" | 2.03" | Straight Barrel | Aluminum | 1 | €22.48 | |
| 60118 | Pink | 3/8" | 11/25" | 2.09" | Straight Barrel | Aluminum | 1 | €17.76 | |
| 60109 | Gray | 3/8" | 11/25" | 1.86" | Straight Barrel | Aluminum | 1 | €17.10 | |
| 60107 | Gray | 1/4" | 0.34" | 1.67" | Straight Barrel | Aluminum | 1 | €19.50 | |
| 60113 | Green | 5/16" | 11/25" | 2" | Straight Barrel | Aluminum | 1 | €20.82 | |
| 60101 | Blue | #10 | 0.22" | 1.22" | Straight Barrel | Aluminum | 1 | €19.33 | |
| 60102 | Blue | 1/4" | 0.34" | 1.38" | Straight Barrel | Aluminum | 1 | €9.86 |
