Blocks and Sheaves

GATES -

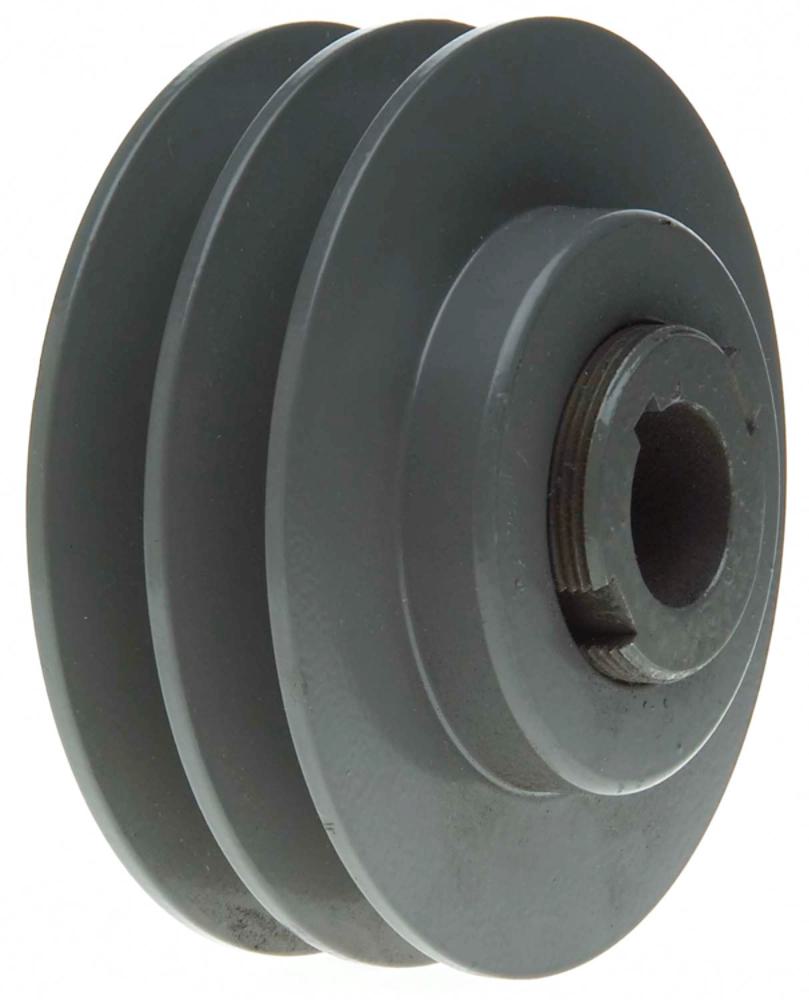

Finished Bore Sheaves, A/4L Section

A

Style	Model	Outside Dia.	Type	Face Width	Bore Dia.	Material	Finish	Price
A	AK16.5/8	1.65"	Light Duty Solid	0.66"	5/8"	Steel	Painted	€13.57
A	AK16.1/2	1.65"	Light Duty Solid	0.66"	1/2"	Steel	Painted	€13.57
A	AK18.5/8	1.85"	Light Duty Solid	3/4"	5/8"	Steel	Painted	€13.87
A	AK19.3/4	1.95"	Light Duty Solid	0.66"	3/4"	Steel	Painted	€14.14
A	AK19.7/8	1.95"	Light Duty Solid	0.66"	7/8"	Steel	Painted	€14.14
A	AK19.1/2	1.95"	Light Duty Solid	0.66"	1/2"	Steel	Painted	€14.14
A	AK19.5/8	1.95"	Light Duty Solid	0.66"	5/8"	Steel	Painted	€14.14
A	AK22.7/8	2 1/4"	Light Duty Solid	0.66"	7/8"	Steel	Painted	€14.72
A	2BK26 1.1/8	2 3/4"	Light Duty Solid	1 3/4"	1 1/8"	Steel	Painted	€50.53
A	2BK26.5/8	2 3/4"	Light Duty Solid	1 3/4"	5/8"	Steel	Painted	€50.53
A	2BK26.7/8	2 3/4"	Light Duty Solid	1 3/4"	7/8"	Steel	Painted	€50.53
A	AK27 1	2.7"	Light Duty Web	0.66"	1"	Steel	Painted	€17.59
A	AK24.5/8	2.45"	Light Duty Solid	0.66"	5/8"	Steel	Painted	€16.07
A	AK24.7/8	2.45"	Light Duty Solid	0.66"	7/8"	Steel	Painted	€16.07
A	2BK23.5/8	2.45"	Light Duty Solid	1 3/4"	5/8"	Steel	Painted	€47.76
A	AK24 1	2.45"	Light Duty Solid	0.66"	1"	Steel	Painted	€16.07
A	AK24.3/4	2.45"	Light Duty Solid	0.66"	3/4"	Steel	Painted	€16.07
A	AK35.1/2	3.55"	Light Duty Web	0.66"	1/2"	Steel	Painted	€26.88
A	AK35.7/8	3.55"	Light Duty Web	0.66"	7/8"	Steel	Painted	€26.88
A	AK35.5/8	3.55"	Light Duty Web	0.66"	5/8"	Steel	Painted	€26.88
A	AK35.3/4	3.55"	Light Duty Web	0.66"	3/4"	Steel	Painted	€26.88
A	2AK46.5/8	4.45"	Light Duty Web	1 3/8"	5/8"	Steel	Painted	€73.85
A	AK71 1.7/16	6.95"	Light Duty Spoke	3/4"	1 7/16"	Cast Iron	Painted	€53.02
A	AK71.1/2	6.95"	Light Duty Spoke	3/4"	1/2"	Cast Iron	Painted	€53.02
A	AK81 1	7.95"	Light Duty Spoke	3/4"	1"	Cast Iron	Painted	€60.60

MARTIN SPROCKET -

8V Series Taper Bushed 8 Groove Hi-Cap Wedge Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	8 8V 1250 TB	12 1/2"	Solid Type A-1	12.3"	9 3/8"	Cast Iron	Gray	€1,900.36
B	8 8V 1320 TB	13"	Solid Type A-1	13"	9 3/8"	Cast Iron	-	€2,009.08
C	8 8V 1400 TB	14"	Solid Type A-1	13 4/5"	9 3/8"	Cast Iron	Gray	€2,150.90
D	8 8V 1500 TB	15"	Solid Type A-1	14 4/5"	9 3/8"	Cast Iron	Gray	€2,278.54
E	8 8V 1600 TB	16"	Solid Type A-2	15 4/5"	9 3/8"	Cast Iron	-	€2,387.26
F	8 8V 1700 TB	17"	Type A-2 Web	16 4/5"	9 3/8"	Cast Iron	Gray	€2,656.72
D	8 8V 1800 TB	18"	Type A-2 Web	17 4/5"	9 3/8"	Cast Iron	Gray	€2,893.08
G	8 8V 1900 TB	19"	Type A-2 Web	18 4/5"	9 3/8"	Cast Iron	Gray	€2,930.90
H	8 8V 2000 TB	20"	Type A-2 Web	19 4/5"	9 3/8"	Cast Iron	-	€3,082.17
I	8 8V 2120 TB	21"	Arm, Spoke Type A-3	21 1/5"	9 3/8"	Cast Iron	Gray	€3,261.79
J	8 8V 2240 TB	22.4"	Arm, Spoke Type A-3	22 1/5"	9 3/8"	Cast Iron	Gray	€3,758.17
K	8 8V 2480 TB	24.8"	Arm, Spoke Type A-3	24 3/5"	9 3/8"	Cast Iron	Gray	€4,096.15
L	8 8V 3000 TB	30"	Arm, Spoke Type A-3	29 4/5"	9 3/8"	Cast Iron	Gray	€4,655.86
M	8 8V 3550 TB	35 1/2"	Arm, Spoke Type A-3	35.3"	9 3/8"	Cast Iron	Gray	€5,792.55
N	8 8V 4000 TB	40"	Arm, Spoke Type A-3	39 4/5"	9 3/8"	Cast Iron	Gray	€6,929.21
O	8 8V 4450 TB	44 1/2"	Arm, Spoke Type A-3	44.3"	9 3/8"	Cast Iron	Gray	€8,626.75
P	8 8V 5300 TB	53"	Arm, Spoke Type A-3	52 4/5"	9 3/8"	Cast Iron	-	€10,324.32

MARTIN SPROCKET -

5V Series Hi-Cap Wedge Stock 5 Groove QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	5 5V 440 SD	4 2/5"	Type E Solid	4.3"	3 3/4"	Cast Iron	-	€231.03
B	5 5V 490 SD	4.9"	Solid Type A-1	4 4/5"	3 3/4"	Cast Iron	Gray	€257.67
C	5 5V 465 SD	4.65"	Solid Type E-1	4.55"	3 3/4"	Cast Iron	-	€244.34
B	5 5V 550 SD	5 1/2"	Solid Type A-1	5 2/5"	3 3/4"	Cast Iron	Gray	€284.33
B	5 5V 520 SD	5 1/5"	Solid Type A-1	5.1"	3 3/4"	Cast Iron	Gray	€270.99
D	5 5V 590 SK	5.9"	Solid Type A-1	5 4/5"	3 3/4"	Cast Iron	-	€297.65
E	5 5V 630 SK	6.3"	Solid Type A-1	6 1/5"	3 3/4"	Cast Iron	-	€310.99
A	5 5V 670 SF	6.7"	Type A Solid	6 3/5"	3 3/4"	Cast Iron	-	€324.31
F	5 5V 750 SF	7 1/2"	Solid Type A-1	7 2/5"	3 3/4"	Cast Iron	-	€390.94
G	5 5V 710 SF	7.1"	Solid Type A-1	-	3 3/4"	Cast Iron	-	€355.41
H	5 5V 850 E	8 1/2"	Solid Type A-1	8 2/5"	3 3/4"	Cast Iron	-	€422.07
I	5 5V 800 E	8"	Solid Type A-1	7.9"	3 3/4"	Cast Iron	-	€416.72
J	5 5V 925 E	9 1/4"	Solid Type A-1	9.15"	3 3/4"	Cast Iron	-	€457.59
K	5 5V 975 E	9 3/4"	Solid Type A-1	9.65"	3 3/4"	Cast Iron	-	€493.12
L	5 5V 900 E	9"	Solid Type A-1	8.9"	3 3/4"	Cast Iron	-	€439.83
M	5 5V 1030 E	10.3"	Solid Type A-1	10 1/5"	3 3/4"	Cast Iron	-	€497.57
N	5 5V 1090 E	10.9"	Solid Type A-1	10 4/5"	3 3/4"	Cast Iron	-	€510.91
O	5 5V 1180 E	11 4/5"	Solid Type A-1	11.7"	3 3/4"	Cast Iron	-	€555.33
P	5 5V 1130 E	11.3"	Solid Type A-1	11 1/5"	3 3/4"	Cast Iron	-	€537.56
Q	5 5V 1250 E	12 1/2"	Arm, Spoke Type A-3	12 2/5"	3 3/4"	Cast Iron	-	€626.40
R	5 5V 1320 E	13 1/5"	Arm, Spoke Type A-3	13.1"	3 3/4"	Cast Iron	-	€666.40
S	5 5V 1400 E	14"	Arm, Spoke Type A-3	13.9"	3 3/4"	Cast Iron	-	€764.14
T	5 5V 1500 E	15"	Arm, Spoke Type A-3	14.9"	3 3/4"	Cast Iron	-	€852.99
U	5 5V 1600 E	16"	Arm, Spoke Type A-3	15.9"	3 3/4"	Cast Iron	-	€897.43
V	5 5V 1870 F	18.7"	Arm, Spoke Type B-3	18 3/5"	3 3/4"	Cast Iron	-	€959.61

MARTIN SPROCKET -

5V Series Hi-Cap Wedge Stock 6 Groove QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

Style	Model	Outside Dia.	Type	Face Width	Pitch Dia.	Material	Color	Price
A	6 5V 440 SD	4 2/5"	Solid Type E-1	4 7/16"	4.3"	Cast Iron	Gray	€261.06
B	6 5V 490 SD	4.9"	Solid Type A-1	4 7/16"	4 4/5"	Cast Iron	Gray	€288.53
A	6 5V 465 SD	4.65"	Solid Type E-1	4 7/16"	4.55"	Cast Iron	Gray	€274.79
C	6 5V 550 SD	5 1/2"	Solid Type A-1	4 7/16"	5 2/5"	Cast Iron	Gray	€316.02
D	6 5V 520 SD	5 1/5"	Solid Type A-1	4 7/16"	5.1"	Cast Iron	Gray	€302.26
E	6 5V 590 SK	5.9"	Solid Type A-1	4.438"	5 4/5"	Cast Iron	-	€329.76
F	6 5V 630 SK	6.3"	Solid Type A-1	4.438"	6 1/5"	Cast Iron	-	€343.52
G	6 5V 670 SF	6.7"	Solid Type A-1	4.438"	6 3/5"	Cast Iron	-	€352.67
H	6 5V 750 SF	7 1/2"	Solid Type A-1	4.438"	7 2/5"	Cast Iron	-	€407.61
I	6 5V 710 SF	7.1"	Type A Solid	4 7/16"	-	Cast Iron	-	€373.73
J	6 5V 850 E	8 1/2"	Solid Type A-1	4.438"	8 2/5"	Cast Iron	-	€453.42
K	6 5V 800 E	8"	Solid Type A-1	4.438"	7.9"	Cast Iron	-	€425.94
D	6 5V 925 E	9 1/4"	Solid Type A-1	4 7/16"	9.15"	Cast Iron	Gray	€522.12
D	6 5V 975 E	9 3/4"	Solid Type A-1	4 7/16"	9.65"	Cast Iron	Gray	€531.27
L	6 5V 900 E	9"	Solid Type A-1	4.438"	8.9"	Cast Iron	-	€503.81
M	6 5V 1030 E	10.3"	Type A-2 Web	4 7/16"	10 1/5"	Cast Iron	Gray	€572.51
N	6 5V 1090 E	10.9"	Type A-1 Web	4.438"	10 4/5"	Cast Iron	-	€595.40
O	6 5V 1180 E	11 4/5"	Type A-1 Web	4.438"	11.7"	Cast Iron	-	€613.73
P	6 5V 1130 E	11.3"	Type A-1 Web	4.438"	11 1/5"	Cast Iron	-	€595.40
Q	6 5V 1250 F	12 1/2"	Arm, Spoke Type B-3	4.438"	12 2/5"	Cast Iron	-	€746.53
R	6 5V 1320 F	13 1/5"	Arm, Spoke Type B-3	4.438"	13.1"	Cast Iron	-	€783.18
S	6 5V 1400 F	14"	Arm, Spoke Type B-3	4.438"	13.9"	Cast Iron	-	€879.36
T	6 5V 1500 F	15"	Type B Arm, Spoke	4 7/16"	14.9"	Cast Iron	-	€970.96
U	6 5V 1600 F	16"	Arm, Spoke Type B-3	4.438"	15.9"	Cast Iron	-	€1,062.57
T	6 5V 1870 F	18.7"	Type A Arm, Spoke	4 7/16"	18 3/5"	Cast Iron	-	€1,190.80

MARTIN SPROCKET -

C Conventional 2 Groove Stock QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	2 C 60 SF	6 2/5"	Solid Type A-1	-	2 3/8"	Cast Iron	-	€293.23
A	2 C 70 SF	7 2/5"	Solid Type A-1	-	2 3/8"	Cast Iron	-	€293.23
A	2 C 75 SF	7.9"	Solid Type A-1	7 1/2"	2 3/8"	Cast Iron	-	€305.21
A	2 C 80 SF	8 2/5"	Solid Type A-1	-	2 3/8"	Cast Iron	-	€326.08
B	2 C 85 SF	8.9"	Solid Type A-1	8 1/2"	2 3/8"	Cast Iron	-	€331.86
C	2 C 90 SF	9 2/5"	Type A-2 Web	-	2 3/8"	Cast Iron	Gray	€337.65
C	2 C 95 SF	9.9"	Type A-2 Web	9 1/2"	2 3/8"	Cast Iron	Gray	€355.41
D	2 C 100 SF	10 2/5"	Type A-2 Web	-	2 3/8"	Cast Iron	-	€390.94
C	2 C 105 SF	10.9"	Type A-2 Web	10 1/2"	2 3/8"	Cast Iron	Gray	€417.59
E	2 C 110 SF	11 2/5"	Arm, Spoke Type A-3	11"	2 3/8"	Cast Iron	Gray	€444.27
E	2 C 120 SF	12 2/5"	Arm, Spoke Type D-3	-	2 3/8"	Cast Iron	Gray	€475.36
F	2 C 130 SF	13 2/5"	Arm, Spoke Type D-3	13"	2 3/8"	Cast Iron	-	€555.33
G	2 C 140 SF	14 2/5"	Arm, Spoke Type D-3	14"	2 3/8"	Cast Iron	-	€599.75
H	2 C 150 SF	15 2/5"	Arm, Spoke Type D-3	15"	2 3/8"	Cast Iron	Gray	€621.96
I	2 C 160 SF	16 2/5"	Arm, Spoke Type D-3	16"	2 3/8"	Cast Iron	-	€644.19
J	2 C 180 SF	18 2/5"	Arm, Spoke Type D-3	18"	2 3/8"	Cast Iron	-	€688.61
E	2 C 200 SF	20.4"	Arm, Spoke Type D-3	20"	2 3/8"	Cast Iron	Gray	€755.24
E	2 C 240 SF	24.4"	Arm, Spoke Type D-3	24"	2 3/8"	Cast Iron	Gray	€1,021.81
K	2 C 270 F	27.4"	Arm, Spoke Type C-3	27"	2 3/8"	Cast Iron	-	€1,243.94
E	2 C 300 F	30.4"	Arm, Spoke Type C-3	30"	2 3/8"	Cast Iron	Gray	€1,461.03

MARTIN SPROCKET -

C Conventional 3 Groove Stock QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

Style	Model	Type	Outside Dia.	Pitch Dia.	Face Width	Material	Color	Price
A	3 C 240 E	Arm, Spoke Type A-3	24.4"	24"	3 3/8"	Cast Iron	-	€1,110.65
B	3 C 200 E	Arm, Spoke Type A-3	20.4"	20"	3 3/8"	Cast Iron	-	€915.19
C	3 C 160 E	Arm, Spoke Type B-3	16 2/5"	16"	3 3/8"	Cast Iron	-	€733.04
D	3 C 140 E	Arm, Spoke Type B-3	14 2/5"	14"	3 3/8"	Cast Iron	-	€710.82
E	3 C 150 E	Arm, Spoke Type B-3	15 2/5"	15"	3 3/8"	Cast Iron	-	€719.72
F	3 C 120 E	Arm, Spoke Type B-3	12 2/5"	-	3 3/8"	Cast Iron	-	€555.33
G	3 C 500 F	Arm, Spoke Type C-3	50.4"	50"	3 3/8"	Cast Iron	Gray	€4,396.82
H	3 C 440 F	Arm, Spoke Type C-3	44.4"	44"	3 3/8"	Cast Iron	Gray	€3,938.81
I	3 C 360 F	Arm, Spoke Type C-3	36.4"	36"	3 3/8"	Cast Iron	Gray	€2,244.23
I	3 C 300 F	Arm, Spoke Type C-3	30.4"	30"	3 3/8"	Cast Iron	Gray	€1,525.15
I	3 C 270 F	Arm, Spoke Type C-3	27.4"	27"	3 3/8"	Cast Iron	Gray	€1,337.22
J	3 C 50 SD	Solid Type A-1	-	-	3 3/8"	Cast Iron	-	€302.09
K	3 C 75 SF	Solid Type A-1	7.9"	7 1/2"	3 3/8"	Cast Iron	-	€335.41
L	3 C 55 SD	Solid Type A-1	5.9"	-	3 3/8"	Cast Iron	Gray	€382.07
M	3 C 56 SD	Solid Type A-1	6"	5 3/5"	3 3/8"	Cast Iron	Gray	€390.94
L	3 C 60 SF	Solid Type A-1	6 2/5"	-	3 3/8"	Cast Iron	-	€324.31
M	3 C 54 SD	Solid Type A-1	5 4/5"	5 2/5"	3 3/8"	Cast Iron	Gray	€377.63
L	3 C 70 SF	Solid Type A-1	7 2/5"	-	3 3/8"	Cast Iron	-	€324.31
N	3 C 100 E	Solid Type B-1	10 2/5"	-	3 3/8"	Cast Iron	-	€488.69
O	3 C 95 E	Solid Type B-1	9.9"	9 1/2"	3 3/8"	Cast Iron	-	€444.27
P	3 C 90 E	Solid Type B-1	9 2/5"	-	3 3/8"	Cast Iron	-	€417.59
M	3 C 85 E	Solid Type B-1	8.9"	8 1/2"	3 3/8"	Cast Iron	Gray	€390.94
Q	3 C 80 E	Solid Type B-1	8 2/5"	-	3 3/8"	Cast Iron	-	€346.51
R	3 C 110 E	Type B-2 Web	11 2/5"	11"	3 3/8"	Cast Iron	-	€533.12
S	3 C 105 E	Type B-2 Web	10.9"	10 1/2"	3 3/8"	Cast Iron	-	€510.91

MARTIN SPROCKET -

C Conventional 4 Groove Stock QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

Style	Model	Type	Outside Dia.	Pitch Dia.	Face Width	Material	Color	Price
A	4 C 160 E	Arm, Spoke Type A-3	16 2/5"	16"	4 3/8"	Cast Iron	-	€932.95
B	4 C 200 E	Arm, Spoke Type A-3	20.4"	20"	4 3/8"	Cast Iron	-	€1,048.47
C	4 C 270 F	Arm, Spoke Type A-3	27.4"	27"	4 3/8"	Cast Iron	-	€1,523.82
D	4 C 360 F	Arm, Spoke Type A-3	36.4"	36"	4 3/8"	Cast Iron	-	€2,615.18
E	4 C 130 E	Arm, Spoke Type A-3	13 2/5"	13"	4 3/8"	Cast Iron	Gray	€746.36
F	4 C 140 E	Arm, Spoke Type A-3	14 2/5"	14"	4 3/8"	Cast Iron	-	€808.56
G	4 C 150 E	Arm, Spoke Type A-3	15 2/5"	15"	4 3/8"	Cast Iron	-	€848.54
H	4 C 240 F	Arm, Spoke Type A-3	24.4"	24"	4 3/8"	Cast Iron	-	€1,266.15
E	4 C 500 J	Arm, Spoke Type B-3	50.4"	50"	4 3/8"	Cast Iron	Gray	€5,021.19
E	4 C 440 J	Arm, Spoke Type B-3	44.4"	44"	4 3/8"	Cast Iron	Gray	€4,263.28
I	4 C 54 SD	Solid Type A-1	5 4/5"	5 2/5"	4 3/8"	Cast Iron	Gray	€348.75
J	4 C 60 SF	Solid Type A-1	6 2/5"	-	4 3/8"	Cast Iron	-	€364.31
K	4 C 56 SD	Solid Type A-1	6"	5 3/5"	4 3/8"	Cast Iron	Gray	€350.96
L	4 C 50 SD	Solid Type A-1	-	-	4 3/8"	Cast Iron	-	€346.51
I	4 C 70 SF	Solid Type A-1	7 2/5"	-	4 3/8"	Cast Iron	Gray	€368.75
M	4 C 120 E	Solid Type A-1	12 2/5"	-	4 3/8"	Cast Iron	-	€666.40
N	4 C 110 E	Solid Type A-1	11 2/5"	11"	4 3/8"	Cast Iron	-	€604.20
O	4 C 100 E	Solid Type A-1	10 2/5"	-	4 3/8"	Cast Iron	-	€533.12
P	4 C 95 E	Solid Type A-1	9.9"	9 1/2"	4 3/8"	Cast Iron	-	€506.45
Q	4 C 90 E	Solid Type A-1	9 2/5"	-	4 3/8"	Cast Iron	-	€497.57
K	4 C 85 E	Solid Type A-1	8.9"	8 1/2"	4 3/8"	Cast Iron	-	€462.03
R	4 C 55 SD	Solid Type A-1	5.9"	-	4 3/8"	Cast Iron	-	€350.96
S	4 C 75 SF	Solid Type A-2	7.9"	7 1/2"	4 3/8"	Cast Iron	-	€382.07
T	4 C 105 E	Solid Type A-2	10.9"	10 1/2"	4 3/8"	Cast Iron	-	€577.54
U	4 C 80 E	Solid Type A-2	8 2/5"	-	4 3/8"	Cast Iron	-	€435.37

MARTIN SPROCKET -

C Conventional 5 Groove Stock QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	5 C 60 SF	6 2/5"	Solid Type A-1	-	5 3/8"	Cast Iron	-	€386.51
B	5 C 70 SF	7 2/5"	Solid Type A-1	-	5 3/8"	Cast Iron	-	€390.94
C	5 C 75 SF	7.9"	Solid Type A-1	7 1/2"	5 3/8"	Cast Iron	-	€497.57
D	5 C 80 E	8 2/5"	Type A Solid	-	5 3/8"	Cast Iron	-	€524.21
E	5 C 85 E	8.9"	Solid Type A-1	8 1/2"	5 3/8"	Cast Iron	-	€559.78
F	5 C 90 E	9 2/5"	Solid Type A-1	-	5 3/8"	Cast Iron	-	€568.65
G	5 C 95 E	9.9"	Type A Solid	9 1/2"	5 3/8"	Cast Iron	-	€604.20
H	5 C 100 E	10 2/5"	Type A-2 Web	-	5 3/8"	Cast Iron	-	€613.08
I	5 C 105 E	10.9"	Type A-2 Web	10 1/2"	5 3/8"	Cast Iron	-	€657.50
J	5 C 110 E	11 2/5"	Type A-1 Web	11"	5 3/8"	Cast Iron	-	€737.48
K	5 C 120 E	12 2/5"	Type A-1 Web	-	5 3/8"	Cast Iron	-	€746.36
L	5 C 130 E	13 2/5"	Type A-3 Web	13"	5 3/8"	Cast Iron	-	€835.20
M	5 C 140 E	14 2/5"	Arm, Spoke Type A-3	14"	5 3/8"	Cast Iron	Gray	€852.99
N	5 C 150 E	15 2/5"	Arm, Spoke Type A-3	15"	5 3/8"	Cast Iron	-	€910.74
O	5 C 160 E	16 2/5"	Arm, Spoke Type A-3	16"	5 3/8"	Cast Iron	-	€964.05
M	5 C 180 E	18 2/5"	Arm, Spoke Type A-3	18"	5 3/8"	Cast Iron	Gray	€1,088.45
P	5 C 200 F	20.4"	Arm, Spoke Type A-3	20"	5 3/8"	Cast Iron	-	€1,359.46
Q	5 C 240 F	24.4"	Arm, Spoke Type A-3	24"	5 3/8"	Cast Iron	-	€1,466.06
R	5 C 270 F	27.4"	Arm, Spoke Type A-3	27"	5 3/8"	Cast Iron	-	€1,754.84
M	5 C 300 F	30.4"	Arm, Spoke Type A-3	30"	5 3/8"	Cast Iron	Gray	€2,001.48
M	5 C 360 J	36.4"	Arm, Spoke Type A-3	36"	5 3/8"	Cast Iron	Gray	€2,936.92
M	5 C 440 J	44.4"	Arm, Spoke Type A-3	44"	5 3/8"	Cast Iron	Gray	€4,689.59
S	5 C 500 J	50.4"	Arm, Spoke Type A-3	50"	5 3/8"	Cast Iron	Gray	€5,504.36

MARTIN SPROCKET -

C Conventional 6 Groove Stock QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	6 C 60 SF	6 2/5"	Solid Type A-1	-	6 3/8"	Cast Iron	Gray	€567.92
B	6 C 70 SF	7 2/5"	Solid Type A-1	-	6 3/8"	Cast Iron	-	€567.92
C	6 C 75 SF	7.9"	Solid Type A-1	7 1/2"	6 3/8"	Cast Iron	Gray	€604.58
D	6 C 80 E	8 2/5"	Solid Type A-1	-	6 3/8"	Cast Iron	-	€654.03
E	6 C 85 E	8.9"	Solid Type A-1	8 1/2"	6 3/8"	Cast Iron	Gray	€659.51
F	6 C 90 F	9 2/5"	Solid Type A-1	-	6 3/8"	Cast Iron	-	€677.85
G	6 C 95 F	9.9"	Solid Type A-1	9 1/2"	6 3/8"	Cast Iron	-	€723.65
A	6 C 100 F	10 2/5"	Solid Type A-1	-	6 3/8"	Cast Iron	Gray	€751.12
H	6 C 105 F	10.9"	Solid Type A-1	10 1/2"	6 3/8"	Cast Iron	-	€783.18
I	6 C 110 F	11 2/5"	Type A-1 Web	11"	6 3/8"	Cast Iron	-	€828.99
J	6 C 120 F	12 2/5"	Type A-1 Web	-	6 3/8"	Cast Iron	-	€915.99
K	6 C 130 F	13 2/5"	Type A-3 Web	13"	6 3/8"	Cast Iron	-	€1,016.76
L	6 C 140 F	14 2/5"	Type A-3 Web	14"	6 3/8"	Cast Iron	-	€1,099.20
M	6 C 150 F	15 2/5"	Type A Arm, Spoke	15"	6 3/8"	Cast Iron	-	€1,145.00
N	6 C 160 F	16 2/5"	Arm, Spoke Type A-3	16"	6 3/8"	Cast Iron	-	€1,190.80
O	6 C 180 F	18 2/5"	Arm, Spoke Type A-3	18"	6 3/8"	Cast Iron	-	€1,332.78
P	6 C 200 F	20.4"	Arm, Spoke Type A-3	20"	6 3/8"	Cast Iron	-	€1,488.52
Q	6 C 240 F	24.4"	Arm, Spoke Type A-3	24"	6 3/8"	Cast Iron	-	€1,712.93
R	6 C 270 J	27.4"	Type A Arm, Spoke	27"	6 3/8"	Cast Iron	-	€2,145.83
S	6 C 300 J	30.4"	Arm, Spoke Type A-3	30"	6 3/8"	Cast Iron	-	€2,636.11
T	6 C 360 J	36.4"	Arm, Spoke Type A-3	36"	6 3/8"	Cast Iron	Gray	€3,397.12
U	6 C 440 J	44.4"	Arm, Spoke Type A-3	44"	6 3/8"	Cast Iron	-	€5,172.76
V	6 C 500 M	50.4"	Arm, Spoke Type A-3	50"	6 3/8"	Cast Iron	Gray	€6,664.92

MARTIN SPROCKET -

5V Series Hi-Cap Wedge Stock 10 Groove QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

Style	Model	Outside Dia.	Type	Face Width	Pitch Dia.	Material	Color	Price
A	10 5V 850 E	8 1/2"	Solid Type A-1	7.188"	8 2/5"	Cast Iron	-	€622.88
B	10 5V 800 E	8"	Solid Type A-1	7.188"	7.9"	Cast Iron	-	€577.08
C	10 5V 925 F	9 1/4"	Type A Solid	7 3/16"	9.15"	Cast Iron	-	€696.17
D	10 5V 975 F	9 3/4"	Solid	7.188"	9.65"	Cast Iron	-	€824.40
E	10 5V 900 F	9"	Solid Type A-1	7.188"	8.9"	Cast Iron	-	€687.00
F	10 5V 1030 F	10.3"	Solid Type A-1	7 3/16"	10 1/5"	Cast Iron	Gray	€851.89
G	10 5V 1090 F	10.9"	Solid Type A-1	7.188"	10 4/5"	Cast Iron	-	€879.36
H	10 5V 1180 F	11 4/5"	Type A-1 Web	7.188"	11.7"	Cast Iron	-	€1,099.20
I	10 5V 1130 F	11.3"	Solid Type A-1	7.188"	11 1/5"	Cast Iron	-	€1,007.61
J	10 5V 1250 J	12 1/2"	Type A-1 Web	7.188"	12 2/5"	Cast Iron	-	€1,231.59
K	10 5V 1320 J	13.1"	Type A-1 Web	7.188"	13.1"	Cast Iron	-	€1,373.75
L	10 5V 1400 J	13.9"	Solid Type A-1	7.188"	13.9"	Cast Iron	-	€1,515.83
M	10 5V 1500 J	15"	Type A-2 Web	7.188"	14.9"	Cast Iron	-	€1,705.30
N	10 5V 1600 J	16"	Type A-1 Web	7.188"	15.9"	Cast Iron	-	€1,847.41
O	10 5V 1870 J	18.7"	Arm, Spoke Type A-3	7 3/16"	18 3/5"	Cast Iron	Gray	€2,036.89
O	10 5V 2120 J	21.2"	Arm, Spoke Type A-3	7 3/16"	21.1"	Cast Iron	Gray	€2,321.12
O	10 5V 2360 M	23.6"	Arm, Spoke Type B-3	7 3/16"	23 1/2"	Cast Iron	Gray	€2,463.21
P	10 5V 2800 M	28"	Type B Arm, Spoke	7 3/16"	27.9"	Cast Iron	-	€3,088.50
Q	10 5V 3150 M	31 1/2"	Type B Arm, Spoke	7 3/16"	31 2/5"	Cast Iron	-	€3,694.84
R	10 5V 3750 M	37 1/2"	Arm, Spoke Type B-3	7.188"	37 2/5"	Cast Iron	-	€4,357.99
S	10 5V 5000 M	50"	Arm, Spoke Type B-3	7.188"	49.9"	Cast Iron	-	€6,110.69

MARTIN SPROCKET -

5V Series Hi-Cap Wedge Stock 8 Groove QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

Style	Model	Outside Dia.	Type	Face Width	Pitch Dia.	Material	Color	Price
A	8 5V 750 SF	7 1/2"	Type A Solid	5 13/16"	7 2/5"	Cast Iron	-	€476.33
B	8 5V 710 SF	7.1"	Type A Solid	5 13/16"	-	Cast Iron	-	€430.07
C	8 5V 850 E	8 1/2"	Solid Type A-1	5.813"	8 2/5"	Cast Iron	-	€586.25
D	8 5V 800 E	8"	Solid Type A-1	5.813"	7.9"	Cast Iron	-	€522.12
E	8 5V 925 F	9 1/4"	Solid Type A-1	5.813"	9.15"	Cast Iron	-	€687.00
F	8 5V 975 F	9 3/4"	Solid Type A-1	5.813"	9.65"	Cast Iron	-	€732.80
G	8 5V 900 E	9"	Solid Type A-1	5 13/16"	8.9"	Cast Iron	Gray	€613.73
H	8 5V 1030 F	10.3"	Solid Type A-1	5.813"	10 1/5"	Cast Iron	-	€778.60
I	8 5V 1090 F	10.9"	Solid Type A-1	5.813"	10 4/5"	Cast Iron	-	€810.67
J	8 5V 1180 F	11 4/5"	Type A-1 Web	5.813"	11.7"	Cast Iron	-	€856.45
K	8 5V 1130 F	11.3"	Solid Type A-1	5.813"	11 1/5"	Cast Iron	-	€815.26
L	8 5V 1250 F	12 1/2"	Arm, Spoke Type A-3	5.813"	12 2/5"	Cast Iron	-	€906.84
M	8 5V 1320 F	13 1/5"	Arm, Spoke Type A-3	5.813"	13.1"	Cast Iron	-	€1,025.93
N	8 5V 1400 F	14"	Arm, Spoke Type A-3	5.813"	13.9"	Cast Iron	-	€1,122.11
O	8 5V 1500 F	15"	Arm, Spoke Type A-3	5.813"	14.9"	Cast Iron	-	€1,282.41
P	8 5V 1600 F	16"	Arm, Spoke Type A-3	5.813"	15.9"	Cast Iron	-	€1,465.61
Q	8 5V 1870 J	18.7"	Arm, Spoke Type A-3	5.813"	18 3/5"	Cast Iron	-	€1,657.95
R	8 5V 2120 J	21.2"	Arm, Spoke Type A-3	5.813"	21.1"	Cast Iron	-	€1,800.05
S	8 5V 2360 J	23.6"	Arm, Spoke Type A-3	5.813"	23 1/2"	Cast Iron	-	€1,989.53
T	8 5V 2800 J	28"	Arm, Spoke Type A-3	5.813"	27.9"	Cast Iron	-	€2,463.21
U	8 5V 3150 M	31 1/2"	Arm, Spoke Type B-3	5 13/16"	31 2/5"	Cast Iron	Gray	€3,410.61
V	8 5V 3750 M	37 1/2"	Arm, Spoke Type B-3	5.813"	37 2/5"	Cast Iron	-	€4,215.91
W	8 5V 5000 M	50"	Arm, Spoke Type B-3	5 13/16"	49.9"	Cast Iron	Gray	€5,779.12

MARTIN SPROCKET -

C Conventional 1 Groove Stock QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	1 C 60 SK	6 2/5"	Solid Type C-1	-	1 3/8"	Cast Iron	-	€251.46
B	1 C 70 SF	7 2/5"	Solid Type C-1	-	1 3/8"	Cast Iron	-	€257.67
C	1 C 75 SF	7.9"	Solid Type C-1	7 1/2"	1 3/8"	Cast Iron	-	€266.55
D	1 C 80 SF	8 2/5"	Solid Type C-1	-	1 3/8"	Cast Iron	Gray	€275.45
D	1 C 85 SF	8.9"	Solid Type C-1	8 1/2"	1 3/8"	Cast Iron	Gray	€284.33
E	1 C 90 SF	9 2/5"	Arm, Spoke Type C-3	-	1 3/8"	Cast Iron	-	€293.23
F	1 C 95 SF	9.9"	Arm, Spoke Type C-3	9 1/2"	1 3/8"	Cast Iron	-	€302.09
G	1 C 100 SF	10 2/5"	Arm, Spoke Type C-3	-	1 3/8"	Cast Iron	Gray	€310.99
G	1 C 105 SF	10.9"	Arm, Spoke Type C-3	10 1/2"	1 3/8"	Cast Iron	Gray	€337.65
G	1 C 110 SF	11 2/5"	Arm, Spoke Type C-3	11"	1 3/8"	Cast Iron	Gray	€382.07
G	1 C 120 SF	12 2/5"	Arm, Spoke Type C-3	-	1 3/8"	Cast Iron	Gray	€416.72
H	1 C 130 SF	13 2/5"	Arm, Spoke Type C-3	13"	1 3/8"	Cast Iron	-	€533.12
I	1 C 140 SF	14 2/5"	Arm, Spoke Type C-3	14"	1 3/8"	Cast Iron	-	€577.54
J	1 C 150 SF	15 2/5"	Arm, Spoke Type C-3	15"	1 3/8"	Cast Iron	Gray	€599.75
G	1 C 160 SF	16 2/5"	Arm, Spoke Type C-3	16"	1 3/8"	Cast Iron	Gray	€621.96
K	1 C 180 SF	18 2/5"	Arm, Spoke Type C-3	18"	1 3/8"	Cast Iron	Gray	€666.40
L	1 C 200 SF	20.4"	Arm, Spoke Type C-3	20"	1 3/8"	Cast Iron	Gray	€710.82

MARTIN SPROCKET -

C Conventional 8 Groove Stock QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	8 C 70 SF	7 2/5"	Solid Type A-1	-	8 3/8"	Cast Iron	Gray	€732.80
A	8 C 80 E	8 2/5"	Solid Type A-1	-	8 3/8"	Cast Iron	Gray	€920.59
A	8 C 85 E	8.9"	Solid Type A-1	8 1/2"	8 3/8"	Cast Iron	Gray	€934.33
A	8 C 90 F	9 2/5"	Solid Type A-1	-	8 3/8"	Cast Iron	Gray	€938.92
B	8 C 95 F	9.9"	Solid Type A-1	9 1/2"	8 3/8"	Cast Iron	Gray	€961.79
C	8 C 100 F	10 2/5"	Solid Type A-1	-	8 3/8"	Cast Iron	-	€1,003.03
D	8 C 105 F	10.9"	Solid Type A-1	10 1/2"	8 3/8"	Cast Iron	-	€1,048.84
E	8 C 110 F	11 2/5"	Type A-1 Web	11"	8 3/8"	Cast Iron	-	€1,108.37
F	8 C 120 F	12 2/5"	Type A-2 Web	-	8 3/8"	Cast Iron	Gray	€1,190.80
F	8 C 130 F	13 2/5"	Type A-2 Web	13"	8 3/8"	Cast Iron	Gray	€1,305.32
G	8 C 140 F	14 2/5"	Type A-2 Web	14"	8 3/8"	Cast Iron	Gray	€1,488.52
H	8 C 150 F	15 2/5"	Type A-2 Web	15"	8 3/8"	Cast Iron	Gray	€1,648.81
I	8 C 160 F	16 2/5"	Arm, Spoke Type A-3	16"	8 3/8"	Cast Iron	-	€1,703.78
J	8 C 180 F	18 2/5"	Arm, Spoke Type A-3	18"	8 3/8"	Cast Iron	Gray	€2,006.05
K	8 C 200 J	20.4"	Arm, Spoke Type A-3	20"	8 3/8"	Cast Iron	Gray	€2,141.11
L	8 C 240 J	24.4"	Arm, Spoke Type A-3	24"	8 3/8"	Cast Iron	Gray	€2,463.21
M	8 C 270 J	27.4"	Arm, Spoke Type A-3	27"	8 3/8"	Cast Iron	-	€2,785.33
L	8 C 300 J	30.4"	Arm, Spoke Type A-3	30"	8 3/8"	Cast Iron	Gray	€3,307.58
N	8 C 360 M	36.4"	Type A Arm, Spoke	36"	8 3/8"	Cast Iron	-	€4,178.01
O	8 C 440 M	44.4"	Arm, Spoke Type A-3	44"	8 3/8"	Cast Iron	Gray	€6,490.83
P	8 C 500 M	50.4"	Arm, Spoke Type A-3	50"	8 3/8"	Cast Iron	Gray	€7,609.93

MARTIN SPROCKET -

C Conventional 10 Groove Stock QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	10 C 80 E	8 2/5"	Solid Type A-1	-	10 3/8"	Cast Iron	-	€1,085.47
B	10 C 85 E	8.9"	Solid Type A-1	8 1/2"	10 3/8"	Cast Iron	Gray	€1,154.18
B	10 C 90 J	9 2/5"	Solid Type A-1	-	10 3/8"	Cast Iron	Gray	€1,207.94
B	10 C 95 J	9.9"	Solid Type A-1	9 1/2"	10 3/8"	Cast Iron	Gray	€1,231.59
B	10 C 100 J	10 2/5"	Solid Type A-1	-	10 3/8"	Cast Iron	Gray	€1,269.51
C	10 C 105 J	10.9"	Type A Solid	10 1/2"	10 3/8"	Cast Iron	-	€1,397.39
B	10 C 110 J	11 2/5"	Solid Type A-1	11"	10 3/8"	Cast Iron	Gray	€1,449.52
D	10 C 120 J	12 2/5"	Solid Type A-1	-	10 3/8"	Cast Iron	-	€1,814.24
E	10 C 130 J	13 2/5"	Type A-2 Web	13"	10 3/8"	Cast Iron	Gray	€1,989.53
E	10 C 140 J	14 2/5"	Type A-2 Web	14"	10 3/8"	Cast Iron	Gray	€2,131.64
F	10 C 150 J	15 2/5"	Type A-2 Web	15"	10 3/8"	Cast Iron	Gray	€2,169.53
E	10 C 160 J	16 2/5"	Type A-2 Web	16"	10 3/8"	Cast Iron	Gray	€2,273.74
G	10 C 180 J	18 2/5"	Arm, Spoke Type A-3	18"	10 3/8"	Cast Iron	Gray	€2,605.32
H	10 C 200 J	20.4"	Arm, Spoke Type A-3	20"	10 3/8"	Cast Iron	-	€2,728.51
I	10 C 240 M	24.4"	Arm, Spoke Type A-3	24"	10 3/8"	Cast Iron	Gray	€3,282.71
E	10 C 300 M	30.4"	Arm, Spoke Type A-3	30"	10 3/8"	Cast Iron	Gray	€4,466.49
J	10 C 360 M	36.4"	Arm, Spoke Type A-3	36"	10 3/8"	Cast Iron	Gray	€6,366.49
K	10 C 500 M	50.4"	Arm, Spoke Type A-3	50"	10 3/8"	Cast Iron	Gray	€8,878.25

MARTIN SPROCKET -

5V Series Taper Bushed 10 Groove Hi-Cap Wedge Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

Style	Model	Outside Dia.	Type	Face Width	Pitch Dia.	Material	Color	Price
A	10 5V 850 TB	8 1/2"	Type A Solid	7 3/16"	8 2/5"	Cast Iron	-	€680.72
B	10 5V 925 TB	9 1/4"	Solid Type A-1	7 3/16"	9.15"	Cast Iron	Gray	€770.53
C	10 5V 975 TB	9 3/4"	Type A Solid	7 3/16"	9.65"	Cast Iron	-	€907.63
D	10 5V 900 TB	9"	Solid Type A-1	7 3/16"	8.9"	Cast Iron	Gray	€751.64
E	10 5V 1030 TB	10.3"	Solid Type A-1	7 3/16"	10 1/5"	Cast Iron	Gray	€935.99
F	10 5V 1090 TB	10.9"	Solid Type A-1	7 3/16"	10 4/5"	Cast Iron	Gray	€973.80
G	10 5V 1180 TB	11 4/5"	Solid Type A-1	7 3/16"	11.7"	Cast Iron	Gray	€1,134.54
H	10 5V 1130 TB	11.3"	Solid Type A-1	7 3/16"	11 1/5"	Cast Iron	Gray	€1,081.28
I	10 5V 1250 TB	12 1/2"	Solid Type A-1	7 3/16"	12 2/5"	Cast Iron	Gray	€1,229.09
J	10 5V 1320 TB	13 1/5"	Solid Type A-1	7 3/16"	13.1"	Cast Iron	Gray	€1,370.91
K	10 5V 1400 TB	14"	Solid Type A-1	7 3/16"	13.9"	Cast Iron	Gray	€1,512.72
L	10 5V 1500 TB	15"	Type A-2 Web	7.188"	14.9"	Cast Iron	-	€1,701.81
M	10 5V 1600 TB	16"	Type A-2 Web	7 3/16"	15.9"	Cast Iron	Gray	€1,843.62
N	10 5V 2120 TB	21.2"	Arm, Spoke Type A-3	7 3/16"	21.1"	Cast Iron	Gray	€2,316.34
O	10 5V 2360 TB	23.6"	Type A Web	7 3/16"	23 1/2"	Cast Iron	-	€2,699.24
P	10 5V 2800 TB	28"	Arm, Spoke Type A-3	7 3/16"	27.9"	Cast Iron	Gray	€3,082.17
Q	10 5V 3150 TB	31 1/2"	Arm, Spoke Type A-3	7 3/16"	31 2/5"	Cast Iron	Gray	€3,847.99
R	10 5V 3750 TB	37 1/2"	Arm, Spoke Type A-3	7 3/16"	37 2/5"	Cast Iron	Gray	€4,613.80
S	10 5V 5000 TB	50"	Arm, Spoke Type A-3	7 3/16"	49.9"	Cast Iron	Gray	€6,651.25

MARTIN SPROCKET -

C Series Taper Bushed 12 Groove Conventional Stock Sheaves

A

B

C

D

E

F

G

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	12 C 90 TB	9 2/5"	Solid Type A-1	-	12 3/8"	Cast Iron	Gray	€1,654.55
B	12 C 95 TB	9.9"	Type A Solid	9 1/2"	12 3/8"	Cast Iron	-	€1,701.81
C	12 C 100 TB	10 2/5"	Solid Type A-1	-	12 3/8"	Cast Iron	Gray	€1,749.07
D	12 C 105 TB	10.9"	Type A Solid	10 1/2"	12 3/8"	Cast Iron	-	€1,796.36
E	12 C 110 TB	11 2/5"	Solid Type A-1	11"	12 3/8"	Cast Iron	Gray	€1,843.62
E	12 C 120 TB	12 2/5"	Solid Type A-1	-	12 3/8"	Cast Iron	Gray	€1,928.72
F	12 C 130 TB	13 2/5"	Solid Type A-1	13"	12 3/8"	Cast Iron	Gray	€2,221.80
G	12 C 140 TB	14 2/5"	Solid Type A-1	14"	12 3/8"	Cast Iron	Gray	€2,789.09

MARTIN SPROCKET -

8V Series Taper Bushed 10 Groove Hi-Cap Wedge Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	10 8V 1320 TB	13 1/5"	Solid Type A-1	13"	11 5/8"	Cast Iron	Gray	€2,685.08
B	10 8V 1400 TB	14"	Type A Solid	13 4/5"	11 5/8"	Cast Iron	-	€3,082.17
C	10 8V 1500 TB	15"	Type A Solid	14 4/5"	11 5/8"	Cast Iron	-	€3,408.34
D	10 8V 1600 TB	16"	Solid Type A-1	15 4/5"	11 5/8"	Cast Iron	Gray	€3,800.72
E	10 8V 1700 TB	17"	Solid Type A-1	16 4/5"	11 5/8"	Cast Iron	Gray	€3,895.25
F	10 8V 1800 TB	18"	Type A-2 Web	17 4/5"	11 5/8"	Cast Iron	Gray	€4,065.44
G	10 8V 1900 TB	19"	Type A-2 Web	18 4/5"	11 5/8"	Cast Iron	Gray	€4,159.98
H	10 8V 2000 TB	20"	Type A-2 Web	19 4/5"	11 5/8"	Cast Iron	Gray	€4,396.35
I	10 8V 2120 TB	21.2"	Type A-2 Web	21"	11 5/8"	Cast Iron	Gray	€4,821.80
J	10 8V 2240 TB	22.4"	Arm, Spoke Type A-3	22 1/5"	11 5/8"	Cast Iron	Gray	€5,308.71
K	10 8V 2480 TB	24.8"	Arm, Spoke Type A-3	24 3/5"	11 5/8"	Cast Iron	Gray	€5,571.07
L	10 8V 3000 TB	30"	Arm, Spoke Type A-3	29 4/5"	11 5/8"	Cast Iron	Gray	€6,125.09
M	10 8V 3550 TB	35 1/2"	Arm, Spoke Type A-3	35.3"	11 5/8"	Cast Iron	Gray	€7,035.93
N	10 8V 4000 TB	40"	Arm, Spoke Type A-3	39 4/5"	11 5/8"	Cast Iron	Gray	€7,946.74
O	10 8V 4450 TB	44 1/2"	Arm, Spoke Type A-3	44.3"	11 5/8"	Cast Iron	Gray	€10,177.89

MARTIN SPROCKET -

5V Series Hi-Cap Wedge Stock 3 Groove QD Sheaves
Martin 5V Series Hi-Cap wedge stock sheaves are used in power transmission systems, such as belt-driven applications. They feature a solid, one-piece design for increased durability & strength, a 3-groove system to accommodate up to three belts running simultaneously and QD (quick detachable) bushings to allow easy installation & removal without disassembling the entire drive system. These sheaves are made of Class 30 grey iron with maximum tensile strength and speed of 30000 psi & 6500 fpm, respectively. They are suitable for use with 5V cross-section belts and are designed to handle high power loads & torque, unlike standard sheaves.

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	3 5V 440 SDS	4 2/5"	Solid Type E-1	4.3"	2 3/8"	Cast Iron	-	€175.49
B	3 5V 490 SDS	4.9"	Solid Type A-1	4 4/5"	2 3/8"	Cast Iron	-	€202.13
C	3 5V 465 SDS	4.65"	Solid Type E-1	4.55"	2 3/8"	Cast Iron	-	€188.80
D	3 5V 550 SDS	5 1/2"	Solid Type A-1	5 2/5"	2 3/8"	Cast Iron	-	€228.79
C	3 5V 520 SDS	5 1/5"	Solid Type A-1	5.1"	2 3/8"	Cast Iron	-	€215.46
C	3 5V 590 SDS	5.9"	Solid Type A-1	5 4/5"	2 3/8"	Cast Iron	-	€242.12
E	3 5V 630 SK	6.3"	Solid Type A-1	6 1/5"	2 3/8"	Cast Iron	-	€255.46
F	3 5V 670 SK	6.7"	Solid Type A-1	6 3/5"	2 3/8"	Cast Iron	-	€268.79
G	3 5V 750 SF	7 1/2"	Solid Type A-1	7 2/5"	2 3/8"	Cast Iron	-	€293.23
H	3 5V 710 SF	7.1"	Solid Type A-1	-	2 3/8"	Cast Iron	-	€286.99
I	3 5V 850 SF	8 1/2"	Type A-1 Web	8 2/5"	2 3/8"	Cast Iron	-	€324.31
J	3 5V 800 SF	8"	Solid Type A-1	7.9"	2 3/8"	Cast Iron	-	€315.41
K	3 5V 925 SF	9 1/4"	Type A-2 Web	8.9"	2 3/8"	Cast Iron	-	€346.51
L	3 5V 975 SF	9 3/4"	Type A-2 Web	9.65"	2 3/8"	Cast Iron	-	€359.86
M	3 5V 900 SF	9"	Type A-2 Web	8.9"	2 3/8"	Cast Iron	-	€333.20
N	3 5V 1030 SF	10.3"	Type A-2 Web	10 1/5"	2 3/8"	Cast Iron	-	€382.07
O	3 5V 1090 SF	10.9"	Type A-2 Web	10 4/5"	2 3/8"	Cast Iron	-	€390.94
P	3 5V 1180 SF	11 4/5"	Type A-2 Web	11.7"	2 3/8"	Cast Iron	-	€430.94
Q	3 5V 1130 SF	11.3"	Type A-2 Web	11 1/5"	2 3/8"	Cast Iron	-	€399.83
R	3 5V 1250 E	12 1/2"	Arm, Spoke Type C-2	12 2/5"	2 3/8"	Cast Iron	-	€444.27
S	3 5V 1320 E	13 1/5"	Arm, Spoke Type C-3	13.1"	2 3/8"	Cast Iron	-	€484.25
T	3 5V 1400 E	14"	Arm, Spoke Type C-3	13.9"	2 3/8"	Cast Iron	-	€581.98
U	3 5V 1500 E	15"	Arm, Spoke Type C-3	14.9"	2 3/8"	Cast Iron	-	€608.64
V	3 5V 1600 E	16"	Arm, Spoke Type C-3	15.9"	2 3/8"	Cast Iron	-	€630.86
W	3 5V 1870 E	18.7"	Type C Arm, Spoke	18 3/5"	2 3/8"	Cast Iron	-	€728.58

MARTIN SPROCKET -

8V Series Taper Bushed 6 Groove Hi-Cap Wedge Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Style	Model	Outside Dia.	Type	Face Width	Pitch Dia.	Material	Color	Price
A	6 8V 1250 TB	12 1/2"	Solid Type A-1	6 1/8"	12.3"	Cast Iron	Gray	€1,531.63
B	6 8V 1320 TB	13 1/5"	Solid Type A-1	6 1/8"	13"	Cast Iron	-	€1,640.36
C	6 8V 1400 TB	14"	Solid Type A-1	6 1/8"	13 4/5"	Cast Iron	Gray	€1,739.63
D	6 8V 1500 TB	15"	Solid Type A-1	6 1/8"	14 4/5"	Cast Iron	-	€1,919.25
E	6 8V 1600 TB	16"	Type A Web	7 1/8"	15 4/5"	Cast Iron	-	€2,004.35
F	6 8V 1700 TB	17"	Type A-2 Web	6 1/8"	16 4/5"	Cast Iron	Gray	€2,235.98
G	6 8V 1800 TB	18"	Type A Web	7 1/8"	17 4/5"	Cast Iron	-	€2,410.89
H	6 8V 1900 TB	19"	Type A Web	7 1/8"	18 4/5"	Cast Iron	-	€2,505.43
I	6 8V 2000 TB	20"	Type A Web	7 1/8"	19 4/5"	Cast Iron	-	€2,812.72
J	6 8V 2120 TB	21"	Type A Arm, Spoke	7 1/8"	21 1/5"	Cast Iron	-	€3,119.99
K	6 8V 2240 TB	22.4"	Type A Arm, Spoke	7 1/8"	22 1/5"	Cast Iron	-	€3,687.26
L	6 8V 2480 TB	24.8"	Type D Arm, Spoke	7 1/8"	24 3/5"	Cast Iron	-	€3,784.17
M	6 8V 3000 TB	30"	Type A Arm, Spoke	7 1/8"	29 4/5"	Cast Iron	-	€4,075.13
N	6 8V 3550 TB	35 1/2"	Arm, Spoke Type A-3	7 1/8"	35.3"	Cast Iron	Gray	€4,144.15
O	6 8V 4000 TB	40"	Type A Arm, Spoke	7 1/8"	39 4/5"	Cast Iron	-	€6,174.74
P	6 8V 5300 TB	53"	Arm, Spoke Type A-3	6 1/8"	52 4/5"	Cast Iron	Gray	€9,698.90

MARTIN SPROCKET -

8V Series Taper Bushed 5 Groove Hi-Cap Wedge Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	5 8V 1250 TB	12 1/2"	Solid Type A-1	12.3"	6"	Cast Iron	Gray	€1,460.74
B	5 8V 1320 TB	13 1/5"	Solid Type A-1	13"	6"	Cast Iron	Gray	€1,531.63
C	5 8V 1400 TB	14"	Solid Type A-1	13 4/5"	6"	Cast Iron	Gray	€1,682.89
D	5 8V 1500 TB	15"	Solid Type A-1	14 4/5"	6"	Cast Iron	Gray	€1,772.72
E	5 8V 1600 TB	16"	Solid Type A-1	15 4/5"	6"	Cast Iron	Gray	€1,810.52
F	5 8V 1700 TB	17"	Type A-2 Web	16 4/5"	6"	Cast Iron	Gray	€2,061.07
G	5 8V 1800 TB	18"	Type A-2 Web	17 4/5"	6"	Cast Iron	Gray	€2,169.81
H	5 8V 1900 TB	19"	Type A Web	18 4/5"	6"	Cast Iron	-	€2,358.90
I	5 8V 2000 TB	20"	Type A Web	19 4/5"	6"	Cast Iron	-	€2,387.26
J	5 8V 2240 TB	22.4"	Type A Arm, Spoke	22 1/5"	6"	Cast Iron	-	€3,096.35
K	5 8V 2480 TB	24.8"	Arm, Spoke Type A-3	24 3/5"	6"	Cast Iron	Gray	€3,403.62
L	5 8V 3000 TB	30"	Arm, Spoke Type A-3	29 4/5"	6"	Cast Iron	Gray	€3,710.89
M	5 8V 3550 TB	35 1/2"	Arm, Spoke Type A-3	35.3"	6"	Cast Iron	Gray	€4,531.07
N	5 8V 4000 TB	40"	Arm, Spoke Type A-3	39 4/5"	6"	Cast Iron	Gray	€5,351.25
O	5 8V 4450 TB	44 1/2"	Type A Arm, Spoke	44.3"	6"	Cast Iron	-	€7,079.06
P	5 8V 5300 TB	53"	Arm, Spoke Type A-3	52 4/5"	6"	Cast Iron	Gray	€8,806.85

MARTIN SPROCKET -

C Series Taper Bushed 10 Groove Conventional Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	10 C 90 TB	9 2/5"	Solid Type A-1	-	10 3/8"	Cast Iron	Gray	€1,205.45
B	10 C 95 TB	9.9"	Solid Type A-1	9 1/2"	10 3/8"	Cast Iron	Gray	€1,229.09
C	10 C 105 TB	10.9"	Solid Type A-1	10 1/2"	10 3/8"	Cast Iron	Gray	€1,394.54
D	10 C 110 TB	11 2/5"	Type A Solid	11"	10 3/8"	Cast Iron	-	€1,446.53
E	10 C 120 TB	12 2/5"	Type A-2 Web	-	10 3/8"	Cast Iron	Gray	€1,810.52
F	10 C 130 TB	13 2/5"	Type A-2 Web	13"	10 3/8"	Cast Iron	Gray	€1,985.45
G	10 C 140 TB	14 2/5"	Type A-2 Web	14"	10 3/8"	Cast Iron	Gray	€2,127.25
H	10 C 160 TB	16 2/5"	Type A-2 Web	16"	10 3/8"	Cast Iron	Gray	€2,269.08
I	10 C 180 TB	18 2/5"	Type A-2 Web	18"	10 3/8"	Cast Iron	Gray	€2,600.00
J	10 C 200 TB	20.4"	Arm, Spoke Type A-3	20"	10 3/8"	Cast Iron	Gray	€2,722.89
K	10 C 240 TB	24.4"	Arm, Spoke Type A-3	24"	10 3/8"	Cast Iron	Gray	€3,275.98
L	10 C 300 TB	30.4"	Arm, Spoke Type A-3	30"	10 3/8"	Cast Iron	Gray	€4,457.32
M	10 C 360 TB	36.4"	Arm, Spoke Type A-3	36"	10 3/8"	Cast Iron	Gray	€6,353.42
N	10 C 440 TB	44.4"	Arm, Spoke Type A-3	44"	10 3/8"	Cast Iron	Gray	€7,088.04

MARTIN SPROCKET -

3V Series Taper Bushed 1 Groove Hi-Cap Wedge Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

Style	Model	Type	Outside Dia.	Face Width	Material	Pitch Dia.	Color	Price
A	1 3V 1400 TB	Arm, Spoke Type C-3	14"	13/16"	Cast Iron	13.95"	Gray	€288.36
B	1 3V 1900 TB	Arm, Spoke Type C-3	19"	13/16"	Cast Iron	18.95"	Gray	€472.73
C	1 3V 300 TB	Solid Type A-1	3"	11/16"	Steel	2.95"	-	€57.66
D	1 3V 335 TB	Solid Type A-1	3.35"	0.688"	Steel	3.3"	-	€63.83
C	1 3V 365 TB	Solid Type A-1	3.65"	11/16"	Steel	3 3/5"	-	€66.19
E	1 3V 265 TB	Solid Type A-1	2.65"	0.688"	Steel	2 3/5"	-	€54.36
F	1 3V 315 TB	Solid Type A-1	3.15"	0.688"	Steel	3.1"	-	€60.52
C	1 3V 475 TB	Solid Type B-1	4 3/4"	11/16"	Steel	4.7"	-	€77.06
C	1 3V 280 TB	Solid Type B-1	2 4/5"	1 3/32"	Cast Iron	-	Gray	€56.73
G	1 3V 690 TB	Solid Type B-1	-	0.688"	Steel	6.85"	-	€122.90
H	1 3V 650 TB	Solid Type B-1	6 1/2"	0.688"	Steel	6.45"	-	€104.01
I	1 3V 600 TB	Solid Type B-1	6"	0.688"	Steel	5.95"	-	€94.55
C	1 3V 530 TB	Solid Type B-1	5.3"	11/16"	Steel	5 1/4"	-	€86.98
C	1 3V 500 TB	Solid Type B-1	5"	11/16"	Steel	4.95"	-	€81.77
C	1 3V 450 TB	Solid Type B-1	4 1/2"	11/16"	Steel	4.45"	-	€72.33
C	1 3V 412 TB	Solid Type B-1	4.12"	11/16"	Steel	4.07"	-	€68.08
C	1 3V 560 TB	Solid Type B-1	5 3/5"	11/16"	Steel	5.55"	-	€91.71
J	1 3V 800 TB	Type B-2 Web	8"	0.688"	Cast Iron	7.95"	-	€141.81
K	1 3V 1060 TB	Type B-2 Web	10 3/5"	11/16"	Cast Iron	10.55"	Gray	€236.35

MARTIN SPROCKET -

3V Series Taper Bushed 2 Groove Hi-Cap Wedge Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Style	Model	Type	Outside Dia.	Face Width	Material	Pitch Dia.	Color	Price
A	2 3V 1900 TB	Arm, Spoke Type B-3	19"	1.094"	Cast Iron	18.95"	-	€482.19
B	2 3V 2500 TB	Arm, Spoke Type B-3	25"	1 3/32"	Cast Iron	24.95"	Gray	€860.37
C	2 3V 412 TB	Solid Type A-1	4.12"	1 3/32"	Steel	4.07"	-	€94.55
C	2 3V 265 TB	Solid Type A-1	2.65"	1 3/32"	Steel	2 3/5"	-	€76.10
C	2 3V 560 TB	Solid Type A-1	5 3/5"	1 3/32"	Steel	5.55"	-	€132.36
D	2 3V 530 TB	Solid Type A-1	5.3"	1.094"	Steel	5 1/4"	-	€127.64
E	2 3V 500 TB	Solid Type A-1	5"	1.094"	Steel	4.95"	-	€122.90
F	2 3V 475 TB	Solid Type A-1	4 3/4"	1.94"	Steel	4.7"	-	€113.46
G	2 3V 450 TB	Solid Type A-1	4 1/2"	1.094"	Steel	4.45"	-	€104.01
H	2 3V 335 TB	Solid Type A-1	3.35"	1.94"	Steel	3.3"	-	€83.20
I	2 3V 365 TB	Solid Type A-1	3.65"	1.94"	Steel	3 3/5"	-	€86.04
C	2 3V 650 TB	Solid Type A-1	6 1/2"	1 3/32"	Steel	6.45"	-	€151.27
J	2 3V 690 TB	Solid Type A-1	-	1.094"	Steel	6.85"	-	€165.46
K	2 3V 315 TB	Solid Type A-1	3.15"	1.94"	Cast Iron	3.1"	-	€81.77
C	2 3V 300 TB	Solid Type A-1	3"	1 3/32"	Steel	2.95"	-	€78.94
C	2 3V 280 TB	Solid Type A-1	2 4/5"	1 3/32"	Steel	-	-	€78.48
L	2 3V 600 TB	Solid Type A-1	6"	1.094"	Steel	5.95"	-	€137.11
M	2 3V 1060 TB	Type B-2 Web	10 3/5"	1 3/32"	Cast Iron	10.55"	Gray	€260.00
N	2 3V 800 TB	Type B-2 Web	8"	1.094"	Cast Iron	7.95"	-	€173.49
O	2 3V 1400 TB	Type B-3 Web	14"	1.094"	Cast Iron	13.95"	-	€411.28

MARTIN SPROCKET -

3V Series Taper Bushed 3 Groove Hi-Cap Wedge Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Style	Model	Type	Outside Dia.	Material	Pitch Dia.	Face Width	Color	Price
A	3 3V 1400 TB	Arm, Spoke	14"	Cast Iron	13.95"	1 1/2"	-	€434.91
B	3 3V 1900 TB	Arm, Spoke	19"	Cast Iron	18.95"	1 1/2"	-	€510.54
C	3 3V 3350 TB	Arm, Spoke Type C-3	33 1/2"	Cast Iron	33.45"	1 1/2"	Gray	€1,701.81
D	3 3V 2500 TB	Arm, Spoke Type C-3	25"	Cast Iron	24.95"	1 1/2"	Gray	€945.45
E	3 3V 300 TB	Solid	3"	Steel	2.95"	1 1/2"	-	€91.71
F	3 3V 600 TB	Solid	6"	Steel	5.95"	1 1/2"	-	€155.99
G	3 3V 500 TB	Solid	5"	Steel	4.95"	1 1/2"	-	€137.11
H	3 3V 800 TB	Solid	8"	Cast Iron	7.95"	1 1/2"	-	€207.53
I	3 3V 280 TB	Solid Type A-1	2 4/5"	Cast Iron	-	1 1/2"	-	€90.75
J	3 3V 315 TB	Solid Type A-1	3.15"	Steel	3.1"	1 1/2"	-	€94.55
K	3 3V 265 TB	Solid Type A-1	2.65"	Steel	2 3/5"	1 1/2"	-	€88.87
L	3 3V 365 TB	Solid Type A-1	3.65"	Steel	3 3/5"	1 1/2"	-	€100.22
M	3 3V 412 TB	Solid Type A-1	4.12"	Steel	4.7"	1 1/2"	-	€104.01
N	3 3V 450 TB	Solid Type A-1	4 1/2"	Steel	4.45"	1 1/2"	-	€118.18
J	3 3V 475 TB	Solid Type A-1	4 3/4"	Steel	4.7"	1 1/2"	-	€127.64
J	3 3V 530 TB	Solid Type A-1	5.3"	Steel	5 1/4"	1 1/2"	-	€141.81
J	3 3V 560 TB	Solid Type A-1	5 3/5"	Steel	5.55"	1 1/2"	-	€146.53
O	3 3V 335 TB	Solid Type A-1	3.35"	Steel	3.3"	1 1/2"	-	€97.38
J	3 3V 650 TB	Solid Type B-1	6 1/2"	Steel	6.45"	1 1/2"	-	€165.46
J	3 3V 690 TB	Solid Type B-1	-	Steel	6.85"	1 1/2"	-	€189.09
P	3 3V 1060 TB	Type B-2 Web	10 3/5"	Cast Iron	1.55"	1 1/2"	-	€297.80

MARTIN SPROCKET -

3V Series Taper Bushed 4 Groove Hi-Cap Wedge Stock Sheaves
Martin Sprocket 3V Series wedge stock sheaves are used in industrial machinery and power transmission systems. These taper bushed 4 groove Hi-Cap wedge stock sheaves offer efficient transfer of power between belts and pulleys, optimising performance and reliability in various manufacturing and mechanical applications. They have cast iron / steel construction for structural rigidity and durability.

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

Style	Model	Type	Outside Dia.	Face Width	Material	Pitch Dia.	Color	Price
A	4 3V 1900 TB	Arm, Spoke Type C-3	19"	1.906"	Cast Iron	18.95"	-	€595.62
B	4 3V 560 TB	Solid Type A-1	5 3/5"	1 29/32"	Steel	5.55"	-	€155.99
C	4 3V 600 TB	Solid Type A-1	6"	1.906"	Steel	5.95"	-	€165.46
D	4 3V 530 TB	Solid Type A-1	5.3"	1 29/32"	Steel	5 1/4"	-	€151.27
E	4 3V 500 TB	Solid Type A-1	5"	1.906"	Cast Iron	4.95"	-	€141.81
F	4 3V 475 TB	Solid Type A-1	4 3/4"	1 29/32"	Steel	4.7"	-	€135.20
G	4 3V 450 TB	Solid Type A-1	4 1/2"	1 29/32"	Steel	4.45"	-	€124.33
H	4 3V 412 TB	Solid Type A-1	4.12"	1 24/25"	Steel	4.7"	-	€119.59
I	4 3V 365 TB	Solid Type A-1	3.65"	1 24/25"	Steel	3 3/5"	-	€114.40
G	4 3V 335 TB	Solid Type A-1	3.35"	1 29/32"	Steel	3.3"	-	€109.68
G	4 3V 315 TB	Solid Type A-1	3.15"	1 29/32"	Steel	3.1"	-	€105.90
J	4 3V 300 TB	Solid Type A-1	3"	1 29/32"	Steel	2.95"	-	€104.48
K	4 3V 280 TB	Solid Type A-1	2 4/5"	1 29/32"	Steel	-	-	€104.01
G	4 3V 265 TB	Solid Type A-1	2.65"	1 29/32"	Steel	2 3/5"	-	€102.11
L	4 3V 800 TB	Solid Type A-1	8"	1.906"	Cast Iron	7.95"	-	€218.40
M	4 3V 690 TB	Solid Type A-1	-	1.906"	Steel	6.85"	-	€200.44
G	4 3V 650 TB	Solid Type A-1	6 1/2"	1 29/32"	Steel	6.45"	-	€173.49
N	4 3V 1060 TB	Type A-2 Web	10 3/5"	1 29/32"	Cast Iron	10.55"	Gray	€307.27
O	4 3V 1400 TB	Type A Arm, Spoke	14"	1 29/32"	Cast Iron	13.95"	-	€463.26
P	4 3V 2500 TB	Type C Arm, Spoke	25"	1 29/32"	Cast Iron	24.95"	-	€1,002.18
Q	4 3V 3350 TB	Type C Arm, Spoke	33 1/2"	1 29/32"	Cast Iron	33.45"	-	€1,843.62

MARTIN SPROCKET -

A-B Combination Taper Bushed 1 Groove Conventional Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Style	Model	Outside Dia.	Face Width	Material	Pitch Dia.	Color	Price
A	1 B 34 TB	3 3/4"	1"	Steel	3 2/5"	-	€61.93
A	1 B 36 TB	3.95"	1"	Steel	3 3/5"	-	€64.29
B	1 B 44 TB	4 3/4"	1"	Steel	4 2/5"	-	€74.21
C	1 B 38 TB	4.15"	1"	Steel	-	-	€66.66
A	1 B 40 TB	4.35"	1"	Steel	-	-	€69.01
D	1 B 42 TB	4.55"	1"	Steel	4 1/5"	-	€71.39
E	1 B 46 TB	4.95"	1"	Steel	4 3/5"	-	€75.64
A	1 B 54 TB	5 3/4"	1"	Steel	5 2/5"	-	€85.08
F	1 B 48 TB	5.15"	1"	Steel	4 4/5"	-	€78.00
A	1 B 50 TB	5.35"	1"	Steel	-	-	€80.36
A	1 B 52 TB	5.55"	1"	Steel	5 1/5"	-	€82.73
A	1 B 56 TB	5.95"	1"	Steel	5 3/5"	-	€88.40
A	1 B 64 TB	6 3/4"	1"	Steel	6 2/5"	-	€105.90
A	1 B 58 TB	6.15"	1"	Steel	5 4/5"	-	€90.75
G	1 B 60 TB	6.35"	1"	Steel	-	-	€94.55
A	1 B 62 TB	6.55"	1"	Steel	6 1/5"	-	€100.22
H	1 B 66 TB	6.95"	1"	Steel	6 3/5"	-	€113.46
I	1 B 74 TB	7 3/4"	1"	Cast Iron	7 2/5"	-	€132.36
J	1 B 68 TB	7.15"	1"	Cast Iron	6 4/5"	-	€118.18
K	1 B 70 TB	7.35"	1"	Cast Iron	-	-	€125.26
L	1 B 80 TB	8.35"	1"	Cast Iron	-	Gray	€139.45
M	1 B 86 TB	8.95"	1"	Cast Iron	8 3/5"	Gray	€146.53
N	1 B 94 TB	9 3/4"	1"	Cast Iron	9 2/5"	-	€155.99
O	1 B 110 TB	11.35"	1"	Cast Iron	11"	Gray	€189.09
P	1 B 124 TB	12 3/4"	1"	Cast Iron	12 2/5"	-	€219.34

MARTIN SPROCKET -

A-B Combination Taper Bushed 2 Groove Conventional Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

Style	Model	Outside Dia.	Type	Material	Pitch Dia.	Face Width	Color	Price
A	2 B 34 TB	3 3/4"	Arm, Spoke Type A-1	Steel	3 2/5"	1 3/4"	-	€90.75
B	2 B 36 TB	3.95"	Solid Type A-1	Steel	3 3/5"	1 3/4"	-	€95.48
C	2 B 44 TB	4 3/4"	Solid Type A-1	Steel	4 2/5"	1 3/4"	-	€113.46
D	2 B 38 TB	4.15"	Solid Type A-1	Steel	3 4/5"	1 3/4"	-	€100.22
C	2 B 40 TB	4.35"	Solid Type A-1	Steel	-	1 3/4"	-	€104.01
C	2 B 42 TB	4.55"	Solid Type A-1	Steel	4 1/5"	1 3/4"	-	€108.73
E	2 B 46 TB	4.95"	Solid Type A-1	Steel	4 3/5"	1 3/4"	-	€118.18
F	2 B 54 TB	5 3/4"	Solid Type A-1	Steel	5 2/5"	1 3/4"	-	€137.11
C	2 B 48 TB	5.15"	Solid Type A-1	Steel	4 4/5"	1 3/4"	-	€122.90
G	2 B 50 TB	5.35"	Solid Type A-1	Steel	-	1 3/4"	-	€127.64
H	2 B 52 TB	5.55"	Solid Type A-1	Steel	5 1/5"	1 3/4"	-	€132.36
I	2 B 56 TB	5.95"	Solid Type A-1	Steel	5 3/5"	1 3/4"	-	€141.81
C	2 B 64 TB	6 3/4"	Solid Type A-1	Steel	6 2/5"	1 3/4"	-	€160.74
J	2 B 58 TB	6.15"	Solid Type A-1	Steel	5 4/5"	1 3/4"	-	€146.53
C	2 B 60 TB	6.35"	Solid Type A-1	Steel	-	1 3/4"	-	€151.27
C	2 B 62 TB	6.55"	Solid Type A-1	Steel	6 1/5"	1 3/4"	-	€155.99
K	2 B 66 TB	6.95"	Solid Type A-1	Steel	6 3/5"	1 3/4"	-	€163.08
L	2 B 74 TB	7 3/4"	Type A-1 Web	Cast Iron	7 2/5"	1 3/4"	-	€172.55
M	2 B 68 TB	7.15"	Solid Type A-1	Cast Iron	6 4/5"	1 3/4"	-	€165.46
N	2 B 86 TB	8.95"	Type A-2 Web	Cast Iron	8 3/5"	1 3/4"	Gray	€182.94
O	2 B 94 TB	9 3/4"	Type A-2 Web	Cast Iron	9 2/5"	1 3/4"	-	€189.09
P	2 B 110 TB	11.35"	Arm, Spoke Type A-2	Cast Iron	11"	1 3/4"	-	€221.70
Q	2 B 124 TB	12 3/4"	Arm, Spoke Type A-3	Cast Iron	12 2/5"	1 3/4"	-	€241.07
R	2 B 136 TB	13.95"	Solid Type A-1	Cast Iron	13 3/5"	1 3/4"	Gray	€319.11
S	2 B 154 TB	15 3/4"	Arm, Spoke Type A-3	Cast Iron	15 2/5"	1 3/4"	Gray	€397.09

MARTIN SPROCKET -

A-B Combination Taper Bushed 3 Groove Conventional Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Style	Model	Outside Dia.	Type	Material	Pitch Dia.	Face Width	Color	Price
A	3 B 34 TB	3 3/4"	Solid Type A-1	Steel	3 2/5"	2 1/2"	-	€104.94
B	3 B 36 TB	3.95"	Solid Type A-1	Steel	3 3/5"	2 1/2"	-	€111.09
B	3 B 44 TB	4 3/4"	Solid Type A-1	Steel	4 2/5"	2 1/2"	-	€132.36
C	3 B 38 TB	4.15"	Solid Type A-1	Steel	3 4/5"	2 1/2"	-	€114.40
D	3 B 40 TB	4.35"	Solid Type A-1	Steel	-	2 1/2"	-	€120.55
B	3 B 42 TB	4.55"	Solid Type A-1	Steel	4 1/5"	2 1/2"	-	€125.26
B	3 B 46 TB	4.95"	Solid Type A-1	Steel	4 3/5"	2 1/2"	-	€133.78
B	3 B 54 TB	5 3/4"	Solid Type A-1	Steel	5 2/5"	2 1/2"	-	€154.10
B	3 B 48 TB	5.15"	Solid Type A-1	Steel	4 4/5"	2 1/2"	-	€137.11
E	3 B 50 TB	5.35"	Solid Type A-1	Steel	-	2 1/2"	-	€141.81
B	3 B 52 TB	5.55"	Solid Type A-1	Steel	5 1/5"	2 1/2"	-	€150.79
F	3 B 56 TB	5.95"	Solid Type A-1	Steel	5 3/5"	2 1/2"	-	€163.56
B	3 B 64 TB	6 3/4"	Solid Type A-1	Steel	6 2/5"	2 1/2"	-	€182.94
G	3 B 58 TB	6.15"	Solid Type A-1	Steel	5 4/5"	2 1/2"	-	€164.04
H	3 B 60 TB	6.35"	Solid Type A-1	Steel	-	2 1/2"	-	€172.06
B	3 B 62 TB	6.55"	Solid Type A-1	Steel	6 1/5"	2 1/2"	-	€173.95
B	3 B 66 TB	6.95"	Solid Type A-1	Steel	6 3/5"	2 1/2"	-	€188.16
I	3 B 74 TB	7 3/4"	Type A-1 Web	Cast Iron	7 2/5"	2 1/2"	-	€202.33
J	3 B 68 TB	7.15"	Solid Type A-1	Cast Iron	6 4/5"	2 1/2"	-	€192.86
K	3 B 80 TB	8.35"	Solid Type A-1	Cast Iron	-	2 1/2"	Gray	€218.17
L	3 B 86 TB	8.95"	Type A-2 Web	Cast Iron	8 3/5"	2 1/2"	-	€234.00
M	3 B 94 TB	9 3/4"	Type A-2 Web	Cast Iron	9 2/5"	2 1/2"	Gray	€250.54
N	3 B 110 TB	11.35"	Arm, Spoke Type A-2	Cast Iron	11"	2 1/2"	-	€297.80
B	3 B 124 TB	12 3/4"	Solid Type A-1	Cast Iron	12 2/5"	2 1/2"	Gray	€343.67
O	3 B 136 TB	13.95"	Type A Arm, Spoke	Cast Iron	13 3/5"	2 1/2"	-	€408.21

MARTIN SPROCKET -

A-B Combination Taper Bushed 4 Groove Conventional Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

Style	Model	Outside Dia.	Type	Face Width	Material	Pitch Dia.	Color	Price
A	4 B 34 TB	3 3/4"	Solid Type A-1	3 1/4"	Steel	3 2/5"	-	€151.27
B	4 B 36 TB	3.95"	Solid Type A-1	3 1/4"	Steel	3 3/5"	-	€155.99
C	4 B 44 TB	4 3/4"	Solid Type A-1	3 1/2"	Steel	4 2/5"	-	€174.90
D	4 B 38 TB	4.15"	Solid Type A-1	3 1/2"	Steel	3 4/5"	-	€160.74
E	4 B 40 TB	4.35"	Solid Type A-1	3 1/2"	Steel	-	-	€165.46
F	4 B 42 TB	4.55"	Type A-1 Web	3 1/2"	Cast Iron	4 1/5"	-	€170.18
A	4 B 46 TB	4.95"	Solid Type A-1	3 1/4"	Steel	4 3/5"	-	€179.63
G	4 B 54 TB	5 3/4"	Solid Type A-1	3 1/2"	Steel	5 2/5"	-	€204.23
H	4 B 48 TB	5.15"	Solid Type A-1	3 1/2"	Steel	4 4/5"	-	€184.37
I	4 B 50 TB	5.35"	Solid Type A-1	3 1/2"	Steel	-	-	€189.09
A	4 B 52 TB	5.55"	Solid Type A-1	3 1/4"	Steel	5 1/5"	-	€193.81
J	4 B 56 TB	5.95"	Solid Type A-1	3 1/2"	Steel	5 3/5"	-	€207.53
A	4 B 64 TB	6 3/4"	Solid Type A-1	3 1/4"	Steel	6 2/5"	-	€231.65
K	4 B 58 TB	6.15"	Solid Type B-1	3 1/4"	Cast Iron	5 4/5"	Gray	€213.65
L	4 B 60 TB	6.35"	Solid Type A-1	3 1/2"	Steel	-	-	€218.40
M	4 B 62 TB	6.55"	Solid Type A-1	3 1/2"	Steel	6 1/5"	-	€222.19
N	4 B 66 TB	6.95"	Type A Solid	3 1/4"	Cast Iron	6 3/5"	-	€241.07
A	4 B 74 TB	7 3/4"	Solid Type B-1	3 1/4"	Cast Iron	7 2/5"	Gray	€269.45
O	4 B 68 TB	7.15"	Solid Type A-1	3 1/2"	Cast Iron	6 4/5"	-	€250.54
P	4 B 70 TB	7.35"	Solid Type A-1	3 1/2"	Cast Iron	-	-	€260.00
Q	4 B 86 TB	8.95"	Type A-2 Web	3 1/4"	Cast Iron	8 3/5"	Gray	€301.59
Q	4 B 94 TB	9 3/4"	Type A-2 Web	3 1/4"	Cast Iron	9 2/5"	Gray	€332.80
R	4 B 110 TB	11.35"	Arm, Spoke Type A-2	3 1/2"	Cast Iron	11"	-	€370.13
S	4 B 124 TB	12 3/4"	Solid Type A-3	3 1/2"	Cast Iron	12 2/5"	-	€414.11
T	4 B 154 TB	15 3/4"	Type A Arm, Spoke	3 1/4"	Cast Iron	15 2/5"	-	€538.92

MARTIN SPROCKET -

8V Series Taper Bushed 4 Groove Hi-Cap Wedge Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	4 8V 1250 TB	12 1/2"	Type A Solid	12.3"	4 7/8"	Cast Iron	-	€1,375.61
B	4 8V 1320 TB	13 1/5"	Type A Solid	13"	4 7/8"	Cast Iron	-	€1,394.54
C	4 8V 1400 TB	14"	Solid Type A-1	13 4/5"	4 7/8"	Cast Iron	Gray	€1,413.45
D	4 8V 1500 TB	15"	Solid Type A-1	14 4/5"	4 7/8"	Cast Iron	Gray	€1,522.18
E	4 8V 1600 TB	16"	Type A-2 Web	15 4/5"	4 7/8"	Cast Iron	Gray	€1,541.07
F	4 8V 1700 TB	17"	Type A-2 Web	16 4/5"	4 7/8"	Cast Iron	Gray	€1,819.99
G	4 8V 1800 TB	18"	Type A-2 Web	17 4/5"	4 7/8"	Cast Iron	Gray	€1,834.17
H	4 8V 1900 TB	19"	Type A-2 Web	18 4/5"	4 7/8"	Cast Iron	Gray	€1,924.00
I	4 8V 2000 TB	20"	Type A Web	19 4/5"	4 7/8"	Cast Iron	-	€2,032.71
J	4 8V 2120 TB	21.2"	Type A-2 Web	21"	4 7/8"	Cast Iron	Gray	€2,084.71
K	4 8V 2240 TB	22.4"	Type A Arm, Spoke	22 1/5"	4 7/8"	Cast Iron	-	€2,155.62
L	4 8V 2480 TB	24.8"	Type D Arm, Spoke	24 3/5"	4 7/8"	Cast Iron	-	€2,637.80
M	4 8V 3000 TB	30"	Arm, Spoke Type A-3	29 4/5"	4 7/8"	Cast Iron	Gray	€3,119.99
N	4 8V 4000 TB	40"	Arm, Spoke Type C-3	39 4/5"	4 7/8"	Cast Iron	Gray	€4,604.35
O	4 8V 4450 TB	44 1/2"	Type D Arm, Spoke	44.3"	4 7/8"	Cast Iron	-	€6,400.71
P	4 8V 5300 TB	53"	Arm, Spoke Type C-3	52 4/5"	4 7/8"	Cast Iron	Gray	€8,197.06

MARTIN SPROCKET -

8V Series Taper Bushed 12 Groove Hi-Cap Wedge Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	12 8V 1250 TB	12 1/2"	Solid Type A-1	12.3"	13 7/8"	Cast Iron	Gray	€5,294.52
B	12 8V 1400 TB	14"	Type A Solid	13 4/5"	13 7/8"	Cast Iron	-	€5,519.08
C	12 8V 1500 TB	15"	Type A Web	14 4/5"	13 7/8"	Cast Iron	-	€5,631.33
D	12 8V 1600 TB	16"	Solid Type A-1	15 4/5"	13 7/8"	Cast Iron	Gray	€5,719.96
E	12 8V 1700 TB	17"	Type A-2 Web	16 4/5"	13 7/8"	Cast Iron	Gray	€5,826.35
F	12 8V 1900 TB	19"	Type A-2 Web	18 4/5"	13 7/8"	Cast Iron	Gray	€6,039.07
G	12 8V 2120 TB	21.2"	Arm, Spoke Type A-3	21"	13 7/8"	Cast Iron	Gray	€6,547.24
H	12 8V 2240 TB	22.4"	Arm, Spoke Type A-3	22 1/5"	13 7/8"	Cast Iron	Gray	€6,748.15
I	12 8V 3550 TB	35 1/2"	Arm, Spoke Type A-3	35.3"	13 7/8"	Cast Iron	Gray	€9,815.55
J	12 8V 4000 TB	40"	Type A Arm, Spoke	39 4/5"	13 7/8"	Cast Iron	-	€10,622.14
K	12 8V 4450 TB	44 1/2"	Arm, Spoke Type A-3	44.3"	13 7/8"	Cast Iron	Gray	€13,091.53
L	12 8V 5300 TB	53"	Arm, Spoke Type A-3	52 4/5"	13 7/8"	Cast Iron	Gray	€21,467.62

MARTIN SPROCKET -

A-B Combination Taper Bushed 6 Groove Conventional Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

Style	Model	Outside Dia.	Type	Material	Pitch Dia.	Face Width	Color	Price
A	6 B 44 TB	4 3/4"	Type A Solid	Cast Iron	4 2/5"	4 3/4"	-	€264.73
B	6 B 42 TB	4.55"	Solid Type A-1	Steel	4 1/5"	4 3/4"	-	€255.28
C	6 B 46 TB	4.95"	Solid Type B-1	Cast Iron	4 3/5"	4 3/4"	Gray	€269.45
D	6 B 54 TB	5 3/4"	Solid Type B-1	Cast Iron	5 2/5"	4 3/4"	Gray	€286.00
C	6 B 50 TB	5.35"	Solid Type B-1	Cast Iron	-	4 3/4"	Gray	€278.91
E	6 B 52 TB	5.55"	Solid Type A-1	Steel	5 1/5"	4 3/4"	-	€283.64
F	6 B 56 TB	5.95"	Solid Type A-1	Cast Iron	5 3/5"	4 3/4"	Gray	€288.36
G	6 B 64 TB	6 3/4"	Type A Solid	Cast Iron	6 2/5"	4 3/4"	-	€321.45
C	6 B 58 TB	6.15"	Solid Type A-1	Cast Iron	5 4/5"	4 3/4"	Gray	€300.18
H	6 B 60 TB	6.35"	Solid Type A-1	Cast Iron	-	4 3/4"	-	€311.99
I	6 B 66 TB	6.95"	Solid Type A-1	Cast Iron	6 3/5"	4 3/4"	Gray	€333.27
J	6 B 74 TB	7 3/4"	Solid Type A-1	Cast Iron	7 2/5"	4 3/4"	-	€486.89
C	6 B 68 TB	7.15"	Solid Type B-1	Cast Iron	6 4/5"	4 3/4"	Gray	€345.08
C	6 B 70 TB	7.35"	Solid Type A-1	Cast Iron	-	4 3/4"	Gray	€416.00
K	6 B 80 TB	8.35"	Solid Type A-1	Cast Iron	-	4 3/4"	Gray	€505.82
L	6 B 86 TB	8.95"	Type A Web	Cast Iron	8 3/5"	4 3/4"	-	€524.71
M	6 B 94 TB	9 3/4"	Solid Type A-2	Cast Iron	9 2/5"	4 3/4"	-	€548.35
N	6 B 110 TB	11.35"	Type A Web	Cast Iron	11"	4 3/4"	-	€590.90
O	6 B 124 TB	12 3/4"	Type A Arm, Spoke	Cast Iron	12 2/5"	4 3/4"	-	€657.09
P	6 B 136 TB	13.95"	Arm, Spoke Type A-3	Cast Iron	13 3/5"	4 3/4"	Gray	€697.27
Q	6 B 154 TB	15 3/4"	Arm, Spoke Type A-3	Cast Iron	15 2/5"	4 3/4"	Gray	€737.44
R	6 B 160 TB	16.35"	Arm, Spoke Type A-3	Cast Iron	16"	4 3/4"	Gray	€798.92
S	6 B 184 TB	18 3/4"	Arm, Spoke Type A-3	Cast Iron	18 2/5"	4 3/4"	Gray	€860.37
T	6 B 200 TB	20.35"	Arm, Spoke Type A-3	Cast Iron	20"	4 3/4"	Gray	€1,129.82
U	6 B 250 TB	25.35"	Arm, Spoke Type A-3	Cast Iron	25"	4 3/4"	Gray	€1,370.91

MARTIN SPROCKET -

5V Series Hi-Cap Wedge Stock 4 Groove QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

Style	Model	Outside Dia.	Type	Face Width	Pitch Dia.	Material	Color	Price
A	4 5V 440 SD	4 2/5"	Solid Type E-1	3.063"	4.3"	Cast Iron	-	€204.37
A	4 5V 490 SD	4.9"	Solid Type A-1	3.063"	4 4/5"	Cast Iron	-	€231.03
B	4 5V 465 SD	4.65"	Solid Type E-1	3.063"	4.55"	Cast Iron	-	€217.69
C	4 5V 550 SD	5 1/2"	Solid Type A-1	3 1/16"	5 2/5"	Cast Iron	Gray	€257.67
C	4 5V 520 SD	5 1/5"	Solid Type A-1	3 1/16"	5.1"	Cast Iron	Gray	€244.34
A	4 5V 590 SD	5.9"	Solid Type A-1	3.063"	5 4/5"	Cast Iron	-	€270.99
D	4 5V 630 SK	6.3"	Solid Type A-1	3.063"	6 1/5"	Cast Iron	-	€284.33
E	4 5V 670 SK	6.7"	Solid Type A-1	3.063"	6 3/5"	Cast Iron	-	€297.65
F	4 5V 750 SF	7 1/2"	Solid Type A-1	3.063"	7 2/5"	Cast Iron	-	€335.41
G	4 5V 710 SF	7.1"	Solid Type A-1	3.063"	-	Cast Iron	-	€320.32
H	4 5V 850 E	8 1/2"	Solid Type B-1	3.063"	8 2/5"	Cast Iron	-	€359.86
A	4 5V 800 E	8"	Solid Type B-1	3.063"	7.9"	Cast Iron	-	€346.51
I	4 5V 925 E	9 1/4"	Solid Type B-1	3.063"	9.15"	Cast Iron	-	€380.72
J	4 5V 975 E	9 3/4"	Solid Type B-1	3.063"	9.65"	Cast Iron	-	€435.37
K	4 5V 900 E	9"	Solid Type B-1	3.063"	8.9"	Cast Iron	-	€364.31
L	4 5V 1030 E	10.3"	Solid Type B-1	3.063"	10 1/5"	Cast Iron	-	€444.27
M	4 5V 1090 E	10.9"	Solid Type B-2	3.063"	10 4/5"	Cast Iron	-	€457.59
N	4 5V 1180 E	11 4/5"	Type B-2 Web	3.063"	11.7"	Cast Iron	-	€502.02
O	4 5V 1130 E	11.3"	Solid Type B-2	3.063"	11 1/5"	Cast Iron	-	€497.57
P	4 5V 1250 E	12 1/2"	Arm, Spoke Type B-3	3.063"	12 2/5"	Cast Iron	-	€519.78
Q	4 5V 1320 E	13 1/5"	Arm, Spoke Type B-3	3.063"	13.1"	Cast Iron	-	€581.98
R	4 5V 1400 E	14"	Arm, Spoke Type B-3	3.063"	13.9"	Cast Iron	-	€657.50
S	4 5V 1500 E	15"	Arm, Spoke Type B-3	3.063"	14.9"	Cast Iron	-	€733.04
T	4 5V 1600 E	16"	Type B Arm, Spoke	3 1/16"	15.9"	Cast Iron	-	€755.24
U	4 5V 1870 E	18.7"	Arm, Spoke Type A-3	3.063"	18 3/5"	Cast Iron	-	€844.10

MARTIN SPROCKET -

5V Series Hi-Cap Wedge Stock 2 Groove QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Style	Model	Outside Dia.	Type	Face Width	Pitch Dia.	Material	Color	Price
A	2 5V 440 SH	4 2/5"	Solid Type A-1	1.688"	4.3"	Cast Iron	-	€162.15
B	2 5V 490 SDS	4.9"	Solid Type A-1	1.688"	4 4/5"	Cast Iron	-	€188.80
A	2 5V 465 SDS	4.65"	Solid Type E-1	1.688"	4.55"	Cast Iron	-	€175.49
C	2 5V 520 SDS	5 1/5"	Solid Type A-1	1.688"	5.1"	Cast Iron	-	€202.13
D	2 5V 550 SDS	5.5"	Solid Type A-1	1.688"	5 2/5"	Cast Iron	-	€215.46
E	2 5V 590 SDS	5.9"	Solid Type A-1	1.688"	5 4/5"	Cast Iron	-	€228.79
F	2 5V 630 SK	6.3"	Solid Type C-1	1.688"	6 1/5"	Cast Iron	-	€242.12
G	2 5V 670 SK	6.7"	Solid Type C-1	1.688"	6 3/5"	Cast Iron	-	€255.46
H	2 5V 750 SK	7 1/2"	Solid Type C-1	1.688"	7 2/5"	Cast Iron	-	€270.99
I	2 5V 710 SK	7.1"	Solid Type C-1	1.688"	-	Cast Iron	-	€266.55
J	2 5V 850 SK	8 1/2"	Solid Type C-1	1.688"	8 2/5"	Cast Iron	-	€284.33
K	2 5V 800 SK	8"	Solid Type C-1	1.688"	7.9"	Cast Iron	-	€275.45
L	2 5V 925 SK	9 1/4"	Type C-2 Web	1.688"	9.15"	Cast Iron	-	€322.98
M	2 5V 975 SK	9 3/4"	Arm, Spoke Type C-3	1.688"	9.65"	Cast Iron	-	€335.41
N	2 5V 900 SK	9"	Type C-2 Web	1.688"	8.9"	Cast Iron	-	€302.09
O	2 5V 1030 SK	10.3"	Arm, Spoke Type C-3	1.688"	10 1/5"	Cast Iron	-	€347.86
P	2 5V 1090 SK	10.9"	Arm, Spoke Type C-3	1.688"	10 4/5"	Cast Iron	-	€359.86
Q	2 5V 1180 SK	11 4/5"	Arm, Spoke Type C-3	1.688"	11.7"	Cast Iron	-	€368.75
R	2 5V 1130 SK	11.3"	Arm, Spoke Type C-3	1.688"	11 1/5"	Cast Iron	-	€364.31
S	2 5V 1250 SF	12 1/2"	Arm, Spoke Type C-3	1.688"	12 2/5"	Cast Iron	-	€373.17
T	2 5V 1320 SF	13 1/5"	Arm, Spoke Type C-3	1.688"	13.1"	Cast Iron	-	€413.17
U	2 5V 1400 SF	14"	Arm, Spoke Type C-3	1.688"	13.9"	Cast Iron	-	€510.91
V	2 5V 1500 SF	15"	Arm, Spoke Type C-3	1.688"	14.9"	Cast Iron	-	€524.21
W	2 5V 1600 SF	16"	Arm, Spoke Type C-3	1 11/16"	15.9"	Cast Iron	Gray	€573.10
X	2 5V 1870 SF	18.7"	Arm, Spoke Type C-3	1.688"	18 3/5"	Cast Iron	-	€666.40

MARTIN SPROCKET -

3V Series Taper Bushed 5 Groove Hi-Cap Wedge Stock Sheaves

A

B

C

D

E

F

G

H

I

J

Style	Model	Type	Outside Dia.	Face Width	Pitch Dia.	Material	Color	Price
A	5 3V 1900 TB	Arm, Spoke Type C-3	19"	2 5/16"	18.95"	Cast Iron	Gray	€690.17
A	5 3V 1400 TB	Arm, Spoke Type C-3	14"	2 5/16"	13.95"	Cast Iron	Gray	€548.35
B	5 3V 2500 TB	Arm, Spoke Type C-3	25"	2 5/16"	24.95"	Cast Iron	Gray	€1,063.63
A	5 3V 3350 TB	Arm, Spoke Type C-3	33 1/2"	2 5/16"	33.45"	Cast Iron	Gray	€2,009.08
C	5 3V 500 TB	Solid Type A-1	5"	2.313"	4.95"	Cast Iron	-	€162.15
D	5 3V 560 TB	Solid Type A-1	5 3/5"	2.313"	5.55"	Cast Iron	-	€179.63
E	5 3V 600 TB	Solid Type A-1	6"	2.313"	5.95"	Cast Iron	-	€184.37
F	5 3V 450 TB	Solid Type A-1	4 1/2"	2 5/16"	4.45"	Cast Iron	Gray	€137.55
G	5 3V 475 TB	Solid Type B-1	4 3/4"	2 5/16"	4.7"	Cast Iron	Gray	€149.39
G	5 3V 530 TB	Solid Type B-1	5.3"	2 5/16"	5 1/4"	Cast Iron	Gray	€168.76
G	5 3V 650 TB	Solid Type B-1	6 1/2"	2 5/16"	6.45"	Cast Iron	Gray	€194.76
H	5 3V 1060 TB	Type A-2 Web	10 3/5"	2.313"	1.55"	Cast Iron	-	€313.42
I	5 3V 690 TB	Type A Solid	-	2 5/16"	6.85"	Cast Iron	-	€218.40
J	5 3V 800 TB	Type B-2 Web	8"	2 5/16"	7.95"	Cast Iron	Gray	€232.58

MARTIN SPROCKET -

8V Series Hi-Cap Wedge Stock 4 Groove MST Sheaves

A

B

C

D

E

F

G

Style	Model	Outside Dia.	Pitch Dia.	Face Width	Material	Price
A	4 8V 1250 S	12 1/2"	12.3"	4 7/8"	Cast Iron	€1,715.54
B	4 8V 1320 S	13 1/5"	13"	4 7/8"	Cast Iron	€1,740.69
C	4 8V 1400 S	14"	13 4/5"	4 7/8"	Cast Iron	€1,765.75
D	4 8V 1500 S	15"	14 4/5"	4 7/8"	Cast Iron	€1,879.01
D	4 8V 1600 S	16"	15 4/5"	4 7/8"	Cast Iron	€2,080.22
D	4 8V 1800 S	18"	17 4/5"	4 7/8"	Cast Iron	€2,394.68
D	4 8V 1900 S	19"	18 4/5"	4 7/8"	Cast Iron	€2,489.00
D	4 8V 2120 S	21.2"	21"	4 7/8"	Cast Iron	€2,746.95
E	4 8V 2240 U	22.4"	22.2"	4 7/8"	Cast Iron	€2,419.42
F	4 8V 3000 U	30"	29.8"	4 7/8"	Cast Iron	€4,381.60
F	4 8V 4000 U	40"	39.8"	4 7/8"	Cast Iron	€6,331.26
F	4 8V 4800 U	48"	47.8"	4 7/8"	Cast Iron	€8,783.80
G	4 8V 5300 U	53"	52.8"	4 7/8"	Cast Iron	€10,590.23
F	4 8V 5800 U	58"	57.8"	4 7/8"	Cast Iron	€14,220.60
F	4 8V 6400 U	64"	63.8"	4 7/8"	Cast Iron	€17,040.94

MARTIN SPROCKET -

5V Series Hi-Cap Wedge Stock 3 Groove MST Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

Style	Model	Outside Dia.	Type	Material	Pitch Dia.	Face Width	Price
A	3 5V 440 P	4 2/5"	Type S Solid	Steel	4.3"	2 3/8"	€264.64
B	3 5V 460 Q	4 3/5"	-	Steel	4 1/2"	2 3/8"	€244.24
C	3 5V 490 Q	4.9"	-	Steel	4 4/5"	2 3/8"	€262.76
D	3 5V 550 Q	5 1/2"	Type J Solid	Steel	5 2/5"	2 3/8"	€299.57
E	3 5V 520 Q	5 1/5"	Type J Solid	Steel	5.1"	2 3/8"	€281.19
F	3 5V 590 Q	5.9"	Type J Solid	Steel	5 4/5"	2 3/8"	€318.06
G	3 5V 630 Q	6.3"	-	Steel	6 1/5"	2 3/8"	€370.26
B	3 5V 670 Q	6.7"	-	Steel	6 3/5"	2 3/8"	€388.96
H	3 5V 750 Q	7 1/2"	-	Cast Iron	7 2/5"	2 3/8"	€450.39
I	3 5V 710 Q	7.1"	-	Cast Iron	7"	2 3/8"	€431.91
J	3 5V 850 R	8 1/2"	-	Cast Iron	8 2/5"	2 3/8"	€371.48
K	3 5V 800 R	8"	Type J Web	Cast Iron	7.9"	2 3/8"	€359.23
L	3 5V 925 R	9 1/4"	-	Cast Iron	9.15"	2 3/8"	€402.28
M	3 5V 975 R	9 3/4"	-	Cast Iron	9.65"	2 3/8"	€420.76
N	3 5V 900 R	9"	-	Cast Iron	8.9"	2 3/8"	€383.76
O	3 5V 1090 R	10.9"	-	Cast Iron	10 4/5"	2 3/8"	€463.81
O	3 5V 1180 R	11 4/5"	-	Cast Iron	11.7"	2 3/8"	€519.26
P	3 5V 1250 R	12 1/2"	-	Cast Iron	12 2/5"	2 3/8"	€673.10
Q	3 5V 1400 R	14"	-	Cast Iron	13.9"	2 3/8"	€845.27
R	3 5V 1500 R	15"	-	Cast Iron	14.9"	2 3/8"	€894.56
S	3 5V 1600 R	16"	-	Cast Iron	15.9"	2 3/8"	€919.22
T	3 5V 2120 R	21.2"	Type J Arm, Spoke	Cast Iron	21.1"	2 3/8"	€1,405.34
U	3 5V 2800 R	28"	-	Cast Iron	27.9"	2 3/8"	€1,713.01
V	3 5V 3750 S	37 1/2"	-	Cast Iron	37.4"	2 3/8"	€3,635.29
V	3 5V 5000 U	50"	-	Cast Iron	49.9"	2 3/8"	€5,019.36

MARTIN SPROCKET -

5V Series Hi-Cap Wedge Stock 5 Groove MST Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

Style	Model	Outside Dia.	Material	Pitch Dia.	Type	Face Width	Price
A	5 5V 490 Q	4.9"	Steel	4 4/5"	-	3 3/4"	€344.52
B	5 5V 550 Q	5 1/2"	Steel	-	-	3 3/4"	€381.49
C	5 5V 630 Q	6.3"	Steel	6 1/5"	-	3 3/4"	€439.99
D	5 5V 670 Q	6.7"	Steel	6 3/5"	-	3 3/4"	€479.86
E	5 5V 750 Q	7 1/2"	Cast Iron	7 2/5"	-	3 3/4"	€566.08
F	5 5V 710 Q	7.1"	Cast Iron	7"	-	3 3/4"	€510.64
G	5 5V 850 R	8 1/2"	Cast Iron	8 2/5"	-	3 3/4"	€636.14
H	5 5V 800 R	8"	Cast Iron	7.9"	-	3 3/4"	€617.65
I	5 5V 925 R	9 1/4"	Cast Iron	9.15"	-	3 3/4"	€673.10
J	5 5V 975 R	9 3/4"	Cast Iron	9.65"	-	3 3/4"	€722.21
K	5 5V 900 R	9"	Cast Iron	8.9"	Type J Web	3 3/4"	€660.67
F	5 5V 1030 R	10.3"	Cast Iron	10 1/5"	-	3 3/4"	€728.44
L	5 5V 1090 R	10.9"	Cast Iron	10 4/5"	-	3 3/4"	€734.65
M	5 5V 1180 R	11 4/5"	Cast Iron	11.7"	-	3 3/4"	€802.26
N	5 5V 1250 R	12 1/2"	Cast Iron	12 2/5"	-	3 3/4"	€919.22
O	5 5V 1320 R	13 1/5"	Cast Iron	13.1"	-	3 3/4"	€974.59
P	5 5V 1400 R	14"	Cast Iron	13.9"	-	3 3/4"	€1,109.93
Q	5 5V 1500 R	15"	Cast Iron	14.9"	-	3 3/4"	€1,232.99
R	5 5V 1600 R	16"	Cast Iron	15.9"	-	3 3/4"	€1,294.55
S	5 5V 2120 S	21.2"	Cast Iron	21.1"	-	3 3/4"	€1,653.88
T	5 5V 2800 S	28"	Cast Iron	27.9"	-	3 3/4"	€2,035.35
U	5 5V 5000 U	50"	Cast Iron	49.9"	-	3 3/4"	€5,548.59

MARTIN SPROCKET -

5V Series Hi-Cap Wedge Stock 8 Groove MST Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

Style	Model	Outside Dia.	Pitch Dia.	Face Width	Material	Price
A	8 5V 750 Q	7 1/2"	7 2/5"	5.812"	Cast Iron	€664.49
B	8 5V 710 Q	7.1"	7"	5.812"	Cast Iron	€602.94
C	8 5V 800 R	8"	7.9"	5.812"	Cast Iron	€722.60
D	8 5V 975 S	9 3/4"	9.65"	5.812"	Cast Iron	€989.24
A	8 5V 900 R	9"	8.9"	5.812"	Cast Iron	€851.76
A	8 5V 1030 S	10.3"	10 1/5"	5.812"	Cast Iron	€1,050.80
E	8 5V 1090 S	10.9"	10 4/5"	5.812"	Cast Iron	€1,075.50
F	8 5V 1180 S	11 4/5"	11.7"	5.812"	Cast Iron	€1,155.50
G	8 5V 1320 S	13 1/5"	13.1"	5.812"	Cast Iron	€1,358.45
H	8 5V 1400 S	14"	13.9"	5.812"	Cast Iron	€1,481.54
I	8 5V 1500 S	15"	14.9"	5.812"	Cast Iron	€1,727.68
J	8 5V 1600 S	16"	15.9"	5.812"	Cast Iron	€1,973.82
D	8 5V 2120 U	21.2"	21.1"	5.812"	Cast Iron	€2,507.02
K	8 5V 2500 U	25"	24.9"	5.812"	Cast Iron	€2,715.94
L	8 5V 2800 U	28"	27.9"	5.812"	Cast Iron	€2,924.85
D	8 5V 3750 U	37 1/2"	37.4"	5.812"	Cast Iron	€5,001.98
D	8 5V 5000 U	50"	49.9"	5.812"	Cast Iron	€7,032.83

MARTIN SPROCKET -

C Series Conventional 8 Groove MST Bushed Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

Style	Model	Outside Dia.	Pitch Dia.	Type	Face Width	Material	Price
A	8 C 70 Q	7 2/5"	7"	-	8 1/4"	Cast Iron	€975.88
B	8 C 80 R	8 2/5"	8"	-	8 1/4"	Cast Iron	€1,224.26
C	8 C 90 R	9 2/5"	9"	Type K Web	8 1/4"	Cast Iron	€1,432.90
D	8 C 92 R	9 3/5"	9 1/5"	-	8 1/4"	Cast Iron	€1,445.19
E	8 C 94 R	9 4/5"	9 2/5"	-	8 1/4"	Cast Iron	€1,457.45
F	8 C 86 R	9"	8 3/5"	-	8 1/4"	Cast Iron	€1,287.20
G	8 C 98 R	10 1/5"	9 4/5"	-	8 1/4"	Cast Iron	€1,482.02
H	8 C 96 R	10"	9 3/5"	-	8 1/4"	Cast Iron	€1,469.72
I	8 C 110 R	11 2/5"	11"	-	8 1/4"	Cast Iron	€1,647.77
J	8 C 106 R	11"	10 3/5"	-	8 1/4"	Cast Iron	€1,555.68
K	8 C 120 R	12 2/5"	12"	-	8 1/4"	Cast Iron	€1,770.55
L	8 C 130 R	13 2/5"	13"	-	8 1/4"	Cast Iron	€1,893.31
M	8 C 150 R	15 2/5"	15"	-	8 1/4"	Cast Iron	€2,310.82
N	8 C 160 R	16 2/5"	16"	-	8 1/4"	Cast Iron	€2,445.83
O	8 C 180 S	18 2/5"	18"	-	8 1/4"	Cast Iron	€2,577.96
P	8 C 180 U	18 2/5"	18"	-	8 1/4"	Cast Iron	€2,183.47
Q	8 C 200 S	20.4"	20"	-	8 1/4"	Cast Iron	€2,676.21
R	8 C 240 U	24.4"	24"	-	8 1/4"	Cast Iron	€2,772.86
M	8 C 240 S	24.4"	24"	-	8 1/4"	Cast Iron	€3,136.63
M	8 C 270 S	27.4"	27"	-	8 1/4"	Cast Iron	€3,443.58
M	8 C 300 S	30.4"	30"	-	8 1/4"	Cast Iron	€4,131.41
S	8 C 300 U	30.4"	30"	-	8 1/4"	Cast Iron	€3,749.46
M	8 C 360 S	36.4"	36"	-	8 1/4"	Cast Iron	€5,678.41
M	8 C 360 U	36.4"	36"	-	8 1/4"	Cast Iron	€5,296.44
M	8 C 440 S	44.4"	44"	-	8 1/4"	Cast Iron	€8,772.43

MARTIN SPROCKET -

8V Series Hi-Cap Wedge Stock 5 Groove QD Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

Style	Model	Outside Dia.	Type	Pitch Dia.	Face Width	Material	Color	Price
A	5 8V 1250 F	12 1/2"	Solid Type A-1	12.3"	6"	Cast Iron	-	€1,306.12
B	5 8V 1320 F	13 1/5"	Type A-2 Web	13"	6"	Cast Iron	Gray	€1,372.77
C	5 8V 1400 F	14"	Type A-2 Web	13 4/5"	6"	Cast Iron	-	€1,466.06
D	5 8V 1500 F	15"	Type A-2 Web	14 4/5"	6"	Cast Iron	Gray	€1,554.92
D	5 8V 1600 F	16"	Type A-2 Web	15 4/5"	6"	Cast Iron	Gray	€1,643.77
D	5 8V 1700 J	17"	Type A-2 Web	16 4/5"	6"	Cast Iron	Gray	€1,943.64
D	5 8V 1800 J	18"	Type A-2 Web	17 4/5"	6"	Cast Iron	Gray	€2,067.68
E	5 8V 1900 J	19"	Type A-2 Web	18 4/5"	6"	Cast Iron	Gray	€2,205.53
F	5 8V 2000 J	20"	Type A Arm, Spoke	19 4/5"	6"	Cast Iron	-	€2,274.46
G	5 8V 2120 J	21.2"	Arm, Spoke Type A-3	21"	6"	Cast Iron	Gray	€2,642.04
H	5 8V 2240 M	22.4"	Type B Arm, Spoke	22 1/5"	6"	Cast Iron	-	€3,009.64
G	5 8V 2480 M	24.8"	Arm, Spoke Type B-3	24 3/5"	6"	Cast Iron	Gray	€3,193.41
I	5 8V 3000 M	30"	Arm, Spoke Type B-3	29 4/5"	6"	Cast Iron	-	€3,718.53
J	5 8V 3550 M	35 1/2"	Arm, Spoke Type B-3	35.3"	6"	Cast Iron	-	€4,713.28
K	5 8V 4000 M	40"	Arm, Spoke Type B-3	39 4/5"	6"	Cast Iron	Gray	€5,362.25
L	5 8V 4450 N	44 1/2"	Arm, Spoke Type B-3	44.3"	6"	Cast Iron	Gray	€7,081.77
G	5 8V 5300 N	53"	Arm, Spoke Type B-3	52 4/5"	6"	Cast Iron	Gray	€8,242.33

MARTIN SPROCKET -

A-B Combination MST Bushed 5 Groove Conventional Stock Sheaves

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Style	Model	Outside Dia.	Type	Material	Pitch Dia.	Face Width	Price
A	5 B 34 P	3 3/4"	-	Cast Iron	3 2/5"	4"	€257.53
B	5 B 44 P	4 3/4"	-	Cast Iron	4 2/5"	4"	€288.32
A	5 B 42 P	4.55"	-	Steel	4 1/5"	4"	€282.24
B	5 B 46 P	4.95"	-	Steel	4 3/5"	4"	€294.52
C	5 B 54 Q	5 3/4"	-	Cast Iron	-	4"	€311.95
B	5 B 48 P	5.15"	-	Cast Iron	4 4/5"	4"	€306.79
D	5 B 50 P	5.35"	-	Steel	5"	4"	€313.00
E	5 B 52 P	5.55"	-	Steel	5 1/5"	4"	€319.08
B	5 B 56 Q	5.95"	-	Steel	5 3/5"	4"	€318.06
F	5 B 64 Q	6 3/4"	-	Steel	6 2/5"	4"	€373.52
B	5 B 58 Q	6.15"	-	Cast Iron	5 4/5"	4"	€324.29
G	5 B 60 Q	6.35"	-	Steel	6"	4"	€342.74
B	5 B 62 Q	6.55"	-	Cast Iron	6 1/5"	4"	€361.12
B	5 B 66 Q	6.95"	-	Cast Iron	6 3/5"	4"	€385.81
B	5 B 68 Q	7.15"	-	Cast Iron	6 4/5"	4"	€398.11
H	5 B 70 R	7.35"	-	Cast Iron	7"	4"	€328.47
I	5 B 70 Q	7.35"	-	Cast Iron	7"	4"	€436.85
B	5 B 80 Q	8.35"	-	Cast Iron	8"	4"	€504.56
J	5 B 94 Q	9 3/4"	-	Cast Iron	9 2/5"	4"	€559.90
K	5 B 94 R	9 3/4"	-	Cast Iron	9 2/5"	4"	€451.53
L	5 B 90 Q	9.35"	-	Cast Iron	9"	4"	€547.63
M	5 B 90 R	9.35"	Type J Web	Cast Iron	9"	4"	€439.22
N	5 B 110 R	11.35"	-	Cast Iron	11"	4"	€519.26
O	5 B 124 Q	12 3/4"	-	Cast Iron	12 2/5"	4"	€670.69
P	5 B 136 R	13.95"	Type K Arm, Spoke	Cast Iron	13 3/5"	4"	€660.67

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Blocks And Sheaves

Blocks And Sheaves

Popular Search Queries

Explore More
