APPROVED VENDOR 4JX77 Pulley Block 800 Lb. Sheave Outer Diameter 3 Inch
Get it by Wednesday, Jul 1
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€25.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pulley Block |
| Attachment Type | Bolt-On |
| Bearing Type | Sleeve |
| Compatible Rope Dia. | 1/4" |
| Compatible Rope Type | Fibrous Rope, Wire Rope |
| Designed For | Wire Rope |
| Eye Hook Inside Dia. | 7/32" |
| Finish | Zinc Plated |
| Housing Material | Carbon Steel |
| Max. Cable Size | 1/4" |
| Mounting Hole Dia. | 3/16" |
| Mounting Type | Side Mount, Upright Mount |
| No. Of Grooves | 1 |
| Operation | Pulling |
| Overall Depth | 2" |
| Overall Height | 3 5/8" |
| Overall Hxw | 3 5/8" x 3 1/8" |
| Overall Width | 3 1/8" |
| Product Type | Pulley Block |
| Pulley Type | Mounted |
| Sheave Depth | 7/16" |
| Sheave Inside Dia. | 2-1/2" |
| Sheave Inside Dia. | 2 1/2" |
| Sheave Material | Steel |
| Sheave Outside Dia. | 3" |
| Sheave Width | 7/16" |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 13.97 |
| HS code | 8483509080 |
| Country of Origin | US |
Product Variants
| Product | Model | Sheave Outside Dia. | Sheave Inside Dia. | Attachment Type | Mounting Hole Dia. | Eye Hook Inside Dia. | Working Load Limit | Designed For | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

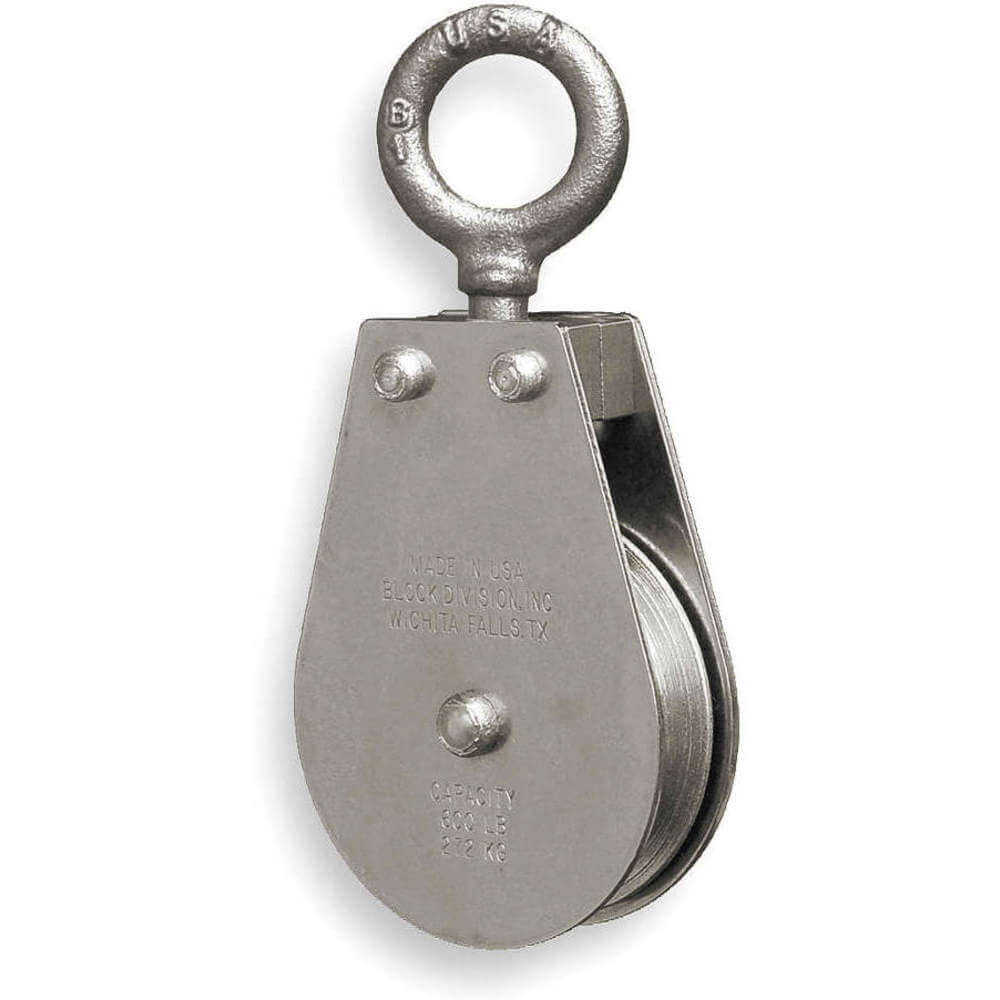

4JX64 | 1 1/2" | 1" | Swivel Eye | 5/8" | 0.656" | 525 lbs. | Wire Rope | Sleeve | €20.91 | |
|

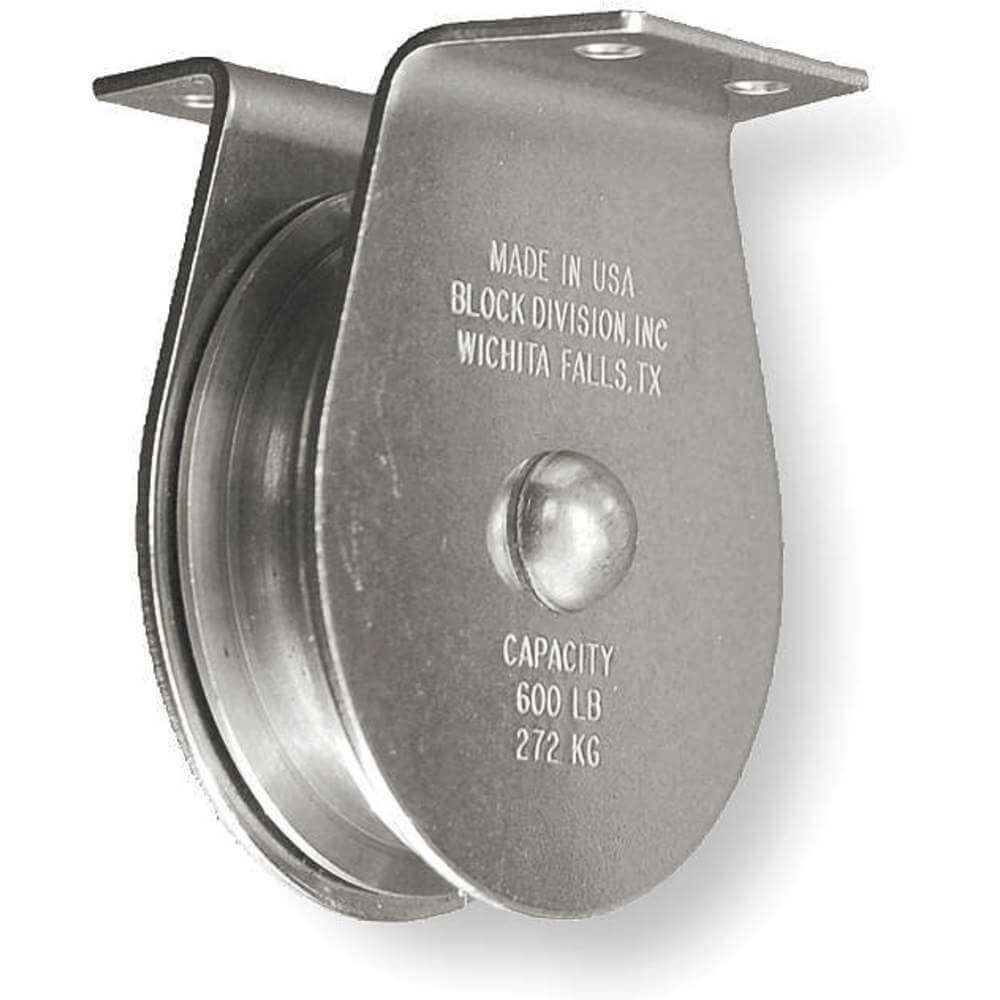

4JX65 | 1 1/2" | 1" | Bolt-On | 3/16" | - | 525 lbs. | Wire Rope | Sleeve | €13.66 | |
 |

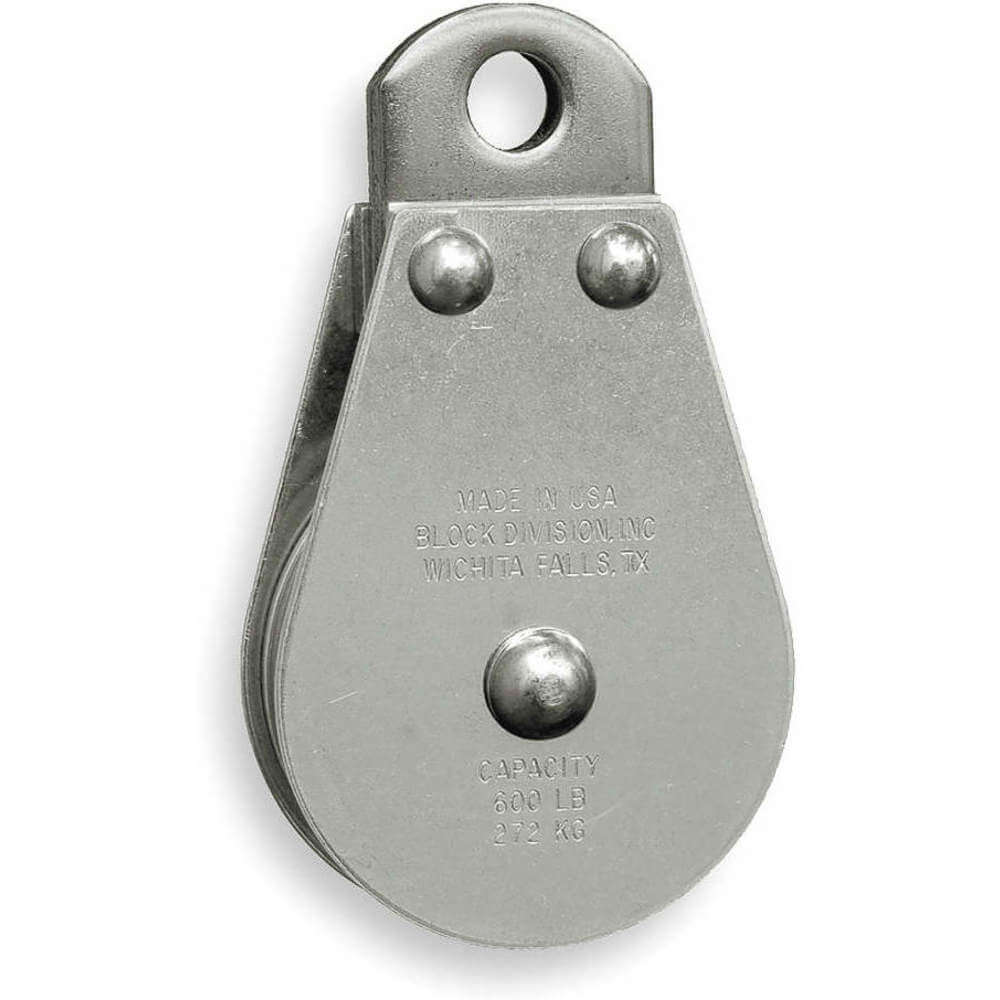

4JX66 | 1 1/2" | 1" | Fixed Eye | 3/8" | 3/8" | 525 lbs. | Wire Rope | Sleeve | €15.79 | |
 |

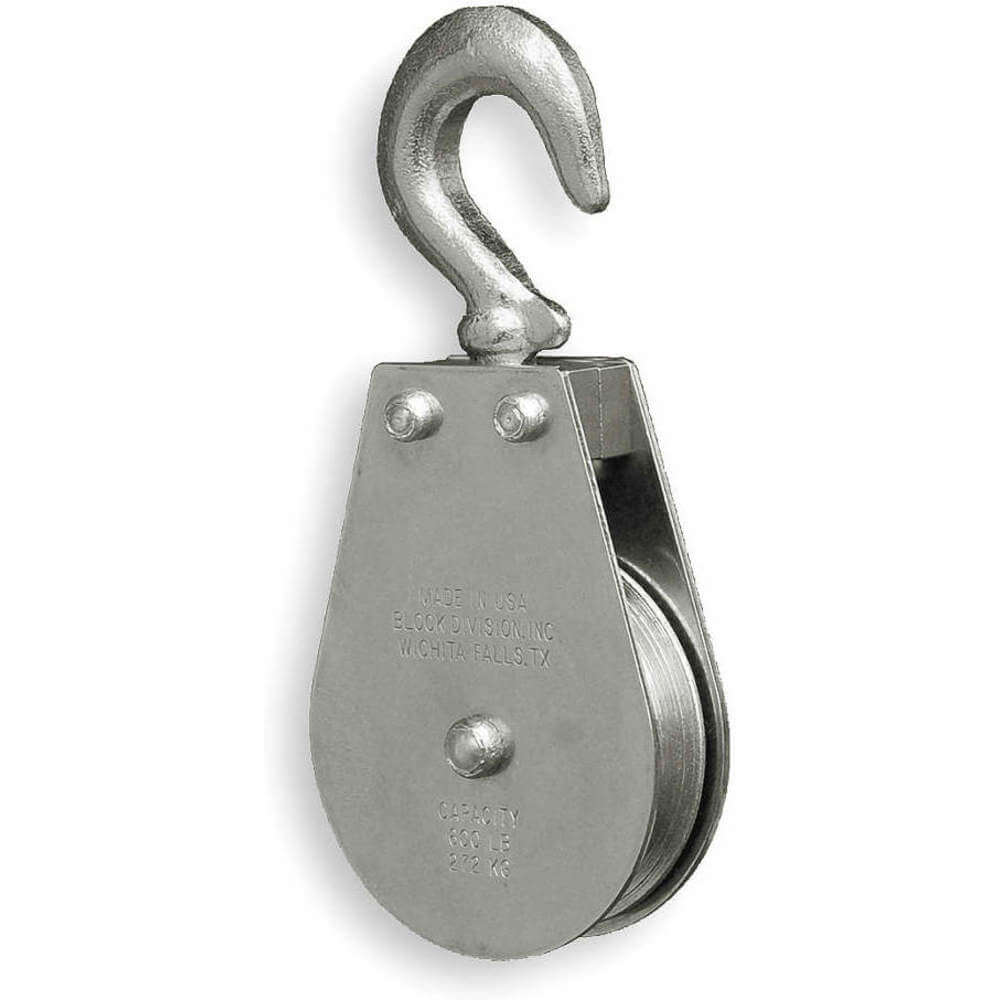

4JX67 | 1 1/2" | 1" | Swivel Hook | 5/16" | 11/32" | - | Wire Rope | Sleeve | €33.80 | |
|
4JX68 | 2" | 1 1/2" | Swivel Hook | 5/8" | 0.656" | 600 lbs. | Wire Rope | Sleeve | €24.64 | |
|
4JX69 | 2" | 1 1/2" | Bolt-On | 3/16" | - | 600 lbs. | Wire Rope | Sleeve | €15.59 | |
|
4JX70 | 2" | 1 1/2" | Fixed Eye | 3/8" | 3/8" | 600 lbs. | Wire Rope | Sleeve | €22.92 |
