MARTIN SPROCKET C Series Conventional 4 Groove MST Bushed Stock Sheaves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1| Style | Model | Outside Dia. | Pitch Dia. | Type | Face Width | Material | Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|
| A | 4 C 50 Q | 5 2/5" | 5" | Type J Solid | 4 1/4" | Cast Iron | 1" to 2 5/8" | €481.25 | |
| B | 4 C 60 Q | 6 2/5" | 6" | - | 4 1/4" | Cast Iron | - | €521.70 | |
| B | 4 C 56 P | 6" | 5 3/5" | - | 4 1/4" | Cast Iron | - | €514.87 | |
| C | 4 C 70 Q | 7 2/5" | 7" | - | 4 1/4" | Cast Iron | - | €534.05 | |
| B | 4 C 72 Q | 7 3/5" | 7 1/5" | - | 4 1/4" | Cast Iron | - | €542.25 | |
| D | 4 C 74 Q | 7 4/5" | 7 2/5" | - | 4 1/4" | Cast Iron | - | €550.51 | |
| E | 4 C 78 Q | 8 1/5" | 7 4/5" | - | 4 1/4" | Cast Iron | - | €660.50 | |
| F | 4 C 80 Q | 8 2/5" | 8" | - | 4 1/4" | Cast Iron | - | €761.18 | |
| G | 4 C 84 Q | 8 4/5" | 8 2/5" | - | 4 1/4" | Cast Iron | - | €795.53 | |
| B | 4 C 76 Q | 8" | 7 3/5" | - | 4 1/4" | Cast Iron | - | €672.24 | |
| B | 4 C 88 Q | 9 1/5" | 8 4/5" | - | 4 1/4" | Cast Iron | - | €829.85 | |
| B | 4 C 90 Q | 9 2/5" | 9" | - | 4 1/4" | Cast Iron | - | €847.07 | |
| H | 4 C 90 R | 9 2/5" | 9" | - | 4 1/4" | Cast Iron | - | €738.95 | |

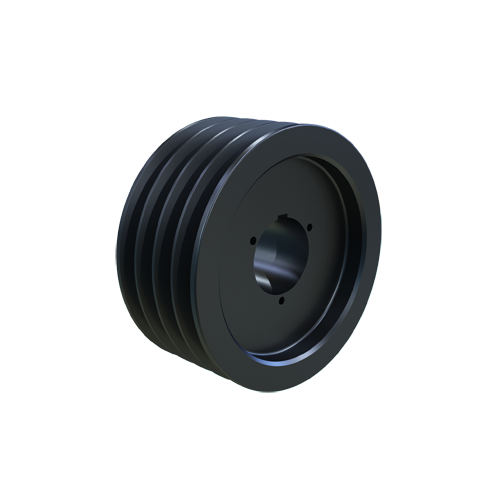

| I | 4 C 92 Q | 9 3/5" | 9 1/5" | - | 4 1/4" | Cast Iron | - | €856.88 | |
| J | 4 C 92 R | 9 3/5" | 9 1/5" | - | 4 1/4" | Cast Iron | - | €748.75 | |
| K | 4 C 94 R | 9 4/5" | 9 2/5" | - | 4 1/4" | Cast Iron | - | €758.60 | |
| L | 4 C 94 Q | 9 4/5" | 9 2/5" | - | 4 1/4" | Cast Iron | - | €858.20 | |
| M | 4 C 86 Q | 9" | 8 3/5" | - | 4 1/4" | Cast Iron | - | €797.94 | |

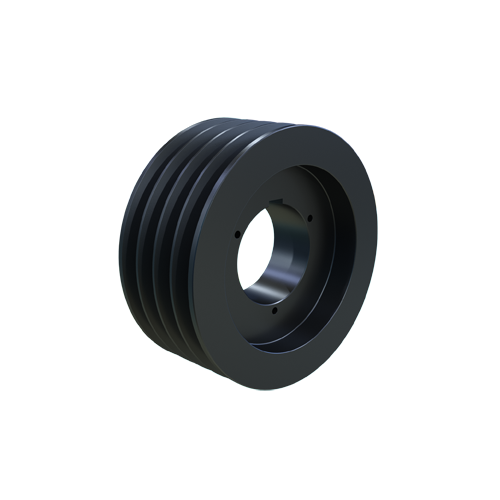

| N | 4 C 98 R | 10 1/5" | 9 4/5" | - | 4 1/4" | Cast Iron | - | €778.20 | |
| O | 4 C 98 Q | 10 1/5" | 9 4/5" | - | 4 1/4" | Cast Iron | - | €811.43 | |
| P | 4 C 100 R | 10 2/5" | 10" | - | 4 1/4" | Cast Iron | - | €788.10 | |
| B | 4 C 100 Q | 10 2/5" | 10" | - | 4 1/4" | Cast Iron | - | €896.22 | |
| B | 4 C 102 Q | 10 3/5" | 10 1/5" | - | 4 1/4" | Cast Iron | - | €928.96 | |
| Q | 4 C 102 R | 10 3/5" | 10 1/5" | - | 4 1/4" | Cast Iron | - | €820.84 | |
| R | 4 C 96 R | 10" | 9 3/5" | - | 4 1/4" | Cast Iron | - | €751.15 | |
| B | 4 C 110 R | 11 2/5" | 11" | - | 4 1/4" | Cast Iron | - | €886.35 | |
| S | 4 C 110 Q | 11 2/5" | 11" | - | 4 1/4" | Cast Iron | - | €994.46 | |

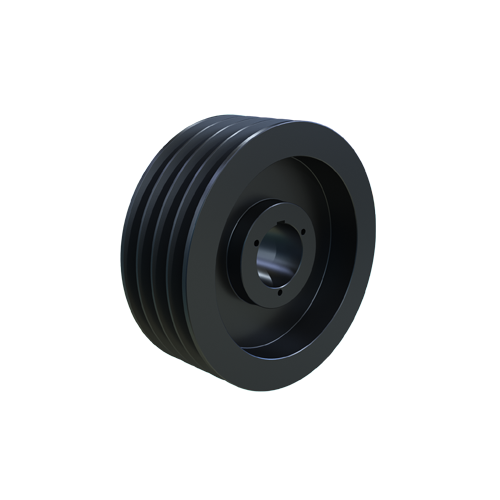

| T | 4 C 114 Q | 11 2/5" | 11" | - | 4 1/4" | Cast Iron | - | €1,037.43 | |
| U | 4 C 106 R | 11" | 10 3/5" | - | 4 1/4" | Cast Iron | - | €849.49 | |
| V | 4 C 106 Q | 11" | 10 3/5" | - | 4 1/4" | Cast Iron | - | €957.57 | |
| W | 4 C 120 R | 12 2/5" | 12" | - | 4 1/4" | Cast Iron | - | €972.11 | |
| B | 4 C 120 Q | 12 2/5" | 12" | - | 4 1/4" | Cast Iron | - | €1,080.39 | |
| X | 4 C 130 R | 13 2/5" | 13" | - | 4 1/4" | Cast Iron | - | €1,082.75 | |
| X | 4 C 130 Q | 13 2/5" | 13" | - | 4 1/4" | Cast Iron | - | €1,190.91 | |
| Y | 4 C 140 R | 14 2/5" | 14" | - | 4 1/4" | Cast Iron | - | €1,168.69 | |
| Z | 4 C 150 R | 15 2/5" | 15" | - | 4 1/4" | Cast Iron | - | €1,252.42 | |
| A1 | 4 C 160 R | 16 2/5" | 16" | - | 4 1/4" | Cast Iron | - | €1,340.59 | |
| X | 4 C 160 Q | 16 2/5" | 16" | - | 4 1/4" | Cast Iron | - | €1,448.73 | |
| X | 4 C 180 R | 18 2/5" | 18" | - | 4 1/4" | Cast Iron | - | €1,371.28 | |
| X | 4 C 200 R | 20.4" | 20" | - | 4 1/4" | Cast Iron | - | €1,432.69 | |
| B1 | 4 C 200 S | 20.4" | 20" | - | 4 1/4" | Cast Iron | - | €1,238.65 | |
| X | 4 C 240 R | 24.4" | 24" | - | 4 1/4" | Cast Iron | - | €1,917.57 | |
| C1 | 4 C 240 S | 24.4" | 24" | - | 4 1/4" | Cast Iron | - | €1,723.55 | |
| X | 4 C 240 Q | 24.4" | 24" | - | 4 1/4" | Cast Iron | - | €2,025.71 | |
| X | 4 C 270 S | 27.4" | 27" | - | 4 1/4" | Cast Iron | - | €2,030.49 | |
| D1 | 4 C 270 R | 27.4" | 27" | - | 4 1/4" | Cast Iron | - | €2,224.53 | |
| X | 4 C 300 R | 30.4" | 30" | - | 4 1/4" | Cast Iron | - | €2,531.46 | |
| E1 | 4 C 300 S | 30.4" | 30" | - | 4 1/4" | Cast Iron | - | €2,337.45 | |
| F1 | 4 C 360 R | 36.4" | 36" | - | 4 1/4" | Cast Iron | - | €3,636.47 | |
| X | 4 C 440 U | 44.4" | 44" | - | 4 1/4" | Cast Iron | - | €5,167.02 | |
| X | 4 C 440 R | 44.4" | 44" | - | 4 1/4" | Cast Iron | - | €5,821.99 | |
| X | 4 C 500 R | 50.4" | 50" | - | 4 1/4" | Cast Iron | - | €6,804.20 |
