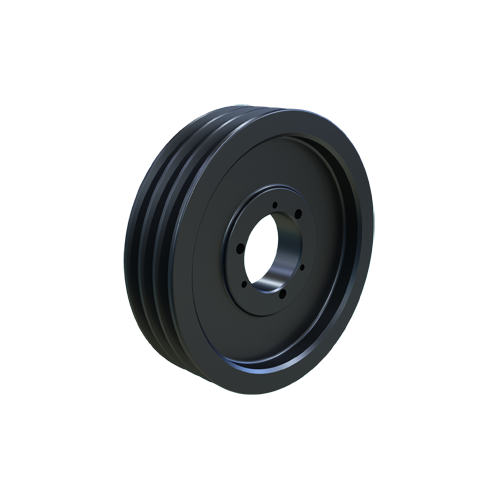

MARTIN SPROCKET 3 B 94 SK Sheave, QD Bushing, 9.750 Inch Outside Dia., 3 Groove, 9.4 Inch Pitch Dia., Cast Iron
9.750"
Get it by Monday, Aug 31
€235.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Bore Dia. | 1/2" to 2 5/8" |
| Bore Type | QD Bushed |
| Bushing Type | SK |
| Face Width | 2 1/2" |
| Length | 2 1/2" |
| Material | Cast Iron |
| No. Of Grooves | 3 |
| Pitch Dia. | 9 2/5" |
| Product Datasheet | martin-sprocket-1-3v-1060-sds.pdf |
| Suitable For Use With | A, B Cross Section Belts |
| Type | Arm, Spoke Type A-3 |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 24.77 |
| Ship width (cm) | 24.77 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Type | Bore Dia. | Material | Pitch Dia. | Face Width | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
3 B 34 SH | 3 3/4" | Solid Type E-1 | 0.5" to 1.688" | Steel | 3 2/5" | 2 1/2" | - | €98.63 | |
|
3 B 36 SH | 3.95" | Solid Type E-1 | 0.5" to 1.688" | Steel | 3 3/5" | 2 1/2" | - | €104.42 | |
 |
3 B 38 SH | 4.15" | Solid Type E-1 | 0.5" to 1.688" | Steel | 3 4/5" | 2 1/2" | - | €107.50 | |
 |
3 B 40 SH | 4.35" | Solid Type A-1 | 0.5" to 1.688" | Steel | 4" | 2 1/2" | - | €113.29 | |
|
3 B 42 SH | 4.55" | Solid Type A-1 | 0.5" to 1.688" | Steel | 4 1/5" | 2 1/2" | - | €117.72 | |
|
3 B 44 SH | 4 3/4" | Solid Type A-1 | 0.5" to 1.688" | Steel | 4 2/5" | 2 1/2" | - | €124.38 | |
 |
3 B 46 SD | 4.95" | Solid Type A-1 | 1/2" to 2" | Steel | 4 3/5" | 2 1/2" | - | €125.73 |
