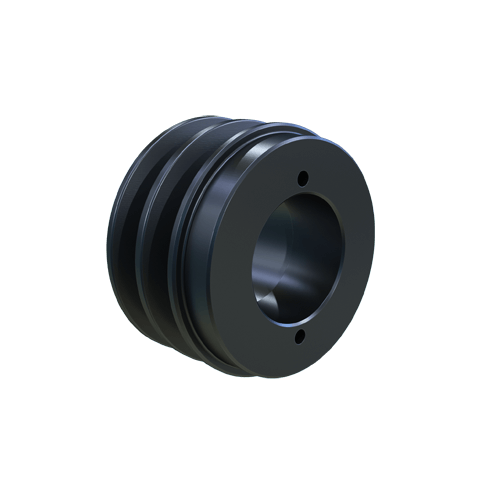

MARTIN SPROCKET 2AK32-H Sheave, 1.378 Inch Bore, 3.250 Inch Outside Dia., 2 Groove, Cast Iron
3.250"
Get it by Thursday, Aug 27
€88.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| 3l Belt Pitch Dia. | 2.66" |
| 4la Or A Belt Pitch Dia. | 3" |
| Bore Dia. | 1.378" |
| Bore Type | Bushed |
| Bushing Type | MST H |
| Face Width | 1 3/8" |
| Hub Dia. | 2 3/4" |
| Hub Projection | 1" |
| Length | 2 1/4" |
| Material | Cast Iron |
| No. Of Grooves | 2 |
| Product Datasheet | martin-sprocket-1vp25-3-4.pdf |
| Series | 2AK-H Series |
| Suitable For Use With | A, 3L, 4L Cross Section Belts |
| Type | Solid Type A |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 8.26 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Type | Face Width | Bore Dia. | Material | Price | |
|---|---|---|---|---|---|---|---|---|
 |
2AK104-H | 10 1/4" | Arm, Spoke Type C | 1 3/8" | 1.378" | Cast Iron | €183.08 | |
 |
2AK114-H | 11 1/4" | Arm, Spoke Type C | 1 3/8" | 1.378" | Cast Iron | €203.61 | |
|
2AK124-H | 12 1/4" | Arm, Spoke Type C | 1 3/8" | 1.378" | Cast Iron | €214.67 | |
 |
2AK134-H | 13 1/4" | Arm, Spoke Type C | 1 3/8" | 1.378" | Cast Iron | €227.27 | |
 |
2AK144-H | 14 1/4" | Arm, Spoke Type C | 1 3/8" | 1.378" | Cast Iron | €240.44 | |
 |
2AK154-H | 15 1/4" | Arm, Spoke Type C | 1 3/8" | 1.378" | Cast Iron | €269.31 | |
 |
2AK184-H | 18 1/4" | Arm, Spoke Type C | 1 3/8" | 1.378" | Cast Iron | €354.97 |
