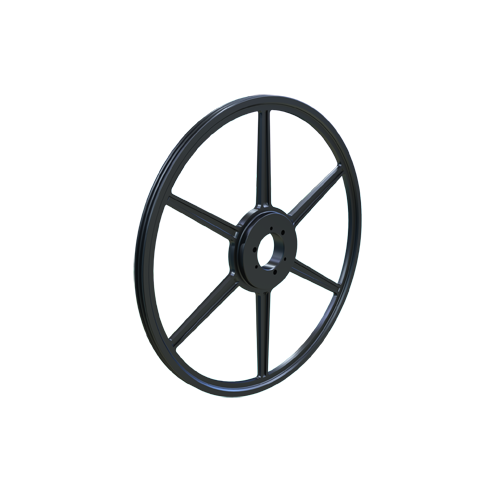

MARTIN SPROCKET 2 3V 2500 SF Sheave, QD Bushing, 25 Inch Outside Dia., 2 Groove, 24.95 Inch Pitch Dia., Cast Iron
25"
Get it by Tuesday, Sep 1
€808.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Bore Dia. | 0.5" to 2.938" |
| Bore Type | QD Bushed |
| Bushing Type | SF |
| Face Width | 1.094" |
| Length | 2.06" |
| Material | Cast Iron |
| No. Of Grooves | 2 |
| Pitch Dia. | 24.95" |
| Product Datasheet | martin-sprocket-1-3v-1060-sds.pdf |
| Suitable For Use With | 3V Cross Section V Belts |
| Type | Arm, Spoke Type C-3 |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 63.5 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Type | Face Width | Bore Dia. | Material | Pitch Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
2 3V 265 JA | 2.65" | Solid Type D-1 | 1.94" | 3/8" to 1 1/4" | Steel | 2 3/5" | €71.52 | |
 |
2 3V 280 JA | 2 4/5" | Solid Type D-1 | 1.094" | 3/8" to 1 1/4" | Steel | 2 3/4" | €73.76 | |
|
2 3V 300 JA | 3" | Solid Type D-1 | 1.094" | 3/8" to 1 1/4" | Steel | 2.95" | €74.19 | |
 |
2 3V 315 JA | 3.15" | Solid Type D-1 | 1.94" | 3/8" to 1 1/4" | Steel | 3.1" | €76.85 | |
|
2 3V 335 SH | 3.35" | Solid Type D-1 | 1.94" | 0.5" to 1.688" | Steel | 3.3" | €78.20 | |
|
2 3V 365 SH | 3.65" | Solid Type D-1 | 1.94" | 0.5" to 1.688" | Steel | 3 3/5" | €80.85 | |
|
2 3V 412 SH | 4 3/25" | Solid Type D-1 | 1.94" | 0.5" to 1.688" | Steel | 4.7" | €88.84 |
