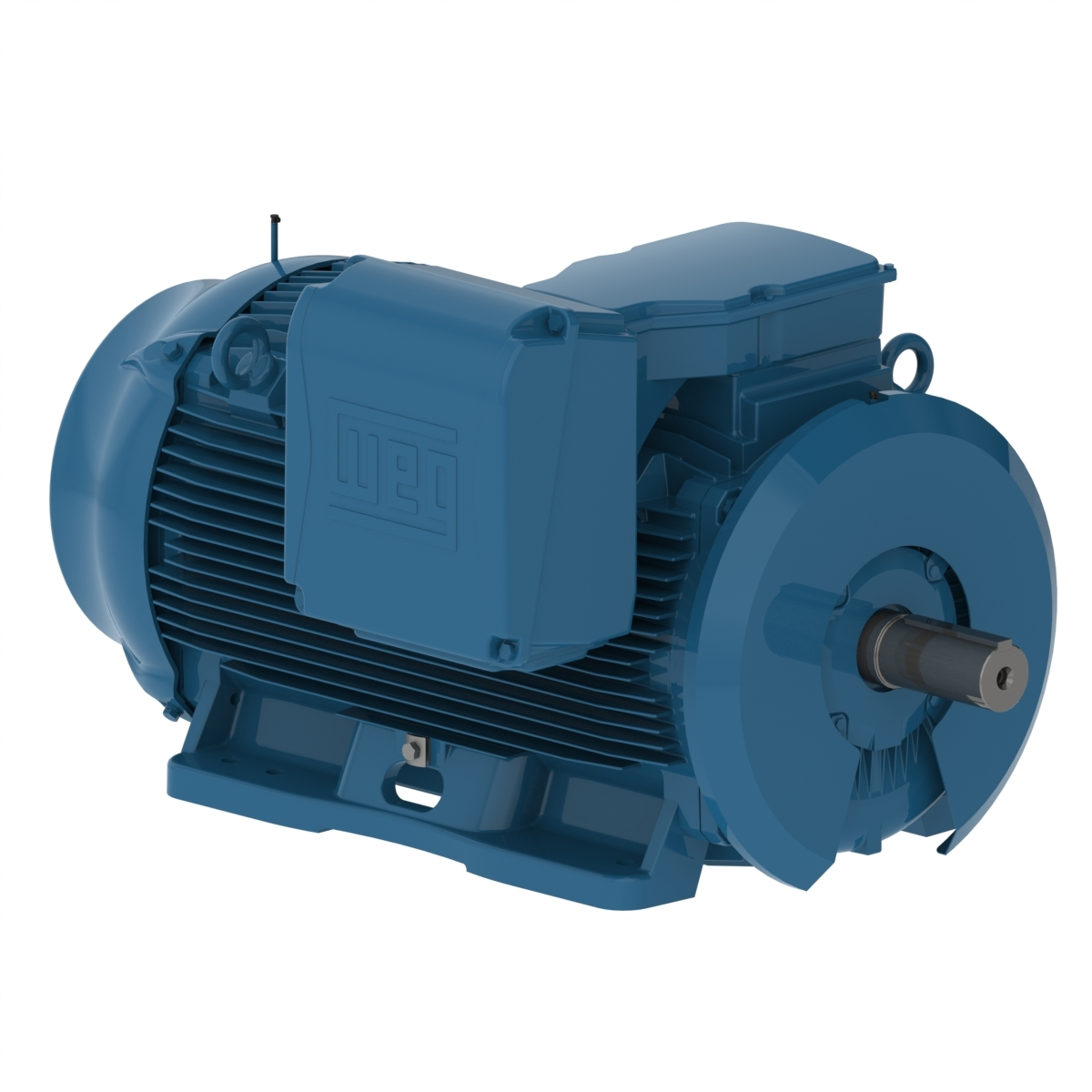

WEG 65018ET3G588/9-W22 13205890 General Purpose Motor, TEFC Cast Iron 588/9T Frame, 550 HP, 1490 RPM, 415 V
1800 rpm
650 hp
589
Get it by Thursday, Aug 20
€76,410.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 703A |
| Application | General Purpose |
| Bearing Cap | Yes |
| Body Design Material | Cast Iron |
| Break Down Torque | 320% |
| Cold Locked Rotor Time | 36 sec. |
| Connection Cables Quantity | 12 |
| Ct Speed Range | 6:1 |
| De Bearing Seal | Taconite Labyrinth |
| Degree Of Protection | IP55 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency | 96.6% |
| Enclosure Iec | IP55 |
| Enclosure Nema | Tefc |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 589 |
| Frame Material | Cast Iron |
| Frame Size Nema | NEMA 588/9t |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| Hp | 650 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | F |
| Inverter Rating | Inverter Duty |
| L. R. Amps | 5905A |
| Locked Rotor Time(hot) | 20 sec. |
| Locked Rotor Torque | 280% |
| Lrc | 8.4x(Code J) |
| Main Terminal Box Hole | 2 x NPT 4" |
| Material | Carbon Steel |
| Moment Of Inertia | 301 lbs.-sq. ft. |
| Mount Arrangement | F1/F2 Capable |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | Taconite Labyrinth |
| No Load Amps | 280A |
| No. Of Poles | 4 |
| Noise Level | 76 dBA |
| Output Rating | 400 kW |
| Output Speed | 1790 RPM |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1490 RPM |
| Rated Torque | 1940 lbs.-ft. |
| Regreasing System | Extended, At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 4140 Carbon Steel |
| Slip | 0.67% |
| Space Heater | Yes |
| Space Heater Voltage | 200-240V |
| Speed | 1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Code | 230°C |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 415V , 460V |
| Vt Speed Range | 1000:1 |
| Xp Atex Zone | Iic |
Shipping Info:
| Ship weight (kg) | 2346.3 |
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
