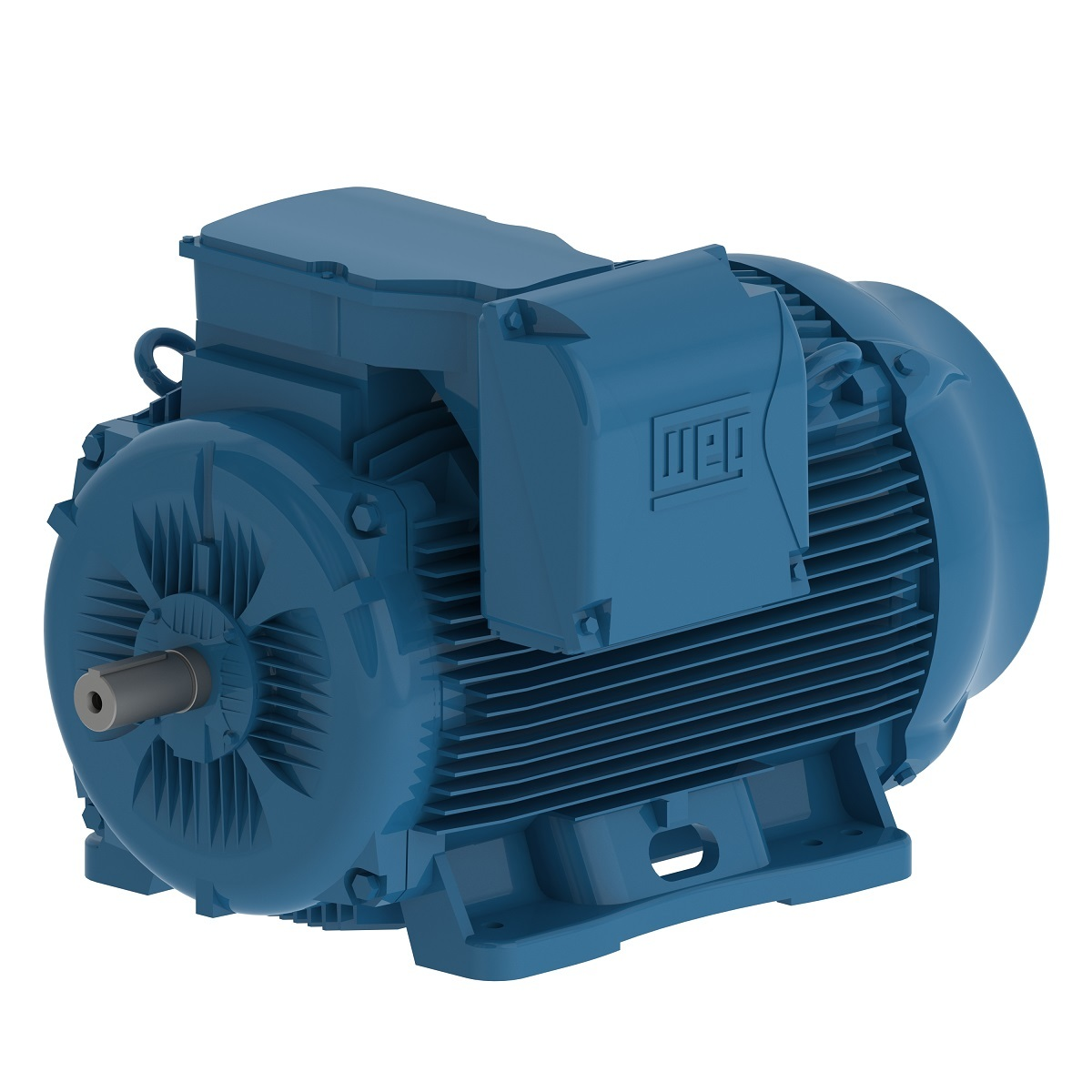

WEG 13209ET3Y315L-W22 Electric Motor, 132Hp, 60/50Hz, 900 Rpm | BC2ARE

WEG 13209ET3Y315L-W22 13034308 General Purpose Motor, Cast Iron 315L Frame, 175 HP, 895 RPM, 460 V

Item: BC2AREModel: 13209ET3Y315L-W22Cross Ref: 13034308
Check Availability
In Stock

Get it by Tuesday, Jul 14

€38,590.86 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Amps 260A
Balancing Method 1/2 Key
Bearing Cap Yes
Break Down Torque 200%
Cable Press Material Sem
Cold Locked Rotor Time 84 sec.
Connection Cables Quantity 6
De Bearing Seal Yes
Degree Of Protection IP55
Design N
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 95.5%
Efficiency 75% 95.6%
Efficiency @ 100% 95.4%
Enclosure IC411
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange Without
Flange Type Without
Frame 315L
Frame Material Cast Iron
Frequency 50 Hz , 50/60 Hz
Grade Grade 316
Grounding Lugs Double
Grounding Lugs Type Double
Impregnation Method Constant Resin Flow
Insulation Class Class F
L. R. Amps 1539A , 1560A
Locked Rotor Time (cold) 61 sec.
Locked Rotor Time(hot) 34 sec. , 47 sec.
Locked Rotor Torque 170%
Main Terminal Box Hole 2 x M63 x 1.5
Material Stainless Steel
Moment Of Inertia (j) 313 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Mounting B3L , Foot Mounted
Nde Bearing Seal Yes
No Load Amps 106A
No. Of Pins 6
No. Of Poles 8
Noise Level 68 dBA
Output Rating 175 hp
Overload Protection No
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
Phase 3
Power Factor 100% 0.81
Power Factor 50% 0.68
Power Factor 75% 0.77
Regreasing System At Drive End And Non-Drive End
Rotation CW, CCW
Screw Cap Stainless Steel
Shaft Locking Device Without
Shaft Material Carbon Steel
Slip 1.33%
Speed 740 RPM , 900 RPM
Starting Method Direct On Line
Synchronous Speed 900 RPM
Temp. Rise 80 K
Terminal Block BMC
Terminal Box Right Position
Torque 1240 lbs.-ft.
Tropicalized Painting Without
Voltage 380-415/460V

Shipping Info:

Ship weight (kg) 1708.2
Ship height (cm)51.46
Ship length (cm)76.71
Ship width (cm)57.07
Country of OriginUS
