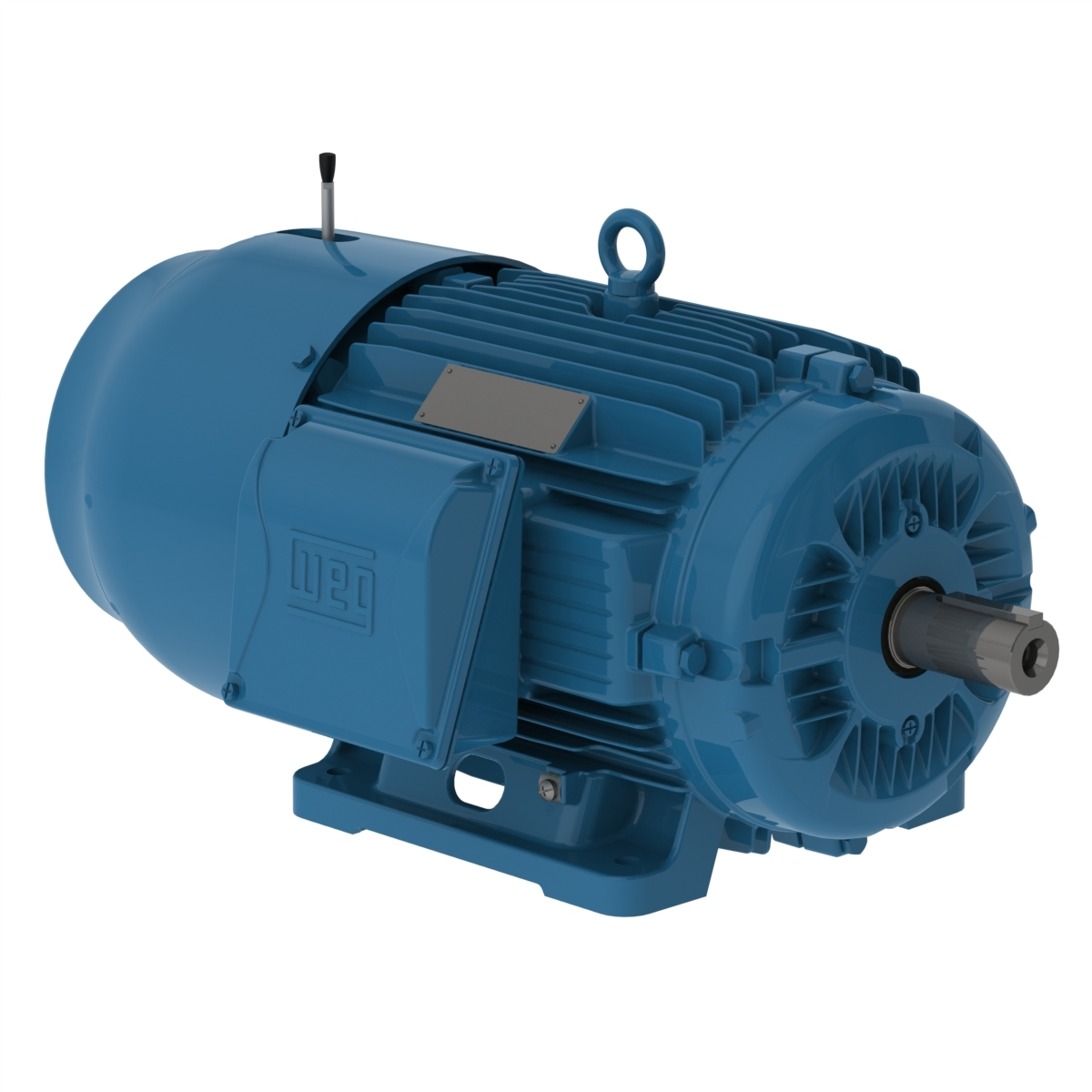

WEG 02036ET3EBM256T-W22 13474057 Brake Motor, 20 HP, 3600 RPM, 254/6T Frame, 230/460 V Rated
3600 rpm
20 hp
256T
Get it by Monday, Aug 24
€6,607.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 23.3/46.5A , 46.4/23.2A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Brake Input Voltage | 220-240V , 220-240V AC |
| Brake Type | 235 N-m |
| Braking Torque | 235 N-m |
| Break Down Torque | 240% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 25 sec. , 27 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 12 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 80% , 90.7% |
| Efficiency 75% | 91% |
| Efficiency @ 1 % | 89% |
| Efficiency @ 100% | 91% |
| Efficiency @ 75 % | 87% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Aluminum |
| Flange | Without |
| Flange Type | Without |
| Frame | 254/6T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 15 sec. |
| Hp | 20 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 142/284A , 283/142A |
| Locked Rotor Time (cold) | 25 sec. |
| Locked Rotor Time(hot) | 14 sec. |
| Locked Rotor Torque | 200% |
| Lrc | 6.1X(Code G) |
| Main Terminal Box Hole | 1 1/2" |
| Main Terminal Box Hole Size | 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 1.54 lbs.-sq. ft. |
| Moment Of Inertia (j) | 1.54 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3525 RPM |
| Mounting | F-1 , Foot Mounted |
| Nde Bearing Seal | Lip Seal |
| No Load Amps | 13/6.5A , 6.5/13A |
| No. Of Poles | 2 |
| Noise Level | 72 dBA |
| Output | 20 hp |
| Output Rating | 20 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.89 |
| Power Factor 50% | 0.8 |
| Power Factor 75% | 0.87 |
| Power Factor @ 1 % | 91 |
| Power Factor @ 50 % | 90.7 |
| Power Factor @ 75 % | 91 |
| Product Datasheet | weg-02036et3ebm256t-w22.pdf |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.08% |
| Speed | 3400-3600 RPM , 3525 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 29.8 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460V , 230/460V AC |
Shipping Info:
| Ship weight (kg) | 190.8 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Voltage | Frequency | Hp | Service Factor | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01836ET3Y160LFF-W22 | 460V | 50 Hz | 25 hp | 1.25 | Totally Enclosed Fan Cooled | 29.9A | - | Face, Base | €5,367.05 | |
| 03736ET3Y200LFF-W22 | 460V | 60 Hz | 50 hp | 1.25 | Totally Enclosed Fan Cooled | 59.8A | - | Face, Base | €9,770.55 | |
| 05536ET3Y250S/MFF-W2 | 460V AC | 50/60 Hz | 75 hp | 1.25 | Totally Enclosed Fan Cooled | 80.3A | - | Face, Base | €16,526.29 | |
| 00156ET3H143TC-W22 | 575V AC | 60 Hz | 1 1/2 hp | 1.25 | Totally Enclosed Fan Cooled | 1.57A | Three Phase | Rigid Base | €840.81 | |
| 00236ET3H145TC-W22 | 575V AC | 60 Hz | 2 hp | 1.25 | Totally Enclosed Fan Cooled | 2.05A | Three Phase | Rigid Base | €853.67 | |
| 00336ET3H182TC-W22 | 575V | 60 Hz | 3 hp | 1 | Totally Enclosed Fan Cooled | 2.9A | Three Phase | Rigid Base | €1,055.20 | |
| 00536ET3H184TC-W22 | 575V AC | 60 Hz | 5 hp | 1.25 | Totally Enclosed Fan Cooled | 4.72A | Three Phase | Rigid Base | €1,251.50 |
