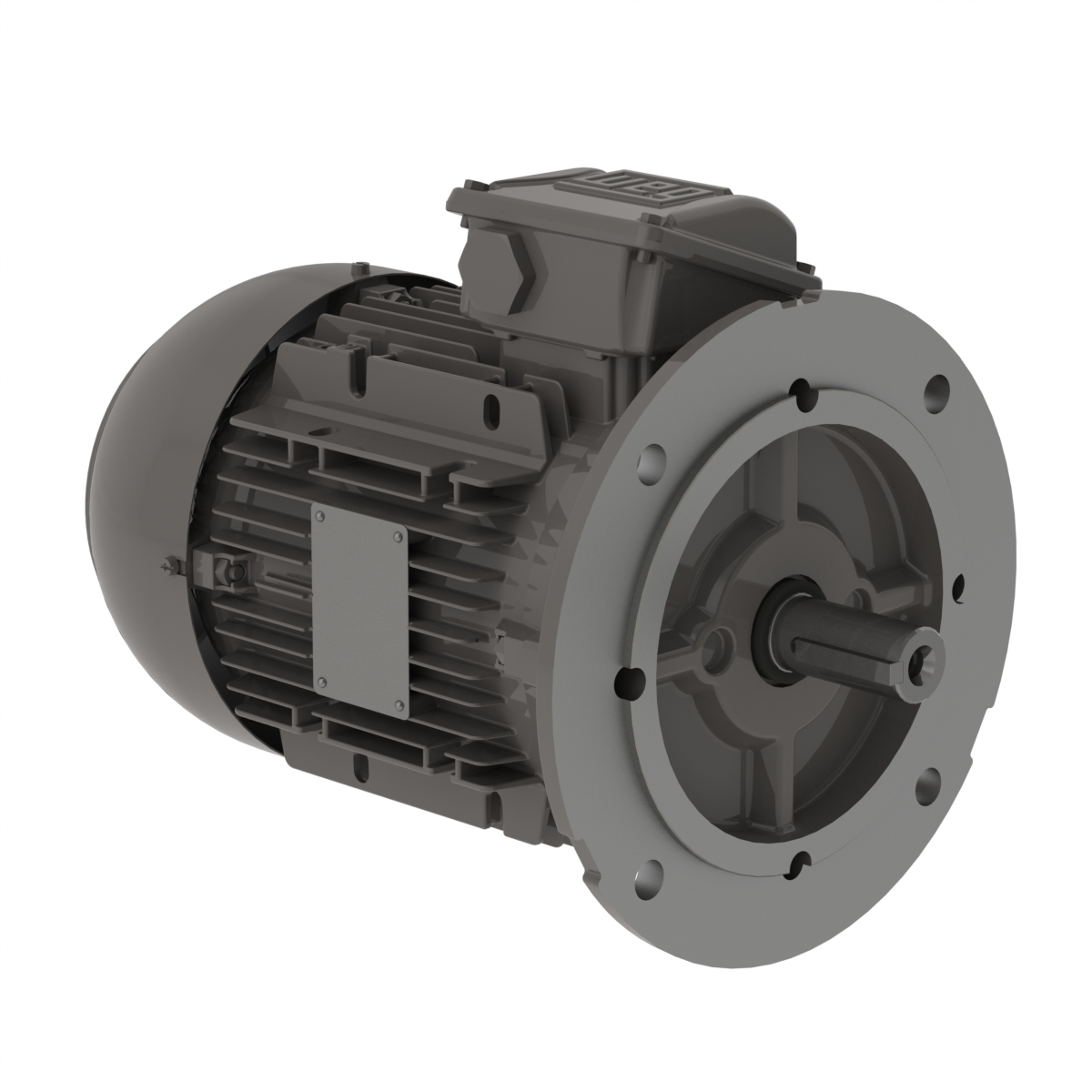

WEG .1818EP3EALR63FF-W22 Electric Motor, 0.18Hp, 60/50Hz, 1800 Rpm | BC3FCD

WEG .1818EP3EALR63FF-W22 13982682 General Purpose Motor, Aluminum 63 Frame, 0.25 HP, 1710 RPM, 230/460V, B5T Mounting

Item: BC3FCDModel: .1818EP3EALR63FF-W22Cross Ref: 13982682
Check Availability
In Stock

Get it by Tuesday, Apr 14

€378.21 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method Not Balanced
Bearing Cap No
Break-down Torque 290%
Breakdown Torque 210%
Cold Locked Rotor Time 34 sec.
Connection Cables Quantity 9
Design N
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 68%
Efficiency @ 50% 63%
Efficiency @ 75% 66%
Efficiency At 1 % 64%
Efficiency At 50 % 42%
Efficiency At 75 % 54%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange FF
Frame 63
Frame Material Aluminum
Frequency 50 Hz
Grounding Lugs Single
Hot Locked Rotor Time 19 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 4.71/2.36A
L.r. Amperes 2.53A
Locked Rotor Time (cold) 34 sec.
Locked Rotor Time (hot) 19 sec.
Locked Rotor Torque 200% , 280%
Lrc 4.6
Main Terminal Box Hole 1/2"
Main Terminal Box Hole Size 1/2"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Moment Of Inertia 0.0133 lbs.-sq. ft.
Moment Of Inertia (j) 0.0133 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1710 RPM
Mounting B5T , Footless
No Load Amps 0.46A , 0.94/0.47A
No. Of Pins 6
No. Of Poles 4
Noise Level 44 dBA , 48 dBA
Output 1/4 hp
Output Rating 1/4 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL7022 207N (ISO 12944-C2)
Phase 3
Power Factor 50% 0.5
Power Factor 75% 0.63
Power Factor At 1 % 69
Power Factor At 50 % 63
Power Factor At 75 % 67
Power Factor_100% 0.73
Rated Current 0.551A , 1.02/0.512A
Rated Speed 1390 RPM
Rated Torque 0.768 lbs.-ft. , 0.944 lbs.-ft.
Rated Voltage 230/460V AC
Rotation CW/CCW
Rpm 1700-1800 RPM
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 5% , 7.33%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block BMC
Terminal Box Top
Terminal Type BMC
Tropicalized Painting Without
Voltage 230/380-415/460V , 230/460/380-415V AC

Shipping Info:

Ship weight (kg) 7.65
Ship height (cm)23.83
Ship length (cm)32.39
Ship width (cm)24.13
Country of OriginBR
