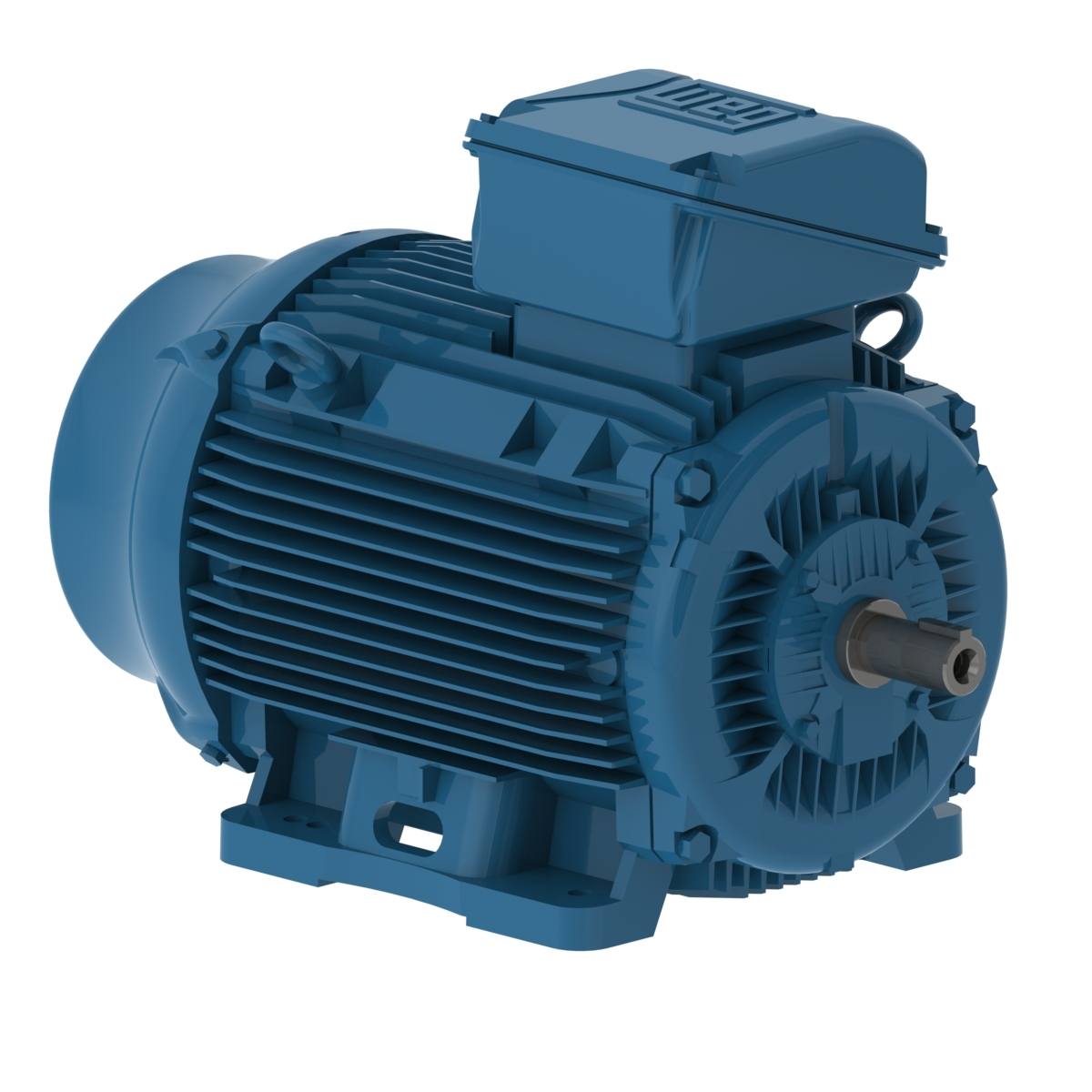

WEG 20036ET3E447TSF3-W22 13676908 General Purpose Motor, TEFC Cast Iron 445/7TS Frame, 200 HP, 3600 RPM, 208/230/460V, F-3 Mounting
3600 rpm
200 hp
Get it by Tuesday, Apr 7
€27,801.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 229% |
| Breakdown Torque | 229% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 25 sec. |
| Connection Cables Quantity | 12 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 95.4% |
| Efficiency @ 50% | 95% |
| Efficiency @ 75% | 95.4% |
| Efficiency At 1 % | 90% |
| Efficiency At 50 % | 86% |
| Efficiency At 75 % | 89% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 445/7TS |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Double |
| Hot Locked Rotor Time | 14 sec. |
| Hz | 60 Hz |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L. R. Amps | 2847/1424A |
| L.r. Amperes | 1424/2847A |
| Locked Rotor Time (cold) | 25 sec. |
| Locked Rotor Time (hot) | 14 sec. |
| Locked Rotor Torque | 210% |
| Lrc | 6.5X(Code G) |
| Main Terminal Box Hole | 2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 44.7 lbs.-sq. ft. |
| Moment Of Inertia (j) | 44.7 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3570 RPM |
| Mounting | F-3 , Foot Mounted |
| No Load Amps | 45/90A , 90/45A |
| No. Of Holes | 2 |
| No. Of Poles | 2 |
| Noise Level | 81 dBA |
| Output | 200 hp |
| Output Rating | 200 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.86 |
| Power Factor 75% | 0.89 |
| Power Factor At 1 % | 95.4 |
| Power Factor At 50 % | 95 |
| Power Factor At 75 % | 95.4 |
| Power Factor_100% | 0.9 |
| Rated Current | 219/438A , 438/219A |
| Rated Speed | 3570 RPM |
| Rated Torque | 294 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 0.83% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Top |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V , 230/460/380V AC |
Shipping Info:
| Ship weight (kg) | 820.8 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 24.13 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Frame | Rpm | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00436ET3EAL112M-W22 | 230/460/380-415V AC | 50 Hz | 1.25 | 5 1/2 hp | - | 112M | - | Aluminum | €1,042.74 | |
 |
.2512EP3EAL71-W22 | 230/460V | 60 Hz | 1 | 33/100 hp | 1/2A | 71 | 1100 RPM | - | €300.79 | |
 |
00118ET3EAL90S-W22 | 230/460/190/380V AC | - | - | 1 3/10 hp | - | 90S/L | 1800/1500 RPM | - | €363.49 | |
|
.3712EP3EAL80-W22 | 230/460V | 60 Hz | 1 | 1/2 hp | 1.07/2.14A | 80 | 1100-1200 RPM | - | €313.23 | |
 |

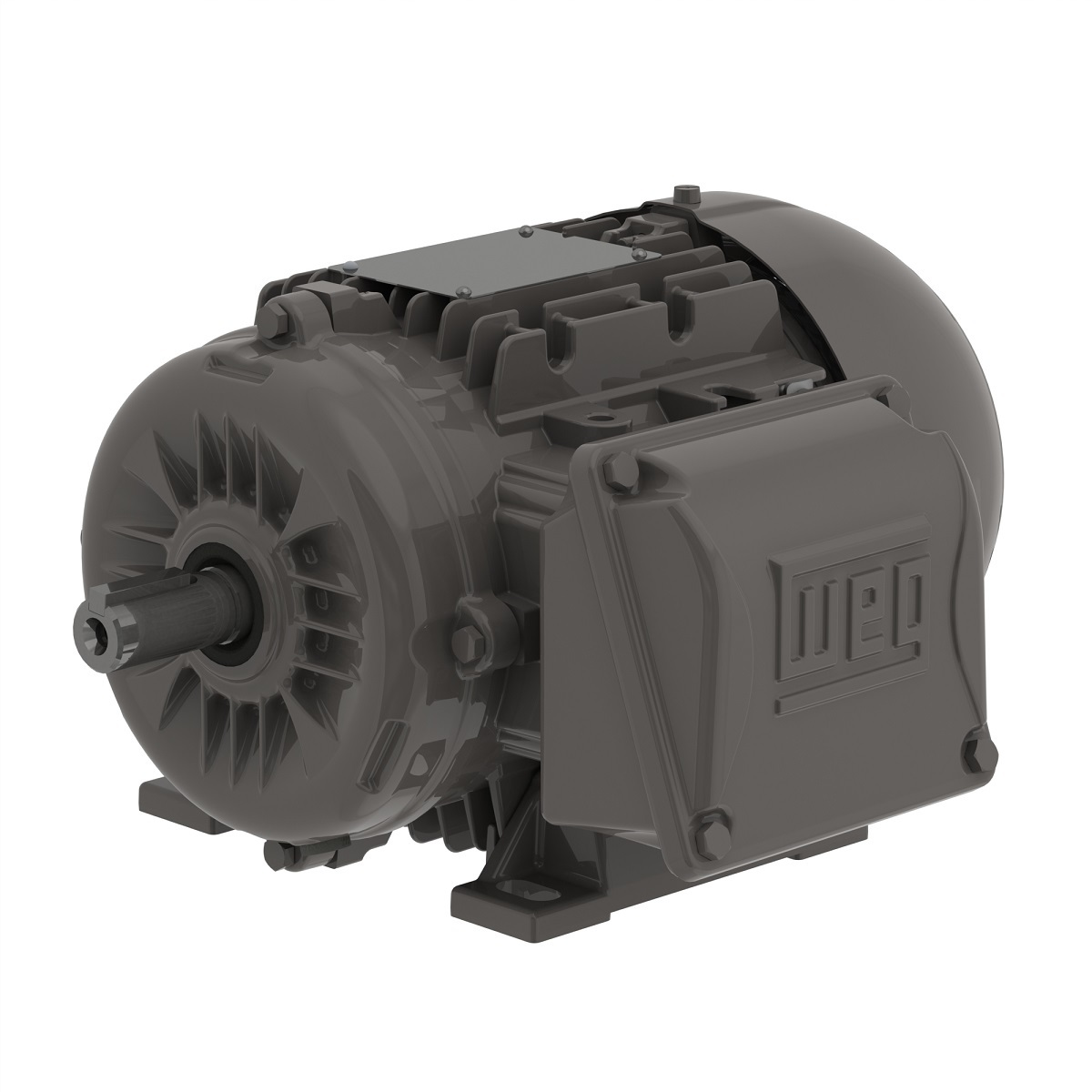

.1809EP3WAL80-W22 | 460V | - | 1 | 1/4 hp | 0.799A | 80 | 860 RPM | Aluminum | €447.45 | |
|
.2509EP3WAL80-W22 | 460V | 60 Hz | 1 | 33/100 hp | 0.866A | 80 | 845 RPM | Aluminum | €483.09 | |
|
00136ET3WAL80-W22 | 460V | - | 1.25 | 1 1/2 hp | - | 80 | 3600/3000 RPM | Aluminum | €367.91 |
