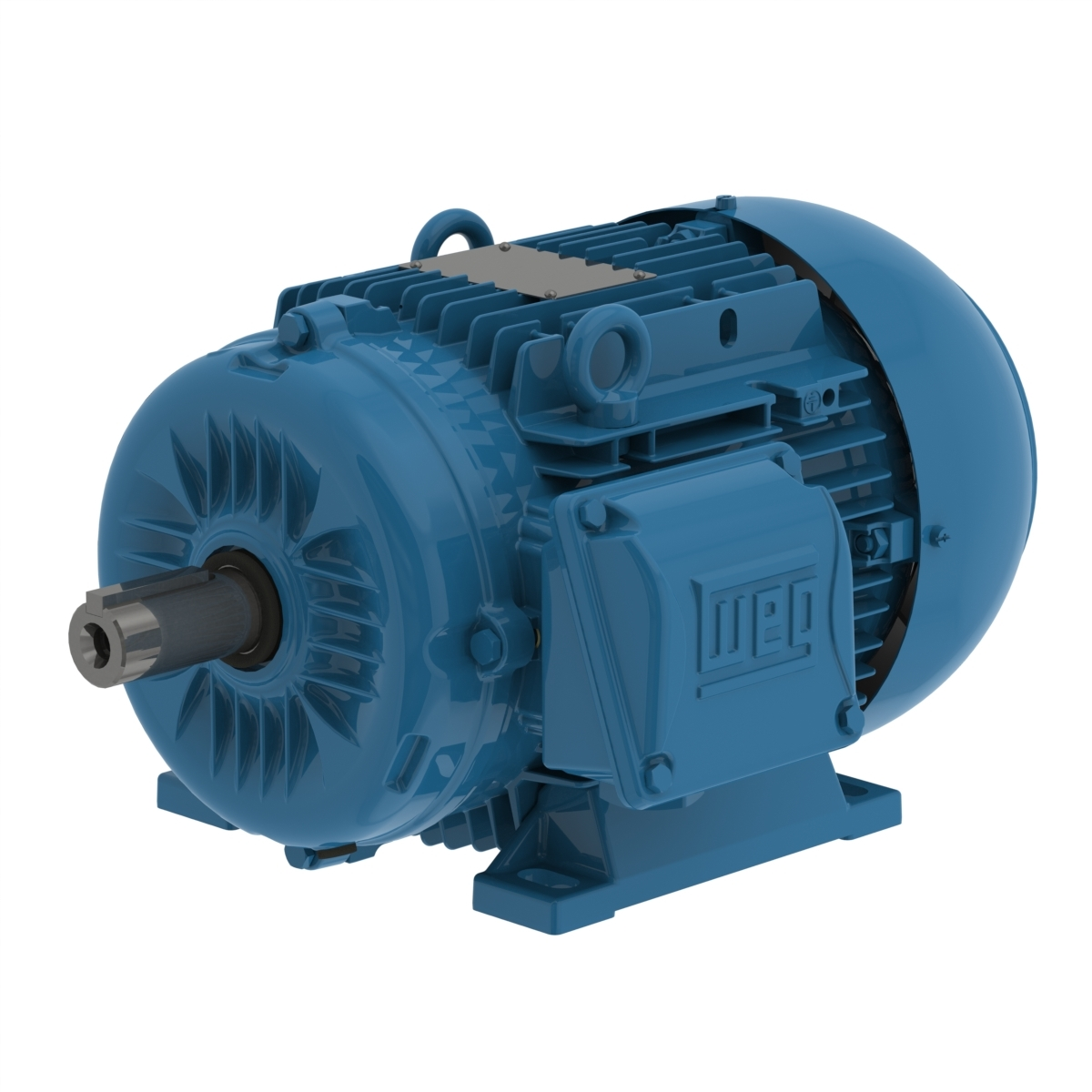

WEG 00718ET3HAL132M-W22 13984868 General Purpose Motor, Aluminum 132M Frame, 10 HP, 1770 RPM, 575 V
1800 rpm
10 hp
Get it by Tuesday, Apr 7
€1,341.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Break-down Torque | 420% |
| Breakdown Torque | 420% |
| Cold Locked Rotor Time | 27 sec. |
| Connection Cables Quantity | 6 |
| Design | N |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 91.7% |
| Efficiency @ 50% | 90.2% |
| Efficiency @ 75% | 91% |
| Efficiency At 1 % | 81% |
| Efficiency At 50 % | 65% |
| Efficiency At 75 % | 76% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 132M |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 15 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 107A |
| L.r. Amperes | 107A |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time (hot) | 15 sec. |
| Locked Rotor Torque | 270% |
| Lrc | 10.5 |
| Main Terminal Box Hole | 2 x M32 x 1.5 |
| Main Terminal Box Hole Size | M32 x 1.5 |
| Moment Of Inertia (j) | 1.52 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1770 RPM |
| Mounting | B3L , Foot Mounted |
| No Load Amps | 5.04A |
| No. Of Holes | 2 |
| No. Of Pins | 6 |
| No. Of Poles | 4 |
| Noise Level | 58 dBA |
| Output | 10 hp |
| Output Rating | 10 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.65 |
| Power Factor 75% | 0.76 |
| Power Factor At 1 % | 91.7 |
| Power Factor At 50 % | 90.2 |
| Power Factor At 75 % | 91 |
| Power Factor_100% | 0.81 |
| Rated Current | 10.2A |
| Rated Speed | 1770 RPM |
| Rated Torque | 29.7 lbs.-ft. |
| Rated Voltage | 575V , 575V AC |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Stainless Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.67% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | BMC |
| Terminal Box | Right Position |
| Terminal Type | BMC |
| Tropicalized Painting | Without |
| Voltage | 575V AC |
Shipping Info:
| Ship weight (kg) | 72.9 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 24.13 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Frame | Rpm | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00436ET3EAL112M-W22 | 230/460/380-415V AC | 50 Hz | 1.25 | 5 1/2 hp | - | 112M | - | Aluminum | €1,042.74 | |
 |
.2512EP3EAL71-W22 | 230/460V | 60 Hz | 1 | 33/100 hp | 1/2A | 71 | 1100 RPM | - | €300.79 | |
 |
00118ET3EAL90S-W22 | 230/460/190/380V AC | - | - | 1 3/10 hp | - | 90S/L | 1800/1500 RPM | - | €363.49 | |
|
.3712EP3EAL80-W22 | 230/460V | 60 Hz | 1 | 1/2 hp | 1.07/2.14A | 80 | 1100-1200 RPM | - | €313.23 | |
 |
.1809EP3WAL80-W22 | 460V | - | 1 | 1/4 hp | 0.799A | 80 | 860 RPM | Aluminum | €447.45 | |
|
.2509EP3WAL80-W22 | 460V | 60 Hz | 1 | 33/100 hp | 0.866A | 80 | 845 RPM | Aluminum | €483.09 | |
|
00136ET3WAL80-W22 | 460V | - | 1.25 | 1 1/2 hp | - | 80 | 3600/3000 RPM | Aluminum | €367.91 |
