WEG General Purpose Three Phase Motors, W22 Severe Duty, TEFC
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V| Style | Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Rpm | Frame | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

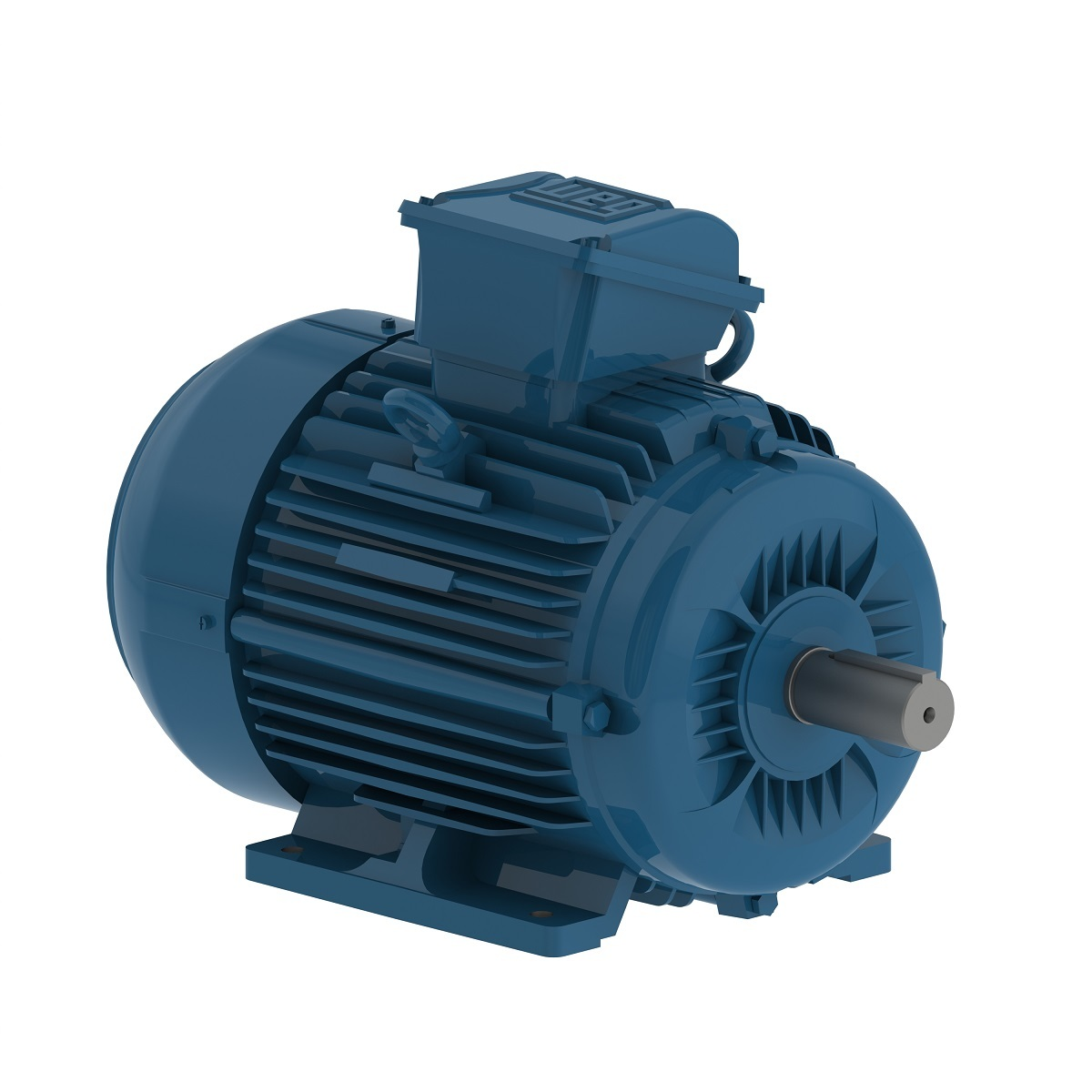

| A | 00518ET3E184TF3-W22 | - | - | - | - | - | - | - | - | €948.49 | |

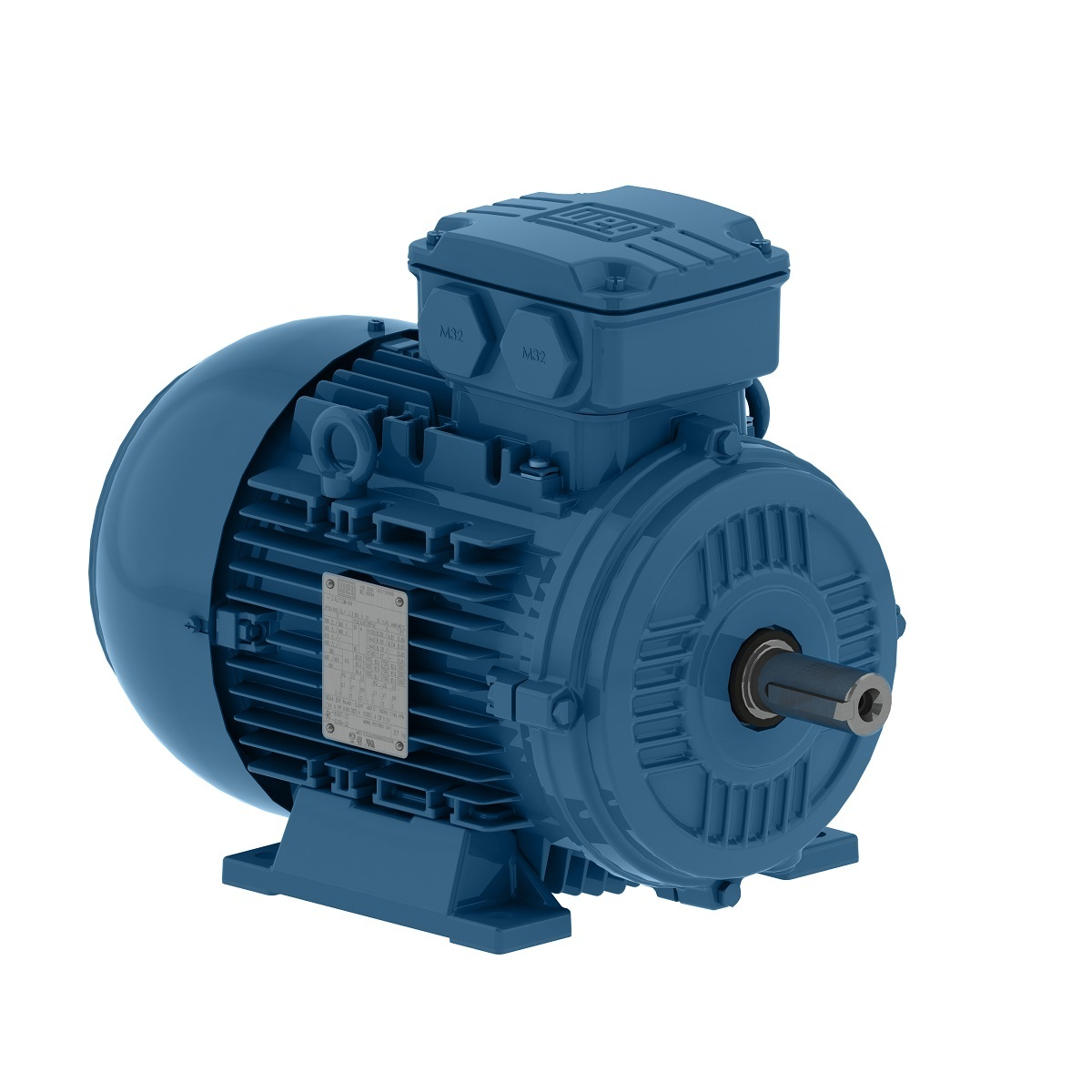

| B | 00112ET3EAL100L-W22 | - | - | - | - | - | - | - | - | €768.81 | |
| C | 03036ET3V286TS-W22 | 200/400V | - | - | 30 hp | - | 3400-3600 RPM | 286TS | - | €4,116.61 | |
| D | 00736ET3P213TCF3-W22 | 200V AC | 60 Hz | 1.25 | - | - | 3400-3600 RPM | 213TC | Cast Iron | €1,464.79 | |
| E | .7518ET3EAL90S/L-W22 | 208-230/460V | - | - | - | - | 1800 RPM | 90S/L | - | €324.83 | |
| F | 00309ET3EAL132M-W22 | 208-230/460V | - | - | - | - | 900 RPM | 132M | - | €1,351.42 | |
| F | .7509ET3EAL100L-W22 | 208-230/460V | - | - | - | - | 900 RPM | 100L | - | €720.07 | |
| G | 00218ET3EAL100L-W22 | 230/460/190/380V AC | - | - | 2 3/5 hp | - | 1800/1500 RPM | 100L | - | €656.76 | |
| F | 00136ET3EAL80-W22 | 230/460/190/380V AC | - | - | 1 3/10 hp | - | 3600/3000 RPM | 80 | - | €367.91 | |
| F | 00118ET3EAL90S-W22 | 230/460/190/380V AC | - | - | 1 3/10 hp | - | 1800/1500 RPM | 90S/L | - | €363.49 | |
| F | 00158ET3EAL90L-W22 | 230/460/190/380V AC | - | - | - | - | 1800/1500 RPM | 90S/L | - | €405.26 | |
| H | 00212ET3EAL132S-W22 | 230/460/190/380V AC | - | - | 2 3/5 hp | - | 1000/1200 RPM | 132S | - | €966.17 | |
| C | 00152ET3EAL100L-W22 | 230/460/190/380V AC | - | - | - | - | 1000/1200 RPM | 100L | - | €672.83 | |
| F | 00156ET3EAL90S-W22 | 230/460/190/380V AC | - | - | 2 hp | - | 3600/3000 RPM | 90S/L | - | €541.92 | |
| F | .7512ET3EAL90S-W22 | 230/460/190/380V AC | - | - | - | - | 1000/1200 RPM | 90S/L | - | €444.98 | |
| H | 00312ET3EAL132M-W22 | 230/460/190/380V AC | - | - | - | - | 1000/1200 RPM | 132M | - | €1,033.30 | |
| G | 00436ET3EAL112M-W22 | 230/460/190/380V AC | - | - | 5 1/2 hp | - | 3600/3000 RPM | 112M | - | €1,042.74 | |
| G | 00518ET3EAL132S-W22 | 230/460/190/380V AC | - | - | 6 7/10 hp | - | 1800/1500 RPM | 132S | - | €1,111.96 | |
| I | .5536EP3EAL71-W22 | 230/460/190/380V AC | - | - | 3/4 hp | - | 3600 RPM | 71 | - | - | RFQ
|
| J | .1818EP3EALR63FF-W22 | 230/460/380-415V AC | 50 Hz | 1.15 | - | - | 1700-1800 RPM | 63 | Aluminum | €378.21 | |
| K | 12518ET3E444TSF3-W22 | 230/460/380V AC | 60 Hz | 1.15 | - | - | 1700-1800 RPM | 444/5TS | Cast Iron | €17,669.76 | |
| D | 00736ET3E213TCF3-W22 | 230/460/380V AC | 60 Hz | 1.25 | - | - | 3400-3600 RPM | 213TC | Cast Iron | €1,464.79 | |
| L | 20036ET3E447TSF3-W22 | 230/460/380V AC | 60 Hz | 1.15 | - | - | 3400-3600 RPM | 445/7TS | Cast Iron | €27,801.87 | |
| K | 15036ET3E445TSF3-W22 | 230/460/380V AC | 50/60 Hz | 1.15 | - | - | 3400-3600 RPM | 444/5TS | Cast Iron | €22,279.07 | |
| K | 15018ET3E445TF3-W22 | 230/460/380V AC | 50/60 Hz | 1.15 | - | - | 1700-1800 RPM | 444/5T | Cast Iron | €20,554.98 | |
| K | 12536ET3E444TSF3-W22 | 230/460/380V AC | 50/60 Hz | 1.15 | - | - | 3400-3600 RPM | 444/5TS | Cast Iron | €18,112.63 | |
| M | 12518ET3E444TF3-W22 | 230/460/380V AC | 60 Hz | 1.15 | - | - | 1700-1800 RPM | 444/5T | Cast Iron | €17,401.23 | |
| K | 10018ET3E405TF3-W22 | 230/460/380V AC | 60 Hz | 1.25 | - | - | 1700-1800 RPM | 404/5T | Cast Iron | €13,792.68 | |
| N | 06009ET3E405TC-W22 | 230/460/380V AC | 60 Hz | 1.25 | - | - | 900 RPM | 404/5TC | Cast Iron | €22,205.00 | |
| L | 07518ET3E365TSF3-W22 | 230/460/380V AC | 60 Hz | 1.25 | - | - | 1700-1800 RPM | 364/5TS | Cast Iron | €10,271.19 | |
| I | .2512EP3EAL71-W22 | 230/460V | 60 Hz | 1 | 33/100 hp | 1/2A | 1100 RPM | 71 | - | €300.79 | |
| I | .3712EP3EAL80-W22 | 230/460V | 60 Hz | 1 | 1/2 hp | 1.07/2.14A | 1100-1200 RPM | 80 | - | €313.23 | |
| I | .2509EP3EAL80-W22 | 230/460V | 60 Hz | 1 | 33/100 hp | 0.866/1.73A | 845 RPM | 80 | Aluminum | €483.09 | |
| G | .5518EP3EAL80-W22 | 230/460V | 60 Hz | 1 | 3/4 hp | 1.25/2.5A | 1700-1800 RPM | 80 | - | €397.29 | |

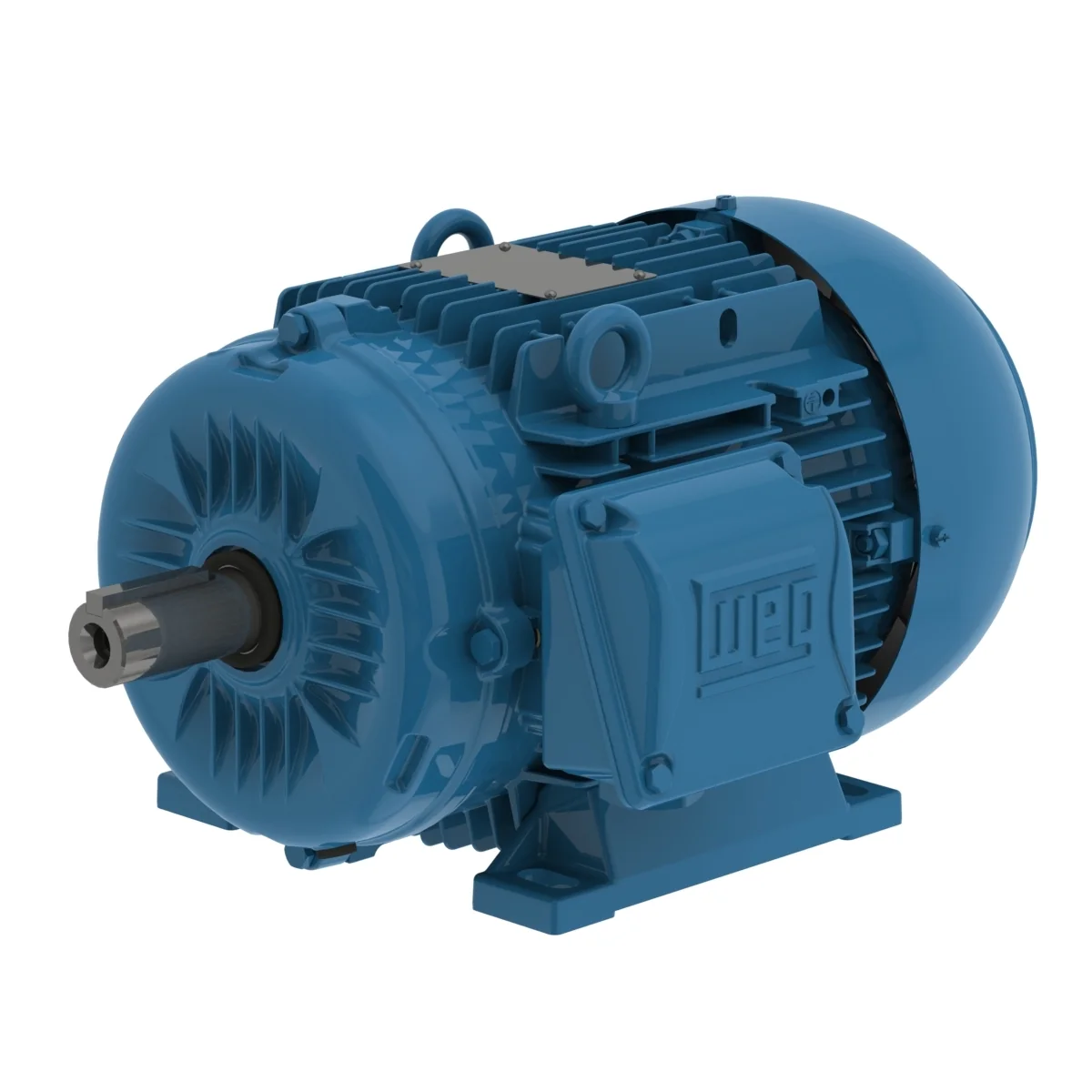

| F | 00209ET3YAL132S-W22 | 380-415/460/660-690V AC | - | - | 2 7/10 hp | - | 900 RPM | 132S | - | €1,216.81 | |
| F | 00309ET3YAL132M-W22 | 380-415/460/660-690V AC | - | - | - | - | 900 RPM | 132M | - | €1,351.42 | |
| H | 00736ET3YAL132S-W22 | 380-415/460V | 50 Hz | - | - | - | 3400-3600 RPM | - | Aluminum | €1,561.49 | |
| O | 00736ET3J213TCF3-W22 | 380V AC | 60 Hz | 1.25 | - | - | 3400-3600 RPM | 213TC | Cast Iron | €1,464.79 | |
| P | 00118ET3WAL90SFF-W22 | 460/220-240/380-415V AC | 50 Hz | 1.25 | - | - | 1700-1800 RPM | 90S/L | Aluminum | €631.13 | |
| Q | .1809EP3WAL80-W22 | 460V | - | 1 | 1/4 hp | 0.799A | 860 RPM | 80 | Aluminum | €447.45 | |
| Q | .2509EP3WAL80-W22 | 460V | 60 Hz | 1 | 33/100 hp | 0.866A | 845 RPM | 80 | Aluminum | €483.09 | |
| I | 00136ET3WAL80-W22 | 460V | - | 1.25 | 1 1/2 hp | - | 3600/3000 RPM | 80 | Aluminum | €367.91 | |
| Q | .5509EP3WAL90S/L-W22 | 460V | 60 Hz | 1 | 3/4 hp | 2.12A | 845 RPM | 90S/L | - | €576.71 | |
| R | 25018ET3GKD449T-W22 | 460V AC | 60 Hz | - | - | - | 1700-1800 RPM | 447/9T | Cast Iron | €30,704.75 | |
| I | 00318ET3HAL100L-W22 | 575V | - | - | - | - | 1700-1800 RPM | 100L | - | €556.84 | |
| I | 00518ET3HAL132S-W22 | 575V | - | - | 5 1/2 hp | - | 1700-1800 RPM | 132S | - | €772.27 | |
| G | 07536ET3H365TSC-W22 | 575V | - | - | 75 hp | - | 3400-3600 RPM | 365TSC | - | €10,920.73 | |
| I | 00158ET3HAL90L-W22 | 575V | - | - | 1 1/2 hp | - | 1700-1800 RPM | 90L | Aluminum | €434.20 | |
| I | .2536EP3HAL63-W22 | 575V | - | - | 1/4 hp | - | 3400-3600 RPM | 63 | Aluminum | €253.21 | |
| S | 00718ET3H213TF3-W22 | 575V AC | 60 Hz | 1.25 | - | - | 1700-1800 RPM | 213T | Cast Iron | €1,356.03 | |
| T | 00156ET3H143JM-W22 | 575V AC | 60 Hz | 1.25 | 1 1/2 hp | - | 3400-3600 RPM | 143JM | Cast Iron | €847.08 | |
| U | 00718ET3HAL132M-W22 | 575V AC | 60 Hz | 1.25 | - | - | 1700-1800 RPM | 132M | Aluminum | €1,341.52 | |
| V | 05036ET3H326TSC-W22 | 575V AC | 60 Hz | 1.25 | - | - | 3400-3600 RPM | 324/6TSC | Cast Iron | €6,228.48 |
