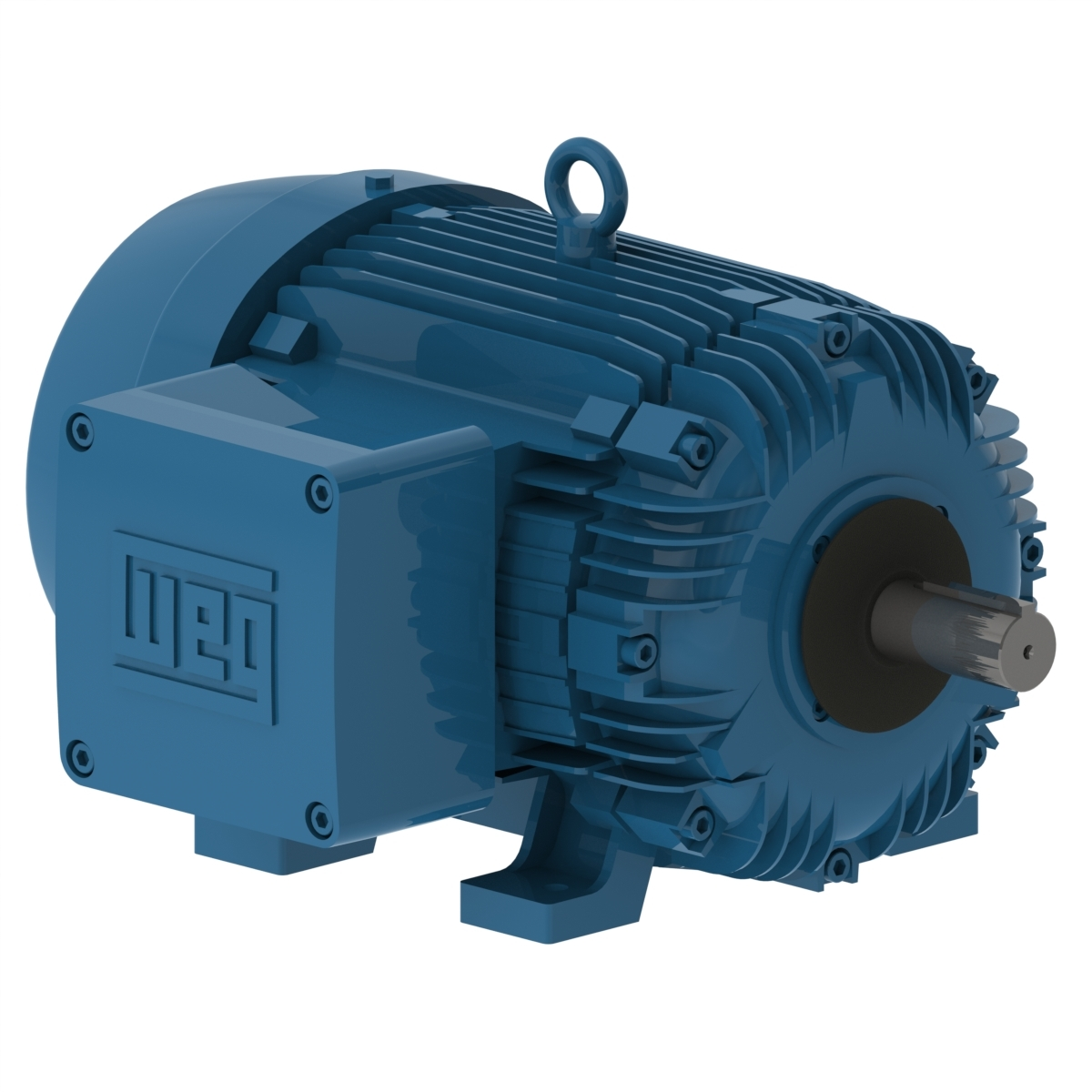

WEG 02036XT3E256T 14406886 Hazardous Location Motor, 3 Phase, Tefc 20 Hp, T4
Get it by Wednesday, Dec 17
10.00% off
€4,142.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bolt Material | Carbon Steel |
| Cc Number | CC029A |
| Conduit Box Location | Exterior |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency @ 50% | 90.2% |
| Efficiency Group | Premium |
| Enclosure Type | Tefc |
| Frame | 256T |
| Frame Material | Cast Iron |
| Frame Size | 256T |
| Frequency | 60 Hz |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Hazardous Location Class | 1C, D/2F, G |
| Hazardous Location Division | Division 1 |
| Hp | 20 hp |
| Insulation Class | Class F |
| Motor Application | Hazardous Location |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Foot Mounted |
| Nameplate Rpm | 3530 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Noise Level | 75 dBA |
| Nominal Efficiency | 91% |
| Number | Cc029A |
| Number Of Poles | 2 |
| Overall Length | 24 15/16" |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm | 3530 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4" |
| Shaft Material | Carbon Steel |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Code | T4 |
| Usable @ 208v | Yes |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 171.45 |
| Ship height (cm) | 41.15 |
| Ship length (cm) | 63.34 |
| Ship width (cm) | 51.82 |
| HS code | 8501524000 |
| Country of Origin | BR |
Product Variants
| Model | Voltage | Frame | Nameplate Rpm | Hp | Motor Application | Hazardous Location Class | Synchronous Speed | Flange | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

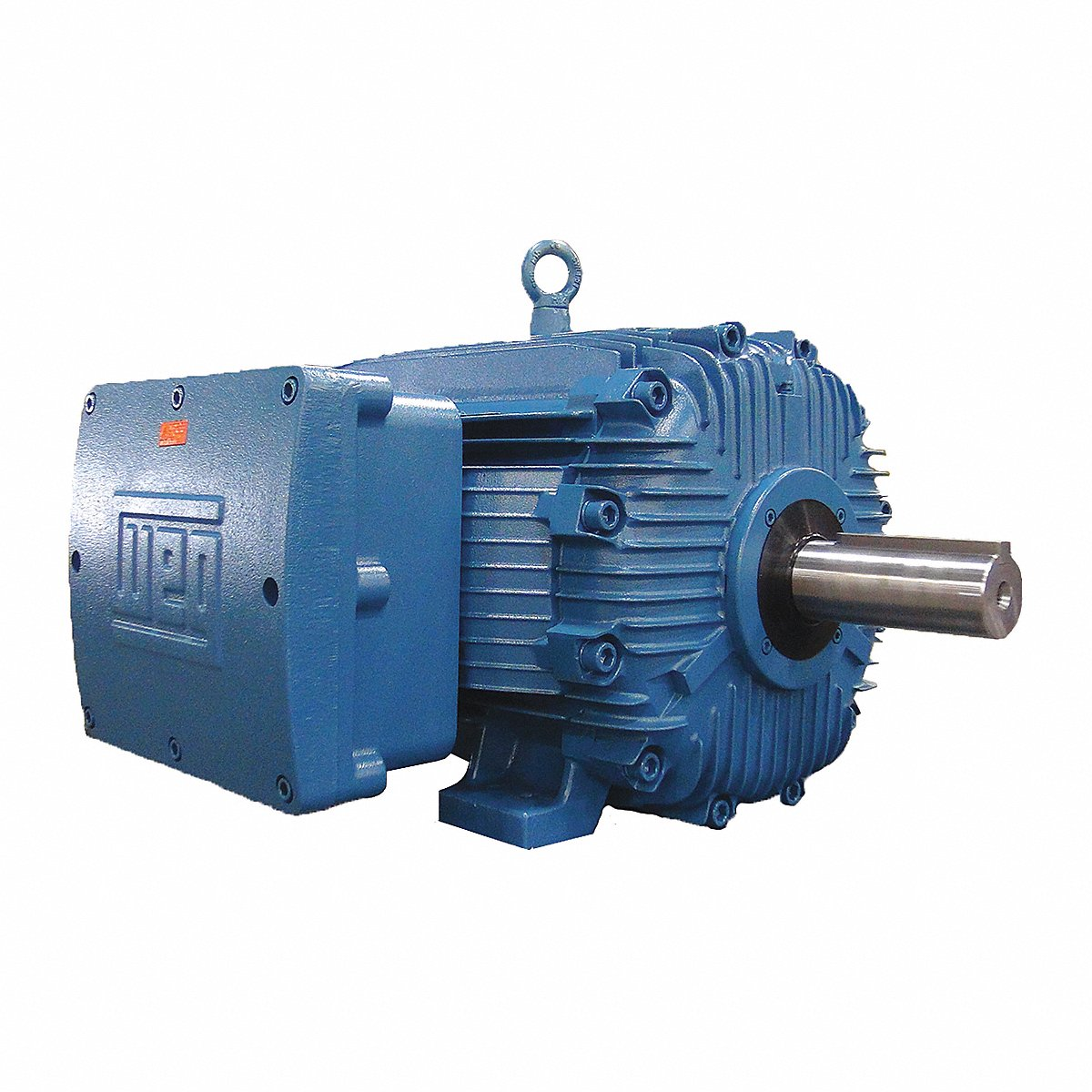

| 00118XT3E143T | 230/460/380V | 143T | 1765 RPM | 1 hp | Hazardous Location | 1 C, D / 2 F, G | 1800 RPM | Without | €1,315.11 | |
| 00156XT3E143T | 230/460/380V | 143T | 3500 RPM | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | 3600 RPM | Without | €1,328.90 | |
| 00158XT3E145T | 230/460/380V | 145T | 1760 RPM | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | 1800 RPM | Without | €1,363.94 | |
| 00152XT3E182T | 230/460/380V | 182T | 1165 RPM | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | 1200 RPM | Without | €1,706.85 | |
| 00236XT3E145T | 230/460/380V | 145T | 3480 RPM | 2 hp | Hazardous Location | 1 C, D / 2 F, G | 3600 RPM | Without | €1,362.00 | |
| 00218XT3E145T | 230/460/380V | 145T | 1750 RPM | 2 hp | Hazardous Location | 1 C, D / 2 F, G | 1800 RPM | Without | €1,404.90 | |
| 00212XT3E184T | 230/460/380V | 184T | 1165 RPM | 2 hp | Hazardous Location | 1 C, D / 2 F, G | 1200 RPM | Without | €1,719.18 |
