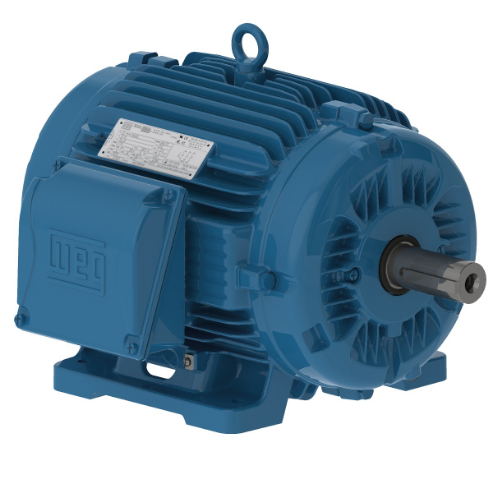

WEG 01512AT3E284T-W22 12547858 Electric Motor, 15Hp, 60Hz, 1200 Rpm
Get it by Monday, Dec 22
€3,752.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | Yes |
| Break-down Torque | 260% |
| Cold Locked Rotor Time | 36 sec. |
| Connection Cables Quantity | 12 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 84% |
| Efficiency At 50 % | 69% |
| Efficiency At 75 % | 80% |
| Enclosure Type | Teao |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 284/6T |
| Frame Material | Cast Iron |
| Frame Size | 284T |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Horsepower | 15 hp |
| Hot Locked Rotor Time | 20 sec. |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 253-229/115A |
| Locked Rotor Torque | 229% |
| Lrc | 6.4X(Code G) |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 7.85 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Speed | 1175 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 12.1-14/7A |
| No. Of Poles | 6 |
| Output | 15 hp |
| Output Rating | 15 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 91.7 |
| Power Factor At 50 % | 91 |
| Power Factor At 75 % | 91.7 |
| Rated Current | 39.6-35.8/17.9A |
| Rated Torque | 67 lbs.-ft. |
| Rated Voltage | 208-230/460V AC |
| Regreasing System | At Drive End And Non Drive End |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.08% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 180.9 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 24.13 |
| Country of Origin | US |
Product Variants
| Product | Model | Frequency | Motor Enclosure Design | Voltage | Service Factor | Hp | Synchronous Speed | Terminal Box | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
02536ET3E284TSF3-W22 | 50/60 Hz | Totally Enclosed Fan Cooled | 230/460/380V AC | 1.25 | - | 3600 RPM | Top | 3600 RPM | €3,569.80 | |
 |
00518ET3E184TF2-W22 | 60 Hz | Totally Enclosed Fan Cooled | 230/460/380V AC | 1.25 | - | 1800 RPM | Right Position | 1800 RPM | €921.07 | |
|
01518ET3E254TF3-W22 | 60 Hz | Totally Enclosed Fan Cooled | 230/460/380V AC | 1.25 | - | 1800 RPM | Top | 1800 RPM | €2,199.91 | |
 |
06018ET3H364TF3-W22 | 60 Hz | Totally Enclosed Fan Cooled | 575V AC | 1.25 | - | 1800 RPM | Top | 1800 RPM | €8,853.50 | |
 |
15036ET3Q445TS-W22 | 60 Hz | Totally Enclosed Fan Cooled | 460V AC | 1.15 | - | 3600 RPM | Left Position | 3600 RPM | €21,630.68 | |
 |
05018ET3E326TF2-W22 | 50/60 Hz | Totally Enclosed Fan Cooled | 230/460/380V AC | 1.25 | - | 1800 RPM | Right Position | 1700-1800 RPM | €5,932.58 | |
 |
03036ET3E286TSF2-W22 | 50/60 Hz | Totally Enclosed Fan Cooled | 230/460/380V AC | 1.25 | - | 3600 RPM | Right Position | 3400-3600 RPM | €4,116.61 |
