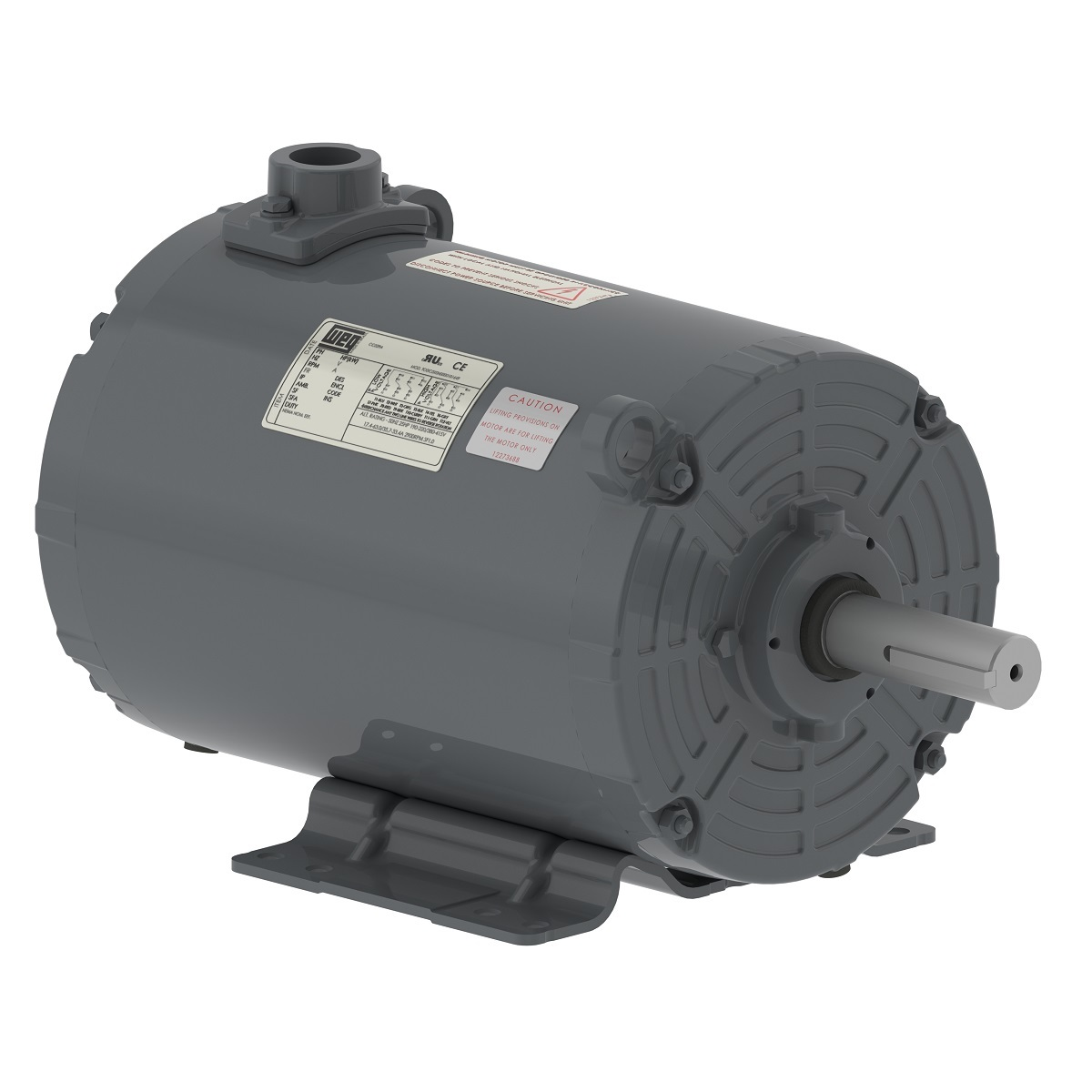

WEG 01036AP3EGD184TZ-S 13184647 Farm Duty Motor, Grain Dryer-Axial, 7.5-10 HP, 2 Poles, 182/4TZ Frame, 3 Phase, 208-230/460V, 60 Hz, Foot-mounted
10 hp
184TZ
Get it by Tuesday, Aug 25
€1,325.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 11.8/23.6-26.1A , 26.1-23.6/11.8A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 320% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 16 sec. , 18 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 76% , 89.3% |
| Efficiency 75% | 89.4% |
| Efficiency @ 1 % | 90% |
| Efficiency @ 100% | 88.3% |
| Efficiency @ 75 % | 86% |
| Enclosure | IC418 |
| Enclosure Rating | IC418 |
| Enclosure Type | Teao |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Flange Type | Without |
| Frame | 182/4TZ |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grade | Garde 1040/45 |
| Grounding Lugs | Superior |
| Grounding Lugs Type | Superior |
| Hot Locked Rotor Time | 9 sec. |
| Hp | 7 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 191-172/86.1A , 86.1/172-191A |
| Locked Rotor Time | 9 sec. |
| Locked Rotor Time (cold) | 16 sec. |
| Locked Rotor Time(hot) | 10 sec. |
| Locked Rotor Torque | 229% |
| Lrc | 7.3X(Code H) , 9.5x(Code L) |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Hole Size | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.2183 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.2183 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Speed | 3480 RPM |
| Mounting | F-3 , Foot Mounted |
| Nde Bearing Seal | No |
| No Load Amps | 3.6/6.21-7.2A , 7.58-8.79/4.39A |
| No. Of Poles | 2 |
| Output | 10 hp |
| Output Rating | 7 1/2 hp to 10 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL7031 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.9 |
| Power Factor 50% | 0.76 |
| Power Factor 75% | 0.86 |
| Power Factor @ 1 % | 88.3 |
| Power Factor @ 50 % | 89.3 |
| Power Factor @ 75 % | 89.4 |
| Resilient Base | Without |
| Rotation | CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.33% |
| Speed | 3400-3600 RPM , 3480 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 105 K |
| Terminal Block | Without |
| Terminal Box | Top |
| Torque | 15.1 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V , 208-230/460V AC |
| Winding Thermal Protection | Thermostat - 2 wires 1 per phase 155°C , Thermostat 2 Wires 1 Per Phase 155°C |
Shipping Info:
| Ship weight (kg) | 40.95 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Frequency | Service Factor | Frame | Frame Material | Duty Cycle | No. Of Poles | Synchronous Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
06018AT3ECT364T-W22 | 60 hp | 60 Hz | 1, 1.25 | 364/5T | - | - | - | - | €10,026.04 | |
|
07518AT3ECT365T-W22 | 75 hp | 60 Hz | 1, 1.25 | 365T | - | - | - | - | €11,710.03 | |
 |
00509AT3ECT254TF1-W2 | 5 hp | 60 Hz | - | 254TF1 | - | - | - | - | €3,120.85 | |
 |
00736AP3FGD184TZ-S | - | 60 Hz | 1 | 182/4TZ | Rolled Steel | S1 | 2 | 3600 RPM | €1,042.08 | |
|
04018AT3HCT324T-W22 | 40 hp | 60 Hz | - | 324T | - | - | - | - | €5,669.43 | |
|
01536AP3FGD215TZ-S | - | - | - | 215TZ | Rolled Steel | - | - | - | €1,572.62 | |
|
00512AP3H215T-S | 5 hp | - | - | 215T | - | - | - | - | - | RFQ
|
