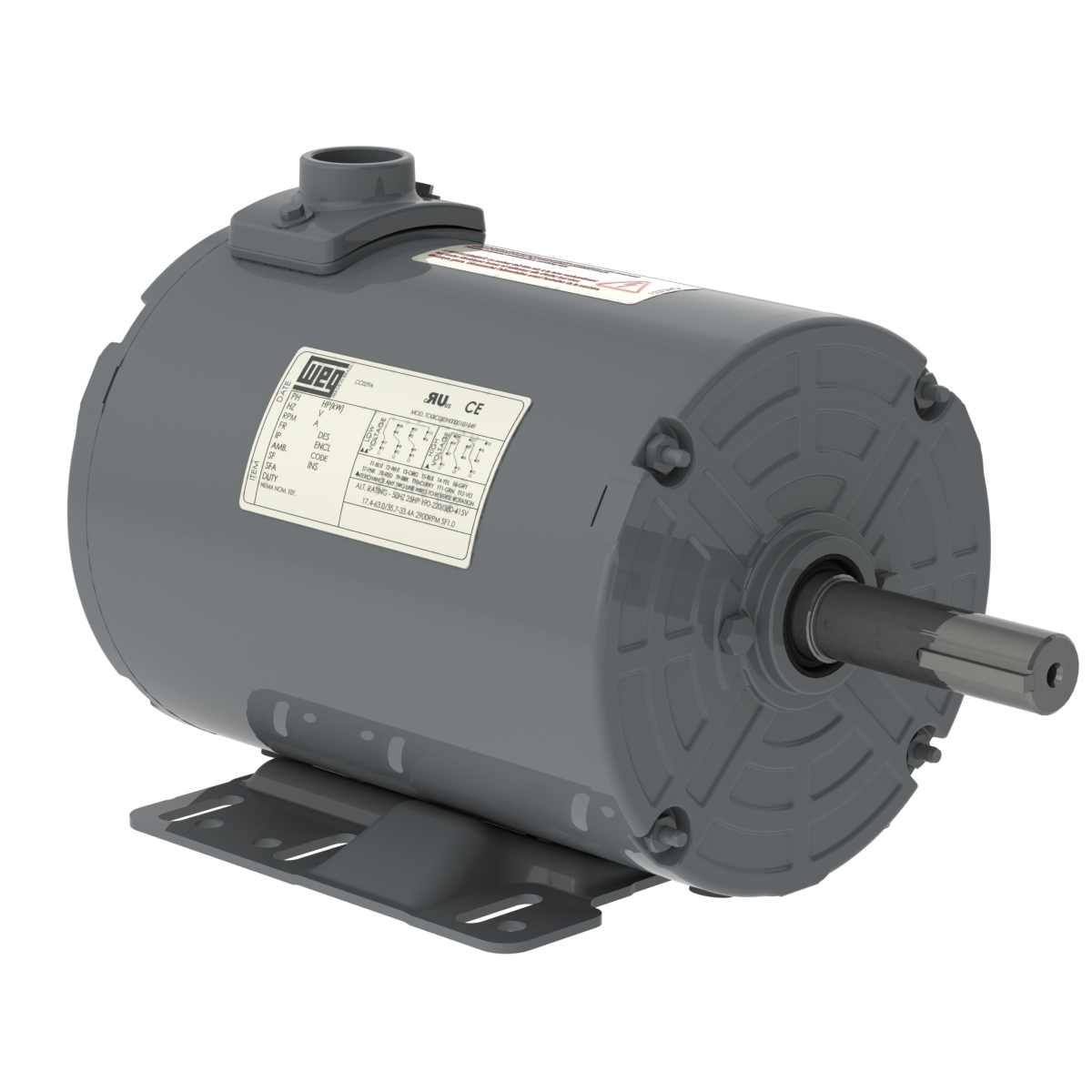

WEG 00336AP3EGD145TZ-S 13248532 Farm Duty Motor, Grain Dryer-Axial, 1.5-3.0 HP, 2 Poles, 143/5TZFrame, 3 Phase, 208-230/460V, 60 Hz, Foot-mounted
3 hp
145TZ
Get it by Tuesday, Apr 7
€894.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 620% |
| Breakdown Torque | 620% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 27 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 79.7% |
| Efficiency @ 50% | 69.5% |
| Efficiency @ 75% | 76.3% |
| Efficiency At 1 % | 72% |
| Efficiency At 50 % | 51% |
| Efficiency At 75 % | 63% |
| Enclosure | IC418 |
| Enclosure Type | Teao |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Flange Type | Without |
| Frame | 143/5TZ |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Superior |
| Hot Locked Rotor Time | 15 sec. |
| Hp | 1 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 61.3-55.4/27.7A |
| L.r. Amperes | 27.7/55.4-61.3A |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time (hot) | 15 sec. |
| Locked Rotor Torque | 450% |
| Lrc | 11.5X(Code R) |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Hole Size | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 0.1092 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1092 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Speed | 3550 RPM |
| Mounting | F-3 , Foot Mounted |
| No Load Amps | 0-3.47/1.73A |
| No. Of Poles | 2 |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp to 3 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL7031 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.51 |
| Power Factor 75% | 0.63 |
| Power Factor At 1 % | 79.7 |
| Power Factor At 50 % | 69.5 |
| Power Factor At 75 % | 76.3 |
| Power Factor_100% | 0.72 |
| Rated Current | 2.41/4.82-5.33A , 5.33-4.82/2.41A |
| Rated Speed | 3550 RPM |
| Rated Torque | 2.22 lbs.-ft. |
| Rated Voltage | 208-230/460V , 208-230/460V AC |
| Resilient Base | Without |
| Rotation | CCW |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.39% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 105 K |
| Terminal Block | Without |
| Terminal Box | Top |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V AC |
| Winding Thermal Protection | Thermostat - 2 wires 1 per phase 155°C |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Service Factor | Frequency | Rpm | Frame | Frame Material | Duty Cycle | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
06018AT3ECT364T-W22 | 60 hp | 1, 1.25 | 50/60 Hz | 1700-1800 RPM | 364/5T | - | - | - | €10,026.04 | |
|
07518AT3ECT365T-W22 | 75 hp | 1, 1.25 | 50/60 Hz | 1700-1800 RPM | 365T | - | - | - | €11,710.03 | |
 |
00509AT3ECT254TF1-W2 | - | - | - | 900 RPM | 254TF1 | - | - | - | €3,120.85 | |
 |
00736AP3FGD184TZ-S | - | 1 | 60 Hz | 3400-3600 RPM | 182/4TZ | Rolled Steel | S1 | 2 | €1,042.08 | |
|
04018AT3HCT324T-W22 | 40 hp | - | - | 1700-1800 RPM | 324T | - | - | - | €5,669.43 | |
|
01536AP3FGD215TZ-S | - | - | - | 3600 RPM | 215TZ | Rolled Steel | - | - | €1,572.62 | |
|
00512AP3H215T-S | - | - | - | 1200 RPM | 215T | - | - | - | - | RFQ
|
