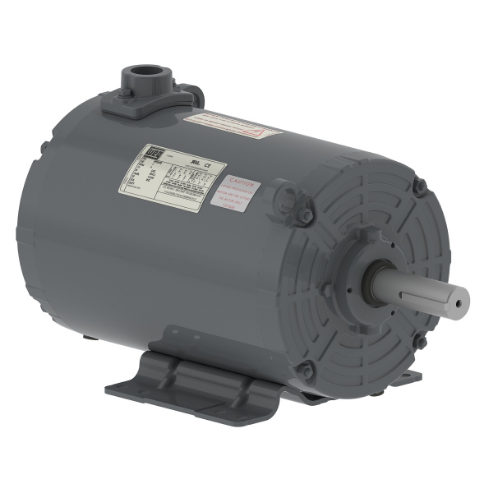

WEG 00456AP3EGD182Z-S 13237783 Electric Motor, 3 & 4-1/2Hp, 60Hz, 3600 Rpm
Get it by Friday, Dec 19
€923.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 550% |
| Cold Locked Rotor Time | 18 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 75% |
| Efficiency At 50 % | 53% |
| Efficiency At 75 % | 66% |
| Enclosure Type | Teao |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 182/4TZ |
| Frame Material | Rolled Steel |
| Frame Size | 182Z |
| Frequency | 60 Hz |
| Grounding Lugs | Superior |
| Hot Locked Rotor Time | 10 sec. |
| Hp | 3 hp |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 104-93.9/47A |
| Locked Rotor Torque | 380% |
| Lrc | 11.0X(Code N) |
| Main Terminal Box Hole Size | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Speed | 3540 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 0-5.7/2.85A |
| No. Of Poles | 2 |
| Output | 3 hp |
| Output Rating | 3 hp to 4 1/2 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL7031 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 86.2 |
| Power Factor At 50 % | 79.8 |
| Power Factor At 75 % | 84.2 |
| Rated Current | 9.45-8.54/4.27A |
| Rated Torque | 4.45 lbs.-ft. |
| Rated Voltage | 208-230/460V AC |
| Resilient Base | Without |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 1.67% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 105 K |
| Terminal Block | Without |
| Terminal Box | Top |
| Tropicalized Painting | Without |
| Voltage | 230/460V |
| Winding Thermal Protection | Thermostat - 2 wires 1 per phase 155°C |
Shipping Info:
| Ship weight (kg) | 26.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Hp | Frame | Duty Cycle | Break-down Torque | No Load Amps | Mounting | Output Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
01036AP3EGD184TZ-S | 208-230/460V AC | 7 1/2 hp | 182/4TZ | S1 | 320% | 7.58-8.79/4.39A | Foot Mounted | 7 1/2 hp to 10 hp | €1,325.31 | |
 |
00456AP3EGD145TZ-S | 208-230/460V AC | 3 hp | 143/5TZ | S1 | 509% | 0-4.52/2.26A | Foot Mounted | 3 hp to 4 1/2 hp | €948.49 | |
|
00336AP3EGD145TZ-S | 208-230/460V AC | 1 1/2 hp | 143/5TZ | S1 | 620% | 0-3.47/1.73A | Foot Mounted | 1 1/2 hp to 3 hp | €894.80 | |
|
00736AP3EGD184TZ-S | 208-230/460V AC | 5 hp | 182/4TZ | S1 | 520% | 6.31-7.32/3.66A | Foot Mounted | 5 hp to 7 1/2 hp | €1,113.13 | |
 |
01536AP3EGD215TZ-S | 208-230/460V AC | 10 hp | 213/5TZ | S1 | 459% | 13.7-12.4/6.2A | Foot Mounted | 10 hp to 15 hp | €1,679.84 |
