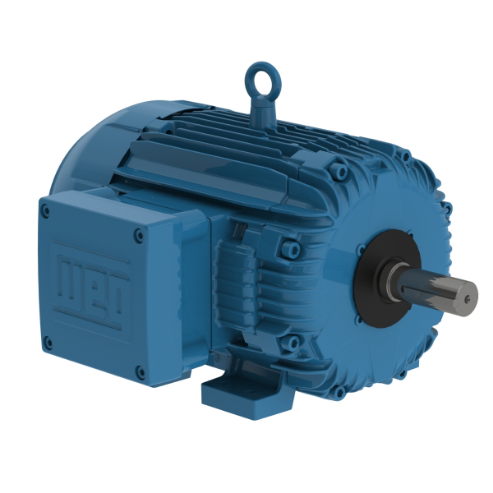

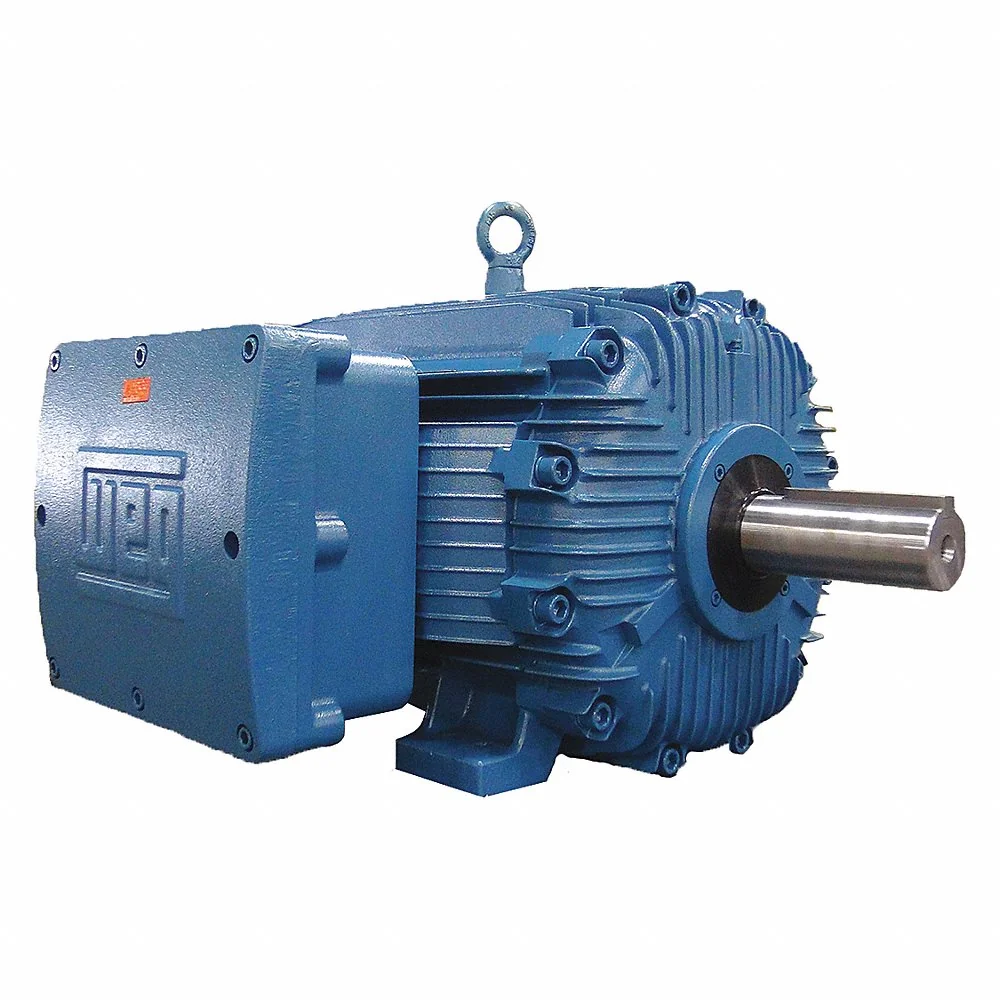

WEG 01036XT3E215T 14348909 Explosion Proof Motor, 10 HP, 2 Poles, 213/5T Frame, 3 Phase, 230/460//380V, 60//50 Hz, Foot-mounted
3600 rpm
10 hp
208/230/460V
Get it by Tuesday, Aug 18
5.00% off
€2,448.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C , 40°C |
| Amps | 13.2A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 260% |
| Cc Number | CC029A |
| Cold Locked Rotor Time | 36 sec. |
| Conduit Box Location | Exterior |
| Connection Cables Quantity | 9 |
| De Bearing Seal | Oil Seal |
| Degree Of Protection | IP55 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency | 50% |
| Efficiency @ 100% | 90.2% |
| Efficiency Group | Premium |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 215T |
| Frame Material | Cast Iron |
| Frame Size | 215T |
| Frequency | 60 Hz |
| Frequency | 50/60 Hz |
| Full Load Amps | 12/24-26.5A |
| Grade | Grade 316 |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Grounding Lugs Type | Single |
| Hazardous Location Class | 1C, D/2F, G |
| Hazardous Location Division | Division 1 |
| Hp | 10 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 90.8A |
| Locked Rotor Time(hot) | 20 sec. |
| Locked Rotor Torque | 200% |
| Lrc | 6.9x(Code H) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Material | Stainless Steel |
| Moment Of Inertia | 0.5512 lbs.-sq. ft. |
| Motor Application | Hazardous Location |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting | F-1 |
| Mounting Type | Foot Mounted |
| Nameplate Speed | 3535 RPM |
| Nde Bearing Seal | Lip Seal |
| Nema Design | B |
| No Load Amps | 5.1/10.2A |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Noise | 72 dBA |
| Noise Level | 67 dBA |
| Nominal Efficiency | 90.2% |
| Number | Cc029A |
| Output Rating | 7.5 kW |
| Overall Length | 19 7/16" |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.87 |
| Product Datasheet | weg-01036xt3e215t.pdf |
| Rotation | CW And CCW |
| Service Factor | 1 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 3/8" |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.67% |
| Speed | 2920 RPM , 3400-3600 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Code | T4 |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 14.7 lbs.-ft. , 18 lbs.-ft. |
| Tropicalized Painting | Without |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 230/460/380V , 415V |
| Winding Thermal Protection | Thermostat 2 Wires 1 Per Phase 155°C |
Shipping Info:
| Ship weight (kg) | 91.8 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 49.37 |
| Ship width (cm) | 40.64 |
| HS code | 8501524000 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Voltage | Frame | Hp | Motor Application | Hazardous Location Class | Enclosure Type | No. Of Poles | Synchronous Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118XT3E143T | 230/460/380V | 143T | 1 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 4 | 1800 RPM | €1,315.11 | |
| 00156XT3E143T | 230/460/380V | 143T | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 2 | 3600 RPM | €1,328.90 | |
| 00158XT3E145T | 230/460/380V | 145T | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 4 | 1800 RPM | €1,363.94 | |
| 00152XT3E182T | 230/460/380V | 182T | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 6 | 1200 RPM | €1,706.85 | |
| 00236XT3E145T | 230/460/380V | 145T | 2 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 2 | 3600 RPM | €1,362.00 | |
| 00218XT3E145T | 230/460/380V | 145T | 2 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 4 | 1800 RPM | €1,404.90 | |
| 00212XT3E184T | 230/460/380V | 184T | 2 hp | Hazardous Location | 1 C, D / 2 F, G | Tefc | 6 | 1200 RPM | €1,719.18 |
