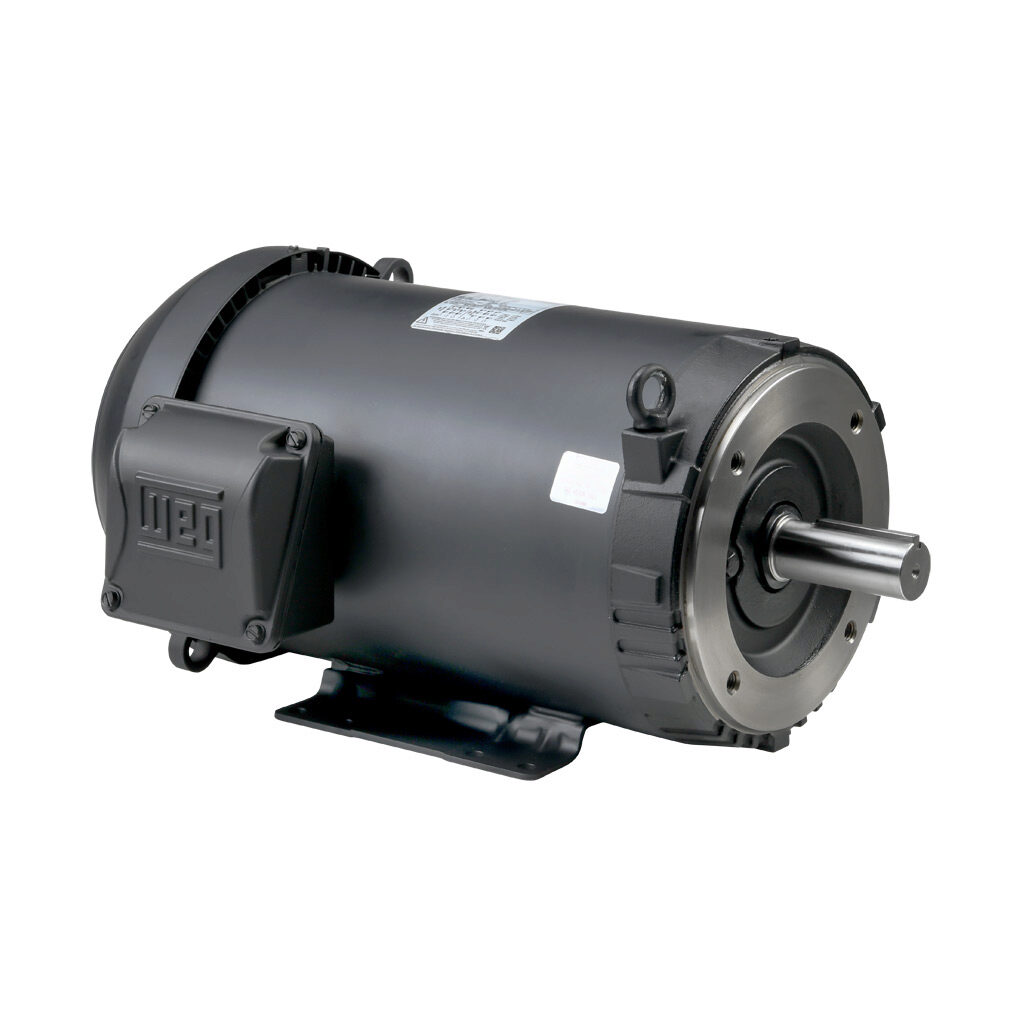

WEG 01036ET3E215TC-S Electric Motor, 10Hp, 60Hz, 3600 Rpm | BB8BGW

WEG 01036ET3E215TC-S 14122239 General Purpose Motor, TEAO/TEFC RolLED Steel 213/5TC Frame, 7.5 HP, 2950 RPM, 415 V

Item: BB8BGWModel: 01036ET3E215TC-SCross Ref: 14122239
Check Availability
In Stock

Get it by Monday, Feb 23

€1,456.33 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 300%
Cold Locked Rotor Time 21 sec.
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 90.2%
Efficiency At 1 % 91%
Efficiency At 50 % 80%
Efficiency At 75 % 88%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type C
Frame 213/5TC
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 12 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
Ip Rating IP55
L. R. Amps 173/86.2A
Locked Rotor Torque 260%
Lrc 7.5X(Code H)
Main Terminal Box Hole Size 1.377"
Moment Of Inertia 0.7188 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3530 RPM
Motor Type Induction
Mounting Foot Mounted
Mounting Orientation Horizontal, Vertical
No Load Amps 7.53/3.77A
No. Of Poles 2
Noise Level 70 dBA
Number Of Phases 3
Output 10 hp
Output Rating 10 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor At 1 % 90.2
Power Factor At 50 % 89.5
Power Factor At 75 % 90.2
Product Datasheet weg-01036et3e215tc-s.pdf
Rated Current 23/11.5A
Rated Torque 14.9 lbs.-ft.
Rated Voltage 230/460V AC
Resilient Base Without
Rotation CW/CCW
Rpm 3400-3600 RPM
Service Factor 1.15
Shaft Diameter 1 3/8"
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 1.94%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/190-220/380-415V AC

Shipping Info:

Ship weight (kg) 76.05
Ship height (cm)48.26
Ship length (cm)48.26
Ship width (cm)45.72
Country of OriginBR
