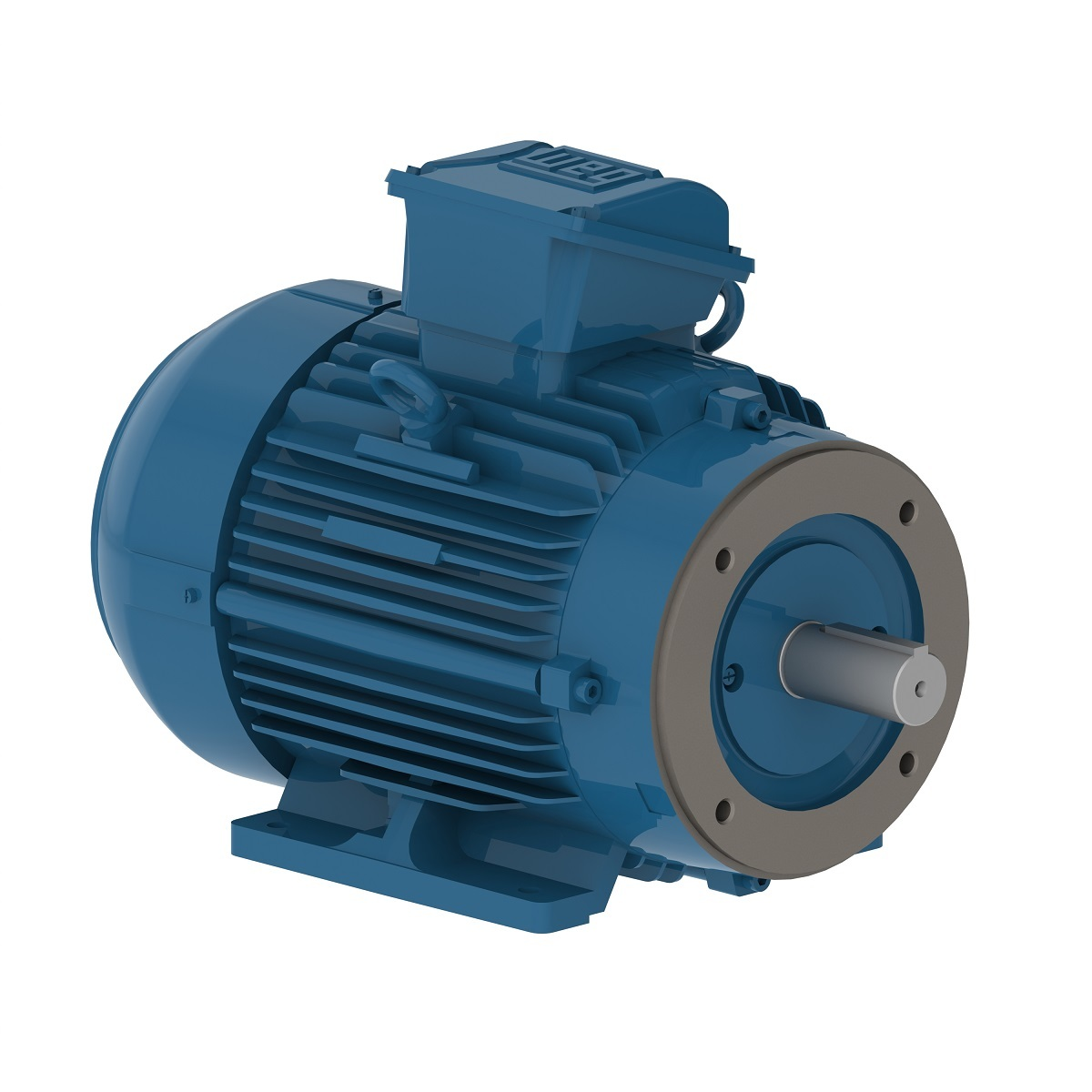

WEG 00736ET3J213TCF3-W22 Electric Motor, 7.5Hp, 60Hz, 3600 Rpm | BC3HRX

WEG 00736ET3J213TCF3-W22 14013939 Electric Motor, 7.5Hp, 60Hz, 3600 Rpm

Item: BC3HRXModel: 00736ET3J213TCF3-W22Cross Ref: 14013939
Check Availability
In Stock

Get it by Tuesday, Dec 23

€1,464.79 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Break-down Torque 300%
Cold Locked Rotor Time 36 sec.
Connection Cables Quantity 6
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency At 1 % 88%
Efficiency At 50 % 75%
Efficiency At 75 % 84%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type C
Frame 213TC
Frame Material Cast Iron
Frame Size 213TC
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 20 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 76.4A
Locked Rotor Torque 210%
Lrc 7.2X(Code H)
Main Terminal Box Hole Size 1"
Main Terminal Box Hole Type NPT
Moment Of Inertia 0.4665 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3530 RPM
Mounting Foot Mounted
No Load Amps 3.63A
No. Of Poles 2
Noise Level 68 dBA
Output 7 1/2 hp
Output Rating 7 1/2 hp
Overload Protector Without Overload Protector
Painting RAL5009 207A (ISO 12944-C2)
Phase 3
Power Factor At 1 % 89.5
Power Factor At 50 % 87.5
Power Factor At 75 % 89.5
Rated Current 10.6A
Rated Torque 11.2 lbs.-ft.
Rated Voltage 380V AC
Rotation CW/CCW
Rpm 3400-3600 RPM
Service Factor 1.25
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 1.94%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Top
Tropicalized Painting Without
Voltage 380V AC

Shipping Info:

Ship weight (kg) 72
Ship height (cm)23.83
Ship length (cm)32.39
Ship width (cm)24.13
Country of OriginUS

Product Variants

ProductModelFrequencyMotor Enclosure DesignVoltageService FactorHpSynchronous SpeedTerminal BoxRpmPrice
WEG 02536ET3E284TSF3-W22 Electric Motor, 25Hp, 60Hz, 3600 Rpm | BB6DPB 02536ET3E284TSF3-W2250/60 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-3600 RPMTop3600 RPM€3,569.80
WEG 00518ET3E184TF2-W22 Electric Motor, 5Hp, 60Hz, 1800 Rpm | BB6HER 00518ET3E184TF2-W2260 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-1800 RPMRight Position1800 RPM€921.07
WEG 01518ET3E254TF3-W22 Electric Motor, 15Hp, 60Hz, 1800 Rpm | BB6HEZ 01518ET3E254TF3-W2260 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-1800 RPMTop1800 RPM€2,199.91
WEG 06018ET3H364TF3-W22 Electric Motor, 60Hp, 60Hz, 1800 Rpm | BB6WQV 06018ET3H364TF3-W2260 HzTotally Enclosed Fan Cooled575V AC1.25-1800 RPMTop1800 RPM€8,853.50
WEG 15036ET3Q445TS-W22 Electric Motor, 150Hp, 60Hz, 3600 Rpm | BB6YGQ 15036ET3Q445TS-W2260 HzTotally Enclosed Fan Cooled460V AC1.15-3600 RPMLeft Position3600 RPM€21,630.68
WEG 05018ET3E326TF2-W22 Electric Motor, 50Hp, 60Hz, 1800 Rpm | BB7AKP 05018ET3E326TF2-W2250/60 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-1800 RPMRight Position1700-1800 RPM€5,932.58
WEG 03036ET3E286TSF2-W22 Electric Motor, 30Hp, 60Hz, 3600 Rpm | BB7DJH 03036ET3E286TSF2-W2250/60 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-3600 RPMRight Position3400-3600 RPM€4,116.61
