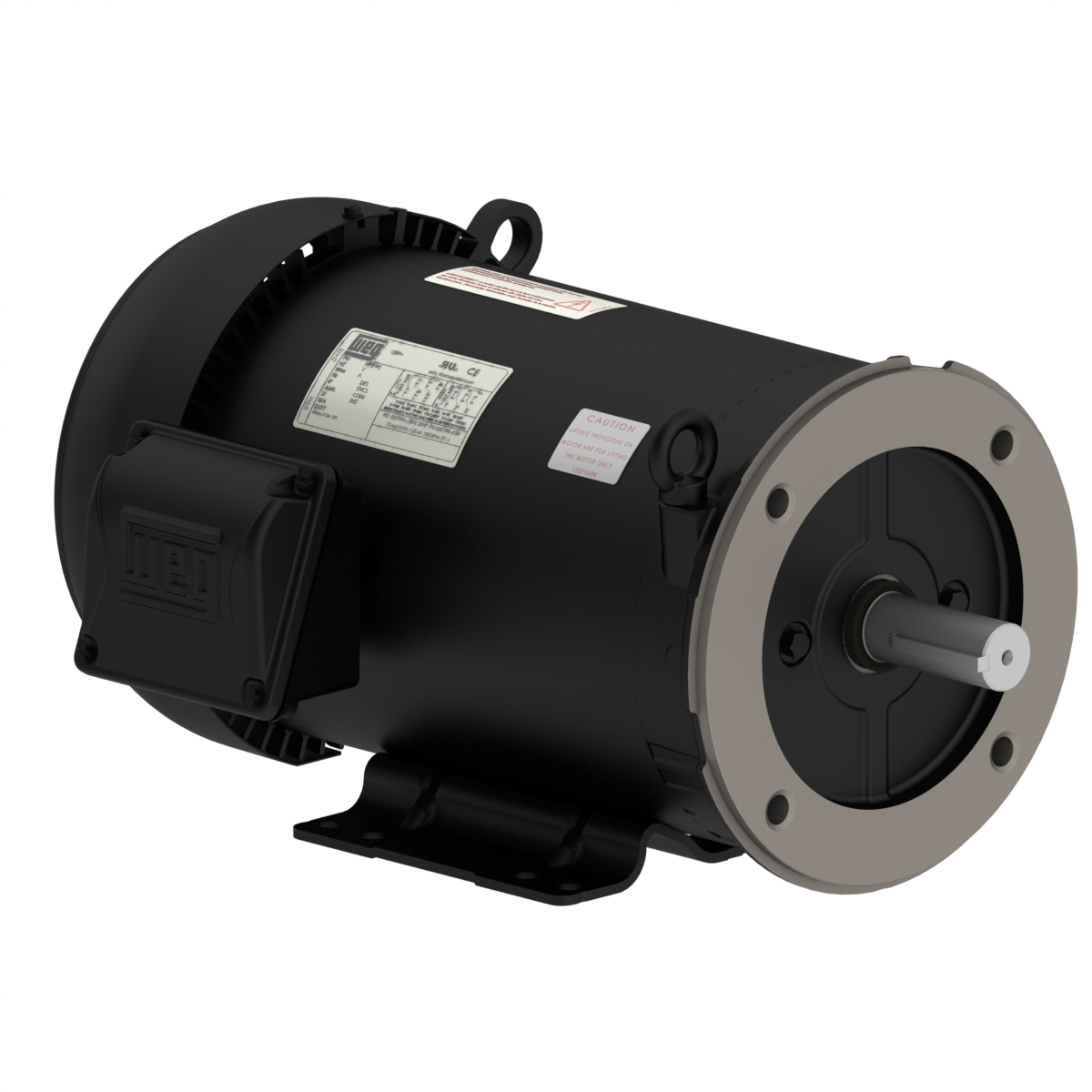

WEG 00336ET3E182TC-S 12675351 General Purpose Motor, TEAO/TEFC RolLED Steel 182/4TC Frame, 2 HP, 2940 RPM, 415 V
3600 rpm
3 hp
184TC
Get it by Tuesday, Aug 25
€832.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 3.76/7.52A , 7.34/3.67A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% , 350% |
| Cold Locked Rotor Time | 39 sec. , 46 sec. |
| Connection Cables Quantity | 9 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 71% , 84% |
| Efficiency 75% | 86.5% |
| Efficiency @ 1 % | 87% |
| Efficiency @ 100% | 86.5% |
| Efficiency @ 75 % | 82% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 182/4TC |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 22 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 33.1/66.2A , 33.2A , 64.6/32.3A |
| Locked Rotor Time (cold) | 45 sec. |
| Locked Rotor Time(hot) | 25 sec. , 26 sec. |
| Locked Rotor Torque | 220% , 240% |
| Lrc | 10.4x(Code N) , 8.8X(Code K) |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
| Material | Carbon Steel |
| Moment Of Inertia | 0.1564 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1564 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3515 RPM |
| Mounting | F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 1.7/3.4A , 3.22/1.61A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.85 |
| Power Factor 50% | 0.7 |
| Power Factor 75% | 0.8 |
| Power Factor @ 1 % | 86.5 |
| Power Factor @ 50 % | 84 |
| Power Factor @ 75 % | 86.5 |
| Product Datasheet | weg-00336et3e182tc-s.pdf |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.36% |
| Speed | 3400-3600 RPM , 3515 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 4.48 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC , 230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 32.85 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 45.72 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Voltage | Frequency | Hp | Service Factor | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01836ET3Y160LFF-W22 | 460V | 50 Hz | 25 hp | 1.25 | Totally Enclosed Fan Cooled | 29.9A | - | Face, Base | €5,367.05 | |
| 03736ET3Y200LFF-W22 | 460V | 60 Hz | 50 hp | 1.25 | Totally Enclosed Fan Cooled | 59.8A | - | Face, Base | €9,770.55 | |
| 05536ET3Y250S/MFF-W2 | 460V AC | 50/60 Hz | 75 hp | 1.25 | Totally Enclosed Fan Cooled | 80.3A | - | Face, Base | €16,526.29 | |
| 00156ET3H143TC-W22 | 575V AC | 60 Hz | 1 1/2 hp | 1.25 | Totally Enclosed Fan Cooled | 1.57A | Three Phase | Rigid Base | €840.81 | |
| 00236ET3H145TC-W22 | 575V AC | 60 Hz | 2 hp | 1.25 | Totally Enclosed Fan Cooled | 2.05A | Three Phase | Rigid Base | €853.67 | |
| 00336ET3H182TC-W22 | 575V | 60 Hz | 3 hp | 1 | Totally Enclosed Fan Cooled | 2.9A | Three Phase | Rigid Base | €1,055.20 | |
| 00536ET3H184TC-W22 | 575V AC | 60 Hz | 5 hp | 1.25 | Totally Enclosed Fan Cooled | 4.72A | Three Phase | Rigid Base | €1,251.50 |
