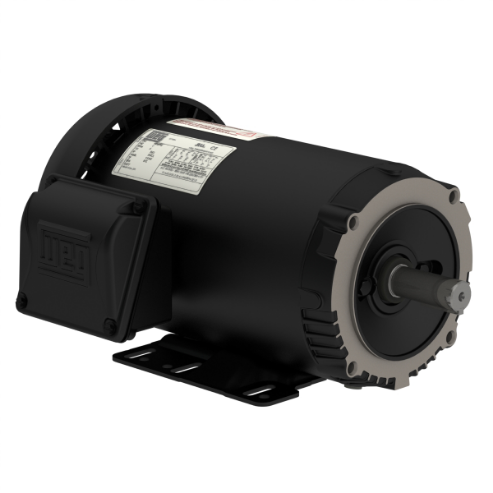

WEG 00236ET3H145TC-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9CNJ

WEG 00236ET3H145TC-S 14802735 General Purpose Motor, 2 HP, 3600 RPM, 575 V, 3 Phase, TEFC, 145TC Frame, Footed

Item: BB9CNJModel: 00236ET3H145TC-SCross Ref: 14802735
Check Availability
In Stock

Get it by Tuesday, Aug 25

€643.06 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. -20°C to +40°C
Amps 1.98A
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 300%
Cold Locked Rotor Time 23 sec.
Composition Steel
Connection Cables Quantity 6
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency 50% 73%
Efficiency @ 1 % 89%
Efficiency @ 75 % 83%
Enclosure Type Tefc
Fan Cover Material Polymer
Fan Material Plastic
Flange Type C
Frame 143/5TC
Frame Material Rolled Steel
Frame Size 145TC
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 13 sec.
Hp 2 hp
L. R. Amps 19.6A
Locked Rotor Torque 250%
Lrc 9.9X(Code L)
Main Terminal Box Hole Size 1.118"
Moment Of Inertia 0.1279 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3520 RPM
Mounting Foot Mounted
No Load Amps 0.85A
No. Of Poles 2
Noise Level 68 dBA
Output 2 hp
Output Rating 2 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor @ 1 % 85.5
Power Factor @ 50 % 82.5
Power Factor @ 75 % 85.5
Product Datasheet weg-00236et3h145tc-s.pdf
Resilient Base Without
Rotation CW, CCW
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.22%
Speed 3400-3600 RPM
Synchronous Speed 3600 RPM
Terminal Block Without
Terminal Box Left Position
Torque 2.98 lbs.-ft.
Voltage 575V , 575V AC

Shipping Info:

Ship weight (kg) 20.25
Ship height (cm)48.26
Ship length (cm)48.26
Ship width (cm)45.72
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrequencyHpService FactorMotor Enclosure DesignFull Load AmpsMotor TypeMounting TypePrice
WEG 01836ET3Y160LFF-W22 Metric Motor, 25Hp, 230/460v Cw / Ccw | AA2GEN 10G894 01836ET3Y160LFF-W22460V50 Hz25 hp1.25Totally Enclosed Fan Cooled29.9A-Face, Base€5,367.05
WEG 03736ET3Y200LFF-W22 Metric Motor, 50Hp, 230/460v Cw / Ccw | AA2GEY 10G904 03736ET3Y200LFF-W22460V60 Hz50 hp1.25Totally Enclosed Fan Cooled59.8A-Face, Base€9,770.55
WEG 05536ET3Y250S/MFF-W2 Metric Motor, 75Hp, 230/460V, Cw / Ccw | AA2GFD 10G909 05536ET3Y250S/MFF-W2460V AC50/60 Hz75 hp1.25Totally Enclosed Fan Cooled80.3A-Face, Base€16,526.29
WEG 00156ET3H143TC-W22 General Purpose Motor, 3-phase Tefc 1-1/2 Hp, 3495 Rpm 143tc | AA4JCX 12N885 00156ET3H143TC-W22575V AC60 Hz1 1/2 hp1.25Totally Enclosed Fan Cooled1.57AThree PhaseRigid Base€840.81
WEG 00236ET3H145TC-W22 General Purpose Motor, 3-phase Tefc 2 Hp, 3490 Rpm 145tc | AA4JCZ 12N887 00236ET3H145TC-W22575V AC60 Hz2 hp1.25Totally Enclosed Fan Cooled2.05AThree PhaseRigid Base€853.67
WEG 00336ET3H182TC-W22 General Purpose Motor, 3-phase Tefc 3 Hp, 3510 Rpm 182tc | AA4JDB 12N889 00336ET3H182TC-W22575V60 Hz3 hp1Totally Enclosed Fan Cooled2.9AThree PhaseRigid Base€1,055.20
WEG 00536ET3H184TC-W22 General Purpose Motor, 3-phase Tefc 5 Hp, 3510 Rpm 184t | AA4JDD 12N891 00536ET3H184TC-W22575V AC60 Hz5 hp1.25Totally Enclosed Fan Cooled4.72AThree PhaseRigid Base€1,251.50
