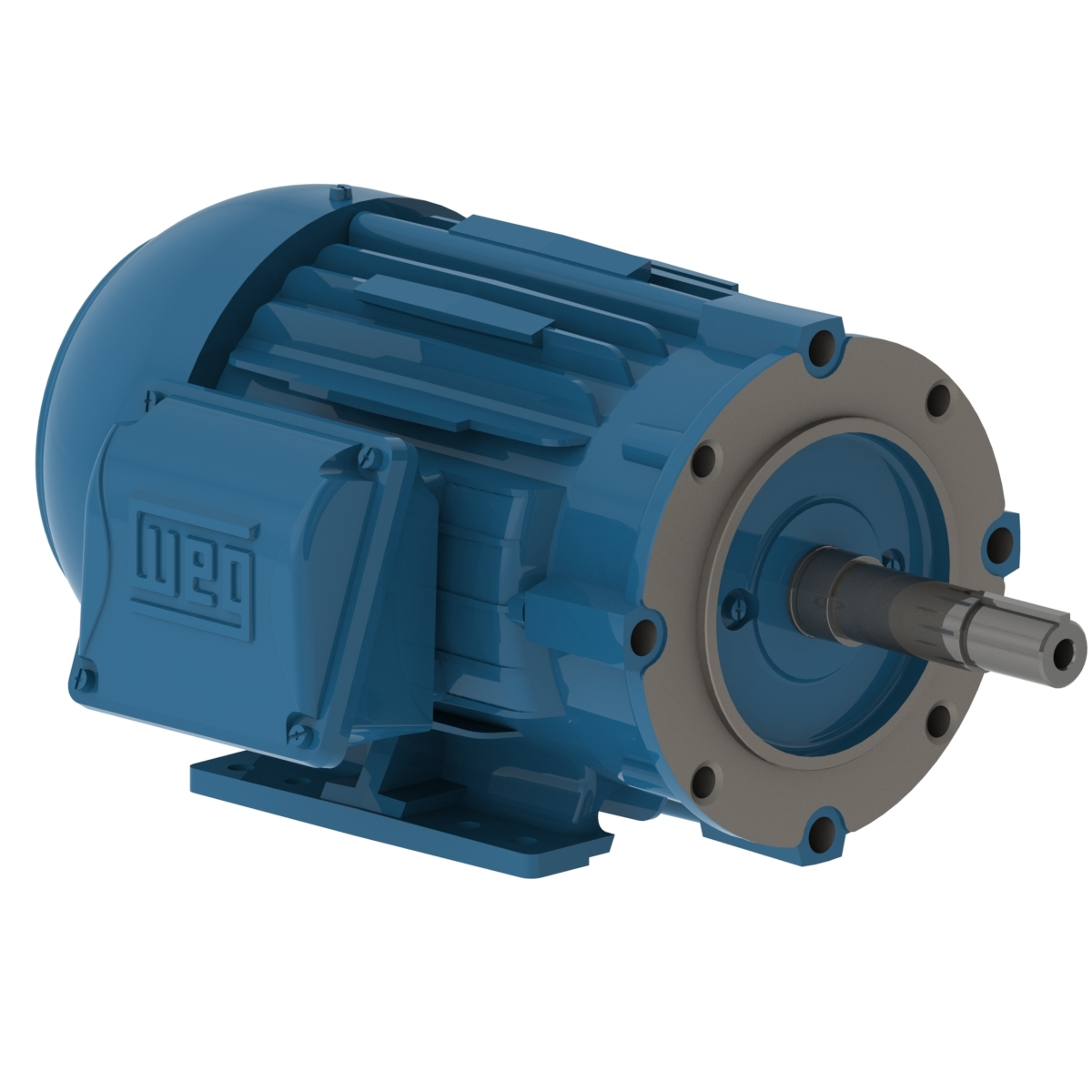

WEG 00236ET3H145JM-W22 13469728 Pump Motor, 2 HP, 3600 RPM, 575V, TEFC, 0.960 A No Load Current, 145JM, Footed, Close CoupLED Pump
3600 rpm
2 hp
145JM
Get it by Wednesday, Aug 26
€814.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 2.15A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Cold Locked Rotor Time | 21 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 6 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 145JM |
| Frame Material | Cast Iron |
| Frame Size | 145JM |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Hp | 2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 19.2A |
| Locked Rotor Time(hot) | 12 sec. |
| Lrc | 8.9x(Code L) |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | V Ring |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Product Datasheet | weg-00236et3h145jm-w22.pdf |
| Pump Seal | Mechanical Seal |
| Replaces | 00236EP3H145JM-W22 |
| Rotation | CW And CCW |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Speed | 3400-3600 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 575V |
Shipping Info:
| Ship weight (kg) | 26.1 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 39.81 |
| Ship width (cm) | 37.08 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Voltage | Frequency | Hp | Service Factor | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01836ET3Y160LFF-W22 | 460V | 50 Hz | 25 hp | 1.25 | Totally Enclosed Fan Cooled | 29.9A | - | Face, Base | €5,367.05 | |
| 03736ET3Y200LFF-W22 | 460V | 60 Hz | 50 hp | 1.25 | Totally Enclosed Fan Cooled | 59.8A | - | Face, Base | €9,770.55 | |
| 05536ET3Y250S/MFF-W2 | 460V AC | 50/60 Hz | 75 hp | 1.25 | Totally Enclosed Fan Cooled | 80.3A | - | Face, Base | €16,526.29 | |
| 00156ET3H143TC-W22 | 575V AC | 60 Hz | 1 1/2 hp | 1.25 | Totally Enclosed Fan Cooled | 1.57A | Three Phase | Rigid Base | €840.81 | |
| 00236ET3H145TC-W22 | 575V AC | 60 Hz | 2 hp | 1.25 | Totally Enclosed Fan Cooled | 2.05A | Three Phase | Rigid Base | €853.67 | |
| 00336ET3H182TC-W22 | 575V | 60 Hz | 3 hp | 1 | Totally Enclosed Fan Cooled | 2.9A | Three Phase | Rigid Base | €1,055.20 | |
| 00536ET3H184TC-W22 | 575V AC | 60 Hz | 5 hp | 1.25 | Totally Enclosed Fan Cooled | 4.72A | Three Phase | Rigid Base | €1,251.50 |
