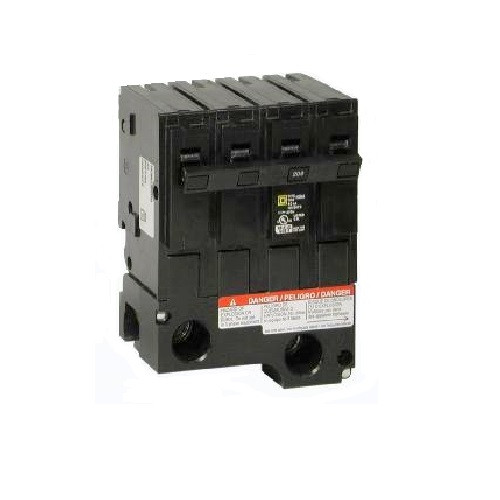

SQUARE D HOM2175BB Mini Branch Circuit Breaker, 175A, 240VAC, 2 Poles
Item: CE6HCLModel: HOM2175BB
7 In Stock
Ships within 2 days via
5.00% off
€635.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Ambient Air Temp. For Operation | 104°F |
| Amps | 175A |
| Amps Rating | 175A |
| Circuit Breaker Type | Standard |
| Depth | 3.13" |
| Electrical Connection | Box Lugs |
| Frame Type | Home |
| Height | 5.39" |
| Mounting Type | Plug In |
| No. Of Poles | 2 |
| No. Of Spaces | 4 |
| Number Of Poles | 2 |
| Ratings | HACR Rated |
| Returnability | No |
| Short Circuit Current Rating | 10 kA |
| Tightening Torque | 250.5 lbf.in. @ 0.1 sq. in. to 0.2 sq. in. @ 4/0 AWG to 250 kcmil |
| Voltage | 240V |
| Voltage Rating | 120/240V AC |
| Voltage Type | AC |
| Width | 3.98" |
| Wire Size | 4 AWG to 300 kcmil |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 14.48 |
| Ship length (cm) | 19.56 |
| Ship width (cm) | 17.27 |
| Country of Origin | US |
Product Details:
- Square D HOM2175BB circuit breaker designed to protect sensitive electronic equipment from overload and short-circuit occurrences
- Features a fixed thermal-magnetic trip unit to offer instantaneous and time-delayed current limiting protection
- Load-side lug terminals accommodate aluminium / copper wires of sizes between 4 AWG and 300 kcmil
- Operates efficiently at an ambient temperature of 40 degrees C
- RoHS compliant
Product Variants
| Product | Model | Number Of Poles | Amps | Ac Voltage Rating | Max. Air Rating | Depth | Dc Voltage | Terminal Connection Type | Terminal Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HOM115 | 1 | 15A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | - | Screw Clamp | €13.57 | |
 |
HOM115GFI | 1 | 15A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | €133.36 | |
|
HOM120 | 1 | 20A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | €13.57 | |
 |
HOM120GFI | 1 | 20A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | €133.36 | |
|
HOM130 | 1 | 30A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | €13.57 | |
 |
HOM140 | 1 | 40A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Lug | Lug | €16.90 | |
|
HOM150 | 1 | 50A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Lug | Lug | €16.90 |
